Schema Diagrams
The following diagrams illustrate the structures of the sample database schemas.
Sample Schema Diagrams

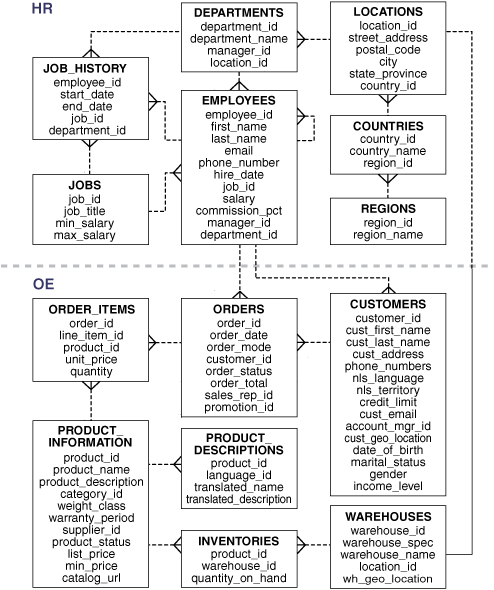

The following diagram illustrates sample schemas hr and oe and their relationship. For information about the scripts and table descriptions for these schemas, see HR Schema and OE Schema.
Description of the illustration comsc008.gif

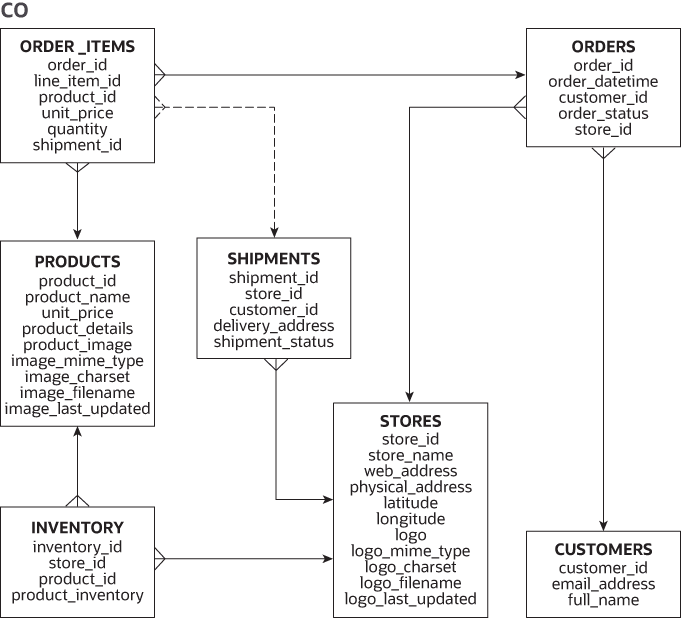

The following diagram illustrates schema co. For information about the scripts and table description for this schema, see CO Schema.
Description of the illustration customer-orders-sd.png

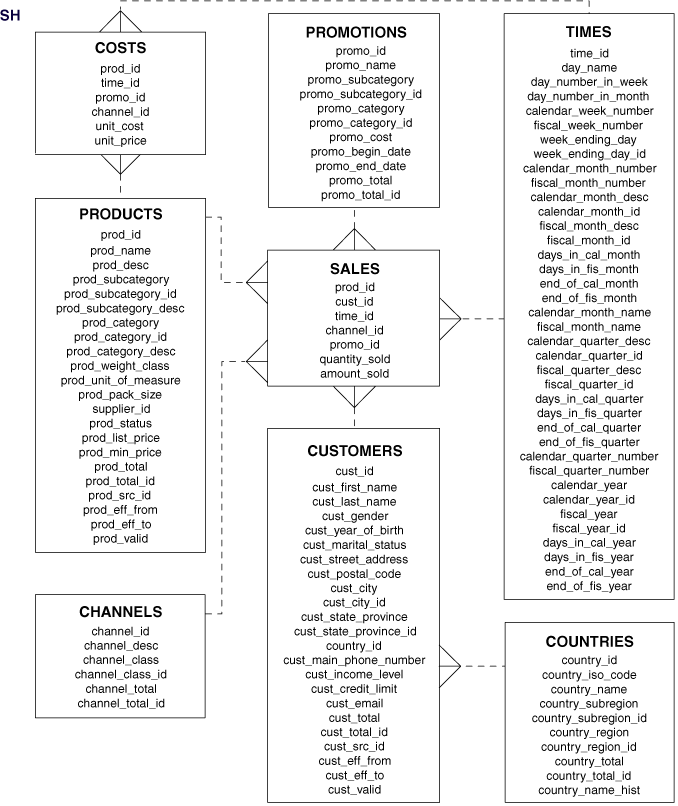

The following diagram illustrates schema sh. For information about the scripts and table description for this schema, see SH Schema.
Description of the illustration comsc010.gif

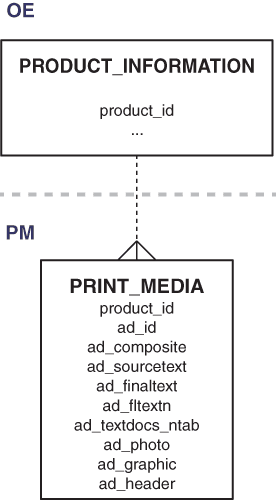

The following diagram illustrates schema pm. For information about the scripts and table description for this schema, see PM Schema.
