Securing and Isolating Resources Using DbNest

You can secure and isolate instance-level and operating system resources by using dbNest.

About DbNest
DbNest provides hierarchical, isolated run-time environments at the CDB and PDB level.
How DbNest Works
DbNest achieves isolation and file system access controls using Linux namespaces.
Enabling DbNest
When you enable dbNest, the CDB nest is created as a resource-only nest, and the CDB child PDBs are created as full nests.
Configuring File System Isolation for a Database Nest
You can configure a file system to be mounted within or excluded from a nest.

About DbNest

DbNest provides hierarchical, isolated run-time environments at the CDB and PDB level.

These run-time environments provide file system isolation, process ID number space isolation, and secure computing for PDBs and CDBs. To protect the multitenant environment from security breaches, dbNest uses the latest Linux resource isolation, namespace, and control group features.

How DbNest Works

DbNest achieves isolation and file system access controls using Linux namespaces.

Purpose of DbNest
DbNest isolates a database instance from other databases and applications running on the same host, and also isolates PDBs from each other and from the CDB.
Linux Namespaces
A Linux namespace wraps a global system resource in an abstraction that makes it appear to processes within the namespace that they have their own isolated instance of the global resource.
DbNest Properties
A nest is a runtime environment that Oracle Database creates for every CDB, PDB, or application container.
DbNest Architecture
The dbNest library is integrated with Oracle Database binaries, forming a single virtual environment.
User Interface for DbNest
By default, dbNest is disabled. You can enable and configure it using initialization parameters.
How Oracle Database Manages a Nest
When the DBNEST_ENABLE initialization parameter is set to any value other than NONE, Oracle Database automatically creates, manages, and deletes nests. These operations are transparent to the user.

Purpose of DbNest

DbNest isolates a database instance from other databases and applications running on the same host, and also isolates PDBs from each other and from the CDB.

Sharing instance-level and operating system resources can lead to security and isolation constraints, especially in large-scale cloud deployments. Vulnerabilities can be external, such as compromised applications, unauthorized access of resources, and shared resources. An example of an internal vulnerability is a compromised Oracle process.

Ideally, a database instance protects all resources from unauthorized access from all methods. For database instance and PDB protection, the requirements are as follows:

The database instance and its resources must not be accessed by the oracle operating system user or a high-privileged operating system user.
Another database instance or application, whether in the same Oracle home or a different Oracle home, must not have access to the database instance.
Processes from one PDB must not access resources belonging to either the CDB or another PDB.

DbNest is the Oracle solution for database instance and PDB protection. This infrastructure enables a database instance to run in a protected, virtualized environment.

The infrastructure is implemented as a Linux-specific package that provides hierarchical containers, called nests. A CDB resides within a single parent nest, while PDBs reside within the individual child nests created within the parent. Linux processes in a PDB nest have their own process ID (PID) number spaces and cannot access PIDs in other nests. Process isolation provides a last level of defense in a security breach if a malicious user compromises a process.

Linux Namespaces

A Linux namespace wraps a global system resource in an abstraction that makes it appear to processes within the namespace that they have their own isolated instance of the global resource.

Important types of namespaces are:

Process namespace

A namespace has an independent set of process IDs. The first process initializes the namespace. Every process inside the namespace receives a process ID, starting with 1. Each process can only see the processes inside the namespace.
User ID namespace

A user namespace maps user IDs between the namespace and the operating system. The oracle user can create a namespace without the need for system-wide root privileges. Configured properly, the oracle is effectively a root user inside this namespace, but this privilege is restricted to the namespace.
Mount namespace

Mount namespaces control mount points. A mount point within a child namespace is not visible to its parent. However, any mount operations within the parent namespace are visible to the child.

Linux namespaces provide the operating system infrastructure for dbNest, enabling different nests to function as independent virtual environments.

DbNest Properties

A nest is a runtime environment that Oracle Database creates for every CDB, PDB, or application container.

Each nest corresponds to exactly one container. The nest hierarchy exactly mirrors the container hierarchy. Because a CDB can contain one or more PDBs, a parent CDB nest can have one or more child nests. Each child nest corresponds to the PDB that can be contained in the nest.

A database nest instance is the collection of all nests and metadata associated with a CDB. For example, assume that a parent nest contains a CDB, and each of its 99 PDBs is in a separate child nest. In this case, the database nest instance for this CDB contains 100 nests. A database nest instance can contain a maximum of 4000 nests. If a host contains x number of CDBs, then 4000x nests are supported on this host, up to a maximum of 8142.

A nest has the following properties:

Operating system isolation

A nest isolates operating system resources such as the process ID, user, and mount by providing a virtualized environment in which an application runs. The hierarchical structure provides visibility for the parent nest to access the child nests. A process belonging to one PDB is not visible to other PDBs or the CDB root.
File system isolation

Within a nest, you can control the visibility for file system entities, so that critical or unrelated entities are hidden from other nests. For example, within hrpdb, you might make only the following file system entities visible within the nest: /lib, $ORACLE_HOME/lib, the data file path, the trace file path, and the ETL staging area. The shell, device files, and mount configuration are not accessible to PDBs in other nests.

A pivot root in Linux namespaces is equivalent to chroot: an operation that changes what the current running process sees as the root directory. A bind mount enables the contents of one directory to be accessible in a different directory. The two directories are independent. Using bind mounts, the same files can be located in multiple chroot environments without copying the contents.
Resource management

You can control and monitor the resources of a nest, including CPU and memory. The resources available for a nest are based on the availability of the same resources from parent nest.
Secure computing mode (seccomp)

DbNest uses seccomp to filter out system calls that could be unnecessary or malicious. Internally, seccomp uses Berkeley Packet Filters (BPF).

When you enable dbNest, the CDB is created as a resource-only (or partial) nest. Each PDB within the CDB is created as a full nest, which includes both isolation and resource management.

DbNest Architecture

The dbNest library is integrated with Oracle Database binaries, forming a single virtual environment.

The dbNest interface layer manages the Linux namespaces, resources, file system, and so on. This interface layer interacts with the CDB, which maintains a table that maps PDBs to nests.

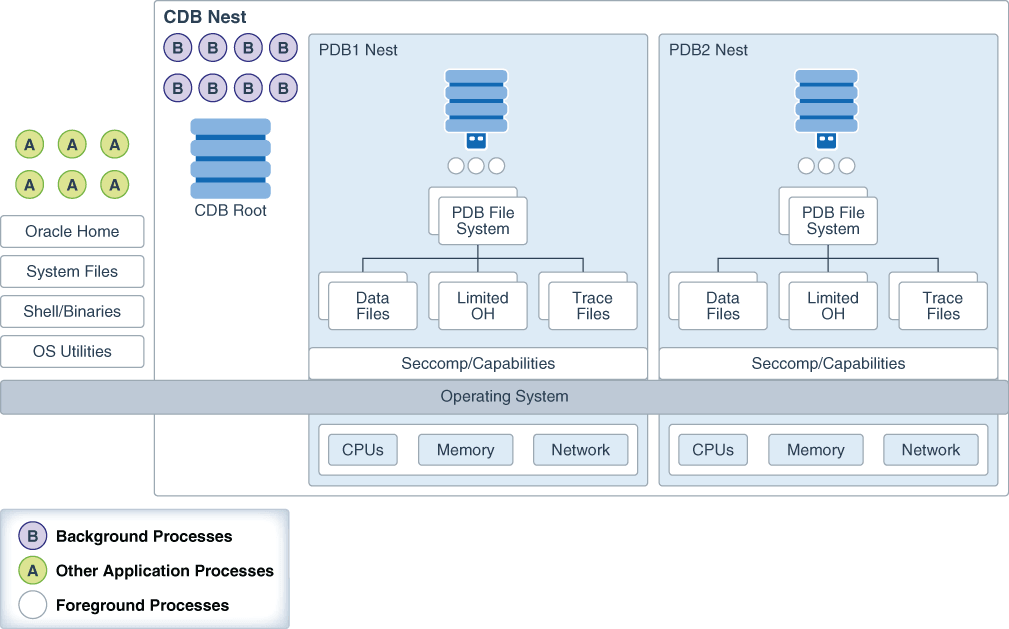

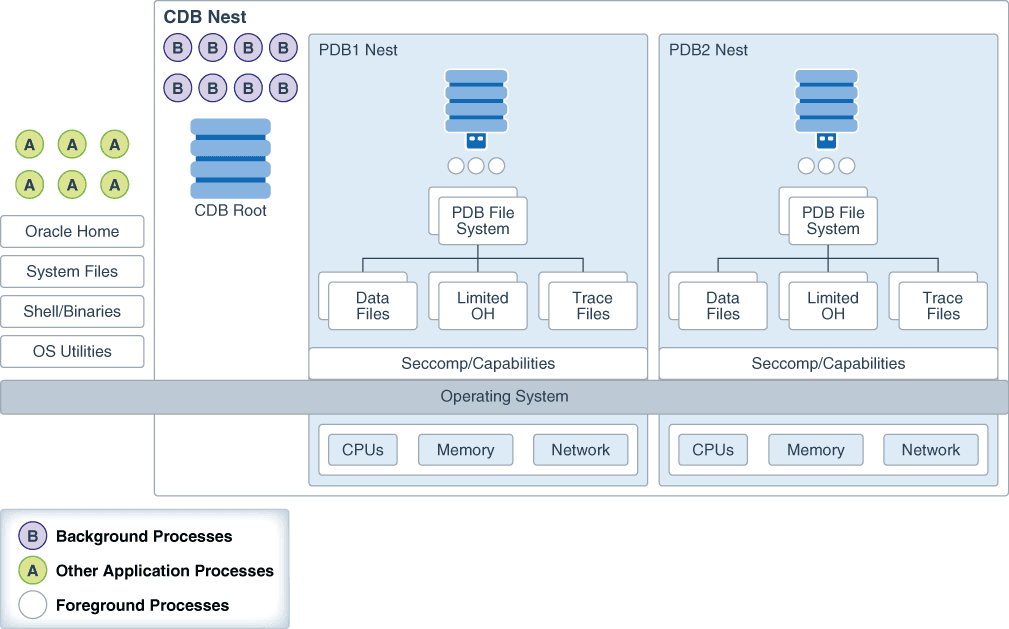

The following figure illustrates the basic architecture of dbNest for a CDB that contains two PDBs.

Figure 1: Architecture of a CDB Nest

Description of the illustration multi_dbnest.png

The graphic shows one nest hierarchy. The parent nest contains the CDB root, including the database background processes. If Oracle Automatic Storage Management (Oracle ASM) is used for storage, then the storage security model is provided by Oracle ASM.

The parent nest has two child nests: one containing PDB1 and its foreground processes, and one containing PDB2 and its foreground processes. Each PDB only has access to the relevant file system, trace files, and Oracle home files within its own nest. Each nest manages its own CPU, memory, and network resources.

In the preceding diagram, the CDB nest hierarchy has no access to operating system processes and files. For example, PDB1 cannot access a Linux shell, system files, or application processes.

User Interface for DbNest

By default, dbNest is disabled. You can enable and configure it using initialization parameters.

DbNest Initialization Parameters
You can manually enable and configure DbNest by using initialization parameters.
DbNest Configuration File
The configuration file, which applies to the whole CDB, lists paths to be mounted inside the CDB. These paths are in addition to the default paths.

DbNest Initialization Parameters

You can manually enable and configure DbNest by using initialization parameters.

To set the following initialization parameters using the ALTER SYSTEM statement, the instance must have been started with a server parameter file, and you must set SCOPE=SPFILE in ALTER SYSTEM.

Parameter	Description
`DBNEST_ENABLE`	Enables or disables dbNest. Set this parameter in the CDB root. `DBNEST_ENABLE` accepts the following values: `NONE` Disables dbNest . This is the default value. `CDB_RESOURCE_PDB_ALL` Enables full nest for PDBs and a resource-only nest for the CDB.To set this parameter, a dedicated broker must have been configured.
`DBNEST_PDB_FS_CONF`	Specifies the location of an optional file system configuration file. Set this parameter in the CDB root.

DbNest Configuration File

The configuration file, which applies to the whole CDB, lists paths to be mounted inside the CDB. These paths are in addition to the default paths.

Syntax for the Configuration File

Whitelisting is the default option for file system configuration. If a configuration file is specified, then the list of directory paths is mounted inside the nest along with default paths. A path specification has the following syntax:

source [destination [options]]

The first two placeholders are defined as follows:

source

Specifies the source directory in which to mount. If you specify the source as dev, then the file system mounts a special directory that contains only the following files: zero, random, urandom, shm. The file shm can be mounted if required.
destination

Specifies an optional destination directory. If no directory is specified, then the database uses source as the destination. Note: Both source and destination can be environment variables.
options

Options require destination to be set. Options can be any of the following:
- ro specifies read-only mount.
- nosetuid specifies no setuid execution through files in this directory.
- noexec specifies no execution of any binaries in this directory.
- optional specifies that this directory will be mounted only if the source is available.

Tokens for the Source and Destination Directories

The source and destination can have tokens in the form $TOKEN or ${TOKEN}. You can provide the token either as an environment variable or through options in the dbNest library call. The library call uses the format name[array], value[array]. A user-provided name-value pair takes precedence.

DbNest supports the following tokens:

$PDB
$PDBID (the container ID shown in V$PDBS.CON_ID)
$ORACLE_HOME
$ORACLE_BASE
$ORACLE_BASE_HOME
$ORACLE_BASE_CONFIG

Directives in the Configuration File

By default, a configuration file is an allowlist. If DBNEST_NO_DEFAULT is the first line in the configuration file, then the database ignores internal default paths. The following configuration file allowlists /home/oracle/MYCDB/$PDB and ignores internal default paths:

DBNEST_NO_DEFAULT
/home/oracle/MYCDB/$PDB

If DBNEST_NO_FS_ROOT_MODE is specified, then the directories following this line are blocked, creating a blocklist. DbNest assumes that any specified directories exist. Assume that the directories /usr/local/bin and /bin/usr/bin exist. The following configuration file blocklists these directories:

DBNEST_NO_FS_ROOT_MODE
/usr/local/bin
/bin/usr/bin

Note: Do not place $ORACLE_HOME/bin on the blocklist because this directory is necessary for the oracle binary to be spawned.

How Oracle Database Manages a Nest

When the DBNEST_ENABLE initialization parameter is set to any value other than NONE, Oracle Database automatically creates, manages, and deletes nests. These operations are transparent to the user.

Specifically, Oracle Database performs the following operations:

Creating a nest

At instance startup, Oracle Database creates a parent nest for the CDB root, and one child nest for each mounted PDB. Also, a CREATE PLUGGABLE DATABASE command automatically triggers the creation of a child nest for the created PDB.
Opening a nest

When you first log in to a PDB, the CDB opens the child nest for the PDB. Logging in to the CDB root and opening a PDB also opens the child nest for this PDB.
Updating a nest

Resources such as CPU count may change while the CDB is running. In this case, Resource Manager updates the nest configuration automatically.
Closing a nest

The CDB closes a PDB child nest when you close a PDB by using the connection either inside the PDB or from the CDB root. A background processes closes the nest.
Deleting a nest

The CDB removes a PDB child nest when the PDB is deleted or unplugged. When the database instance is shut down, the CDB parent nest is removed.

Enabling DbNest

When you enable dbNest, the CDB nest is created as a resource-only nest, and the CDB child PDBs are created as full nests.

Ensure that the CDB and its PDBs are registered with a local listener.

This listener must be configured to route all connections through a dedicated broker. When a client connects to the database, the listener hands the connection off to the broker, which then passes the client connection to a dedicated server process. Unlike the listener, the broker is part of the database instance. The CDB and PDB services should be registered with the listener to redirect the connection to the broker.

The listener.ora file must the following setting:
```
dedicated_through_broker_listenername=on
```
Connect to the CDB root as a user who has administrative privileges.

For example:
```
CONNECT c##sec_admin
Enter password: password
```

Ensure that the USE_DEDICATED_BROKER initialization parameter is set to TRUE.

SHOW PARAMETER DEDICATED_BROKER

The following output should appear:

NAME                                 TYPE        VALUE

------------------------------------ ----------- -----------------------
use_dedicated_broker                 boolean     TRUE

Set the DBNEST_ENABLE initialization parameter to CDB_RESOURCE_PDB_ALL and the scope to SPFILE:
```
ALTER SYSTEM SET DBNEST_ENABLE=CDB_RESOURCE_PDB_ALL SCOPE=SPFILE;
```
Restart the CDB so that the server parameter file will use the setting from the ALTER SYSTEM SET DBNEST_ENABLE statement.
```
SHUTDOWN IMMEDIATE
STARTUP
```
The CDB instance and all PDBs show now be running within a database nest.
Optionally, check the alert log to ensure that the dbNest was correctly configured.

Search for nest or DB Nest. A line similar to the following appears:
```
Instance running inside DB Nest (dbNest_name)
```

Configuring File System Isolation for a Database Nest

You can configure a file system to be mounted within or excluded from a nest.

By default, dbNest mounts necessary file systems. For security reasons, you may choose to hide and reveal selected sets of directories or mount points from other nests. The following procedure assumes that the CDB and its PDBs are in a single nest. Before you can perform this procedure, a nest must be currently enabled for the CDB or PDB.

On the Linux host, create a text file named nest_blocklist.txt (or any arbitrary file name) with the following contents:
```
DBNEST_NO_FS_ROOT_MODE
list_of_file_systems_to_exclude
```
For example, if you want to exclude the /bin and /usr/bin:
```
DBNEST_NO_FS_ROOT_MODE
/bin
/usr/bin
```
Check the alert log for the CDB to ensure that it has been configured to use a nest.

Search for nest or DB Nest. A line similar to the following appears:
```
Instance running inside DB Nest (dbNest_name)
```
Connect to the CDB root as a user who has administrative privileges.

For example:
```
CONNECT c##sec_admin
Enter password: password
```
Set the DBNEST_PDB_FS_CONF initialization parameter to the name of the configuration file, and set the scope to SPFILE.

For example:
```
ALTER SYSTEM SET DBNEST_PDB_FS_CONF='/dsk1/nest_blocklist.txt' SCOPE=SPFILE;
```
Restart the CDB so that the server parameter file will use the setting from the ALTER SYSTEM SET DBNEST_PDB_FS_CONF statement.
```
SHUTDOWN IMMEDIATE
STARTUP
```
