Expand Callback

You can expand a selected vertex in the graph and fetch the adjacent vertices using the Expand callback in the Property Editor of the Page Designer.

Switch to the Processing tab on the left pane of the Page Designer and navigate to the After Submit node.
Right-click and select Create Process from the context menu.
Enter the process Name.
Specify Type as Execute Code.
Select the source Location as Local Database.

Select the source Language as PL/SQL and enter the following code in the PL/SQL input box.

DECLARE
    data clob;
    ids sys.dbms_sql.varchar2a :=  APEX_APPLICATION.G_F01;
    graph VARCHAR2(100) := 'BANK_GRAPH';

    hops NUMBER := TO_NUMBER(APEX_APPLICATION.G_x01);
    n NUMBER := hops - 1;
    id_strings VARCHAR2(32767) := ' (';

    query VARCHAR2(32767);
    incur    sys_refcursor;
    l_cur    number;

BEGIN
    for i in ids.FIRST..ids.LAST LOOP
        IF i = ids.LAST THEN
            id_strings := id_strings || apex_exec.enquote_literal(ids(i)) || ') ';
        ELSE
            id_strings := id_strings || apex_exec.enquote_literal(ids(i)) || ', ';
        END IF;
    END LOOP;

    if hops > 1 then
        query  := 'SELECT id_x, id_e, id_z
        FROM GRAPH_TABLE (' || graph || ' MATCH (x) ->{,' || n || '} (y) -[e]-> (z)
        WHERE JSON_value(vertex_id(x), ''$.ELEM_TABLE'') || json_query(vertex_id(x),
          ''$.KEY_VALUE'' returning varchar2) IN ' || id_strings ||'

        COLUMNS (vertex_id(x) as id_x, edge_id(e) as id_e, vertex_id(z) as id_z))';
    else
        query  := 'SELECT id_x, id_e, id_z
        FROM GRAPH_TABLE (' || graph || ' MATCH (x) -[e]-> (z)
        WHERE JSON_value(vertex_id(x), ''$.ELEM_TABLE'') || json_query(vertex_id(x),
          ''$.KEY_VALUE'' returning varchar2) IN ' || id_strings ||'

        COLUMNS (vertex_id(x) as id_x, edge_id(e) as id_e, vertex_id(z) as id_z))';

    end if;

    open incur for query;
    l_cur := dbms_sql.to_cursor_number(incur);
    data := ora_sqlgraph_to_json(l_cur);

    dbms_sql.close_cursor(l_cur);
    apex_util.prn(data, false);
END;

In the preceding code, <graph_name> denotes the name of the graph. Note that the process takes the vertex id to be expanded as input and returns the resulting output as JSON.

Select the execution Point as Ajax Callback.
Switch to the Rendering tab on the left pane of the Page Designer and select the graph visualization component.
Switch to the Attributes tab on the right pane and enter the following code in the Expand input box in the Callbacks panel.
```
const data = await apex.server.process('<process_name>', {
    f01: ids,
    x01: hops
}, { dataType: 'text' });
try {
    return JSON.parse(data);
} catch (error) {
    return [];
}
```
In the preceding code, <process_name> refers to the name of process that was provided at step-3.
Click Save.

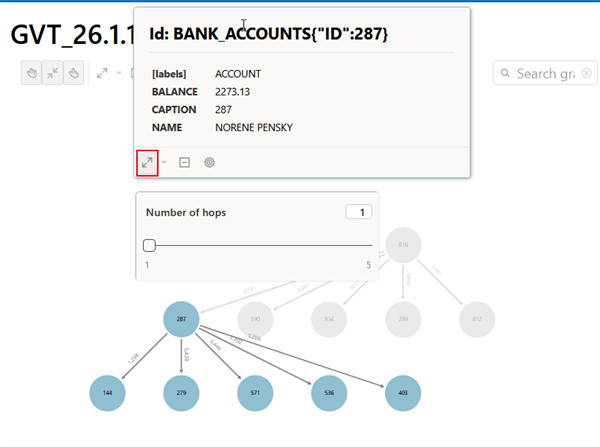

Run the application page and you can now click expand (as shown highlighted in the following figure) on any specific vertex in the graph.

The following figure shows the 1-hop neighbors after expanding from vertex CAPTION: 287. A hop count slider is displayed, allowing you to select a value between one and five to determine how many n-hop neighbors are fetched.

Figure: Expanding on a Specific Graph Vertex

Description of the illustration apex_expanded_graph.png
