25.7 Viewing Query Results in a Table

You can view your query results in tabular format in Graph Explorer.

1. Enter a graph query (SQL or PGQL) or any SQL statement in the query editor.
2. Select the appropriate driver in the query actions panel at the top of the query editor.
   • SQL: Select to run SQL graph queries on SQL property graphs or to execute any SQL statements.
   • PGQL: Select to run PGQL queries on PGQL property graphs.
   • Graph Server: Select to run PGQL queries on graphs loaded into the graph server (PGX).
3. Click Run (Table Result).
   The results are displayed in the Table Result tab.

Example 25-8 Viewing a SQL Query Output In a Table

The following example shows running a SQL SELECT table query using the SQL driver in Graph Explorer.

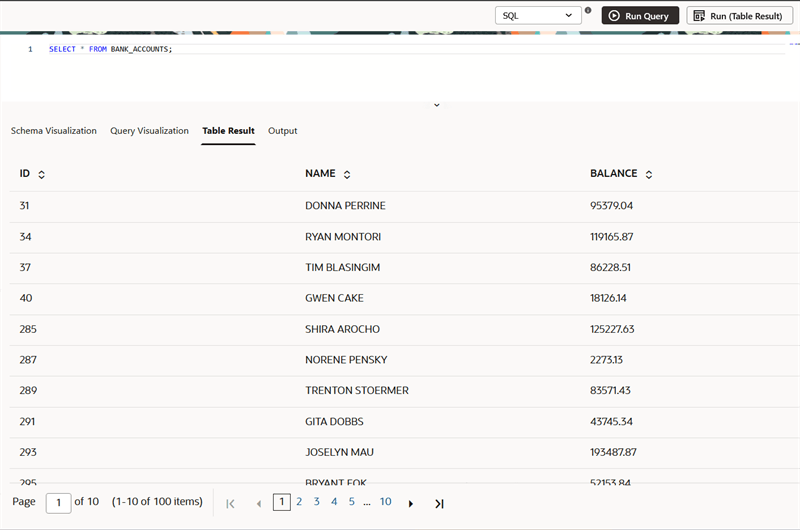

Figure 25-11 Tabular output for a SQL query

Description of "Figure 25-11 Tabular output for a SQL query"

Example 25-9 Viewing a PGQL Query Output In a Table

The following example queries a PGQL property graph and returns the output in tabular format.

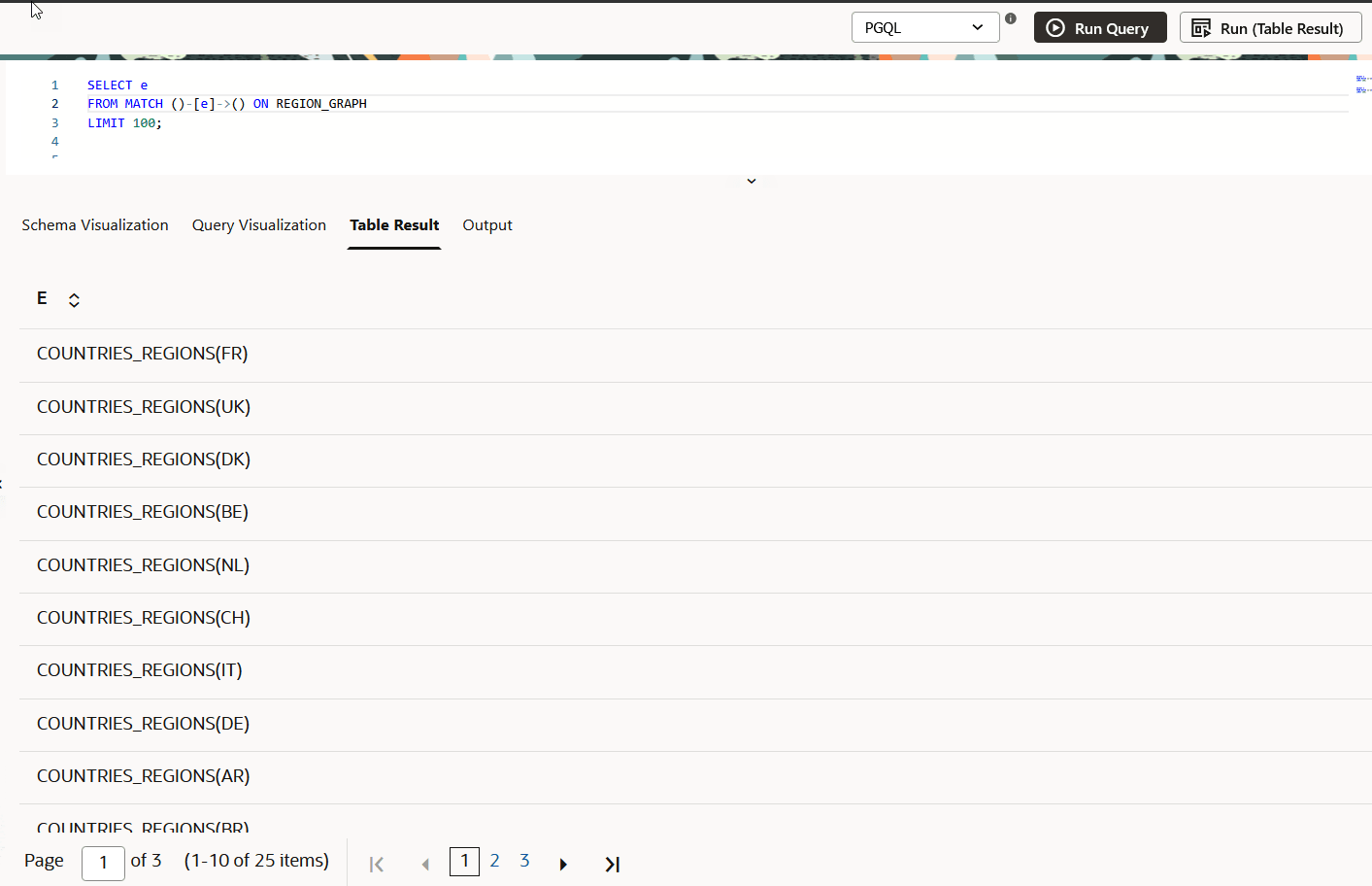

Figure 25-12 Tabular output for a PGQL graph query

Description of "Figure 25-12 Tabular output for a PGQL graph query"
