25.3 Visualizing the Schema of a SQL Property Graph in Graph Explorer

You can visualize the underlying schema of a SQL property graph in Graph Explorer.

Perform the following steps to visualize the schema of a SQL property graph in Graph Explorer.

1. Expand SQL Property Graphs in the left navigation pane.
2. Expand the desired schema to view the list of SQL property graphs to which you have access.
3. Select SQL driver in the action panel at the top of the query editor.
4. Right click on a specific graph and click Schema Visualization in the context menu.

   The schema of the graph is displayed in the Schema Visualization tab as shown:

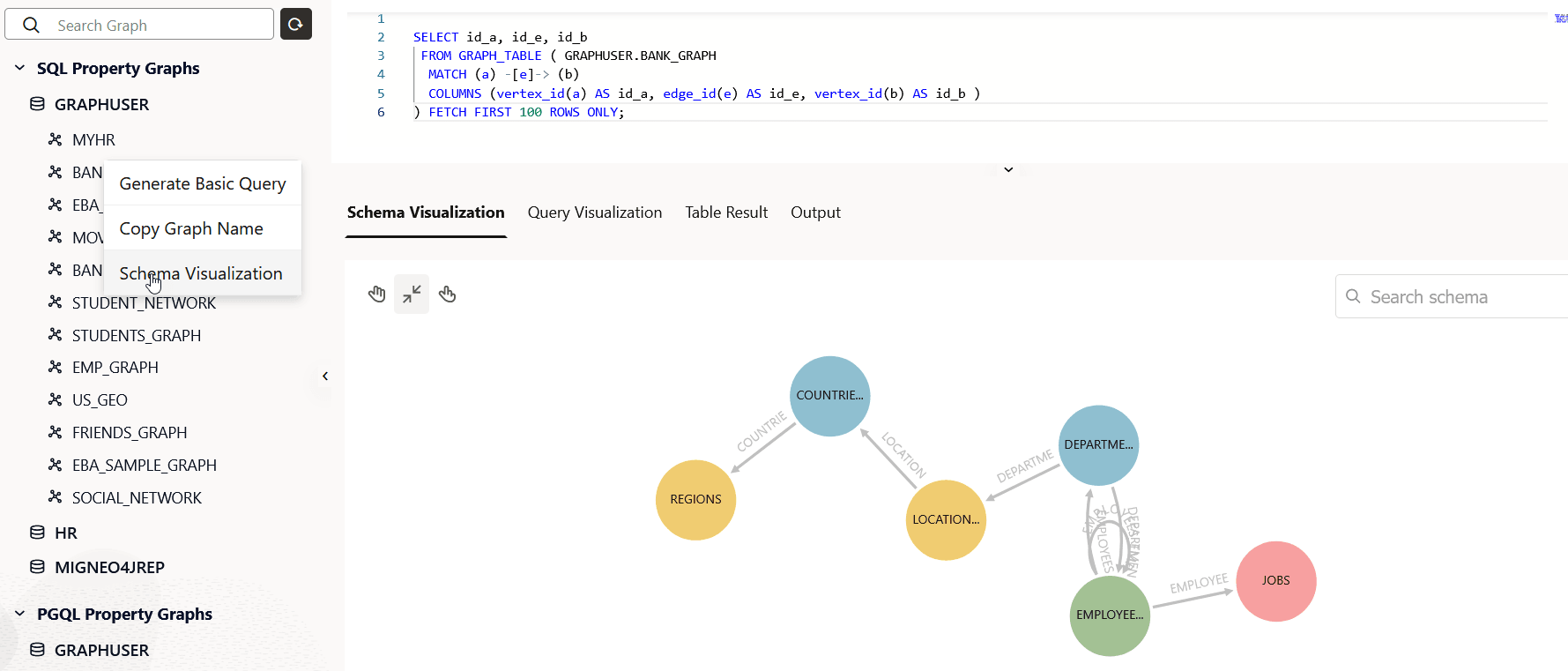

   Figure 25-3 Graph Explorer: Schema Visualization of a SQL Property Graph





   Description of "Figure 25-3 Graph Explorer: Schema Visualization of a SQL Property Graph"




   If you proceed to run a SQL graph query, then the schema visualization will be replaced with graph visualization.
