Configuring Modeler Settings

The Settings dialog enables you to configure preferences for Modeler, database synchronization, and Graph Assistant. These settings are applied to your Modeler session.

Click the Settings (gear) icon in the Modeler toolbar to open the Settings panel.

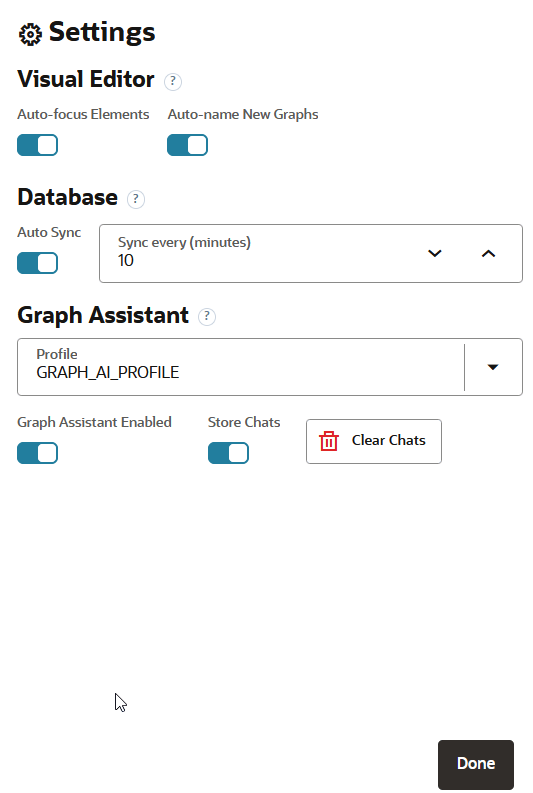

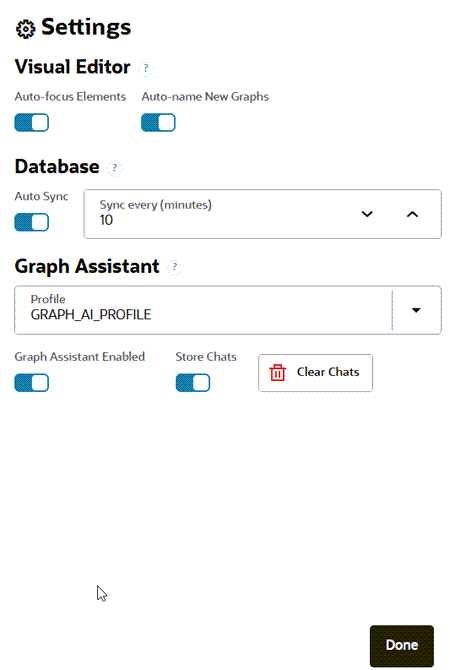

Figure: Modeler Settings

Description of the illustration modeler_settings.png

You can configure the following settings:

• Visual Editor Settings

  • Auto-focus Elements: Automatically centers and focuses the canvas on newly added or selected graph elements.

  • Auto-name New Graphs: Automatically generates a default name for newly created graphs.

• Database Settings

  • Auto Sync: Automatically synchronizes database changes with Modeler.

  • Sync every (minutes): Specifies the synchronization interval when Auto Sync is enabled.

• Graph Assistant Settings

  • Profile: Specifies the AI profile used by Graph Assistant to process natural language prompts.

  • Graph Assistant Enabled: Enables or disables Graph Assistant for the current database connection.

  • Store Chats: Saves Graph Assistant conversations for future reference.

  • Clear Chats: Deletes all saved Graph Assistant conversations.
