Viewing Query Results in a Table

You can view your query results in tabular format in Graph Explorer.

1. Enter a graph query (SQL or PGQL) or any SQL statement in the query editor.

2. Select the appropriate driver in the query actions panel at the top of the query editor.

   • SQL: Select to run SQL graph queries on SQL property graphs or to execute any SQL statements.

   • PGQL: Select to run PGQL queries on PGQL property graphs.

   • Graph Server: Select to run PGQL queries on graphs loaded into the graph server (PGX).

3. Click Run (Table Result).

   The results are displayed in the Table Result tab.

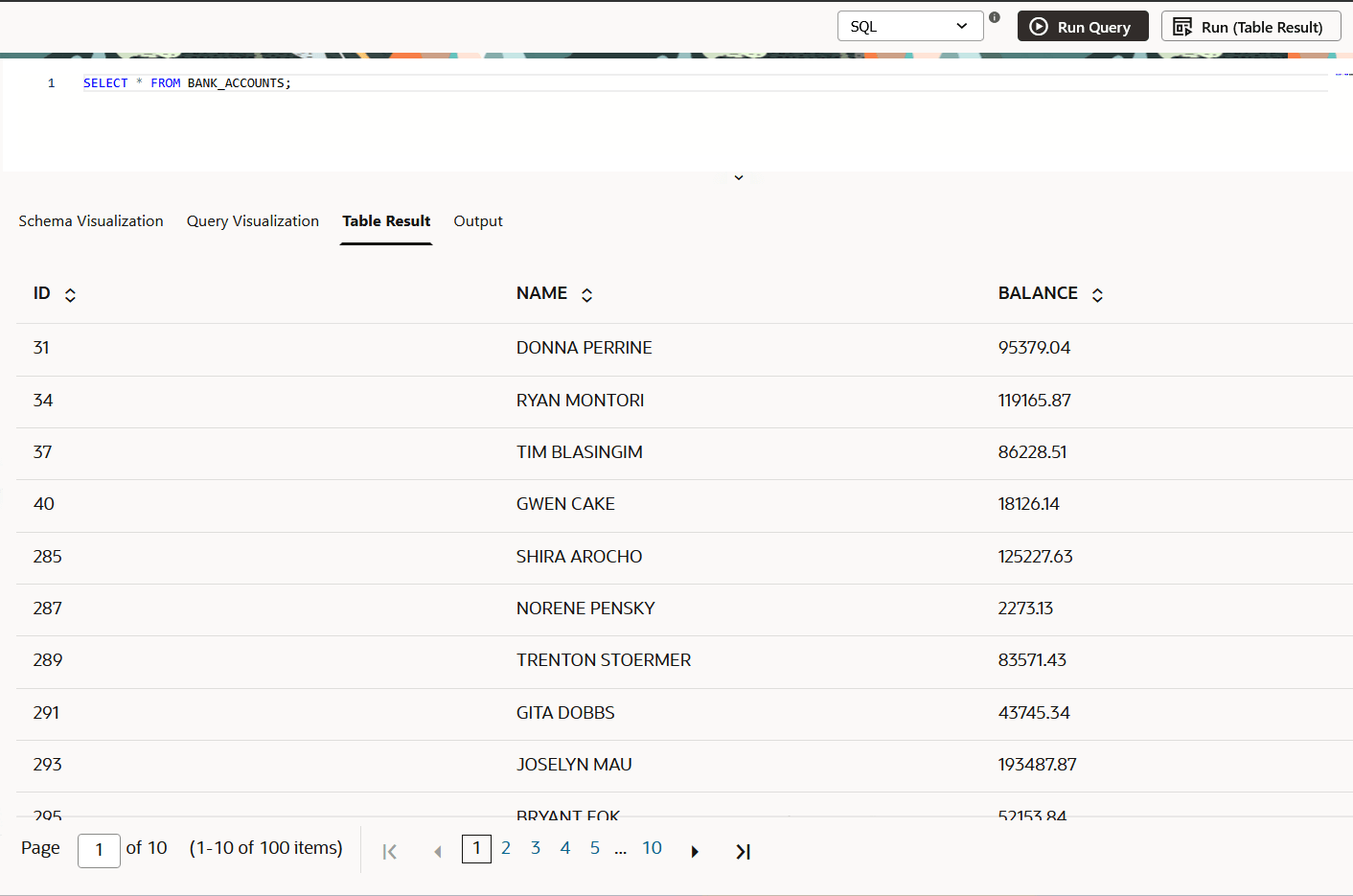

Example: Viewing a SQL Query Output In a Table

The following example shows running a SQL SELECT table query using the SQL driver in Graph Explorer.

Description of the illustration explorer_sql_table_output.png

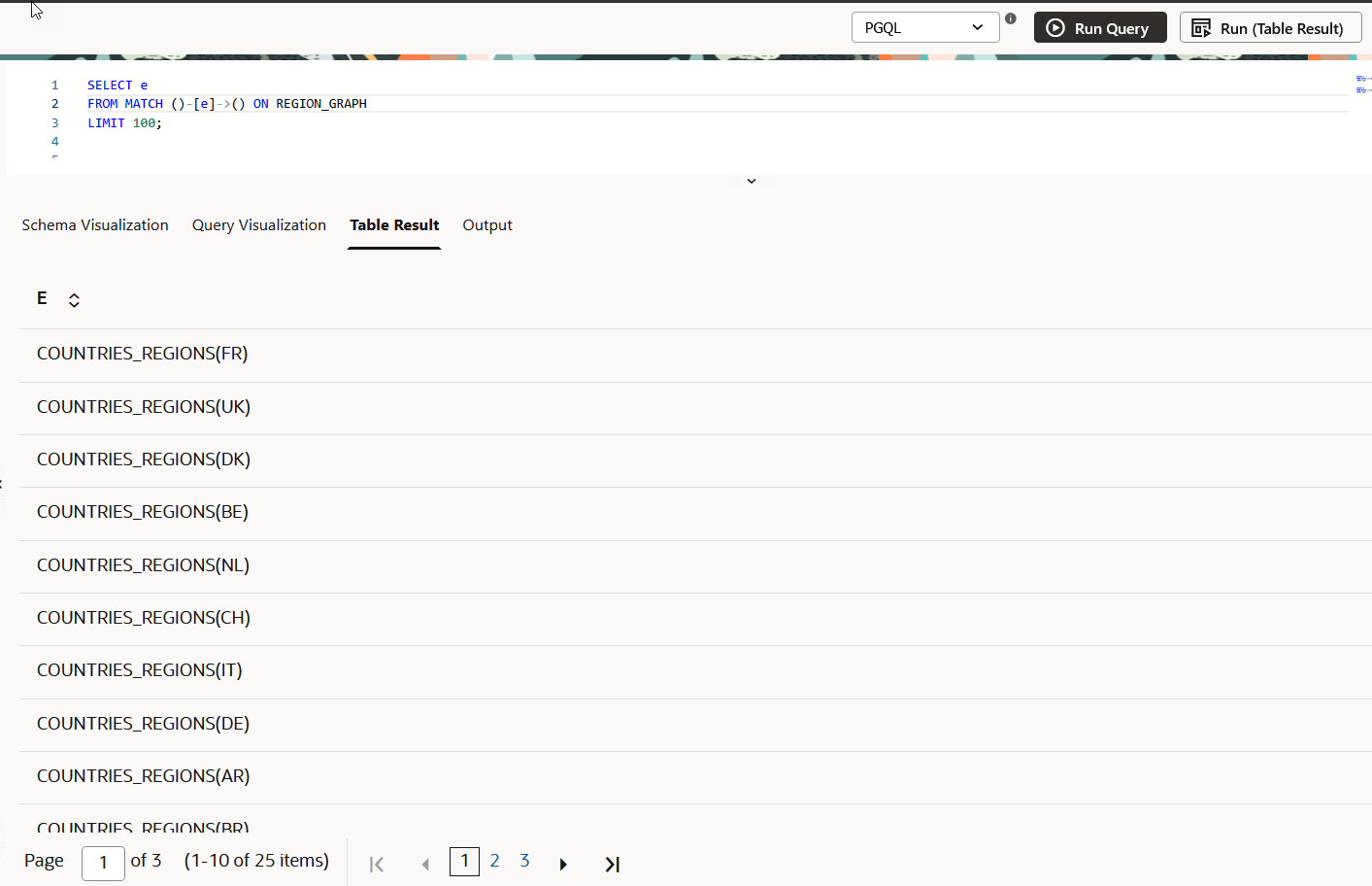

Example: Viewing a PGQL Query Output In a Table

The following example queries a PGQL property graph and returns the output in tabular format.

Description of the illustration explorer_pgql_table_output.png
