3.19 Working With APEXlang Applications

The Open Application Specification Language (APEXlang) is a declarative language for the generative development of Oracle APEX web applications. It provides developers and LLMs with a supported way to represent Oracle APEX applications as human-readable files that can be reviewed, versioned, diffed, scanned, validated, and governed.

Oracle SQL Developer for VS Code provides native support for APEXlang, including direct integration with AI assistants and advanced editing, source control, and diff capabilities. To improve the editing experience, SQL Developer for VS Code also provides APEXlang language services that use compiler feedback such as errors, warnings, and an application component tree to help developers work more productively.

Oracle SQL Developer for VS Code integrates SQLcl support for APEXlang import and export operations directly into the development workflow through the built-in terminal and user interface.

3.19.1 Understanding the Connection Navigator and APEXlang Editor

For any APEXlang application, SQL Developer for VS Code provides editor and navigator features to help you develop and deploy APEXlang applications.

Connections Navigator

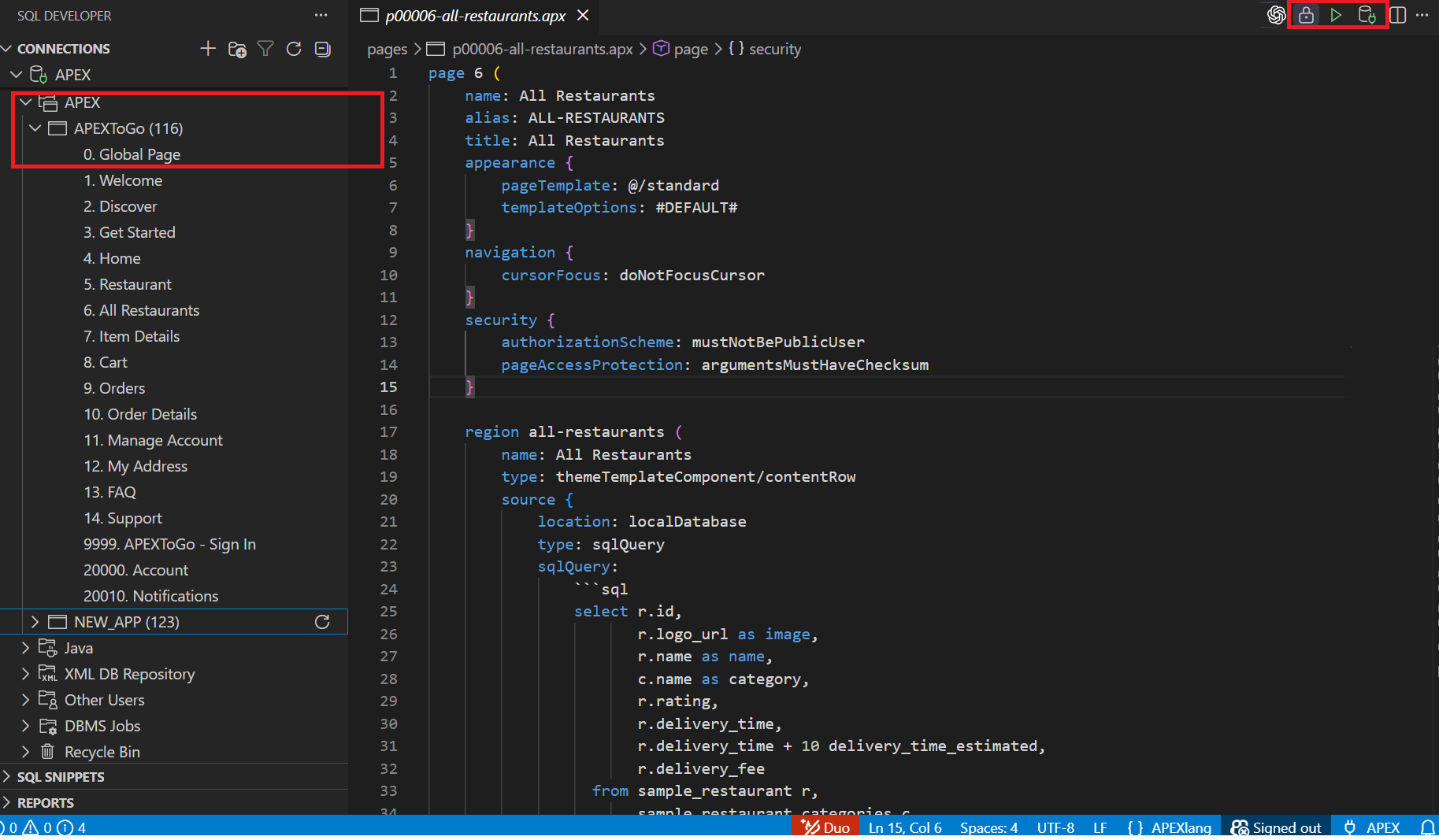

Description of the illustration apex_ui_elements.png

In the Connections navigator, APEX applications are available through APEX nodes, which provide context menu actions for creating or exporting APEXlang projects.

• APEX node (Generate): When you right-click the APEX node in the Connections navigator, the context menu shows Generate…. Select it to create a new simple APEXlang application project in a local folder.
• Application node (Export): When you right-click a specific APEX application node (for example, APEXTOGO (116)), the context menu shows Export…. Select it to export the selected application to an APEXlang project on your local file system.

Editor toolbar

The editor toolbar provides APEXlang-specific actions for compiling and deploying an application, managing the attached database connection, and viewing page lock status.

Import (play icon)

The Import button (play icon) compiles the APEXlang application and deploys it to the attached database connection where APEX is installed.

Attach/Detach Connection

When you open an APEXlang file (.apx) or a deployment file (.json), SQL Developer for VS Code displays APEXlang actions in the editor toolbar. These actions include Import (to compile and deploy the application) and Attach/Detach Connection (to associate a database connection with the current editor).

• For APEXlang files and deployments/default.json, the connection is shared across all open files in the same application. Attaching or detaching a connection in one file applies to the other open files in that application.
• For other JSON files under the deployments folder, the connection is not shared. This allows you to attach a different target connection for a specific deployment file.

Page Locked (padlock icon)

If the open document represents an APEX page and that page is locked in APEX, a padlock icon is displayed in the editor toolbar when a connection is established. Click the padlock icon to display a popup with details of the page lock.

3.19.2 Exporting an APEX Application

Exporting an application saves an existing APEX application from the database as an APEXlang project on your local file system. This lets you edit and manage the application as source files and import it back into APEX when needed.

Perform the following steps to export an APEX application:

1. In the Connections navigator, locate the APEX application node.
2. Right-click the application and select Export….

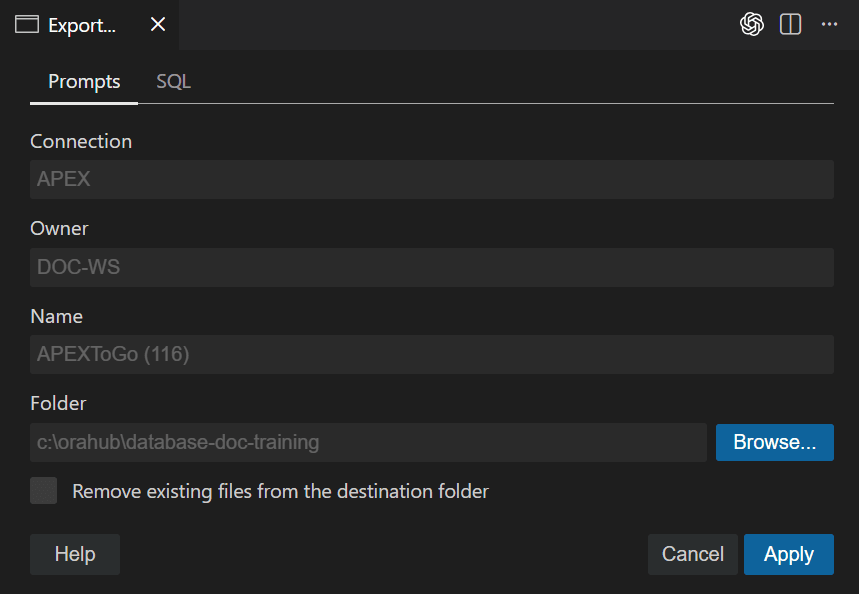

   Description of the illustration apex_export_editor.png



3. In the Export dialog, click Browse and select the target folder.
4. (Optional) Select Remove existing files from the destination folder to delete any existing APEXlang export files in the selected folder before exporting.
   This ensures the export writes a clean, up-to-date project without leftover files from a previous export.
5. (Optional) Review the generated SQLcl command details on the SQL tab.
6. Click Apply.
   After the export completes, the generated application.apx file opens automatically in the editor with the database connection already established. For subsequent exports, the Folder value is remembered and defaults to the most recently used location.

3.19.3 Generating an APEX Application

Generate creates a new APEXlang application project by running the SQLcl generate command, producing a ready-to-edit folder structure (including an application.apx file and related deployment files) in the location you specify.

Perform the following steps to generate an APEX application:

1. In the Connections navigator, expand your database connection.
2. Right-click the APEX application node and select Generate....

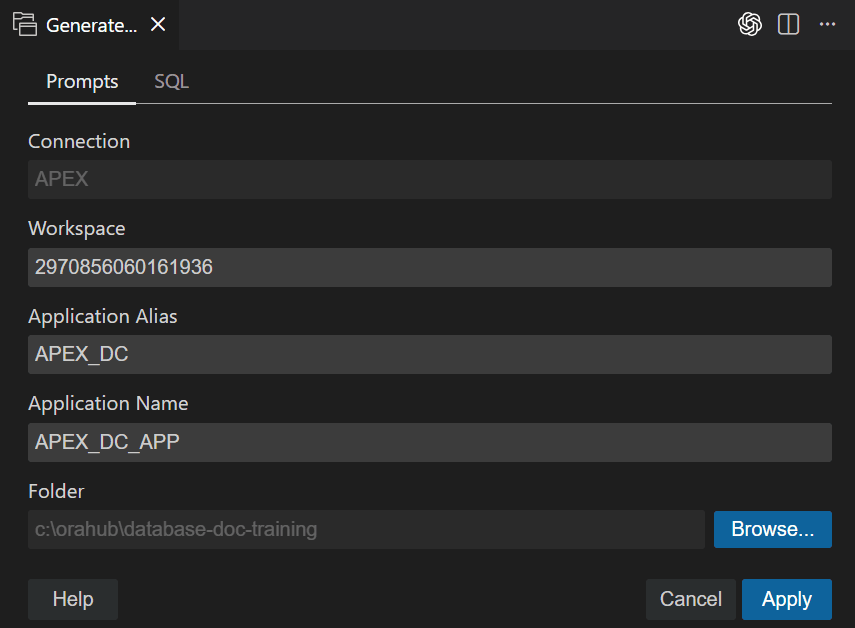

   Description of the illustration apex_generate_editor.png



3. In the Generate dialog, review the selected Connection.
4. In the Workspace field, enter or select the target workspace.
5. In the Application Alias field, enter an alias for the application.
6. In the Application Name field, enter a name for the application.
7. In the Folder field, enter the target folder path, or click Browse… to select a folder.
8. (Optional) Click the SQL tab to review the SQLcl command that will be executed.
9. Click Apply.
   After the operation completes, the generated application.apx file is opened in the editor with the database connection already established. On subsequent invocations of Generate, the Folder field defaults to the last value used.

3.19.4 Importing an APEX Application

Importing an application compiles the APEXlang project and deploys it to the attached Oracle Database connection where APEX is installed.

Perform the following steps to import an APEX application:

1. Open the APEXlang application on disk (for example, open application.apx from the exported or generated project folder).
2. In the editor toolbar, click Attach Connection (plug icon) and select the target connection.
   If prompted, enter credentials to connect.
3. Verify that the editor shows the connection as attached.

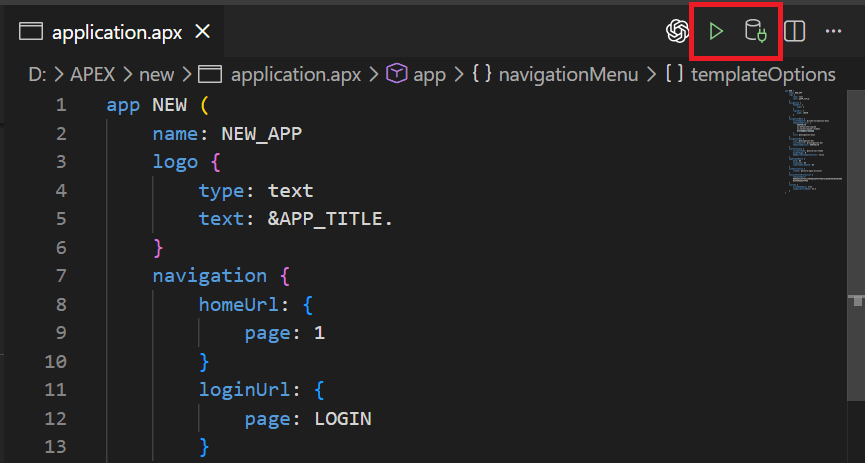

   Description of the illustration apex_import_application.png



4. Click Import (play icon) on the editor toolbar.
   If you have unsaved changes in any application file, click Save All when prompted, and then continue the import.
5. Review the confirmation message indicating whether the import succeeded or failed.

3.19.5 APEXlang Language Services

When you open an APEXlang file in the editor, SQL Developer for VS Code provides language features to help you author, validate, and navigate APEXlang content.

While editing APEXlang files, SQL Developer for VS Code displays a light bulb icon in the editor margin when a Quick Fix or other code action is available. Click the light bulb or press Ctrl+I to view and apply suggested fixes, such as correcting common issues or refactoring content.

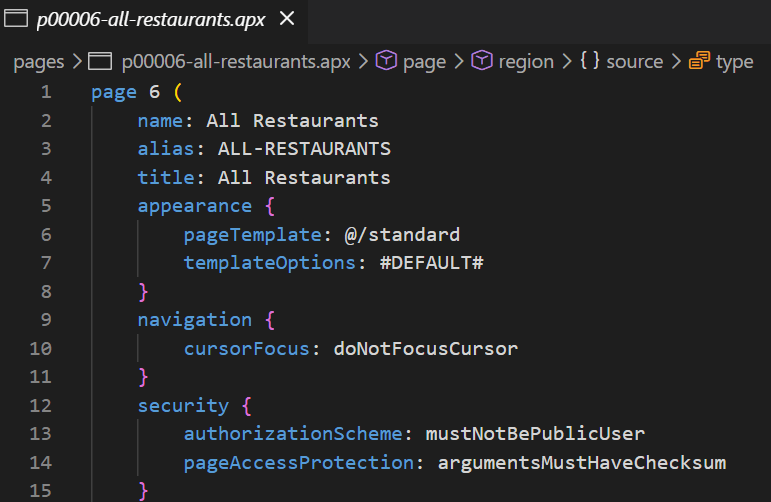

Syntax Highlighting

APEXlang syntax is color-coded based on your editor theme and preferences.

Description of the illustration apex_syntax_highlight.png

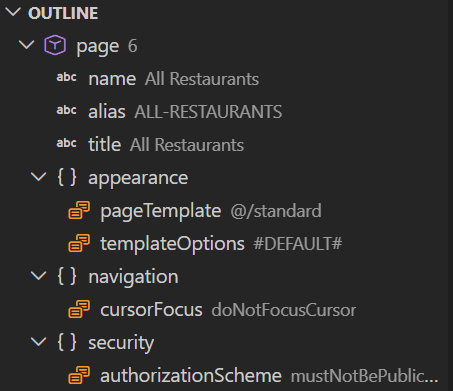

Outline View

The structure of the current APEXlang document is displayed in the Outline view. This view enables you to quickly navigate to components and properties within the file.

Description of the illustration apex_outline_view.png

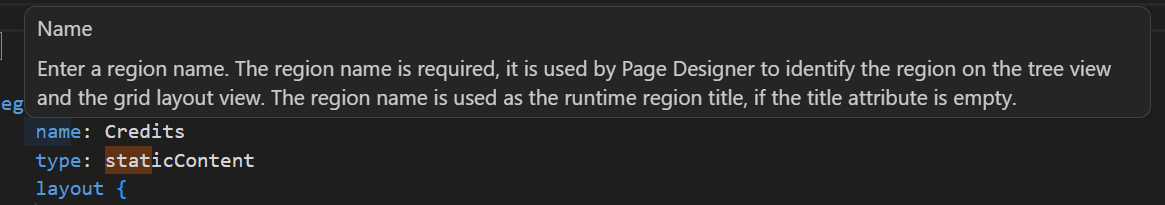

Hover

Provides documentation for properties and property values.

Description of the illustration apex_hover.png

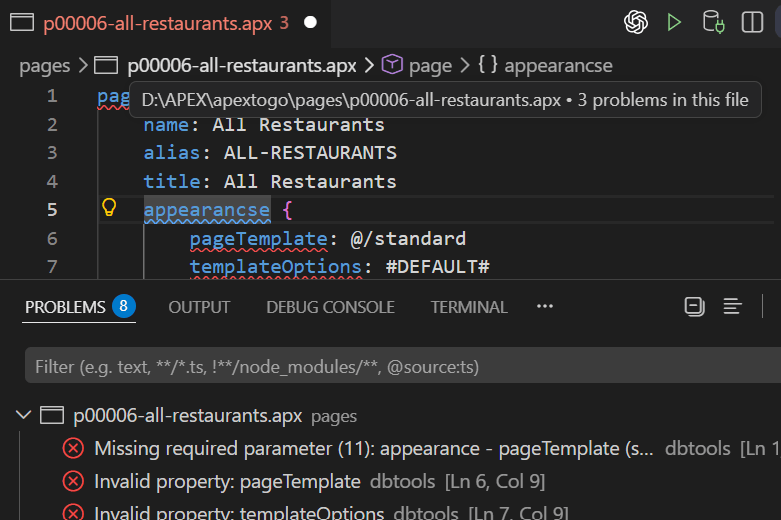

Diagnostics

Any syntax errors or warnings reported for a document are shown:

• inline using diagnostic underlines
• in the Problems panel

Description of the illustration apex_diagnostics.png

Code Completion

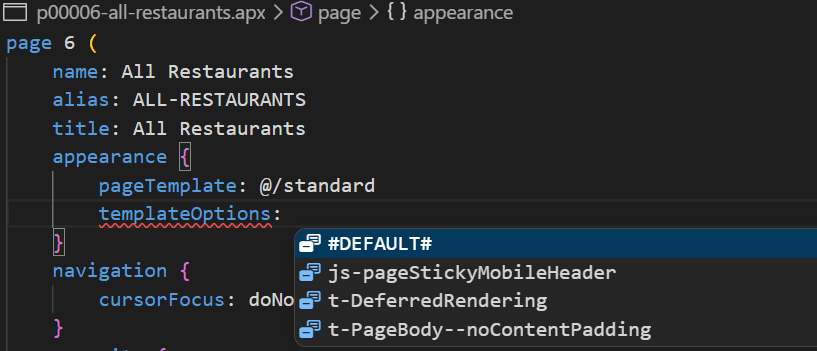

Code completion (CTRL+SPACE) in APEXlang suggests content that can be inserted at the current cursor location. Suggestions include property names, valid property values, references, and snippets.

Description of the illustration apex_ui_code_completion.png

Code completion includes the following categories:

• Property values in List of Values (LOVs) and references to other components

  When completion is invoked immediately after a propertyName, valid values are suggested. Where available, documentation is displayed for the suggested values. Suggestions can include values from static LOVs and plugin LOVs, as well as references to other components.

• Property names in existing and new groups

  When the cursor is not positioned to the right of a propertyName, completion suggests properties that can be inserted in the current context or in relevant groups. If the required group does not exist, it is created with the property inserted. If the group exists elsewhere in the document, the property is inserted into the existing group and the editor scrolls as needed to make the insertion visible.

• New child component snippets

  When the cursor is not positioned to the right of a propertyName, completion can also offer snippets for inserting new child components.

Embedded Language Support

APEXlang can contain embedded fragments of other languages, such as CSS, SQL, and PL/SQL. When the embedded text block is annotated with the language, SQL Developer for VS Code highlights the fragment using that language's syntax rules.

For embedded SQL and PL/SQL, completion is provided by Oracle SQL support, including database objects such as tables and columns when a connection is attached.

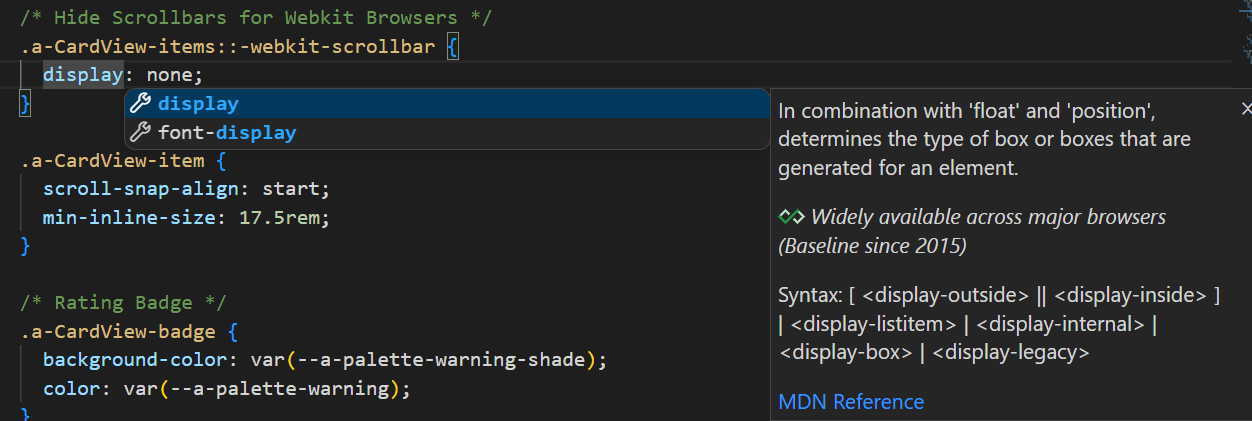

Description of the illustration apex_embedded_language_support_css.png

For embedded SQL and PL/SQL, completion is delegated to Oracle SQL support. When a database connection is attached, completion can include database objects such as tables and columns (for example, while editing a SELECT statement).

Description of the illustration apex_embedded_language_support.png

Navigation and Refactoring

SQL Developer for VS Code provides navigation and refactoring actions for APEXlang components and references.

• Go to Definition: Enables navigation from a component reference (typically of the form @component-id) to the referenced component using the context menu or Ctrl+Click.


  Description of the illustration apex_gotodefinition.png

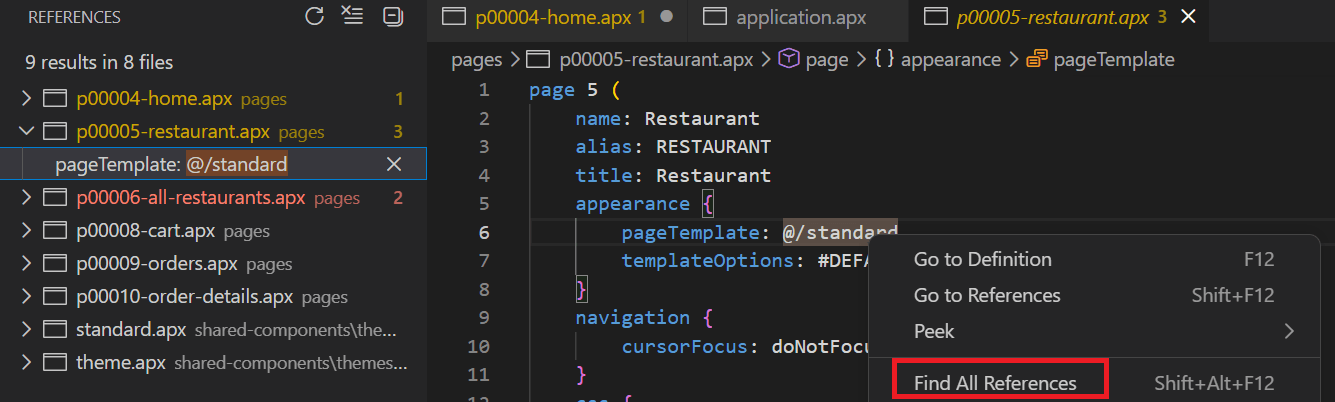

• Find All References/Usages: Shows all references to a selected component or reference across the project.


  Description of the illustration apex_find_references.png


• Rename Symbol: Renames a component identifier and updates its references using the context menu.


  Description of the illustration apex_rename_symbol.png



Quick Fixes

Quick fixes are offered for common issues detected while editing.

Description of the illustration apex_quick_fixes.png

For example:

• Page number and alias inconsistencies between a page file name and its contents (page files typically follow the convention p<numeric page id>-<page alias>.apx).
• Invalid casing where a property requires a specific case (lower or upper).

Refactor Inline and Out-of-Line Embedded Language Source

Properties that contain multiline embedded language text can be stored either inline in the APEXlang file or out-of-line in a separate file.

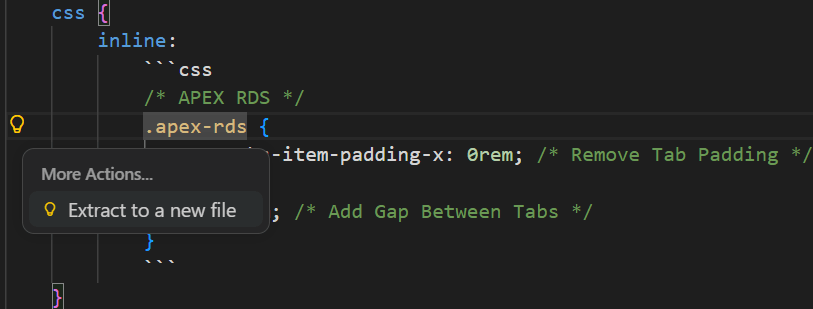

• Out-of-line content is indicated by using the same property name with a File suffix, with the value set to the file path/location.


  Description of the illustration apex_refactor_outline.png

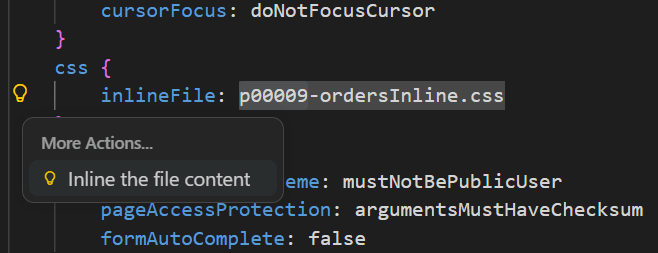

• Refactor actions are available to extract inline content out to a file and to inline file-based content back into the document.


  Description of the illustration apex_refactor_inline.png



3.19.6 Import Workflow Enhancements

SQL Developer for VS Code provides optional and automatic behaviors that can run as part of importing an APEXlang application.

Export Before Import

Optionally, when you click Import, SQL Developer for VS Code can export the application (SQL export) before compiling and importing the APEXlang sources.

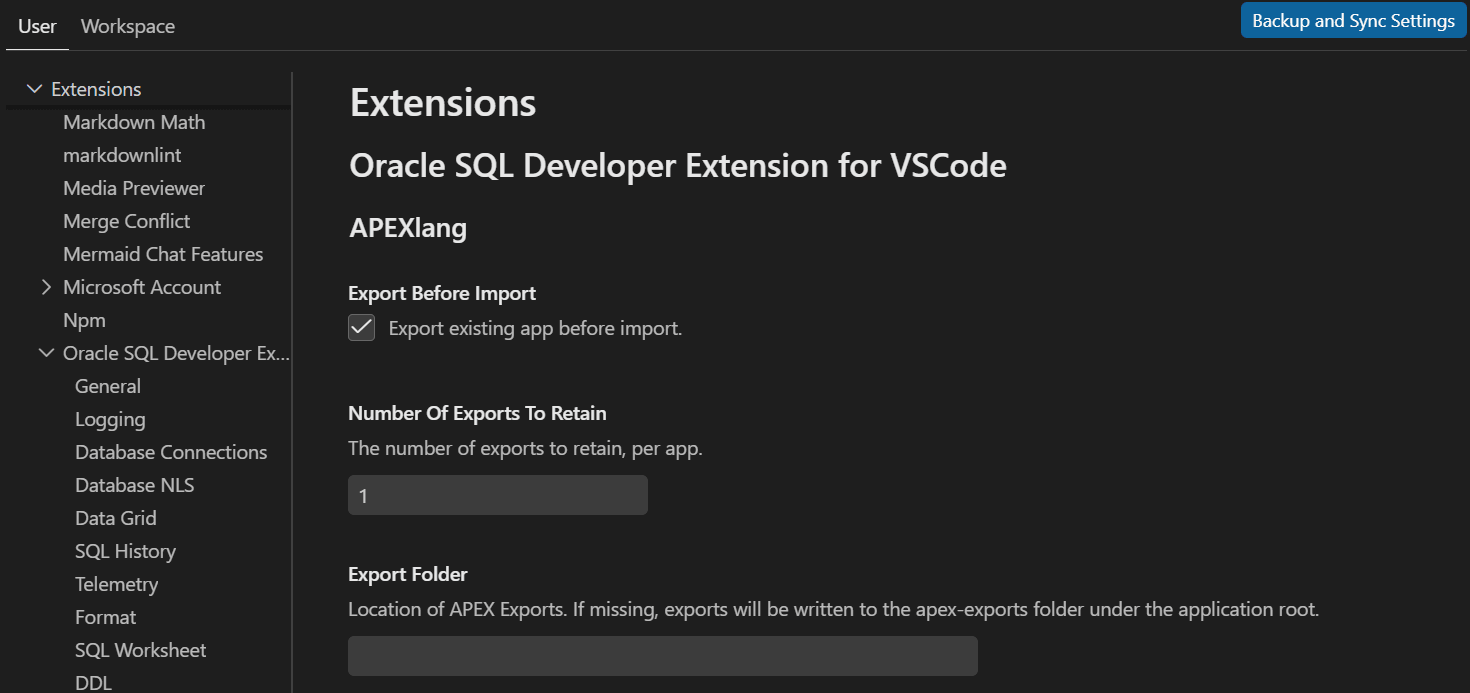

Click Settings, then go to Extensions, select Oracle SQL Developer Extension for VSCode, and then select APEXlang to configure the following:

• enabling or disabling export-before-import
• the number of export files to retain
• the export location

Description of the illustration apex_settings.png

If the export location is not defined, a folder named apex-exports is created and used. The folder also includes supporting files such as a README and .gitignore.

Auxiliary File Maintenance

During import, auxiliary files may be created or updated to support repeatable deployments. For example:

• If the deployment file does not record the application ID, it is created or updated so subsequent imports use the same ID.
• If .apex/apexlang.json is missing, it is created.

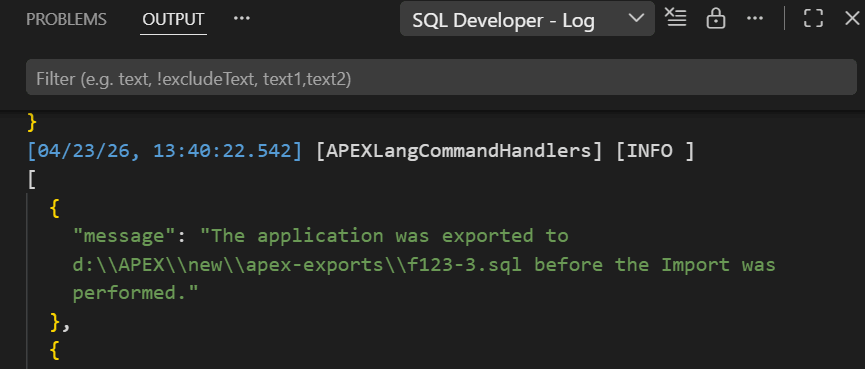

Information about these updates, or warnings if they fail, is written to logs. When this occurs, the import confirmation provides an option to open the import logs.

Description of the illustration apex_import_log_file.png
