5 Oracle TSAM Plus Architecture

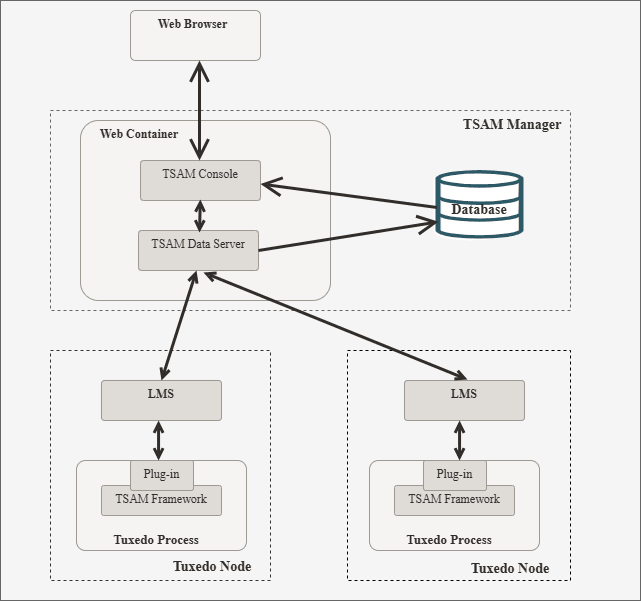

Figure 5-1 Oracle TSAM Plus Architecture - TSAM Plus Manager and Agent


Oracle TSAM Plus Architecture - TSAM Plus Manager and Agent

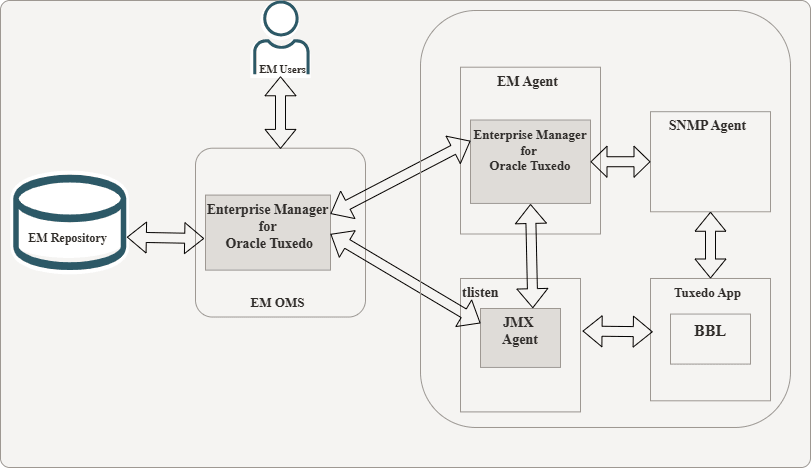

Figure 5-2 Oracle TSAM Plus Architecture - Enterprise Manager for Oracle Tuxedo


Oracle TSAM Plus Architecture- Enterprise Manager for Oracle Tuxedo

The above figure contains the following main components:

  • TSAM Plus on both Enterprise Manager server and agent side.
  • Enhanced Tuxedo tlisten process

    Works as a proxy and agent between Tuxedo and Enterprise Manager agent. A JMX agent is embedded and every target instance inside the associated Tuxedo domain corresponds to an MBean instance in the JMX domain. JMX agent receives metrics and job requests from Enterprise Manager agent and forwards them to the corresponding Tuxedo target instances.

  • BBL

    Ensures that the MBean instances embedded in the connected JMX agent tlisten is consistent with the Tuxedo domain it is running on.

  • tux_snmpd

    Must be started for Oracle Tuxedo Event Collection and Oracle ART Batch System Server. The Oracle TSAM Plus on Enterprise Manager agent receives the event trap from tux_snmpd after the receive port is configured.
