2.3 JSL/JSH-Jolt Unidirectional Connectivity
Oracle Jolt for WebLogic Server provides unidirectional connectivity from Oracle WebLogic Server applications to Oracle Tuxedo 9.1 or later ATMI services. With Oracle Jolt for WebLogic Server, an application administrator can enable Tuxedo services for the Web, using the WebLogic Server as the front-end HTTP and application server.
The following figure shows how this connectivity is implemented.

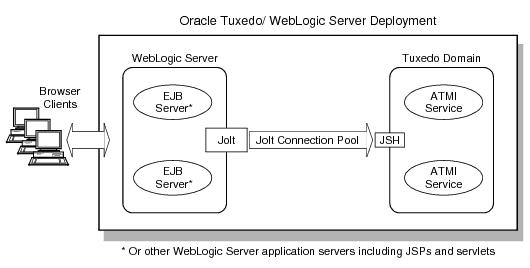

Figure 2-1 WebLogic Server to Oracle Tuxedo Connectivity Using Jolt
Oracle Jolt is a Java-based client API that manages requests to Oracle Tuxedo services using a Jolt Server Listener running on the Tuxedo server. The Jolt API is accessible to an EJB, a JSP, a servlet, a Java HTML (JHTML), or other Oracle WebLogic application server.
