5 OGL Console Left Panel
My Content
The My Content section in the left panel of the OGL Console provides an overview of all content items in the account (i.e. process guides, messages, beacons, etc.).
Select Content () to display all of the current content items that you have created or copied from a library, such as Use Cases. These content items will appear in the main content page to the right and will include all content items that are in Draft, Published, or Inactive status. These content items can be sorted and/or filtered to allow for more efficient browsing.
Sorting and Filtering Content Items
To sort your content items, select the Sort () dropdown menu and choose a sorting option.
To filter your content items, use the Filters () panel on the right side of the page and select from any of the available filtering categories and options to narrow the list of content items displayed.
Note:
If the Filters panel is not displayed, be sure to activate it by selecting button located at the top of the My Contents page.
Below are all of the available categories with which you can can filter content items:
Archived Content
Content items that you delete are not permanently deleted and are simply moved to Archive. Select Archive () to display all items that have been deleted in the account. These content items can also be sorted and filtered for more efficient browsing, as shown above.
To recover any archived items and move them back to your Content, select the Recover () button on the content item you wish to restore.

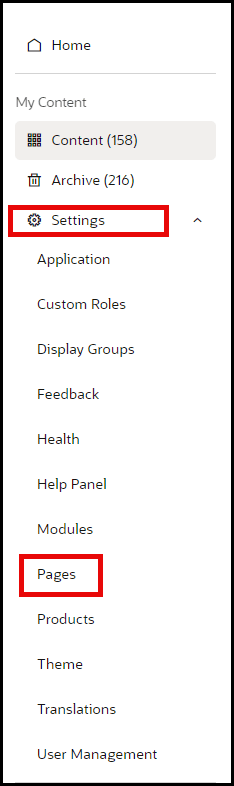

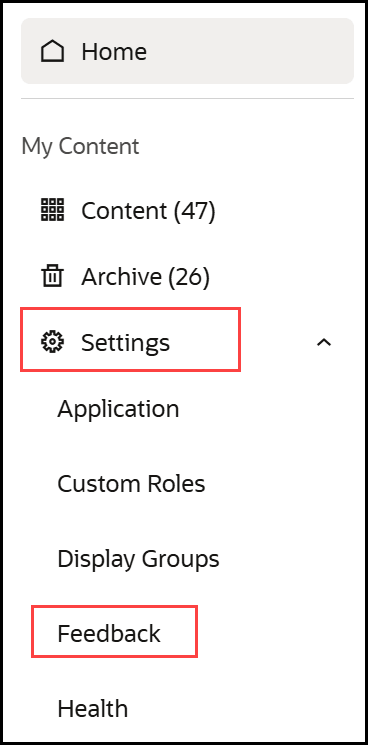

Settings
Accessing the Interface
- On the left navigation panel, select Settings.
Application
Accessing the Interface
To access the Application settings modal:
- On the OGL Console homepage, go to the left navigation panel.
- Click on Settings, then select Application.
Understanding the Application Settings Interface
The Application tab:
Legend | Description | Additional Information |
---|---|---|
1 | Application tab | n/a |
2 | Application Name | This is the application name, displayed next to the
account name |
3 | Application type | Fusion = This appID is linked to a Fusion
application
Other = Any application that is not Fusion (i.e. Salesforce) |
4 | Available Products for Content Display in the OGL Libraries | The products selected in this list will determine which content items will display in the content libraries, including Uses Cases, Base Guides, and Business Process Training libraries. |
5 | Default Editing URL | This is the default editing URL for new item creation. Note, setting the URL in this field does not replace/update the editing URL for existing items. |
6 | User Roles | Indicates if the user roles are being collected by OGL for reporting in analytics. To have identifiable usernames enabled for your organization (subject to legal requirements being met), please create a service request on My Oracle Support. |
7 | Player Authentication | This setting allows administrators to restrict OGL content to only display for end-users who are properly authenticated in the host application. If enabled, end-users must be authenticated in the host application in order to see OGL content. |
8 | Application ID | This is the unique application ID for the account. |
9 | Deployment | Indicates OGL deployment methods. Please select only the applicable options for the appID |
10 | Default Language | Indicates the set default language for the appID.
(i.e. if the default content language is French, and French has been
selected in the field, this indicates to OGL that French = Generic
Language (fr = --))
Note: This is not the language of the OGL Console, but that that of the content items in the application |
11 | Save button |
Allows you to save the changes made to the configuration. Note: The Save action applies to the Application, Editor, and Playback tabs. The Save button on the Domains tab only applies to that and not the previously mentioned tabs |
The Domains tab - General
Legend | Description | Additional Information |
---|---|---|
1 | Domains tab | The Domains tab contains OGL configuration settings for Fusion. |
2 | Configuring OGL in Fusion | Description: Oracle Fusion applications can be configured to automatically integrate with OGL. To set up this integration, you will need to copy the Oracle Guided Learning Application ID (OGL AppId) and the OGL Server URL, both provided below, into the corresponding fields in the Fusion OGL Integration page. This will make your OGL content visible in your Fusion application. |
3 | OGL App ID | Identifies the application ID for use in OGL configuration, enter the ID into the Application ID field in Fusion |
4 | OGL Server URL | Identifies the server URL for the application ID, enter the URL into the relevant field in Fusion |
5 | Copy button | Allows you to easily copy the application ID or the server URL to the clipboard. |
6 | Add a Domain | Domains represent a location, usually an application, where Guided Learning content will be used. Domains are defined by a URL (e.g. https://guidedlearning.oracle.com). To add a domain, select the + New Domain button, enter the URL of the application and the name you would like to associate with that application. Enter any other required information and save. |
7 | New Domain button | Allows you to define a new domain where OGL will be enabled |
8 | Hosts section | If there are domains defined, they will all be listed in the hosts' section in the Domains tab |
The Domains tab - Add/Edit a Domain
Table 5-1 Domains General Tab
Legend | Description | Additional Information |
---|---|---|
1 | Name | Defines the name of the domain (.i.e. Development / Testing / User Acceptence Testing / Production ) |
2 | URL | Identifies the domain URL (i.e. www.myapp-uat.com) |
3 | Environment | Determines if OGL will show in Development mode (shows all guides) or Production mode (shows published guides only) |
4 | Settings - Enable OGL | Determines if OGL will be enabled/disabled for the domain. |
5 | Settings - Enable Report | Determines if analytics reporting is enabled/disabled for the domain. Disable this only for implementations in which there is extreme sensitivity to internet traffic and no need for reporting data. |
6 | Settings - Show Launch Widget | Determines if the OGL help Widget will be shown on the domain or hidden. For implementations with popups or iframes from different domains, this allows the Launch Widget to be hidden (or shown) for a given domain so that multiple Launch Widgets are not showing simultaneously. |
7 | Enable User Name Capture | Determines whether OGL will capture user names
from the host application to be displayed in analytics and
reports.
Note: Please check with your regional/local user privacy laws and/or regulations and your organization's policies on user privacy before enabling this setting. |
8 | Set Accessibility Shortcuts | To override the default Keyboard Shortcuts (See Accessibility section of the User Guide), select a shortcut from the dropdown and enter the desired keystroke to activate it.To disable a shortcut, select it and save it with a blank keystroke field. |
9 | Remove | Removes the domain and associated settings |
10 | Enabled | Determines if the domain is enabled/disabled |
11 | Save Domain | Saves the domain configuration
Note: The Save Domain button only applies to the domains tab. The Save action on the Application, Editor, and Playback tabs applies only to the Application, Editor, and Playback tabs. |
Note:
The screen below indicates that there is a lack of sufficient privileges to Edit Cloud Configuration, request your OGL Admin for access or to make the necessary updatesThe Editor tab:
Legend | Description | Additional Information |
---|---|---|
1 | Editor tab | The Editor tab contains settings that can be set for
the editor at the application level. You can override these settings
at item level through the OGL Full Editor.
Note: Set these preferences per your governance and style guide. |
2 | Enable Auto Generated Guide Conditions |
When disabled, conditions will be generated in Inactive status. This is applicable to only newly created content and does not apply to imported content. Note: Turning off this option will also disable guides from automatically appearing in the help widget. |
3 | Next Button Text | Sets the custom text to display for Next button (i.e. Proceed / OK) |
4 | Last Next Button Text | Sets the custom text to display on the button on the
last step of the guide (i.e. Close / Finish!) |
5 | Hide Next Button | Sets the Next button to hidden by default. |
6 | Hide Close Button | Sets the Close X button to hidden by default. |
7 | Hide back Button | Sets the Back button to hidden by default. |
8 | Hide Steps Count |
Sets the Step Count label to hidden by default. |
9 | Tip Width |
Sets the default Tip Width in pixels (i.e. 280. |
10 | Hide Highlight | Sets the default Highlight setting for all item
tooltips to Hidden. |

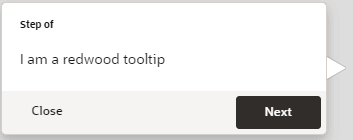

11 | Highlight | Sets the Highlight for tooltips, available options
are:
|

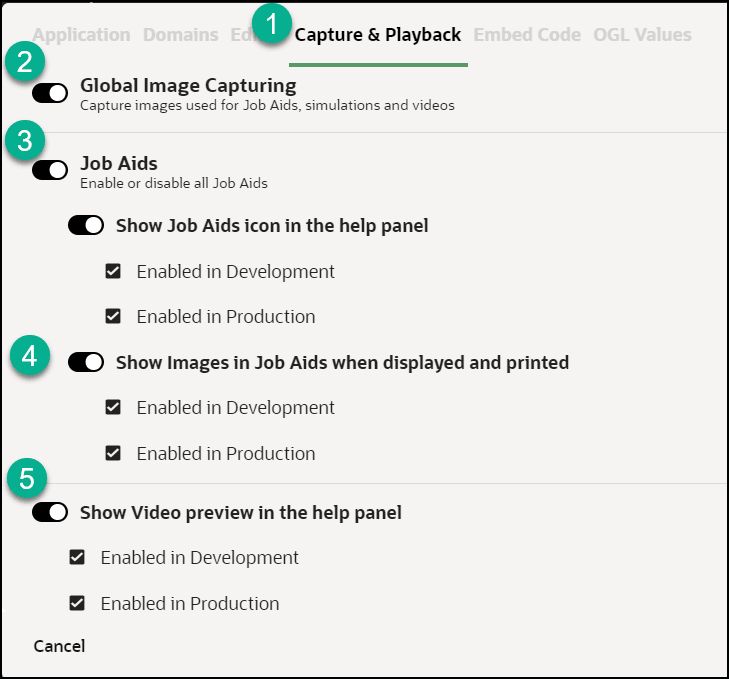

Legend | Description | Additional Information |
---|---|---|
1 | Playback tab |
The Playback tab contains the OGL Help Widget settings for both development and production. Note: Development would have the same settings as Production by default, in case you need different settings in Development, override the Production settings. If you change only Production settings that would be defaulted to Development as well. |
2 | Global Image Capturing | Enable or disable the Global Image Capturing which helps in capturing the images used for Job Aids, Simulations and Videos. |
3 | Job Aids (Development/Production) | Enable or disable the job aids (step guide) icon in the help widget. |
4 | Show Images (Production) | Display images in step guides (if step guide is enabled) and in PDF files or in guide export. |

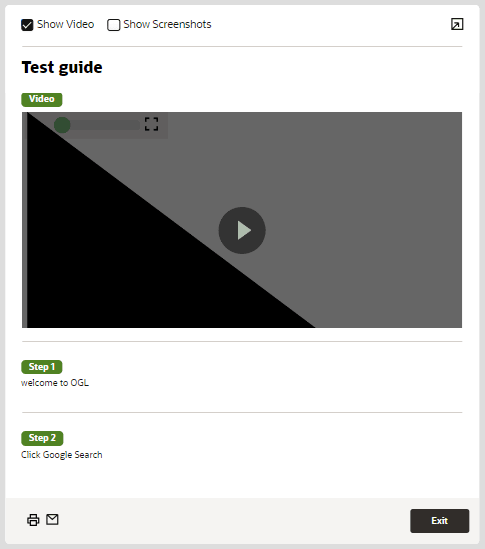

5 | Step Guide (Development/Production) | Display video presentations (video preview of a guide) in job aids (if job aids is enabled) and in guide export. |
The Embed Code tab:
Legend | Description | Additional Information |
---|---|---|
1 | Embed Code tab | n/a |
2 | JavaScript API Documentation Reference | https://docs.oracle.com/en/education/oracle-university/guided-learning/ogl-faq/administration.html#GUID-9059C5AB-B0D4-4A0B-B049-28B6274AD54C |
3 | Guided Learning JavaScript Embed Code | n/a |
4 | Copy Code | n/a |
Custom Roles
To work with Simple Conditions, OGL now utilizes the Custom Roles setting in the OGL console. The OGL roles must be set up as per the roles set in your OGL Fusion embed or Javascript.
Click here to download a list of Role mappings.
In the OGL Role Name field, enter the Role Name.
In the Application Role Value field, enter the Role Value.
Accessing the Interface
- Go to the OGL console.
- On the Main Navigation Menu, select Settings > Custom Roles.
The Custom Roles interface is now displayed.

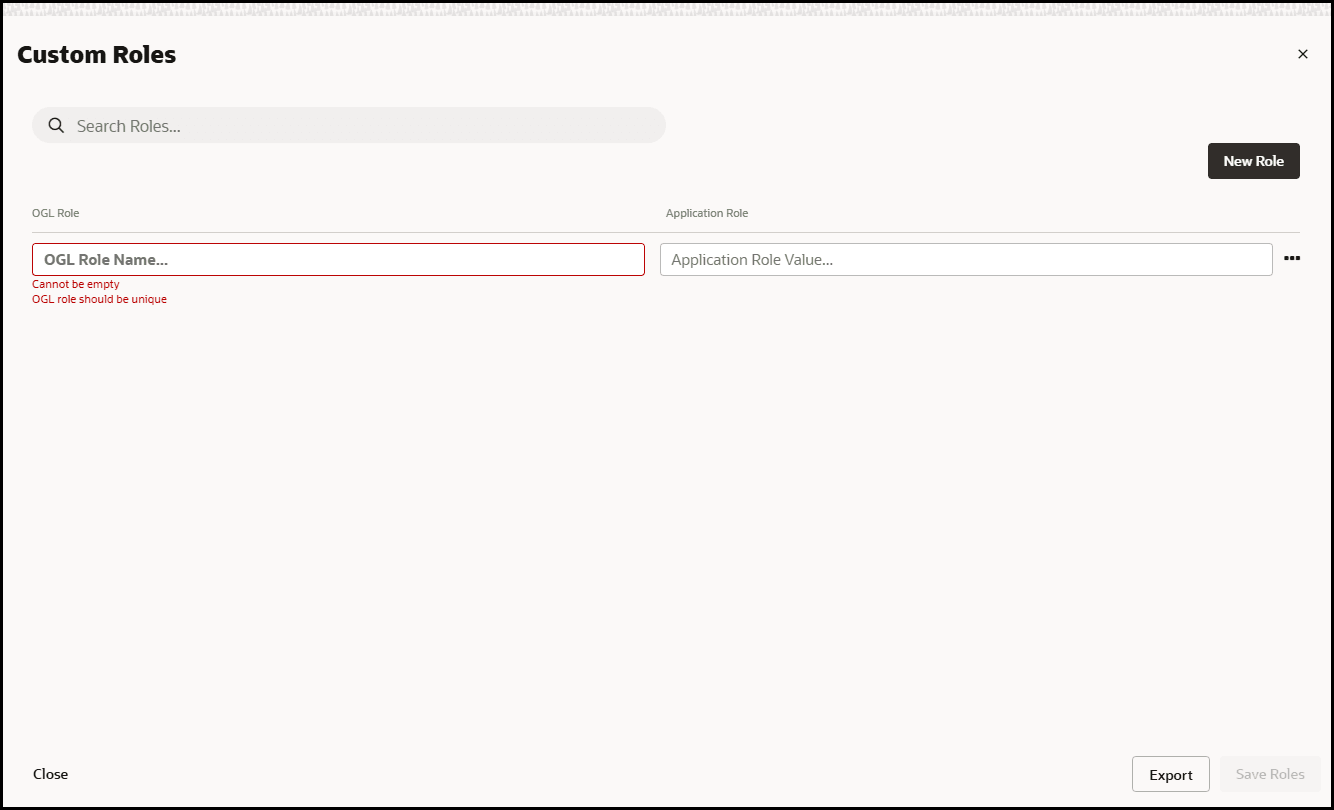

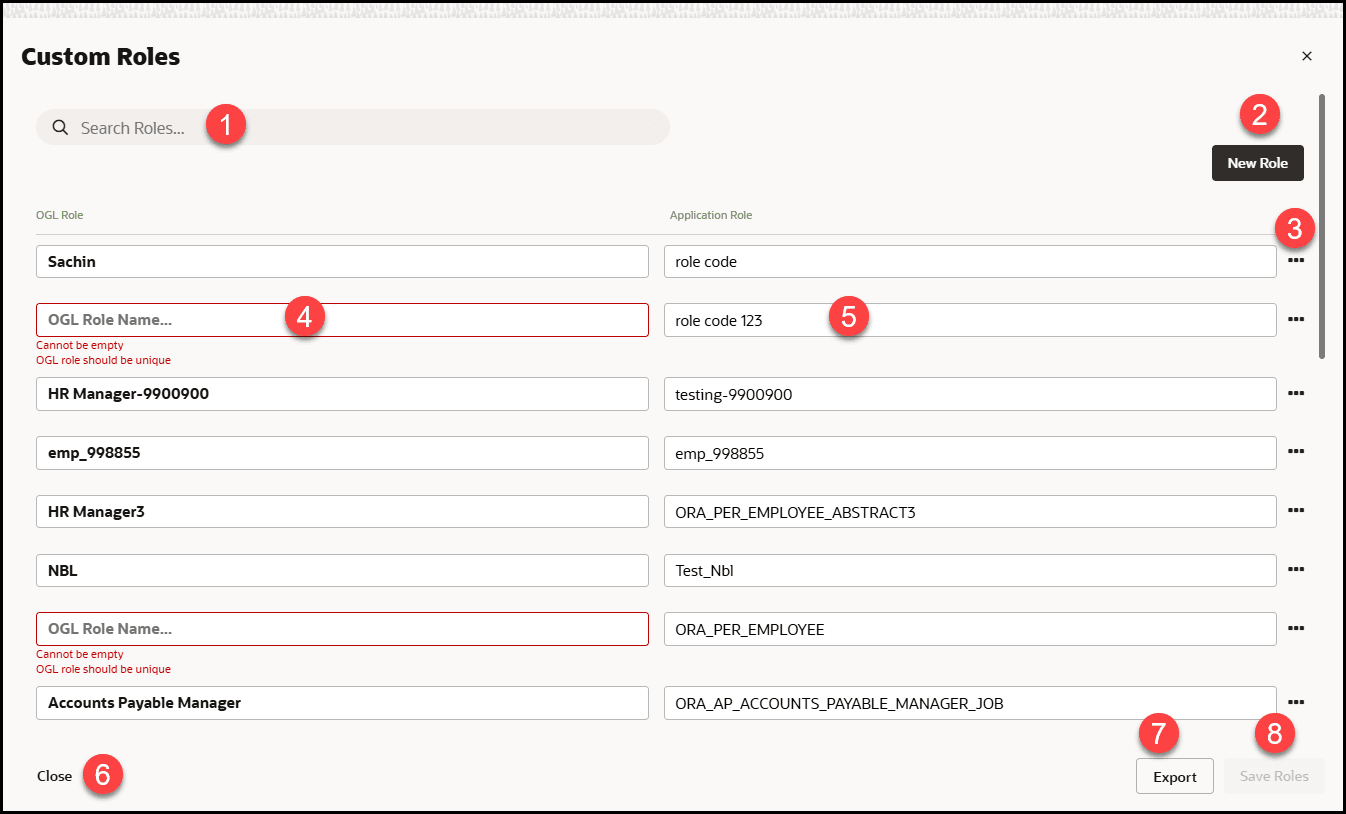

Understanding the Interface
Legend | Name | Comments |
---|---|---|
1 | Search Box | Provides dynamic search functionality. |
2 | Cancel Search | Cancels the search for roles. |
3 | New Role button | Adds a new empty line to the list. |
4 | OGL Role Name field | In the OGL Role Name field, enter the Role
Name.
(This is the Role name for your role and will be displayed in the item activation condition.) Note: The name field cannot be empty, and duplicate values and special characters are not allowed. |
5 | Application Role Value field |
In the Application Role Value field, enter the Role Value. (This is the value of the role as defined in your OGL JavaScript, OGL Custom JavaScript for Fusion Embed, or in the OGL Standard Roles table.) Note: The value field cannot be empty; duplicate values and special characters are not allowed( i.e., whitespace).Lets say your JavaScript (including Custom) contains lines similar to the ones below: Lets say your JavaScript (including Custom) contains lines similar to the ones below: if(#{securityContext.userInRole['ORA_PER_EMPLOYEE_ABSTRACT']}){ user_role+='|emp|'; ORA_PER_EMPLOYEE_ABSTRACT is the role code in Fusion, emp is the OGL reference for that role code, and becomes the value you enter in the value field in the User Roles interface. If you have set up role mapping in Fusion Embed and have used the spreadsheet provided in the link above, then when defining roles, please enter the values in column B for your corresponding list of roles set up in Fusion Embed. |
6 | Ellipsis Icon | Gives further Custom Roles management options.
|

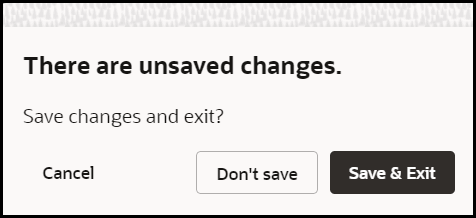

7 | Cancel | Discards any changes that were made and closes the
interface. A confirmation dialog is displayed if there are unsaved
changes.
|
8 | Save Roles | Saves the changes made to the field. The button only becomes active when an acceptable value is entered in the field. |
Display Groups
Categorize and order the content in the Help Widget quickly and easily with the Display Group Manager.
Accessing the Interface
- On the OGL Console homepage, go to the left navigation panel.
You can see the Settings section in the navigation panel.
- Select the Display Groups from the dropdown menu.
Understanding the Interface
Legend | Description | Additional information |
---|---|---|
1 | Filters section | Filtering Content for Display Groups
Use filters to locate items to associate with a display group. Select the Filters button to show or hide the filters and search box. |
2 | Close button | Use to close the Display Group Manager. A warning is displayed if there are unsaved changes. |
3 | Sort alphabetically | Use to sort items in alphabetical order (A→ Z). Note: Action cannot be undone. |
4 | Item name | Displays the item's name |
5 | Display group label | Displays the item's current display group association |
6 | Item status | Displays the item's status (i.e. Published) |
7 | Item count | Displays the total number of display items and the number of items per display group. |
9 | Display group name | Display group name field. Duplicate names are not allowed. |
10 | New display group button | Use the button to create new display groups. |
11 | Drag to reorder icon |
Use the icon to manually reorder the items and/or display groups using drag and drop, or you can specify the order by numbering them. To reorder, drag and drop each display group/item in the order of choice. |
12 | Display group name | Displays the display group's current name. |
13 | Display group/ order number | Identifies the display group's order number. To reorder, edit the display group and specify the order by entering the required number in the number field. |
14 | Save all button | Saves all the changes made in the Display Group Manager. |
15 | Edit button | Use the Edit button to update the display group, this only includes the display group name, icon, and sequence numbering. |
16 | Toggle button |
Use the button to toggle the display group as active or inactive. If set to inactive, the items associated with the display group will not be visible in the OGL Help Widget but can be accessed by using the search functionality in the OGL Help Widget. This functionality is helpful when you need to make items available only by searching in the OGL Help Widget. |
17 | Save button | Use to save changes made to the display group, this includes changes made to the name, icon, and sequence numbering. |
18 | Cancel button | Use to discard changes made to the display group, this includes changes made to the name, icon, and sequence numbering. |
19 | Delete button | Deletes the display group. A warning dialog box is
displayed to confirm the action. This action cannot be undone. Items
that were assigned to the deleted group will be assigned to the
default display group.
Note: You can close the Display Group Manager and to chose to not save the changes. This will discard the changes made and revert to the display groups prior to the delete action. |
Creating Display Groups
When you create display groups in the Display Group Manager you provide a name and an icon, and then you can assign content.
To create a display group:
- On the OGL Console homepage, go to the left navigation panel.
You see the Settings section in the navigation panel.
- Select the Display Groups dropdown menu.
- Click New Display Group in the Display Group Manager
- In the Display Group Manager window,
- Enter the Name of the display group
IMPORTANT: Your display group name cannot contain any special characters ( * | \ " : < > [ ] { } ` ( ) ' ; & $ )
- Select Save
- Add content to the display group by dragging & dropping to the
display group
- Select Save All to save the changes and close the Display Group Manager
Adding Content to Display Groups
You can add content by dragging the item from the right side and dropping the item into the appropriate display group on the left. After the item is added to a display group, the display group association tag is updated next to the item name. To remove items from a display group, simply drag and drop the item into the new display group. To see the contents of a display group, select the group's name on the left of the Display Group Manager.
Filtering Content for Display Groups
If you have many guides, you can use filtering or search for a guide to place in a display group. To access search and filters, select Filters at the top of the Display Group Manager.
Reordering Display Groups
Use the Display Group Manager to configure the order of display groups and the content within them. You can reorder display groups and guides using drag and drop, or you can specify order by numbering them.
To reorder display groups:
- Drag and drop each display group in the order that you want them to be displayed.
- Edit the display group and specify the order by entering numbers in the display group order boxes.
To reorder guides:
- Specify guide order by selecting a display group then entering the numeric order of each guide in the order boxes.
Help Panel

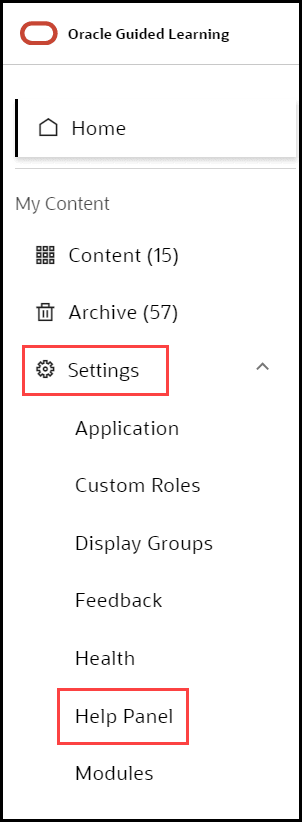

Accessing the Help Widget Settings
- On the OGL Console homepage, go to the left navigation panel.
You can see the Settings tab on the left navigation panel.
- Select Help Panel under the Settings tab.
Help Panel Settings window is displayed.

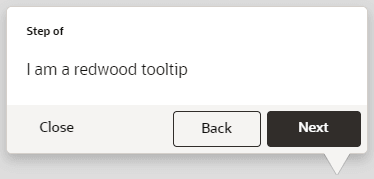

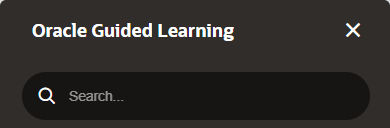

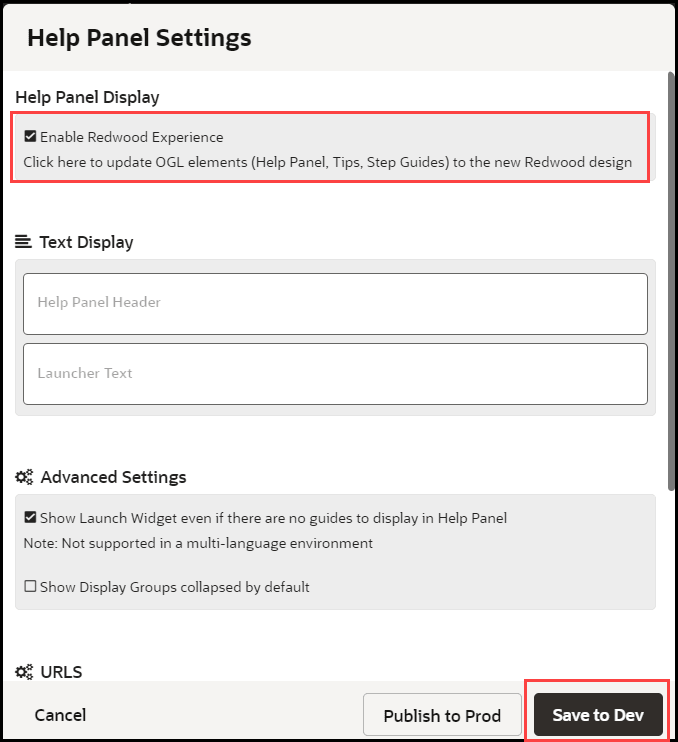

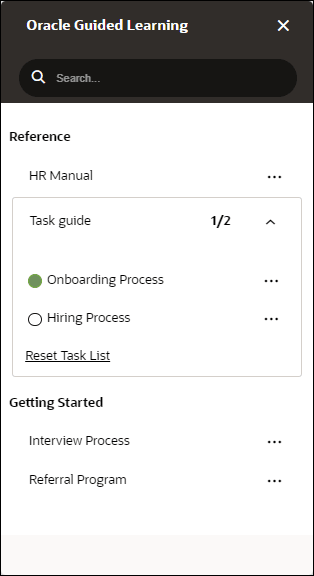

Enabling the new Help Panel
To enable/disable the new Redwood Experience Help Panel, check/uncheck the Enable Redwood Experience, then click Save to Dev (will only display in non-Prod environments) or Publish to Prod (will display in both Development and Production environments) accordingly.
Modules
Understanding Modules
As your content library grows, it can become increasingly difficult to manage a large volume of guides, especially if you have OGL deployed to multiple Fusion products (e.g. HCM, ERP, etc.) and/or modules (e.g., Financials, Procurement, Human Resources, Recruiting, etc.). One way to organize your guides may be to categorize them by the Fusion products and modules to which they are associated. Whether you are using OGL in Fusion or other applications, product and module labels allow you to manage your guides more efficiently, making it easier to find, filter, and organize guides by their respective products and modules. The Products and Modules features enable console users to create, edit, and manage custom labels which can then be tagged to guides for use in filtering in both the Content library as well as Analytics.
Accessing the Modules Manager
- On the OGL Console homepage, go to the left navigation panel.
You can see the Settings tab on the left navigation panel.
- Select Modules from the Settings tab on the left navigation panel.
Understanding the Interface
Legend | Name | Additional information |
---|---|---|
1 | Search box | Provides dynamic search functionality. |
2 | New Item | Adds a new line to the list. |
3 | Name field | The name field cannot be empty. Duplicate values are not allowed. |
4 | Done/Save | Saves the changes made to the field. The button only becomes active when an acceptable value is entered in the field. |
5 | Edit | Allows changes to be made to the field. |
6 | Delete | Deletes the line item. Action cannot be reversed and all linked content items will be disassociated. |
7 | Apply | Saves the changes made. A confirmation is displayed if the operation has either been completed successfully or failed with errors. |

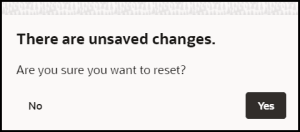

8 | Reset | Reset the changes made. A warning will be displayed if there are unsaved changes. |
9 | Cancel | Discards any changes that were made and closes the interface. A warning will be displayed if there are unsaved changes. |
Pages
A common method to determine when a guide should run or be visible in the Help Panel is to apply a guide activation condition that is based on the page URL, or for Fusion, the page route. Getting the route in Fusion is not a straightforward task and keeping track of all the pages and their URLs or page routes for an application can be a difficult task. The Pages manager can help console users efficiently catalog and manage page URLs and/or Fusion page routes by assigning them a user-friendly name that can later be referenced in guide activation conditions.
Accessing the Pages Manager
From the left navigation panel, select Settings> Pages to open the Pages manager.
Configuring Pages
In the Pages manager, you can create new custom pages and assign a user-friendly name to an associated URL or Fusion page route. To find the Fusion page route, see instructions in #4 on the below.
Legend | Name | Additional Information |
---|---|---|
1 | Search box | Provides dynamic search functionality. |
2 | New Item | Adds a new line to the list. |
3 | Name Field | The name field cannot be empty. Duplicate values are not allowed. |
4 | URL |
To find the URL:
Note: This is the route automatically captured by OGL or returned by iridize.master.getRoute() |
5 | Done/Save | Saves the changes made to the field. The button only becomes active when an acceptable value is entered in the field. |
6 | Page name field (Existing) | This name has been automatically defined by OGL. |
7 | Edit | Allows changes to be made to the field. |
8 | Delete | Deletes the line item. Action cannot be reversed and all linked content items will be disassociated. |
9 | Apply | Saves the changes made. A confirmation is displayed if the operation has either been completed successfully or failed with errors. |
10 | Reset | Reset the changes made. A warning will be displayed if there are unsaved changes. |
11 | Cancel | Discards any changes that were made and closes the interface. A warning will be displayed if there are unsaved changes. |
Using Pages Info for Activation Settings
From the OGL Console, select the check icon for the guide that you want to access.
By copying the route value for a page (highlighted in the image below), the developer can copy the URL (or route, in the case of Fusion) for use in configuring activation settings.
Once the URL has been copied, it is just a matter of pasting that value in the field outlined in red below. Be sure to paste in the value exactly as copied and do NOT enclose the pasted URL in brackets ( [ ] ).
Important: If a page has been defined in the pages Manager, then the condition can be added as a simple condition (When Page is (or is not)). When a page becomes defined in Page Manager, OGL will update the corresponding guides to reflect the page name.
For more information, refer to Enabling Guide Activation Settings.
Note:
Some Fusion page routes may change during a Fusion quarterly update. In this case, you will need to manually update the page routes in the Pages manager. This will not happen automatically. As a best practice, we recommend that you review and update page routes with each Fusion quarterly update or consult with your Fusion administrator to identify any potential impacts on page routes and update them in the Pages manager accordingly.Products
Understanding Products
As your content library grows, it can become increasingly difficult to manage a large volume of guides, especially if you have OGL deployed to multiple Fusion products (e.g. HCM, ERP, etc.) and/or modules (e.g., Financials, Procurement, Human Resources, Recruiting, etc.). One way to organize your guides may be to categorize them by the Fusion products and modules to which they are associated. Whether you are using OGL in Fusion or other applications, product and module labels allow you to manage your guides more efficiently, making it easier to find, filter, and organize guides by their respective products and modules. The Products and Modules features enable console users to create, edit, and manage custom labels which can then be tagged to guides for use in filtering in both the Content library as well as Analytics.
Accessing the Interface
- On the OGL Console homepage, go to the left navigation panel.
You can see the Settings tab on the left navigation panel.
- Select Products from the Settings tab on the left navigation panel. in the OGL Console.
Understanding the Interface
Legend | Name | Additional information |
---|---|---|
1 | Search box | Provides dynamic search functionality. |
2 | New Item | Adds a new line to the list. |
4 | Name field | The name field cannot be empty. Duplicate values are not allowed. |
5 | Done/Save | Saves the changes made to the field. The button only becomes active when an acceptable value is entered in the field. |
6 | Edit | Allows changes to be made to the field. |
6 | Delete | Deletes the line item. Action cannot be reversed and all linked content items will be disassociated. |
7 | Apply | Saves the changes made. A confirmation is displayed if the operation has either been completed successfully or failed with errors. |
8 | Reset | Reset the changes made. A warning will be displayed if there are unsaved changes. |
9 | Cancel |
Discards any changes that were made and closes the interface. A warning will be displayed if there are unsaved changes. |
You can use the Product labels to filter your guides by their respective products.
Automated Machine Translation
Improving upon OGL’s existing multi-language support capabilities, this new functionality now instantly translates guides into provided languages using machine translation directly from within the OGL console, without the need to export/import guides. This feature is available only to OGL Premium accounts.
Note:
For information about OGL Premium, visit: https://education.oracle.com/oracle-cloud-guided-learning-premium- Not all languages are supported at this time. Future enhancements are planned to improve upon this feature’s capabilities, performance, and expand the library of available languages.
- This feature will only translate guide contents, not application properties or selectors.
- Each translation is subject to a character limit of 5,000 characters per step (including HTML tags).
- If the selected Generic Language is not on the list of available languages as listed in the Translation dialog box, the translation will fail and return an unspecified error message.
Note:
This feature requires the following OGL security role and permissions: Owner role → Change Application Settings permissionsTranslating Individual Guides
- From the My Content page, select the “More…” icon in the lower right corner of the guide you wish to translate.
- Select Translate from the actions menu.
- The Translation modal opens.
- Select the “+” button next to the language(s) you wish to translate the guide from the list of available languages on the left. Any selected languages will appear in the Target Languages, then select Save and Exit when done.
- A confirmation dialog box will appear (read carefully) and will prompt you to confirm the action.
- Once the translation is complete, a confirmation message will appear at the top
of the Translation modal to confirm that the guide has been
translated.
Note:
Translations cannot be undone. To restore the guide to a previous version, use the Version History in the Guide Status. - The translated guides will now appear in their respective language folders in the My Content page. To toggle between each language folder, select the language dropdown menu.
- If you make any content changes to the original guide and then translate the guide again, you will be prompted with an option to retranslate the guide for all target languages.
Translating Multiple Guides (Bulk Action)
- From the My Content page, select one or more guides that you wish to translate, then select Translate from the Bulk Actions dropdown menu.
- The Translation modal opens.
Note:
With bulk translations, any pre-existing translated languages will not be displayed in the Target Languages column. Any translations applied using Bulk Actions will affect all selected guides and will overwrite any existing translations. To translate specific guides into specific languages, consider translating the guide(s) individually. - Select the “+” button next to the language(s) you wish to translate the guide from the list of available languages on the left. Any selected languages will appear in the Target Languages, then select Save and Exit when done.
- Once the translation is complete, a confirmation message will appear at the top of the Translation modal indicating that the job has been scheduled and that an email will be sent to notify you when completed.
- Check your email inbox for a message from Oracle Guided Learning <noreply_ogl@comm-apps.ou.ocs.oraclecloud.com>. The message should look like this:
- Open the attached Excel spreadsheet to view the translation status of all selected guides.
- The translated guides will now appear in their respective language folders in the My Content page. To toggle between each language folder, select the language dropdown menu.
Theme
Please note that modifying the Theme (Design Kit) might impact accessibility. For more information about Oracle's commitment to accessibility, see http://oracle.com/accessibility.

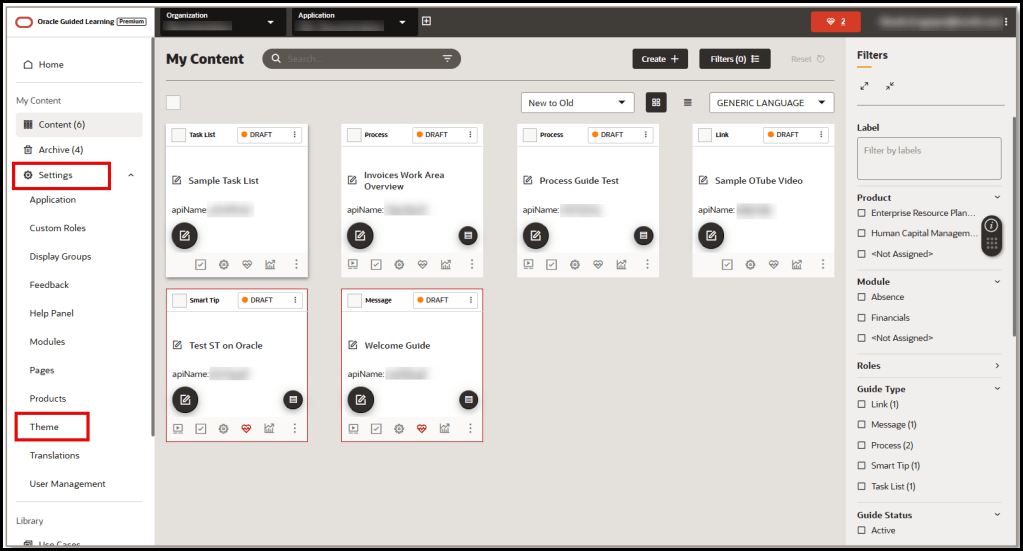

Accessing the Interface
- On the OGL Console homepage, go to the left navigation panel.
You can see the Settings section in the navigation panel.
- Select the Settings dropdown menu.
- Select Theme in the left panel.
Understanding the Interface

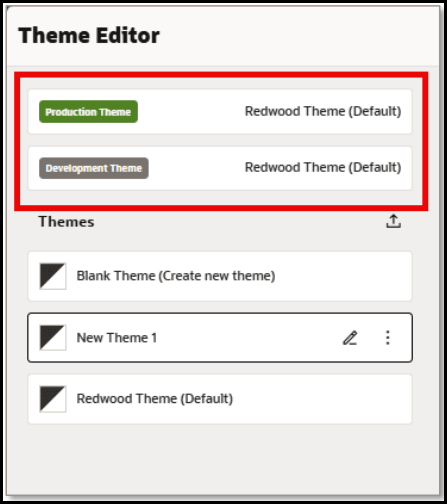

You can see two tabs, Theme Gallery and Upload/Download Theme.
Legend | Name | Additional Information |
---|---|---|
1 | Theme Gallery | Theme Gallery tab opens. |
2 | Active Theme | The current theme which is active is displayed. |
3 | All Themes |
Lists all the available themes. |
4 | Restore Default theme |
Restores the theme selection to the default OGL theme. |
5 | Save |
Saves the currently selected theme in the Theme Preview pane (7) as the theme for the account. WARNING: This action saves the selection for both development and production environments |
6 | Cancel | Closes the window, |
Upload/Download Theme
Legend | Name | Additional Information | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Upload/Download Theme | Upload/Download Theme tab opens. | ||||||||||||||
2 | Create New Theme | Create a new theme. | ||||||||||||||
3 | Upload your custom design |
Upload a custom design kit to the account.
|
||||||||||||||
6 | Restore Default theme | Restores the theme selection to the default OGL theme. | ||||||||||||||
7 | Cancel | Closes the window. |
Configuring Themes

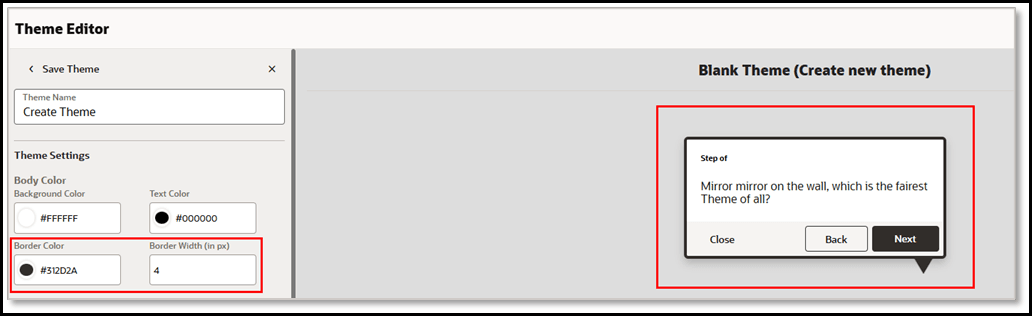

OGL includes several default themes. You can also customize tip colors, fonts, and tip positions as per your branding requirements.
Download the Design Kit
The Design Kit provides the ability to update the theme however you want, this article is meant to provide some basic guidelines and covers updating some of the basic attributes of the theme and does not cover advanced CSS methods.
- On the OGL Console homepage, go to the left navigation panel.
You can see the Settings tab on the navigation panel.
- Click the Settings tab, list of options are displayed.
- Select Themein the left navigation panel.
- Select the Upload/Download Theme tab.
The following interface is displayed.
- Click Download the Design Kit HTML link.
This will download as file "OGL_Theme_Design_Kit..." HTML file. Ensure you rename the file accordingly.
- Save the HTML file to a local directory.
Note: Rename the file accordingly, our recommendation is to rename it using the following convention: Design_Kit_ORGNAME_DD_MMM_YYYY
Update the Design Kit
To update the design kit, you will need to use a suitable text/HTML editor.
- Open the Design Kit in a browser
- Open the same file with the HTML/text editor
- Find the CSS class and update the relevant attributes
- Save the changes, then refresh the Design Kit in the browser to preview the changes before uploading them to the OGL Console
Upload the Design Kit
- Select the Content tab in the OGL Console
- Select Themein the left panel
- Select Upload Theme
- Select Choose File (A), then select the file saved in your local directory.
- Select Create new theme (B). Note: Select Update current theme if you are updating an existing custom theme
- Check the Select new theme after upload check-box
Common CSS Rules in the Guided Learning Theme
Note:
This serves as a guideline.To update the colors of the Guided Learning tooltips, find the expected Hex codes, then replace them with your preferred codes:
Swatch | Find | Replace with |
---|---|---|
#3E3834 | Your own Hex code | |
#F5F4F2 | Your own Hex code |
Note: Perform a Find & Replace to quickly update
Image Reference | CSS Rule |
---|---|
/*To change the color of the Help Widget*/ .ogl-rw-widget { background-color: ##3E3834; } |
|
/*To change the Help Widget Icon*/ .ouc-widget__launch-icon { background-image: url(REPLACE_WITH_ICON_URL); } |
|
/*To change color when you hover over the Help Widget*/ .ogl-rw-widget--launch a:hover { background-color: #F5F4F2; } |
|
/*To change the Widget Help Panel header background*/ .ogl-rw-help-widget-header--upper { background-color: #3E3834; } /*To change the color of Widget Help Panel header (search bar area)*/ .ogl-rw-help-widget-header--lower { background-color: #3E3834; } /*To change the color of search bar input area*/ .rw-searchbar { display: flex; flex-direction: row; align-items: center; padding: 0 15px; font-family: Oracle Sans; background-color: #F5F4F2; } |
|
/*To change the font in help widget*/ .ogl-rw-help-widget-item--title { font-family: sans-serif; } .ogl-rw-help-widget--content-group--title { font-family: sans-serif; } .ogl-rw-task-list-item--title { font-family: sans-serif; } .ogl-rw-task-list--reset{ font-family: sans-serif; } |
|

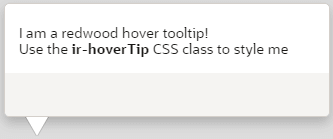

/*To make changes to tip footer*/ div.sttip div.tooltip.ogl-rw-tip div.stFooter, div.sttip div.tooltip.ogl-rw-tip.ogl-rw-hovertip.showLaterBt div.stFooter { background: #3E3834; /*height: 48px;*/ /*For changing the padding height on tip footers*/ } /*To make changes to Next Button, background colour and border color was changed to match with the button colour*/ div.sttip div.tooltip.ogl-rw-tip div.stFooter .next-btn { background-color: #F5F4F2; border: 1px solid #F5F4F2; } /*To change the colour of Close Button text*/ div.sttip div.ogl-rw-tip div[data-iridize-role='closeBtPane'] button { color: #FFFFFF; } /*Removing the Back Button Border and changing the colour of back button text*/ div.sttip div.tooltip.showPrevBt.ogl-rw-tip .stFooter .default-prev-btn { color: #FFFFFF; border: none; } |
|
Figure 5-1 Left side tip pointer |
/*To make changes tip pointers, to match the colour of the tip pointers with either buttons or tip footer background*/ /*Left side tip pointer*/ div.sttip div.tooltip.ogl-rw-tip.in.top.top-left div.tooltip-arrow.second-arrow { border-top-color: #3E3834; } |
Figure 5-2 Right side tip pointer |
/*To make changes to second arrow*/ div.sttip div.tooltip.ogl-rw-tip.in.top div.tooltip-arrow.second-arrow { border-top-color: #3E3834; } /*To make changes to right side arrow*/ div.sttip div.tooltip.ogl-rw-tip.ir-hoverTip.in.top div.tooltip-arrow.second-arrow { border-top-color: #3E3834; } |

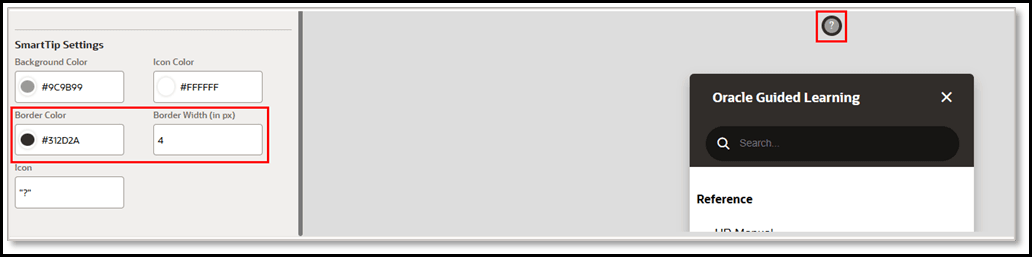

/*Smart-tip color*/ div.ir-marker { background-color: #3E3834; } /*Changing the icon of the smartitp*/ div.ir-marker:after { content: '?';(Change the "?" to any other special character) } |
|
/*To change the Remind me later button color, border color and background color*/ div.sttip div.tooltip.ogl-rw-tip.showLaterBt button[data-iridize-role='laterBt']{ border: solid 1px #F5F4F2; background: #F5F4F2; } |
|
/*To change the color of the Step Guide view border*/ .iridize-step-guide-frame { border-right: solid 5px #00AAFF; } /*To change the font of step guide*/ .ogl-step-guide--step--caption { font-family: sans-serif; } .ogl-rw-step-guide--title { font-family: sans-serif; } |
|
/*to change the Step Guide Exit Button Color*/ .ogl-rw-step-guide--footer--exit-btn { background-color: #00AAFF; } |
|

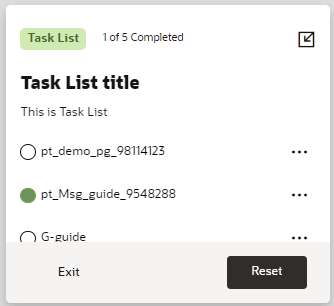

/*To change color of the task list footer*/ .ogl-rw-task-list--footer { background-color: #3E3834; } /*To change task list exit button*/ .ogl-rw-task-list--footer--exit-btn { color: white; width: 88px; height: 36px !important; border: none; cursor: pointer; font-size: 13.75px; background-color: transparent; font-weight: 600; margin-left: 16px; } /*To change task list reset button*/ .rw-btn { background: #F5F4F2; } /*To change the font for task list*/ .ogl-rw-task-list--title { font-family: sans-serif; } .ogl-rw-task-list--desc{ font-family: sans-serif; } .ogl-rw-task-list--header--completion-text{ font-family: sans-serif; } |
|
/*To change color of the step guide icon*/ .uc-panel__item__step { color: #00AAFF;} |
|
/*To change color of the step guide icon on hover*/ .uc-panel__item__step:hover { color: #00b5ff;} |
|
/*To change the smart tip an i with a matching border find div.ir-marker in the theme and replace with the below*/ div.ir-marker { /*changing this will affect the color of the help icon*/ background-color: #FFFFFF; border: 2px solid #1b3b3f; border-radius:15px; font-weight: bolder; font-size: 14px;} /*To change the ? to an i find div.ir-marker:after and replace with the below*/ div.ir-marker:after{ content: 'i'; color: #1b3b3f;} |
|
/*To change the background color*/ div.ir-marker { background-color: #12bc8d; } /*To change the ? to another letter, add the following CSS rule to the design kit if it doesn't already exist*/ div.ir-marker:after {content: 'i';} /*To change the ? to my own custom image, add the following CSS rule to the design kit if it doesn't already exist*/ div.ir-marker:after {content: none;} div.ir-marker { background: url(data:[your image goes here]) no-repeat left center; } /*You can use the following service to get the Data URI of your image - https://dopiaza.org/tools/datauri/index.php*/ |
|
/*To change feedback hover over color*/ .ogl-rw-feedback--rating > input:checked + label { background-color: #F5F4F2; } /*To change feedback footer color*/ .ogl-rw-feedback--footer{ background-color: #3E3834; } /*To change Feedback No Thanks Button*/ .ogl-rw-feedback--no-outline-btn { color: #3E3834; } /*To change Feedback Submit Button*/ .ogl-rw-feedback--fill-btn { background-color: #F5F4F2; /*To change the button color*/ color: #FFFFFF; /*To change color text within button*/ color: #FFFFFF; } |
Custom CSS Rules for Guided Learning Theme
Enabling Multiple Styles in the same Guide
Guided learning allows for custom CSS classes where there is a requirement to have different formatting for tips or help icons within the same guide (or even the same step). An example of this would be having a different look for Smart Tip with varying levels of information, you could have red, amber, and green alerts with varying information.
All of your CSS styles must go between the IRIDIZE_CUSTOM_THEME_START and IRIDIZE_CUSTOM_THEME_END comment lines in the Design Kit. Examples are in the table below. You can set your own class names (i.e. ORG_CUSTOM1 instead of RED_ALERT).
Reference Image | CSS Rule |
---|---|
Theme default, no custom CSS | |
/*The following code will result in the help icon
having a red background when the RED_ALERT class is
active*/div.RED_ALERT.ir-marker{background-color: red;} |
|
/*The following code will result in the help icon
having an amber background when the AMBER_ALERT class is
active*/div.AMBER_ALERT.ir-marker{background-color: #F7AC08;} |
|
/*The following code will result in the help icon
having a green background when the GREEN_ALERT class is
active*/div.GREEN_ALERT.ir-marker{background-color: #599964;} |
|
Theme default, no custom CSS | |
/*The following code will result in the Next and Done
buttons being RED when the RED_BTN class is
active*/div.sttip div.tooltip.RED_BTN div.stFooter [data-iridize-role="nextBt"] { background-color: red; } |
|
/*The following code will result in the Next and Done
buttons being AMBER when the AMBER_BTN class is
active*/div.sttip div.tooltip.AMBER_BTN div.stFooter [data-iridize-role="nextBt"] { background-color: #F7AC08; } |
|
/*The following code will result in the Next and Done
buttons being GREEN when the GREEN_BTN class is
active*/div.sttip div.tooltip.GREEN_BTN div.stFooter [data-iridize-role="nextBt"] { background-color: #599964; } |
|
Grey image missing | /*The following code will result in the back button
being grey when the GREY_BTN class is
active*/div.sttip div.tooltip.GREY_BTN div.stFooter [data-iridize-role="prevBt"] { background-color:grey; } |
/*The following code will result in the help icon
having a red level indicator as 5 when the RED_ALERT class is
active*/div.RED_ALERT.ir-marker:after {content: "5";} |
|
/*The following code will result in the help icon
having a the $ when the GREEN_ALERT class is
active*/div.GREEN_ALERT.ir-marker:after {content: "$";} |
Once the updates have been made, upload the Design kit to Guided Learning (see Upload the Design Kit in Configuring Themes).
Set the Custom CSS Class for Tooltips
- Open the item with the OGL Full Editor
- Expand the Display Settings section in Step Settings
- Find the Custom classes field and set the custom class for the
tooltip
Note: Set multiple custom classes by separating the class name with a single whitespace ( <custom_class_name_1><whitespace><custom_class_name_2><whitespace><custom_class_name_3>)
- Save the changes and close the OGL Editor
- Validate the changes in your test environment
Multi-Language Functionality
Overview of Multi-Language Functionality
The Multi-Language functionality allows you to create copies of an OGL item (i.e., guide, smart tip, etc.) into additional languages (i.e., An English worded OGL item can be made available in Dutch, French, etc.).
Note:
Kindly note that this feature does not have an automatic translation capability for the guides.The screenshot of the OGL console below highlights the default language or the currently selected language if there are multiple options available in the account.
Important:
The Multi-Language functionality:
- Does not apply to Training Content (Use the properties file to translate these item types. Refer to OGL Console Left Panel - Translation.
- Allows use of the Content Editor in the alternate language folder to perform quick manual translations without having to wait on/purchase a translation service.
- Updates (OGL item structure & settings ) are inherited. You only need to update the text in alternate language OGL item(s).
- Allows you to have different languages for different OGL items (i.e., OGL Item A can have languages EN(default), FR, DE, and OGL Item B can have languages EN(default), ES, NL).
Default Language Setting
Previously Oracle Guided Learning’s default language for guides was English. From OGL release 21A, we have the facility to set the default language to any Fusion-OGL-supported language.
Accessing and Using the Multi-Language Functionality
- On the OGL console, go to Contents.
- On the target guide, select the ellipsis icon () and then Languages ().
The Languages modal window is displayed now.
Language Search Field
Use this field to search for a target language. Search results are filtered dynamically.
Existing Languages in the Account/AppID
Languages currently available in the account/appID are displayed in this section (at the top). A horizontal line acts as a divider between 2 and 3.
OGL Supported Languages
This section lists the OGL supported languages. You can select a language by clicking the green button (). The selected language will be listed in the Current Selected Languages section (5).
Restriction:
Although there might be an extensive number of languages listed in OGL, for Fusion only the languages listed below are supported.- Arabic
- Chinese (Simplified)
- Chinese (Traditional)
- Czech
- Danish
- Dutch
- English
- Estonian
- Finnish
- French
- French (Canadian)
- German
- Greek
- Hebrew
- Hungarian
- Italian
- Japanese
- Korean
- Latvian
- Lithuanian
- Norwegian
- Polish
- Portuguese (Brazilian)
- Portuguese (European)
- Romanian
- Russian
- Slovak
- Spanish
- Swedish
- Turkish
Current Selected Languages - Previously Created
When an OGL item has an existing copy in alternate languages (i.e English) the languages are listed first as read-only.
Current Selected Languages - To be added
Current language selections are listed below the existing languages for the OGL item. To remove a language from the current selection, click the red button ().
Apply and Save and Exit buttons
Once you have made your selections, click on Apply, then Save & Exit to create alternate language copies of the OGL item.
- Choose the language(s) to which the guide needs to be translated. You can select multiple guides at once.
- Select Save & Exit.
The guide is now cloned.
- Navigate to the specific language folder to which you have
translated the guide.
The guide is now cloned with same API ID.
Note:
Kindly note that this feature does not have an automatic translation capability for the guides. Once you have cloned the guide, it will remain in the generic language, and you will need to manually translate the guide or use an external translation service/purchase a translation service. Another option would be to manually translate the guide through a third-party translator such as Google Translate for a quick translation. - Select here to learn how to translate the guide using an external translation
service.
or
Contact your OGL Account Manager to purchase a translation service.
- Alternatively, use a third-party translator such as Google Translate for a quick
translation.
- Open the content editor of the guide that you want to translate.
- In a new browser tab, go to Google Translate.
- Copy the contents from the content editor and paste it into the Google Translator's input column.
- Select the desired output language, and the content is instantly translated.
- Copy the translated content from Google Translate and paste it back into the content editor of the guide.
- Select Apply and then Save & Exit to save the
changes.
Now the content is manually translated. You can also update the guide title manually to the desired language.
WARNING:
Deleting an OGL item from the alternate language folder will delete all copies of the OGL item. You can restore the OGL item by recovering it from the Archive folder.Understanding the relationship between the default OGL item and its alternate language copies
The OGL items in the default language are the primary data files where critical information relating to the OGL items is stored. An OGL item in an alternate language cannot exist without an OGL item in the default language.
Legend:
Information Stored | Default Language OGL item (i.e. English) | Alternate Language 1 OGL item (i.e. Dutch) | Alternate Language 2 OGL item (i.e. French) |
---|---|---|---|
Display Settings, Activation Settings, and Advanced Settings (incl. Selectors) | |||
OGL item Name | |||
OGL item Step Text | |||
Number of Steps | |||
Step Sequence | |||
OGL item Status | |||
apiName | |||
OGL item Property: Products | |||
OGL item Property: Modules | |||
OGL item Property: Sticky Guide | |||
OGL item Property: Managed Guide | |||
OGL item Property: Labels | |||
OGL item Property: OGL item Type | |||
OGL item Property: Descriptions (Keywords) | |||
OGL item Activation Conditions: Role | |||
OGL item Activation Conditions: Time | |||
OGL item Activation Conditions: URL (incl. Autosegmentation) | |||
OGL item Activation Conditions: All other (assuming the condition can be localized) | |||
Editing Steps in the Default Language for Multilingual OGL item: Adding a step | |||
Editing Steps in the Default Language for Multilingual OGL item: Deleting a step | |||
Editing Steps in the Default Language for Multilingual OGL item: Text change |
Note:
- Inherits the default language text(not auto-translated), needs to be updated using Content Editor in the relevant alternate language.
- Deletes the step in all copies of the OGL item.
- Text changes to existing steps are not auto-translated, needs to be updated Content Editor.
Important:
Creating a new OGL item in the default language does not automatically create the alternate language copies of the OGL item.Translation
Oracle Guided Learning is a global platform that caters to users from diverse linguistic backgrounds. It is designed to be inclusive and accessible, allowing you to customize your guides in multiple international languages. The following articles explain the process of translating guides and managing multi-language guide content. Translation of guides allows you to dynamically control which language of the guide will be displayed to the end user. Once the guides are exported you can translate the relevant text in the provided files and import them back to OGL with the new language. You can translate your guides manually using an external translation service or use OGL's new Automated Machine Translation feature. The Translation feature is available only to OGL Premium accounts.
Note:
For information about OGL Premium, visit: https://education.oracle.com/oracle-cloud-guided-learning-premiumNote:
- Please remember that with OGL, translations are only available from the generic language of English to other languages. It is not possible to use machine or automated translation to translate guides that were originally created in other languages, including US English.
- Please make sure to create all content in the designated folder Generic Language.
- The guides in the Generic Language folder are the main guides, and all the
edits are done in the main guide, like:
- Additional steps, adding a smart tip, removing a step.
- When creating English guides, it is crucial to consider the possibility of them being translated into foreign languages in the future. For this reason, the tip width of each step should be adjusted accordingly.
- Adding additional selectors for foreign languages.
- Text updates are done in the respective languages using the OGL Content Editor.
- To ensure a successful translation with Machine Translation and Automated Translation, each step in a guide should not exceed 5000 characters, including HTML tags. If a step is longer than 5000 characters, the translation attempt will fail and result in an error.
- Guides must be published or unpublished in all the foreign languages it was translated into.
- If you deactivate a guide in the default OGL language folder, it will also be deactivated in the foreign languages folder, and vice versa.
Multi-Language Functionality
The Multi-Language functionality allows you to create copies of an OGL guide (i.e., process guide, smart tip, etc.) into additional languages (i.e., An English worded OGL item can be made available in Dutch, French, etc.). With this feature, the original guide and all translated versions of the guide will all share the same apiName. Once the guide has been duplicated, you can export the guide contents and properties into a ZIP file to be translated using an external translation service. Once translated, you will be able to import the guide and properties back into your OGL content library to be deployed in their target languages for end users to consume.
Tip:
OGL's multi-language functionality supports supports over 290 languages.Machine Translation
Once multi-language guides have been been created in the OGL console, you will need to manually translate the guides into the target languages using an external translation service. Machine Translation method enables you to manually translate guides and properties files into different languages. To use this method, you'll need to export your guides, generate a ZIP file of the guides, then upload it to Go Portal for translation. Once the translation is complete, you can download the file and re-upload it to OGL to deploy the guides in different languages.
Tip:
Machine Translation method supports 30 languages.Automated Machine Translation
Beginning in 23C Release, OGL now offers Automated Machine Translation as an enhanced translation method. With this method, you can instantly translate guides into provided languages using AI machine translation directly from within the OGL console, without the need to export/import guides.
See the following subsections to learn more about how to translate your guides.
Machine Translation
With the help of Oracle's Go Portal, the Machine Translation method enables you to translate guides into 30 languages. See the list below for the languages supported.
- Arabic
- Chinese - Simplified
- Chinese - Traditional
- Croatian
- Czech
- Danish
- Dutch
- Finnish
- French - Canada
- French - France
- German
- Greek
- Hebrew
- Hungarian
- Italian
- Japanese
- Korean
- Norwegian
- Polish
- Portuguese - Brazil
- Portuguese - Portugal
- Romanian
- Russian
- Slovak
- Slovenian
- Spanish - Worldwide
- Swedish
- Thai
- Turkish
- Vietnamese
Translating the Guides Using Machine Translation
In the Machine Translation method, you'll need to generate a ZIP file of the guides, then upload it to Go Portal for translation. Once the translation is complete, you can download the file and re-upload it to OGL to access the guides in different languages.
Note:
- You can use machine translation up to four times a year without any cost. Any further translations will be charged.
- The turnaround time is 24-48 hours.
- The best practice is to have the content ready and signed off in the Generic Language (English) before submitting the machine translation.
- Guides will only be tested in the default language. The client is responsible for testing the foreign-translated content (only for Managed Service clients).
This section will guide you on how to translate your guides using machine translation.
Important:
To use Machine Translation, you need:- Java Runtime Environment installed on your PC.
- Drop Generator installed on your PC.
- Go Portal access.
To translate:
Step 1: Export the OGL content from the Generic Language folder (English folder).
Note:
By default, OGL guides are in English. If you're using an APP ID without translated guides, you will only have a generic folder including all the English guides. As soon as a translation is completed, folders with the translated content in other languages will be created.- On the OGL homepage, select Settings > Translations.
The Translations modal window is displayed now.
- Select Export.
A ZIP file containing your guides is sent to your email Id.
- Go to your email inbox and select Download.
The browser now downloads the ZIP file.
- Navigate to your Downloads folder in the local drive and
unzip/extract the downloaded file.
After extracting the folder, you will notice three subfolders named Active, Testing, and Import and a README.html file.
Note:
Active:
This folder contains the guides with status as published in the OGL dashboard from different languages/ default languages.
Testing:
This folder contains the guides with status as a draft in the OGL dashboard from different languages/ default languages.
Import:
This folder is used to import the translated content to the OGL dashboard in different languages.
Readme:
This is an HTML file that gives insights into export and import.
- Select Export.
Step 2: Send the extracted files to Go Portal for translation.
Note:
Please note that Go Portal accepts only ZIP files created using the Drop Generator. The Drop Generator is a utility used for creating evaluation/translation drops from source files that you have available locally.- Navigate to the "testing" folder within the extracted folders.
- Go to the subfolder named "--".
Note:
“--” is the default name for generic folders.You can see the list of existing guides in the English language, identified by their API IDs.
- Select the guides you want to translate, copy and paste them to a new
folder.
Tip:
- Use the API names of the guides to identify the exact guides you want to translate.
- Consider renaming the new folder to make it easier to identify.
- Copy and paste the application PROPERTIES File (.properties) from the testing folder to the newly created folder.The application PROPERTIES File contains all the basic setups like Next, Back, Done, Help, etc.
- Use the Drop Generator to compress the files.
Note:
If the Drop Generator is not installed on your computer, you can download it from IPS Shopfront. Alternatively, select here to start the download process.Note:
To open the dropgenerator-gui.jar file on your PC, you must install the Java Runtime Environment.- Open the Drop Generator.
The below interface is displayed.
- Generate the ZIP file using the Drop Generator. Follow the below
steps:
- Select Scan files.
- Navigate to the directory where translation request files are stored.
- Choose Drop type as UI and Scan type as Directory.
- Select Ok.
- After scanning, the files are displayed as shown
below.
Make sure there are no warnings or errors in the Issues tab.
- Select Generate Drop.
- Fill in the parameters as follows:
- Product = iridize (all lowercase).
- Version = 2.0.
- Drop nr = 10 (Default value),20, 30.
-
Group = iridize (All lowercase).
Note:
The above values are predefined. They have to be maintained for all the drops.
- Select OK.
The ZIP file is now generated.
- Navigate to the Go Portal.
- Login to the Go Portal using your organization's
SSO credentials.
After logging in, the below interface is displayed.
- Select the project Oracle guided Learning for
Fusion Applications from My Projects.
Note:
Only projects that you own are accessible to you. - For automatic translation:
- Select New QA Drop.
Note:
You must be a project owner to create a drop. - From the dropdown, select New Resource Generation by uploading file.
- Upload and submit your file.
- Select your file.
- Add a friendly title.
- Component: Select iridize
- Submit drop for: UI
- Select file: Choose the ZIP file created via Drop Generator.
- Select Submit.
- After submitting the file, select the
Refresh button in the top right corner to
view the translation progress.
Note:
Once the translation process is complete, the status of the uploaded drop will change to Finished. - Select the Drop Container you named according to the Project or Customer.
- Select the Component link - iridize.
- Go to the Artifacts tab.
- Select the language links corresponding to your desired language to download the translated content.
- Select New QA Drop.
- For manual translation:
- Select New Translation Drop.
- Select OK. The latest feature New Resource Generation by uploading file is supported.
- Add Basic Information.
- Enter a friendly title.
- Enter a meaningful drop number or accept the default.
- Add drop description if required.
Select Next.
- Choose UI only and select Next.
- Choose the Components and select Next.
- Add the languages that you would like to
translate and select Next.
Note:
Currently, we support 29 languages for manual translation. If you require a language that is not listed, kindly email michelle.naumann@oracle.com, and we will add it as requested. - Set the translation frequency and select Next.
- Review the summary and select the Create button.
- After submitting the file, select the
Refresh button in the top right corner to
view the translation progress.
Note:
Once the translation process is complete, the status of the uploaded drop will change to Finished. - Select the Drop Container you named according to the Project or Customer.
- Select the Component link - iridize.
- Go to the Artifacts tab.
- Select the language links corresponding to
your desired language to download the translated
content.
Note:
- Download one language at a time,
- This will download a zip file.
- Login to the Go Portal using your organization's
SSO credentials.
- Open the Drop Generator.
Step 3: Import the translated guides to OGL.
- Open the downloaded machine translated Zip file & keep it ready for
copying.
(In the following example, we have retrieved the translated content in Czech.)
- Navigate to the folder where you first downloaded the ZIP file from the OGL Dashboard.
- Open the import folder and create a new folder. Name the folder with the
language code for which you translated.
Tip:
To import French guides, the folder should be named "fr," while for Czech, it should be named "cz," and so on. - Copy and paste the translated content to the specific language folder.
- Compress/Zip the import folder alone.
- Navigate to the OGL dashboard.
- Go to Settings > Translations.
The Translations modal window is displayed now.
- Under the Import section, select Choose a file andchoose the file named"import.ZIP".
- Set the encoding to utf-8-sig.
- Check in the Connected checkbox.
(If this option is not checked, any additional modification cannot be made in the guide.)
- Select the Import button.
The translated content is now imported.
- Verify all the translated guides are available in the respective language
folders.
- On the OGL console, select Contents.
- Select the GENERIC LANGUAGE dropdown and choose the desired
language.
The translated guides are now displayed.
- Launch any guide in the Fusion Application by changing the language in
the Application login screen.
(Normally, the guide will progress similarly to the default language guide. If the translation guide does not progress like the default language guide, follow the steps in the troubleshooting tips.)
Automated Machine Translation
Improving upon OGL’s existing multi-language support capabilities, this new functionality now instantly translates guides into provided languages using machine translation directly from within the OGL console, without the need to export/import guides. This feature is available only to OGL Premium accounts.
Note:
For information about OGL Premium, visit: https://education.oracle.com/oracle-cloud-guided-learning-premium- Not all languages are supported at this time. Future enhancements are planned to improve upon this feature’s capabilities, performance, and expand the library of available languages.
- This feature will only translate guide contents, not application properties or selectors.
- Each translation is subject to a character limit of 5,000 characters per step (including HTML tags).
- If the selected Generic Language is not on the list of available languages as listed in the Translation dialog box, the translation will fail and return an unspecified error message.
Note:
This feature requires the following OGL security role and permissions: Owner role → Change Application Settings permissionsTranslating Individual Guides
- From the My Content page, select the “More…” icon in the lower right corner of the guide you wish to translate.
- Select Translate from the actions menu.
- The Translation modal opens.
- Select the “+” button next to the language(s) you wish to translate the guide from the list of available languages on the left. Any selected languages will appear in the Target Languages, then select Save and Exit when done.
- A confirmation dialog box will appear (read carefully) and will prompt you to confirm the action.
- Once the translation is complete, a confirmation message will appear at the top
of the Translation modal to confirm that the guide has been
translated.
Note:
Translations cannot be undone. To restore the guide to a previous version, use the Version History in the Guide Status. - The translated guides will now appear in their respective language folders in the My Content page. To toggle between each language folder, select the language dropdown menu.
- If you make any content changes to the original guide and then translate the guide again, you will be prompted with an option to retranslate the guide for all target languages.
Translating Multiple Guides (Bulk Action)
- From the My Content page, select one or more guides that you wish to translate, then select Translate from the Bulk Actions dropdown menu.
- The Translation modal opens.
Note:
With bulk translations, any pre-existing translated languages will not be displayed in the Target Languages column. Any translations applied using Bulk Actions will affect all selected guides and will overwrite any existing translations. To translate specific guides into specific languages, consider translating the guide(s) individually. - Select the “+” button next to the language(s) you wish to translate the guide from the list of available languages on the left. Any selected languages will appear in the Target Languages, then select Save and Exit when done.
- Once the translation is complete, a confirmation message will appear at the top of the Translation modal indicating that the job has been scheduled and that an email will be sent to notify you when completed.
- Check your email inbox for a message from Oracle Guided Learning <noreply_ogl@comm-apps.ou.ocs.oraclecloud.com>. The message should look like this:
- Open the attached Excel spreadsheet to view the translation status of all selected guides.
- The translated guides will now appear in their respective language folders in the My Content page. To toggle between each language folder, select the language dropdown menu.
Using the Multi Language Widget
A user may choose to select an alternative language available on the OGL widget. Here is an easy way to do this:
- Open the Guided Learning widget.
- At the bottom-left of the open widget, click the Language Selection icon () then select the desired language from the menu.
All guides available in the selected language will now display in the widget. For example, if you selected Dutch from the available languages, all Dutch guides will now display in the widget.
Once you sign out of the Fusion application and sign back in, the widget language will default to the language you have previously chosen.
Note:
If a user does not manually select a language from the OGL Language Menu, OGL defaults to the Fusion application language for the session.Health
Developers can review guide issues from either the guide card for an individual guide or a list of all errors from the navigation panel.
If a guide has an error, for example if a smart tip has been incorrectly
flagged as a sticky guide, this will show on the guide card as an error, as in the image
below.
You can click on the icon to display the error.
Clicking on the error link shows details about the reported error and any recommendations to resolve it. You can now make the necessary change to the guide to resolve the issue if needed.
Alternatively, you can also see all guide health issues from the left navigation panel:
The Health modal will appear displaying a list of all guide errors identified within the Content library and any details about the errors.
The options available for the Health list are to either Hide or Dismiss the errors.
Note:
Selecting Hide has no impact on calculation logic and does not treat the error as 'resolved'.Show hidden items: Toggles the Health list to show or hide all hidden errors.
UNHIDE: When "Show hidden items" is checked, any errors that are marked as hidden will be re-displayed in the Health list. Select Unhide to move the hidden error back to the Health list.
Note:
Dismissing a health error does not mean that the error has actually been resolved. You will still need to fix or repair the guide, as needed. Any errors that are dismissed will reappear within 24 hours in the Health list if OGL detects that the error still exists in the guide.HIDE ALL: Hides all errors in the Health list and moves them to a list of hidden errors. Use "Show hidden items" to display all hidden errors.
Below is a list of the potential issues that you might find in Health:
Issue | Error | Description |
---|---|---|
Always Activation | ERROR_TYPE.WRONG_ACTIVATION |
The launching conditions of this content are probably too generic. It is problematic because frequent checking the content in order to decide if it can be launched or not will add overhead and will result in slowing down Guided Learning. Recommendation: Avoid displaying content with 'always' condition and narrow down the launching conditions (e.g. limit to certain pages if possible). |
Sticky Guide | ERROR_TYPE.STICKY_FLAG_NOT_EXPECTED |
Sticky flag is turned on a smart tip or beacon. This is usually not a correct setting because smart tips and beacons are used on a single page. Recommendation: Turn off sticky flag. |
Unpublished Launched | ERROR_TYPE.NOT_PUBLISHED_AND_LAUNCHED |
This content is not published but it was launched somehow. Typically, another content can trigger launching so you should search for dependencies. Recommendation: Either publish this content or find the other one which triggers its launch. |
Sticky Smart Tip/Beacon | ERROR_TYPE.STICKY_FLAG_NOT_EXPECTED |
The Sticky Guide setting is selected in the Guide Settings. Because this is a smart tip or beacon, Sticky Guide is not necessary and can cause performance problems. Recommendation: Turn off the Sticky Guide in Guide Settings. |
Always Activation | ERROR_TYPE.WRONG_ACTIVATION |
The Guide Activation conditions includes a "Display this Guide in Autoload Always" condition. These conditions can slow down Guided Learning because the content is checked on every page. Recommendation: Avoid "Display this Guide in Autoload Always" conditions by using more specific Guide Activation conditions, like limiting the guide to certain pages if possible. |
Not published and launched | ERROR_TYPE.NOT_PUBLISHED_AND_LAUNCHED |
This content is not published, but it was launched somehow. Typically, another content can trigger launching, so you should search for dependencies. Recommendation: Publish this content or find the other one which triggers its launch. |
Launcher\'s guide to launch is not active | ERROR_TYPE.LAUNCHER_LAUNCH_GUIDE_ERROR |
The selected guide in "Launch a guide" setting in guide settings is deleted/inactive. Recommendation: Select a new guide or recover/activate the existing guide. |
Launcher\'s guide to launch guide\'s start step is missing | ERROR_TYPE.LAUNCHER_LAUNCH_GUIDE_STEP_ERROR |
The selected guide\'s start step is deleted in "Launch a guide" setting in guide settings. Recommendation: Select another guide or a new step to start for the exiting guide. |
Task list has one or more not active guide(s) included | ERROR_TYPE.TASKLIST_INCLUDED_GUIDE_ERROR |
The deleted/deactivated guide(s) will not show up in the task list. Recommendation: Delete these guides from the task list or recover/activate the existing guides. |
Task list has no active guide included | ERROR_TYPE.TASKLIST_NO_INCLUDED_GUIDE_ERROR |
All of the task list\'s guides are deleted/deactivated. Recommendation: Add active guides to the task list. |
Branched/guide to launch guide is not active | ERROR_TYPE.GUIDE_BRANCHED_GUIDE_ERROR |
The selected guide in "Branch a guide" or in "Launch a guide" setting in step settings is deleted/inactive. Recommendation: Select a new guide or recover/activate the existing guide. |
Branched/guide to launch guide\'s start step is missing | ERROR_TYPE.GUIDE_BRANCHED_GUIDE_STEP_ERROR |
The selected guide\'s start step is deleted in "Branch a guide" or in "Launch a guide" setting in step settings. Recommendation: Select another guide or a new step to start for the exiting guide. |
Some of the role conditions has undefined role(s) | ERROR_TYPE.UNMAPPED_ROLE_CONDITION |
The Guide Activation conditions includes an Undefined Role condition. These conditions make guides not to be visible to users because of Undefined roles. Recommendation: Avoid adding Undefined Roles in activation conditions, or add Application roles to empty OGL role in Custom roles. |
Guide cannot be completed | ERROR_TYPE.GUIDE_CANNOT_ADVANCE |
The guide has a step where none of the tip\'s selectors can be found, therefore the guide cannot advance to the next step. Note: Beginning in OGL 24D release, the "Guide cannot be completed" health check and error message will be temporarily removed from the Guide Health tool. This health check and related error code are being redeveloped and recalibrated for better accuracy and will be reintroduced to the Guide Health tool in a future release. |
Library
In addition to My Content, OGL offers libraries of pre-built OGL content depending upon the OGL offering that you are using (Included or Premium). The content from these libraries were developed by Oracle expert teams and employ Oracle's best practices to provide content developers efficient access to updated and relevant OGL content to help accelerate your content development experience. The Library section in the left navigation panel is where you can browse and access these various content libraries and leverage Oracle's experience and expertise.
Use Cases
The Use Cases library provides access to procured collections of OGL guide packages that address specific business use cases and scenarios with Oracle Fusion products. Use Cases allow developers to access pre-built Fusion base guides without the intervention of an Oracle Account Manager and with the added benefit of seeing how different base guides can work together to achieve specific results. The Use case library is available on both OGL Included as well as OGL Premium accounts.
To access the Use Cases library, select Use Cases in the left navigation panel.
Display Use Cases
Depending upon which Oracle Fusion products you may be using, the Use Cases library will present an assortment of pre-built guide packages based on which Fusion products you have selected in your Application settings. Follow the steps below to specify which Fusion products you wish to display in the Use Cases library.
- In the left navigation panel, select Settings.
- Select Application.
- In the Application Settings modal, select the Application tab.
- In the Application Type, select Fusion.
- Under the Available Products for Content Display in the OGL Libraries section, select the dropdown menu and select any products from the list that you wish to display in the OGL Libraries.
- Select Save when finished.
The Use Cases library will now display all use cases associated with the Fusion products you selected.
Base Guides
OGL Premium subscription users have access to a vast library of starter content assets supporting Oracle cloud products called Base Guides. The base guide content is built from the experience of thousands of hours of cloud application implementations, and is intended to provide users with clear, step-by-step instructions for essential tasks.
Select Base Guides in the left navigation panel to view the items within this library.
The Base Guides library will display pre-built content items that are ready for you to import into your My Content library. You can use the Product filters in the Filters panel to narrow the list of content items displayed based on specific application products.
Base Guides are available for various Oracle Fusion applications, such as HCM, ERP, SCM, etc. To choose which available products will be displayed in the OGL libraries pages, go to Settings > Application. Select the dropdown menu below "Available Products for Content Display in the OGL Libraries" and select all products that apply:
With any Base Guide content item, or guide, you can select Preview () to see a preview of the content item or select Copy to My Content () to import the item into your My Content library.
Note:
Any content item that is displayed with a My Content () flag indicates that the item has already been copied into your My Content library. Selecting the Copy to My Content () button again will replace and overwrite the existing item with an updated version of the Base Guide content.Use Cases
Use Cases are curated collections of pre-built guide packages that were designed by Oracle experts and are based on real business scenarios. Use Cases provide guide templates that employ Oracle best practices for various Oracle Fusion applications. Each Use Case may contain one or more guides of various categories, including Message guides, Process guides, Smart Tips, etc.
The Use Cases screen is displayed.
To switch between the views:
Use the List View icon (
) and the Tile View icon () to switch between your preferred views.
By default, all the Use Cases are displayed in Tile View.
Select List view and you can view the use cases listed.
Oracle Content
The Oracle Content library and settings allows customers to have expert-developed content designed to support Fusion (HCM, ERP, SCM, and CX) Specialists as they navigate the Fusion application environment. The content is developed and tested by Oracle expert teams and guides users to information and practices that avoid the need for certain types of My Oracle Support service requests. Once enabled on the customer account, a new item labelled Oracle Content will appear in the Library section of the left navigation, which will open the Oracle Content settings panel.
Once enabled and activated, Oracle Content is immediately available in the application environment based the which Fusion products/modules you choose. Administrators do not need to add the content to their My Content library or test it.
Note:
Access to the settings panel requires the “Owner > Manage Oracle Content” security permission available within User Management. When the security permission is selected, the user can see and update the settings within Oracle Content.Through the Oracle Content settings panel, administrators can opt-in/opt-out of content categories (i.e., My Oracle Support and Oracle Customer Success) and enable content by Fusion products/modules according to their application footprint. Content can be enabled or disabled within the development and/or production environments for any available Fusion product.
In the Oracle Content settings modal, select View Details next to the content category you wish to configure to expand the list of the available Products.
You can enable/disable content in either Development or Production environments for each category (i.e., My Oracle Support or Oracle Customer Success) and for any Product (e.g., HCM, ERP, SCM, CX, etc.) by selecting View Details next to the corresponding category/product to expand.
Changing the Status at the parent-level will apply the same setting to all child-level options, as shown below.
Selecting Custom for any category or product will allow you to configure settings individually.
Note:
Oracle Content guides are page-specific and will only display when the user navigates to the appropriate page with which the guides are associated and tagged.Below is an example guide from the My Oracle Support category:
Oracle Content FAQs
Q: Who developed the content available through Oracle Content?
A: Guided Learning has partnered with various Oracle teams including Product Management, My Oracle Support and Customer Success to develop content for customers.
Q: Will all the content be immediately available?
A: No, the content will continue to be updated over the course of releases. The first content available will be from the My Oracle Support team.
Q: What types of content is available through Oracle Content?
A: Our expert teams have created content using a variety of guided learning guide types including training links, smart tips, messages, beacons, and process guides.
Q: Who is the primary consumer of Oracle Content guides?
A: Depending upon the category. The My Oracle Support content is designed primarily for the Specialist or Administrator roles who are completing business process transactions in the system.
Q: Where in the application environment will I see the content?
A: Depending upon the category. Some categories prefer to only display content in the Guided Learning Widget as where other categories have guides spread throughout the application that appears when certain conditions are met.
Q: Is the content tied to the application security roles?
A: No, the content is not tied to any application security roles. However, many of the content items are directly connected to pages or transactions. Thus, if the user has security to the page or ability to complete the transaction, they will have access to the content.
