3.12.14 Extreme Flash Exadata Storage Server X5-2 Images

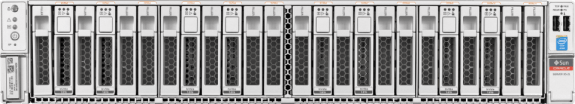

The following image shows the front view of Extreme Flash Exadata Storage Server X5-2 Servers.

Figure 3-27 Front View of Extreme Flash Exadata Storage Server X5-2 Servers

Description of Figure 3-27 follows
Description of "Figure 3-27 Front View of Extreme Flash Exadata Storage Server X5-2 Servers"

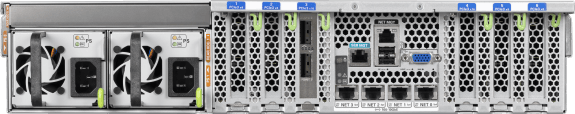

The following image shows the rear view of Extreme Flash Exadata Storage Server X5-2 Servers.

Figure 3-28 Rear View of Extreme Flash Exadata Storage Server X5-2 Servers

Description of Figure 3-28 follows
Description of "Figure 3-28 Rear View of Extreme Flash Exadata Storage Server X5-2 Servers"
