3.12.12 Extreme Flash Exadata Storage Server X6-2 Images

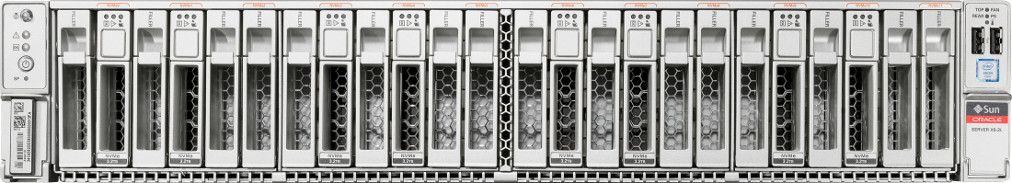

The following figure shows the front view of the Oracle Exadata Storage Server X6-2 Extreme Flash server.

Figure 3-23 Front View of Oracle Exadata Storage Server X6-2 Extreme Flash Server

Description of Figure 3-23 follows
Description of "Figure 3-23 Front View of Oracle Exadata Storage Server X6-2 Extreme Flash Server"

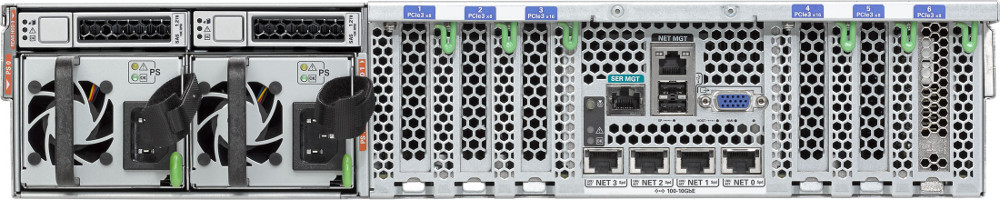

The following figure shows the rear view of the Oracle Exadata Storage Server X6-2 Extreme Flash server.

Figure 3-24 Rear View of Oracle Exadata Storage Server X6-2 Extreme Flash Server

Description of Figure 3-24 follows
Description of "Figure 3-24 Rear View of Oracle Exadata Storage Server X6-2 Extreme Flash Server "

Parent topic: Exadata Storage Server Images
