2.18.10 Sun Fire X4170 Oracle Database Server Images

The following image shows the front view of Sun Fire X4170 Oracle Database Server.

Figure 2-21 Front View of Sun Fire X4170 Oracle Database Server

Description of Figure 2-21 follows
Description of "Figure 2-21 Front View of Sun Fire X4170 Oracle Database Server"

  1. Hard disk drives. The top drives are, from left to right HDD1, and HDD3. The lower drives are, from left to right, HDD0, and HDD2.

The following image shows the rear view of Sun Fire X4170 Oracle Database Server.

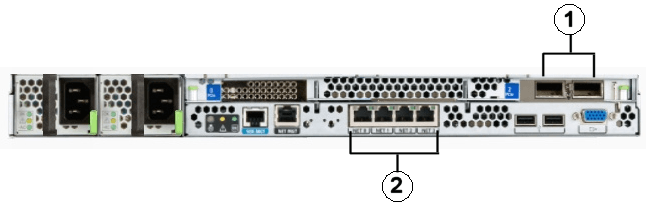

Figure 2-22 Rear View of Sun Fire X4170 Oracle Database Server

Description of Figure 2-22 follows
Description of "Figure 2-22 Rear View of Sun Fire X4170 Oracle Database Server"

  1. RDMA Network Fabric host channel adapter

  2. Gigabit Ethernet ports
