20.1 Rack Layout Diagrams

The diagrams in this topic show the rack layout for Oracle Exadata Database Machine X2-2 and Oracle Exadata Database Machine X2-8 Full Rack.

Note:

For ease of reading, the name "Oracle Exadata Rack" is used when information refers to both Oracle Exadata Database Machine and Oracle Exadata Storage Expansion Rack.

The following abbreviations are used in the tables:

Abbreviation Description

Rn

Rack n, where n is the number of the rack, such as R1.

Un

Unit height in rack, where n is the number, such as U20.

Pn

InfiniBand port n, where n is port number, such as P8A.

The cables used in Oracle Exadata Database Machine are color-coded as follows:

  • Black: InfiniBand cables, or AC power jumper cables
  • Red: Integrated Lights Out Manager (ILOM) cables
  • Blue: Gigabit Ethernet cables
  • Orange: KVM switch cables (not used in Oracle Exadata Database Machine X2-8 Full Rack)

The following table shows the front and rear views of Oracle Exadata Database Machine X2-2 Full Rack. The front is shown on the left, and the rear is shown on the right.

Figure 20-1 Rack Layout of Oracle Exadata Database Machine X2-2 Full Rack

Description of Figure 20-1 follows
Description of "Figure 20-1 Rack Layout of Oracle Exadata Database Machine X2-2 Full Rack "

The following table shows the front and rear views of Oracle Exadata Database Machine X2-2 Half Rack.

Note:

The Sun Datacenter InfiniBand Switch 36 switch in rack position U1 is included in Oracle Exadata Database Machine X2-2 Half Racks with the Sun Fire X4170 M2 Oracle Database Servers.

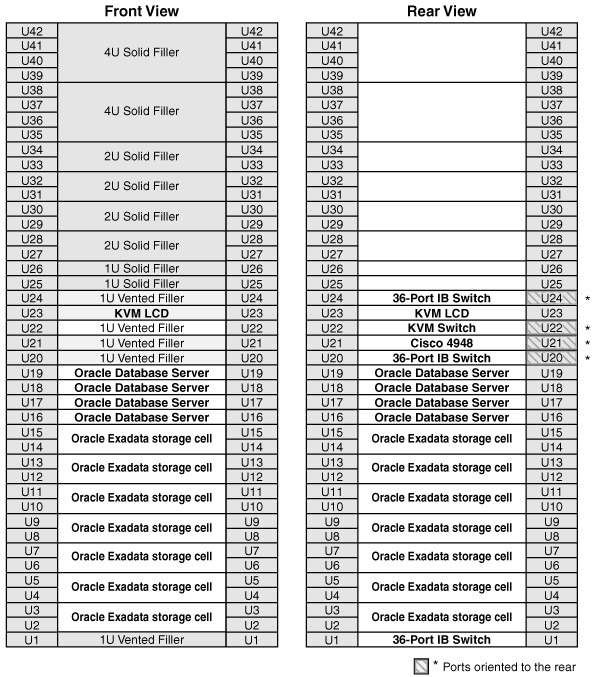

Figure 20-2 Rack Layout for Oracle Exadata Database Machine X2-2 Half Rack

Description of Figure 20-2 follows
Description of "Figure 20-2 Rack Layout for Oracle Exadata Database Machine X2-2 Half Rack "

The following table shows the front and rear views of Oracle Exadata Database Machine X2-2 Quarter Rack.

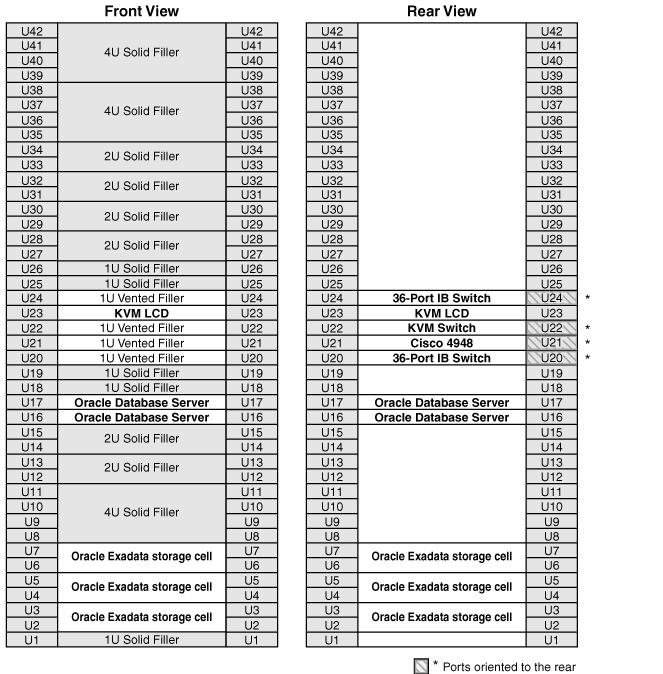

Figure 20-3 Rack Layout of Oracle Exadata Database Machine X2-2 Quarter Rack

Description of Figure 20-3 follows
Description of "Figure 20-3 Rack Layout of Oracle Exadata Database Machine X2-2 Quarter Rack"

The following table shows the front and rear views of Oracle Exadata Database Machine X2-8 Full Rack.

Figure 20-4 Rack Layout of Oracle Exadata Database Machine X2-8 Full Rack

Description of Figure 20-4 follows
Description of "Figure 20-4 Rack Layout of Oracle Exadata Database Machine X2-8 Full Rack"
