16.1 Rack Layout Diagrams

The diagrams in this topic show the rack layout for Oracle Exadata Database Machine X8-2, X8-8, X7-2, and X7-8.

The slot numbers for each component is shown in the following images.

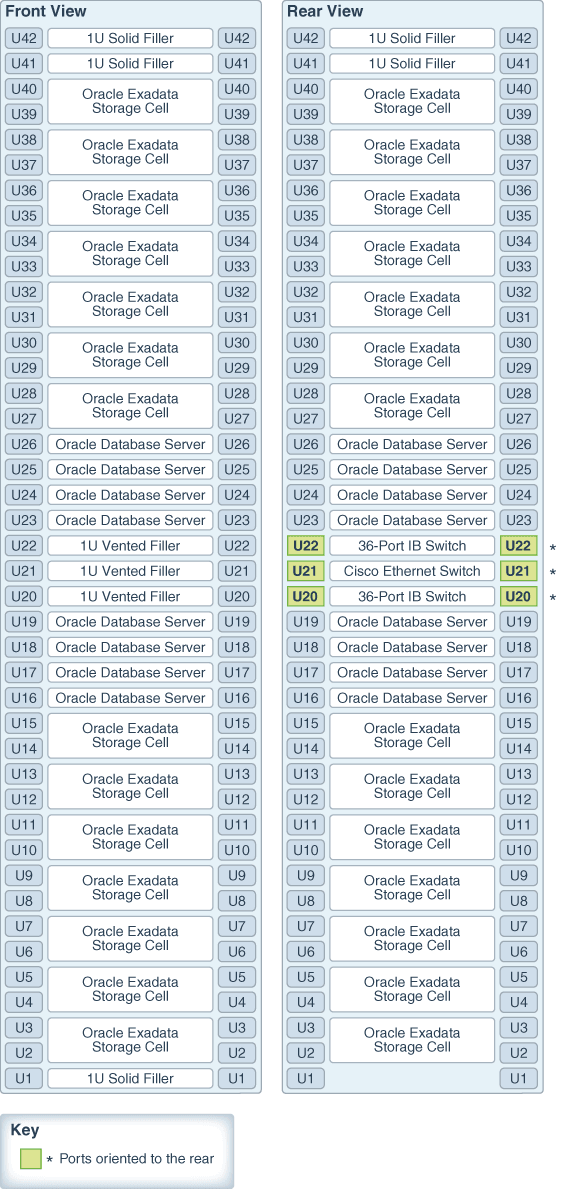

The following image shows the front and rear views of Oracle Exadata Database Machine X8-2 and X7-2 Full Rack. The front view is shown on the left, and the rear view is shown on the right.

Figure 16-1 Rack Layout of Oracle Exadata Database Machine X8-2 and X7-2 Full Rack

Description of Figure 16-1 follows
Description of "Figure 16-1 Rack Layout of Oracle Exadata Database Machine X8-2 and X7-2 Full Rack "

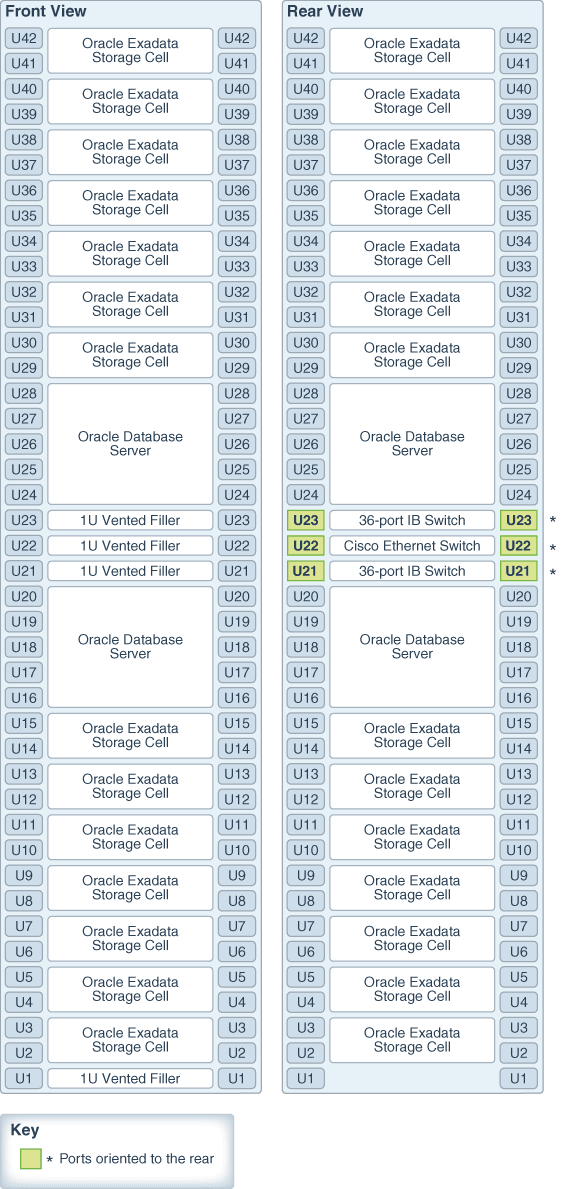

The following image shows the front and rear views of Oracle Exadata Database Machine X8-8 and X7-8.

Figure 16-2 Rack Layout of Oracle Exadata Database Machine X8-8 and X7-8

Description of Figure 16-2 follows
Description of "Figure 16-2 Rack Layout of Oracle Exadata Database Machine X8-8 and X7-8"
