15.1 Rack Layout Diagrams
The diagrams in this topic show the rack layout for Oracle Exadata X8M-2 and X8M-8.
The slot numbers for each component is shown in the following images.

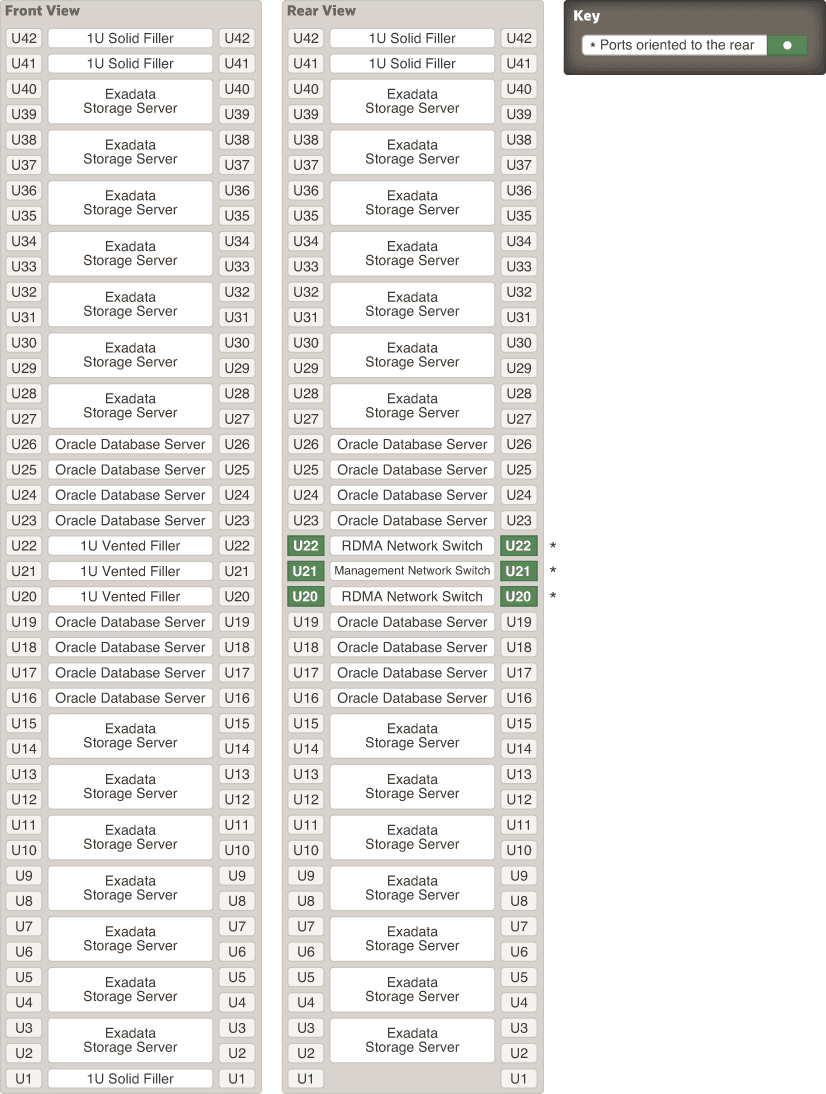

The following image shows the front and rear views of the component positioning in Oracle Exadata X8M-2 Full Rack. The front view is shown on the left, and the rear view is shown on the right.
Figure 15-1 Rack Layout of Oracle Exadata X8M-2 Full Rack

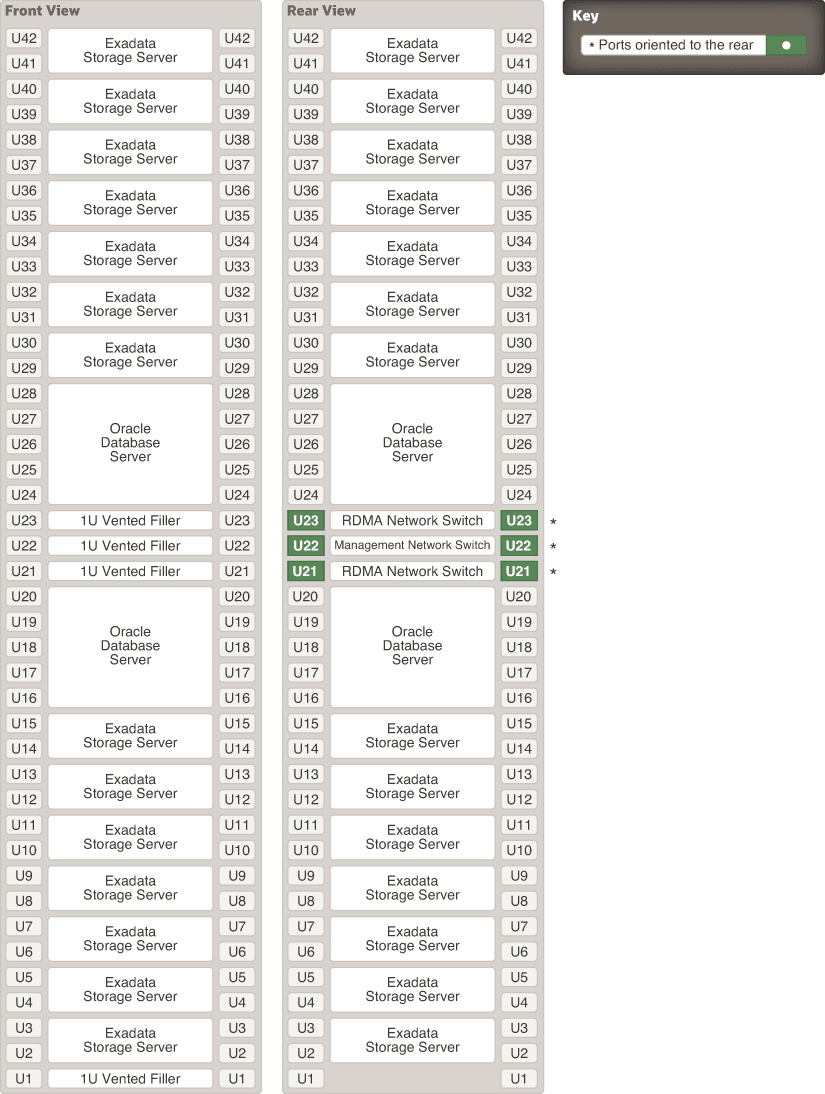

The following image shows the front and rear views of the component positioning in Oracle Exadata X8M-8.
Figure 15-2 Rack Layout of Oracle Exadata X8M-8
