Step 6 - Networking

You can check the network by clicking on the Network tab on the left hand pane in the BUI.

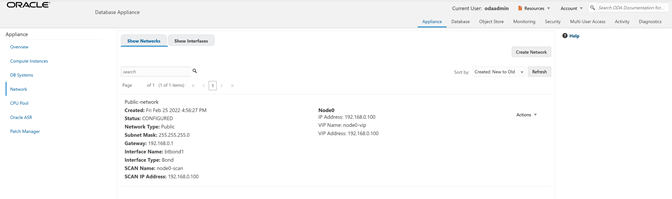

Network Information in the BUI

You can also create a new VLAN by clicking the Create Network button and specify the network information below.

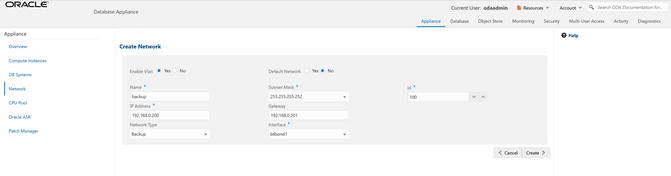

Create Network page

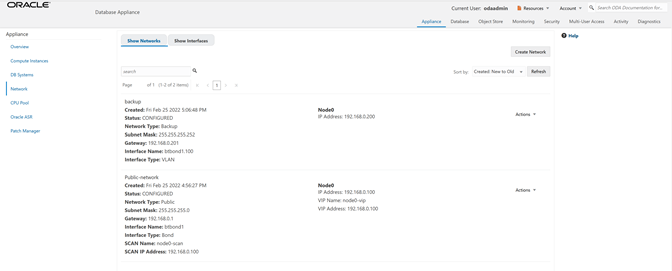

Click on the Create button, then submit the job.  Following is an example that shows the backup VLAN has been created.

Network Information page

This concludes Lab 1.
