Illustrated Parts Breakdown

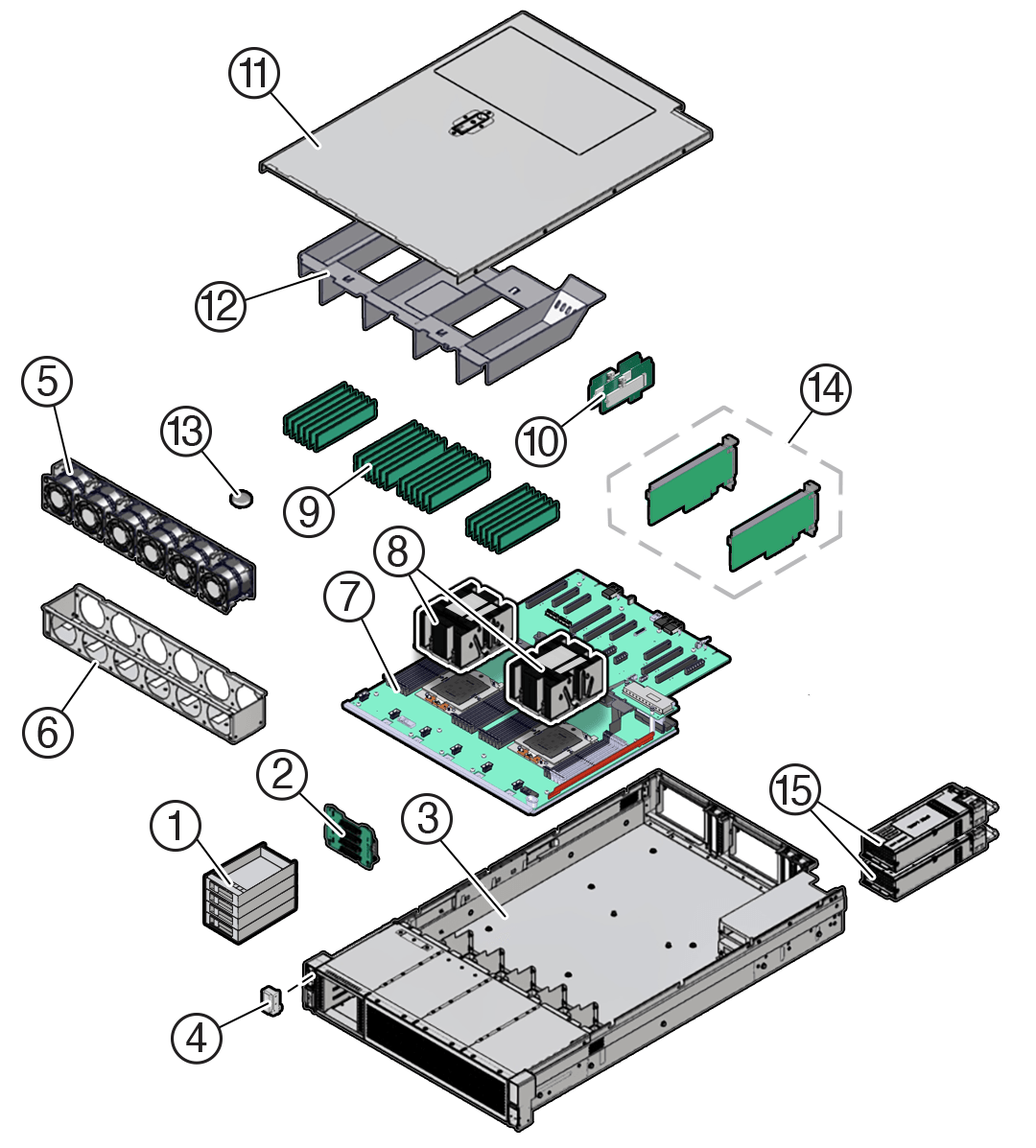

The following figure identifies the major components of the Oracle Server X11.

Figure showing exploded view of server with 4-Drive backplane system components.
Callout Description

1

Storage drive filler panels

2

4-Drive backplane (DBP)

3

System chassis

4

Front LED indicator module (FIM)

5

Six fan modules (FM0-5)

6

Fan tray

7

Motherboard assembly (MB)

8

Processors (P0, P1) and heatsinks

9

24 DIMMs

10

 Internal M.2 SSD memory with two internal M.2 Risers

11

Top cover

12

Air baffle

13

System RTC battery

14

CX5 PCIe cards – only slots 1 and 5 are populated in Private Cloud Appliance

15

Two power supplies (PS0, PS1)
