Illustrated Back Panel Components Breakdown

In Oracle Private Cloud Appliance, only components accessible from the rear of the 3U server chassis may be replaced. The following figure identifies the back panel components of the X10-2c GPU L40S Compute Server.

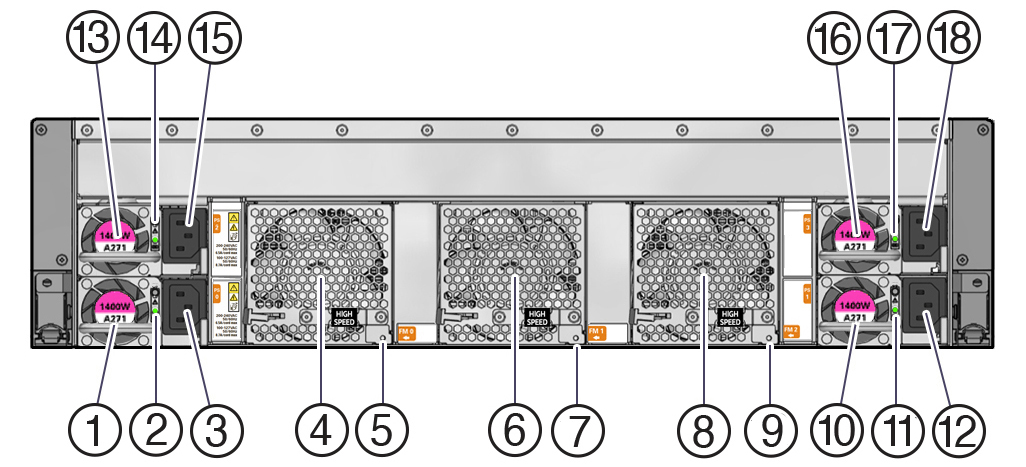

Figure showing the back panel of the X10-2c GPU L40S Compute Server.
Callout Description

1

Power supply (PS 0)

2

PS 0 status LEDs:

  • AC OK LED: green

  • Fault-Service Required LED: amber

3

AC power input connector (PS 0)

4

High speed fan module 0 (FM 0)

5

FM 0 bi-color status LED:

  • Fan OK: green

  • Fan-Service Required: amber

  • System Locate: all fan modules blink green to locate the system

6

High speed fan module 1 (FM 1)

7

FM 1 bi-color status LED:

  • Fan OK: green

  • Fan-Service Required: amber

  • System Locate: all fan modules blink green to locate the system

8

High speed fan module 2 (FM 2)

9

FM 2 bi-color status LED:

  • Fan OK: green

  • Fan-Service Required: amber

  • System Locate: all fan modules blink green to locate the system

10

Power supply (PS 1)

11

PS 1 status LEDs:

  • AC OK LED: green

  • Fault-Service Required LED: amber

12

AC power input connector (PS 1)

13

Power supply (PS 2)

14

PS 2 status LEDs:

  • AC OK LED: green

  • Fault-Service Required LED: amber

15

AC power input connector (PS 2)

16

Power supply (PS 3)

17

PS 3 status LEDs:

  • AC OK LED: green

  • Fault-Service Required LED: amber

18

AC power input connector (PS 3)
