  4. Pensando Ortano DSC SmartNIC Status Indicators

Pensando Ortano DSC SmartNIC Status Indicators

The Pensando Ortano DSC SmartNIC status indicators are defined as follows:

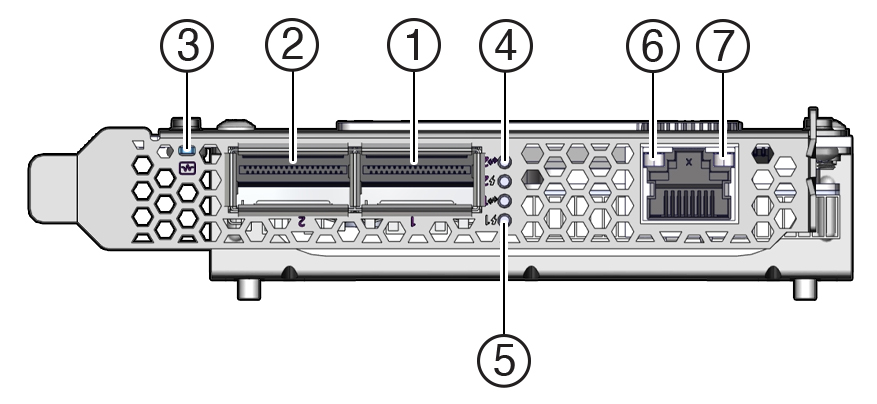

Graphic showing Pensando Ortano card status indicators.
Callout Description

1

Port 1

2

Port 2

3

Card status indicator:

  • Off = System is not powered on.

  • Solid amber = Powered on, software booting

  • Solid green = Normal operation

4

Port 2 activity/link indicators:

  • Port 2 activity indicator (top most as shown in illustration):

    • Off = No activity

    • Blinking = Link activity

  • Port 2 link indicator (second down as shown in illustration):

    • Off = Link has not been established

    • Solid green = Valid link has been established

5

Port 1 activity/link indicators:

  • Port 1 activity indicator (third down as shown in illustration):

    • Off = No activity

    • Blinking = Link activity

  • Port 1 link indicator (bottom most as shown in illustration):

    • Off = Link has not been established

    • Solid green = Valid link has been established

6

Management port activity indicator:

  • Off = No activity

  • Blinking green = Link activity

7

Management port link indicator:

  • Off = 100BASE-T link

  • Solid green = 1000BASE-T link
