Rackmount Kit Contents

The following figure shows the Rackmount Kit contents. For additional instructions on how to install your server in a four-post rack using the slide-rail and cable management arm options, refer to the Rackmounting Template.

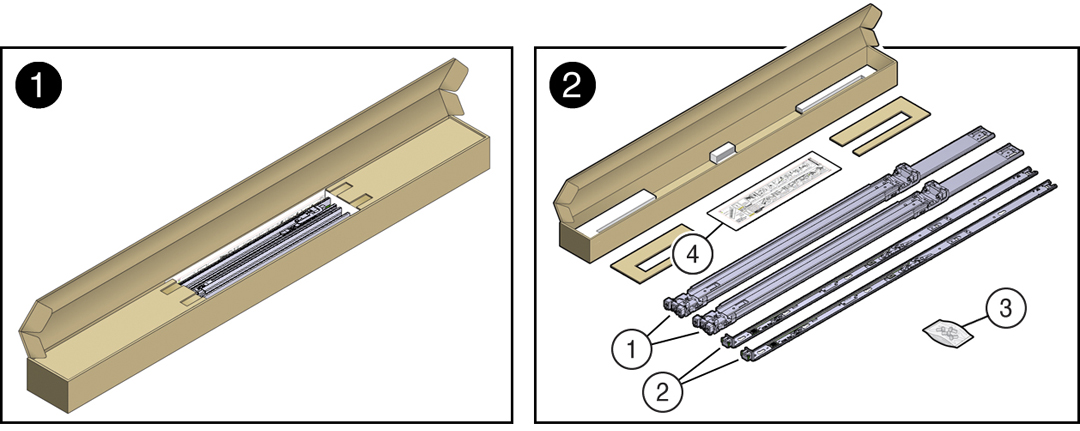

Figure showing the contents of the rackmount kit.

Call Out Description

1

Slide-rails

2

Mounting brackets

3

Four M4 x 5 fine-pitch mounting bracket securing screws (optional)

4

Rackmounting Template
