Installing the Transcoding Module

The following procedure describes how to install the Transcoding Module (TM) onto the mainboard.

Prerequisites:

  • Always load the TMs sequentially, starting with position 0 (the slot labelled TM0).
  • The labels identify the orientation of the TM.
  • Place the new TM in an ESD-safe location.
  • Wear an ESD wrist strap or take similar equivalent actions to prevent static damage to the mainboard or other ESD-sensitive components.

To install the TM:

  1. Grasp the TM between your thumb and index finger of each hand and line up both sides of the module with the slot guides attached to the mainboard.
  2. Slide the TM into place in the TM0 slot.
  3. Press evenly across the top of the connector to fully seat the TM.

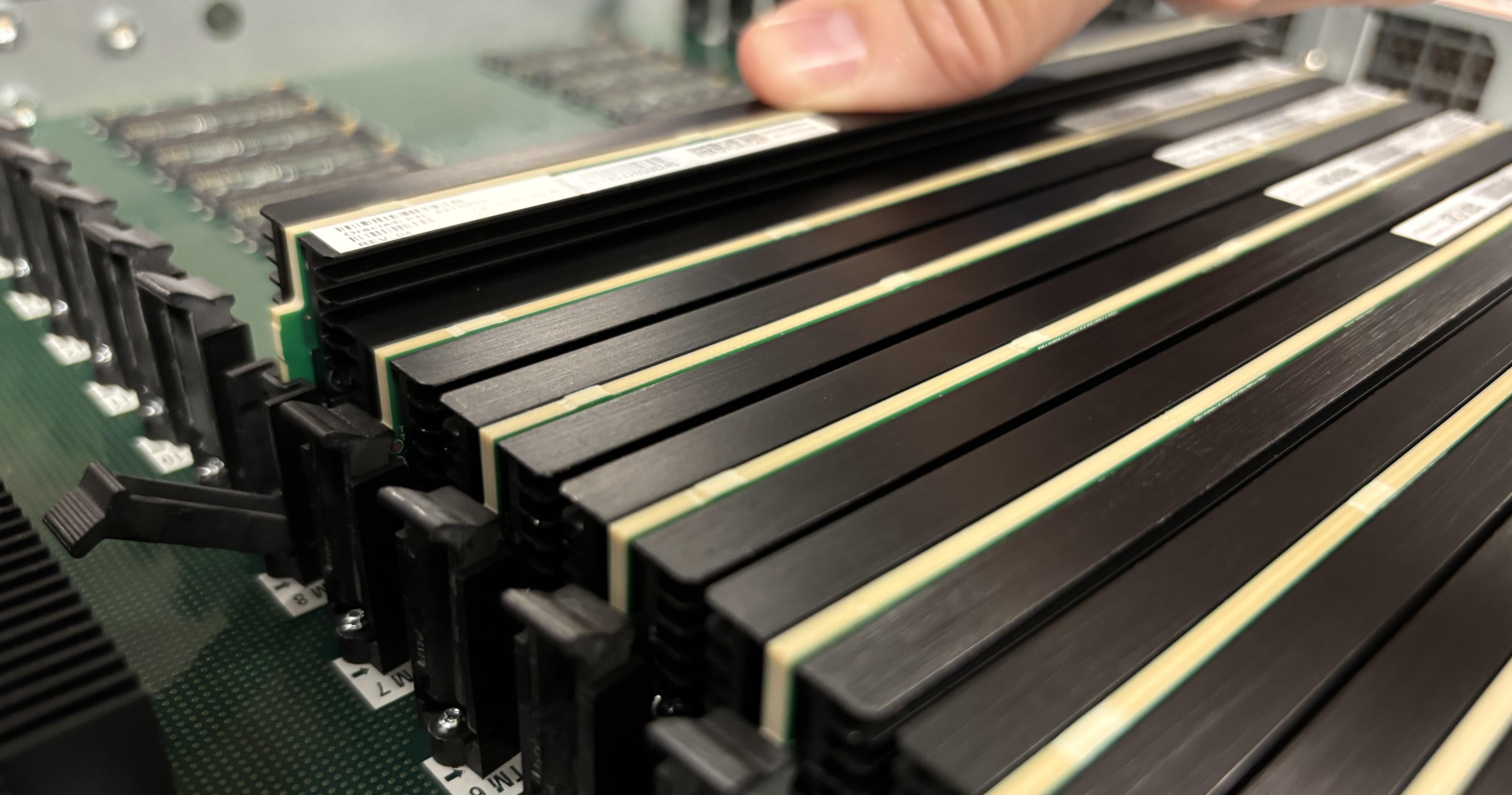

    This picture shows someone properly seating the transcoding module.
  4. Press on the latches on both sides to secure the TM to the mainboard.

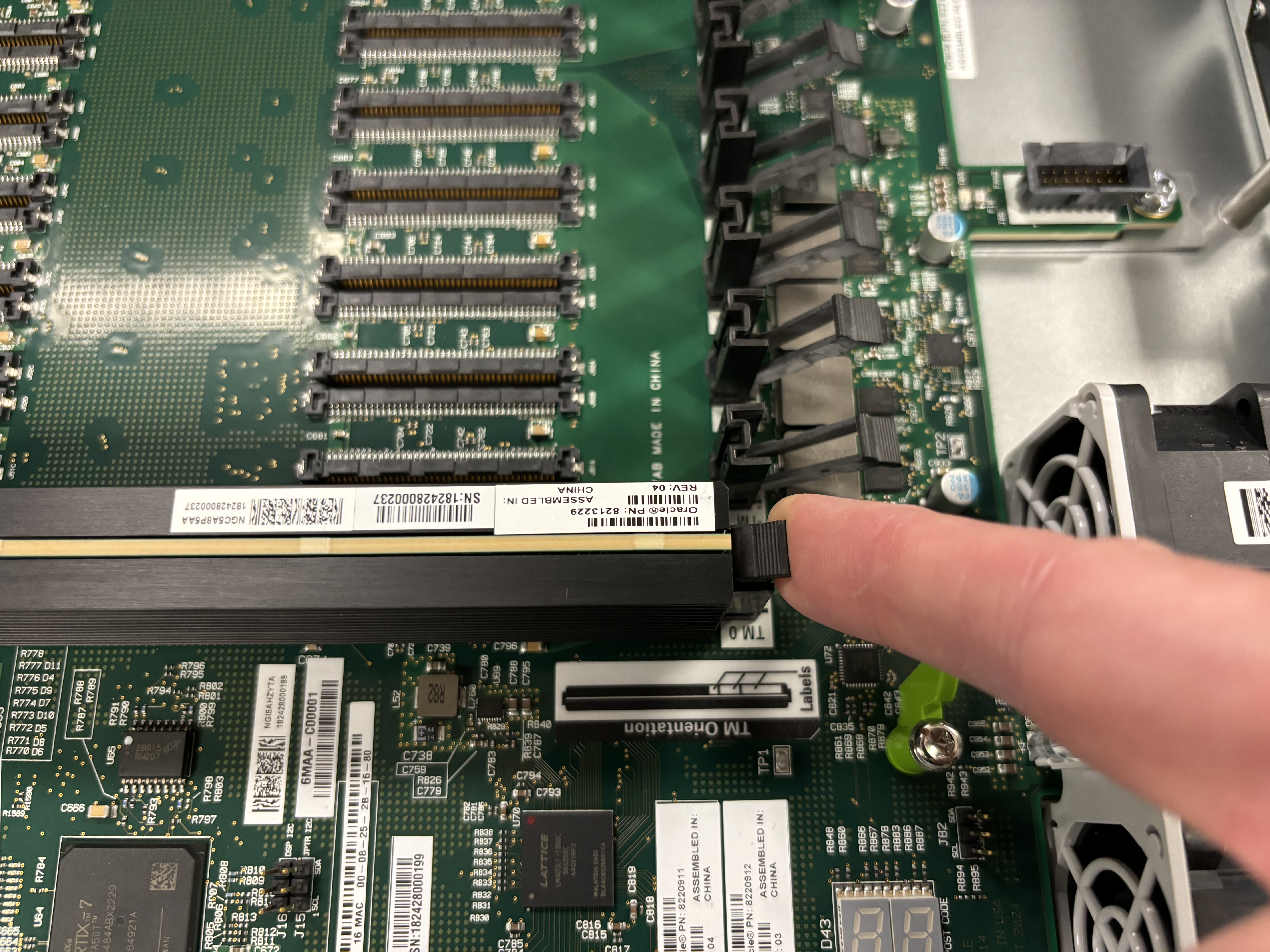

    secure latch
  5. As necessary, repeat for slots TM1, TM2, and others, making sure to install the TMs sequentially.
