Remove a Fan Module

The 4 fan modules are user-serviceable, hot-pluggable components. Each module has 2 fans. In normal circumstances, you should shutdown the system near the fan's end of life and replace it with a new fan. However, if a fan malfunctions while the system is running, remove the fan and quickly replace it with a functional fan to prevent overheating.

WARNING:

Overheating can stop packet processing.

If you do not have a replacement fan on hand, shut down the system and disconnect the power before removing the malfunctioning fan.

Note:

When removing and replacing a fan, remember to first ground yourself using appropriate ESD grounding equipment such as a wrist or heel strap.
  1. Remove the top cover.

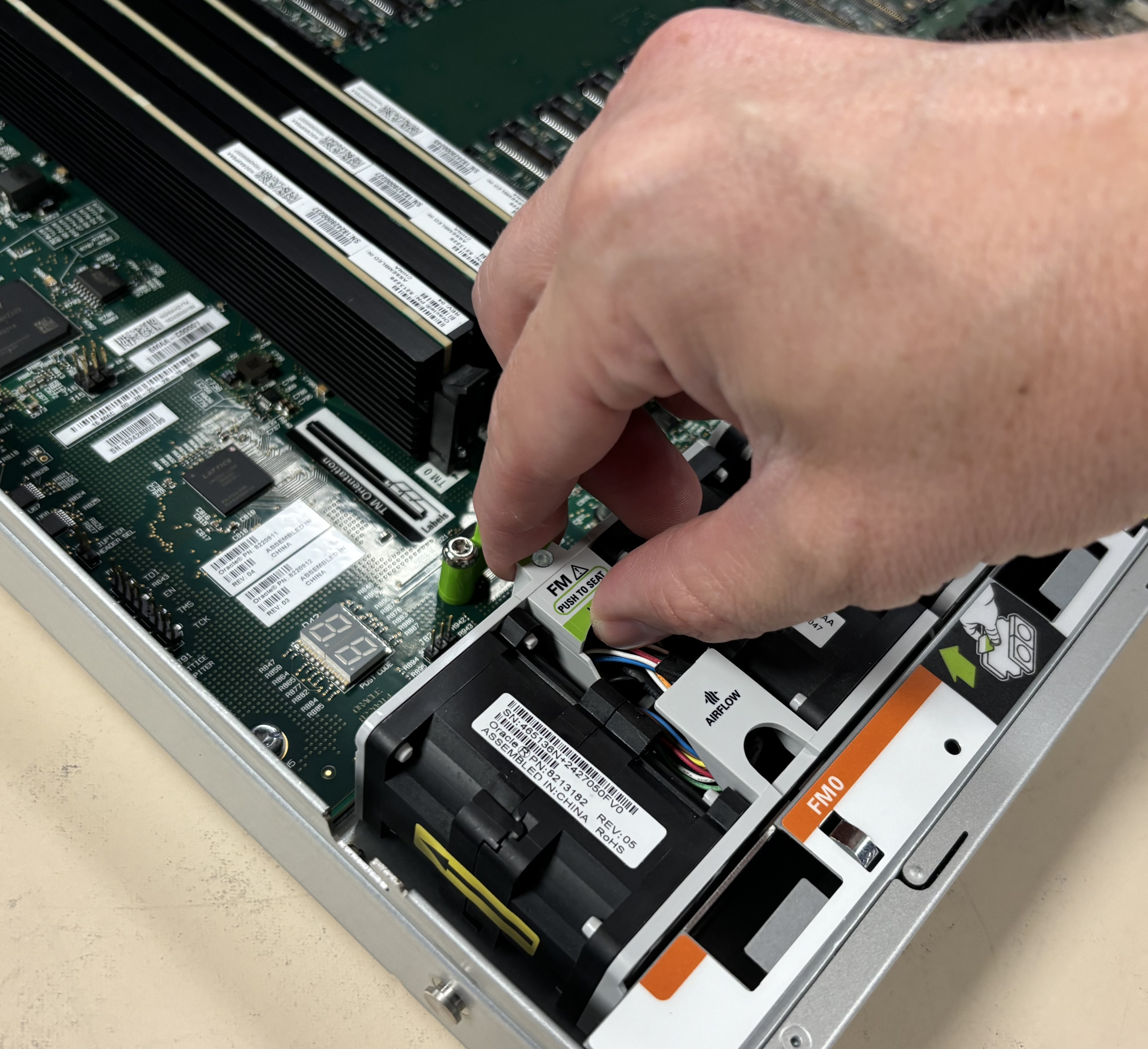

  2. Grasp the fan module by its center handle and pull it out.
    Remove fan
  3. Move the fan to an ESD safe location.
