Removing a Power Supply

To remove a power supply from the Acme Packet 6400:

  1. Remove the AC or DC power cables from the power supplies.

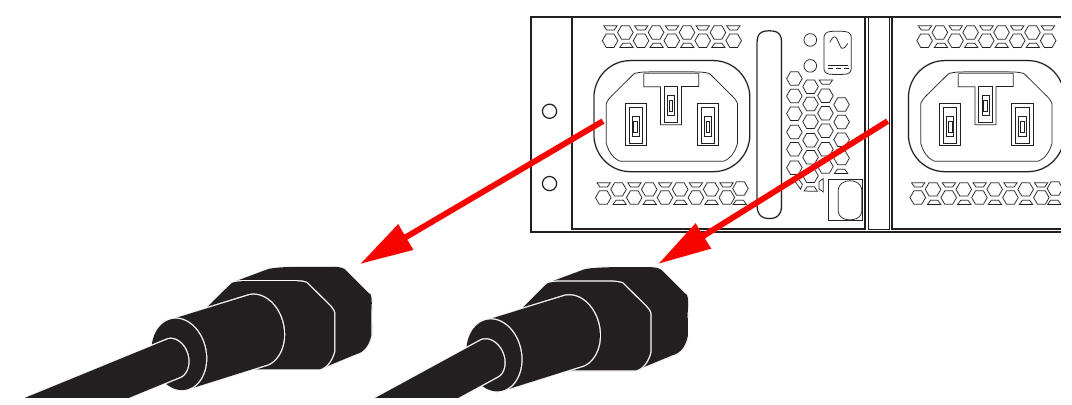

    Figure 5-1 Removing the Power Cords

    This diagram shows the power cords being removed.
  2. With your thumb, push the red locking tab to the left to unlock the power supply from the chassis.

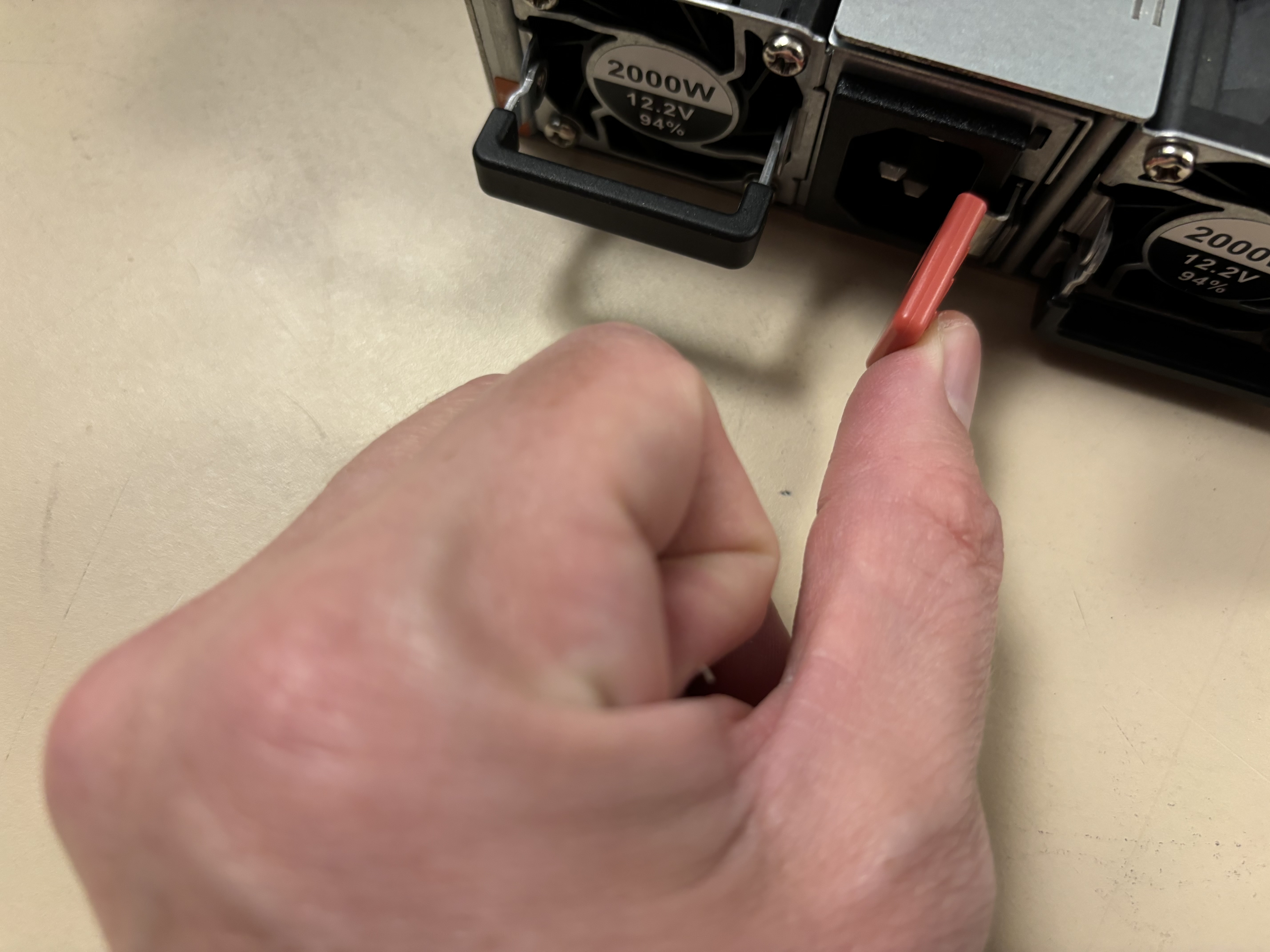

    Figure 5-2 Releasing the Locking Tab

    This diagram shows how to properly release the locking tab.

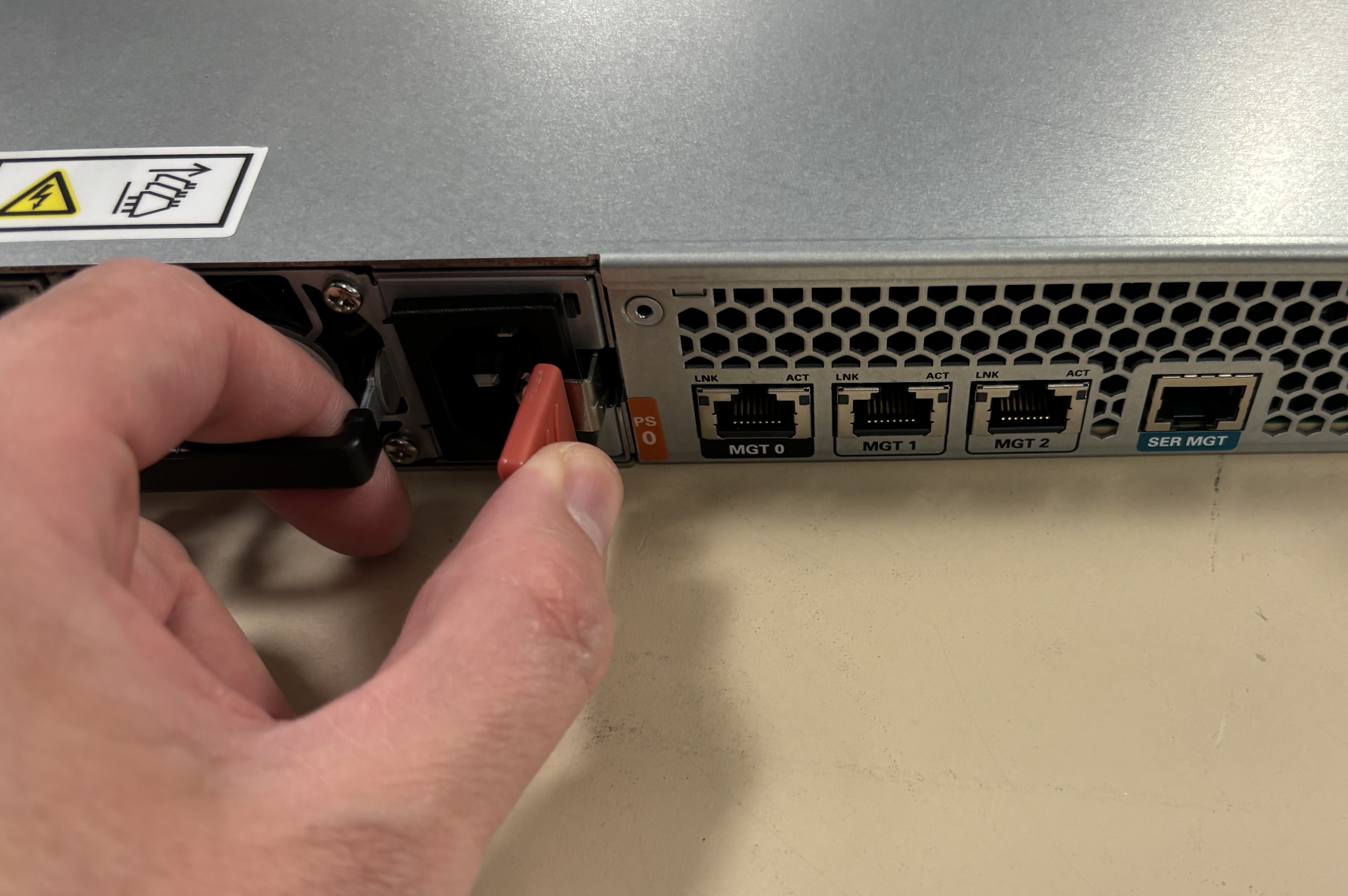

  3. Holding the handle, pull the power supply towards you. This will disengage the power supply from the chassis.
    Pull handle

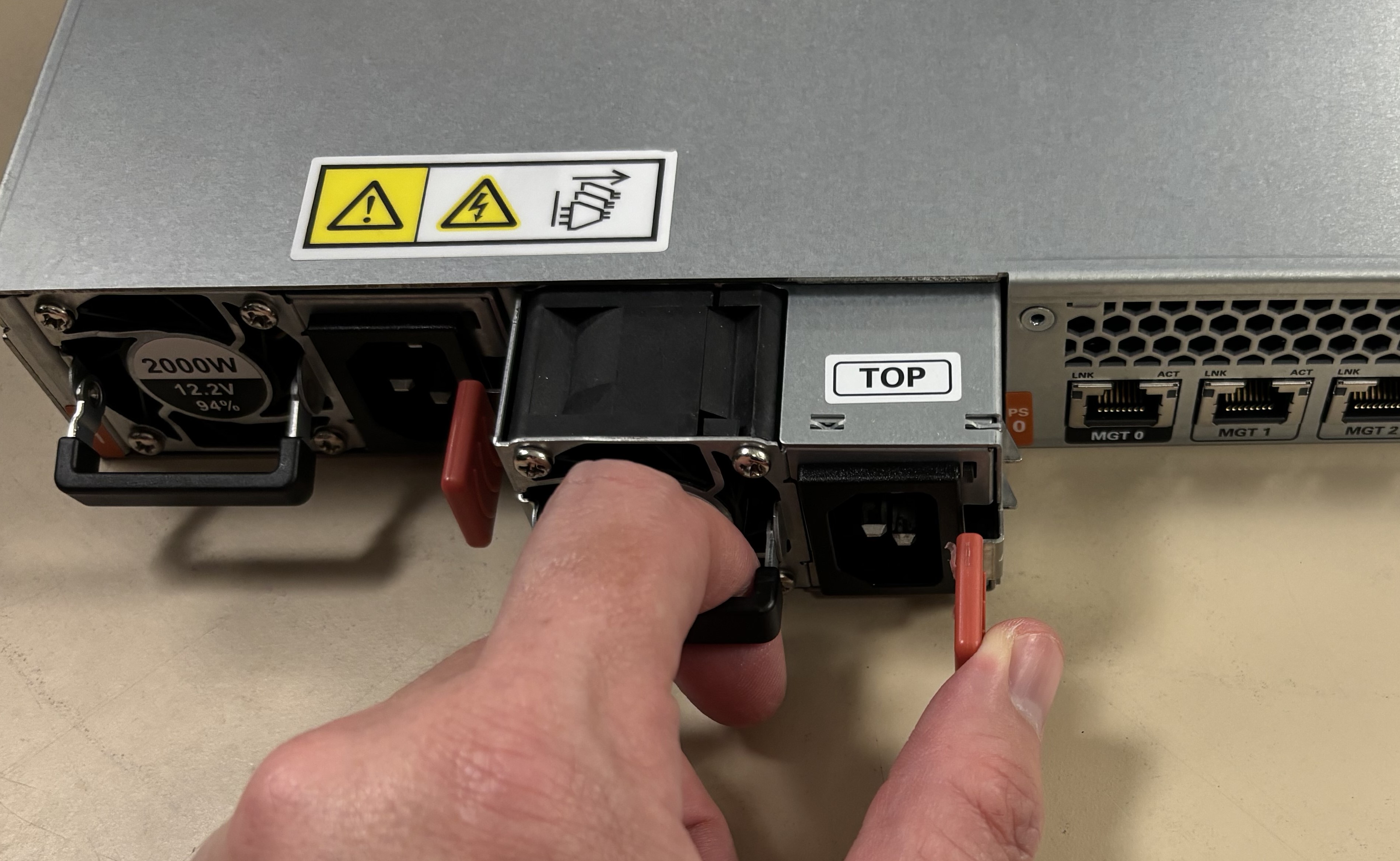

  4. Continue pulling the power supply towards you until it is completely removed from the chassis.
    Pull battery out
  5. Move the power supply to an ESD-safe location.
