Users and Roles in CNC Console IAM

This section includes:

  • Creating the users (not applicable if integrating with LDAP)
  • Viewing the users
  • Assigning the roles to the users (not applicable if integrating with LDAP)

Note:

For more details about the user roles refer APPENDIX.

Creating the Users

Note:

This section is applicable only if CNC Console IAM is not integrated with LDAP.
  1. Click Realm Settings under Cncc.

    img/crole1.png

  2. Select Users under Manage in the left pane and select Add user in the right pane.

    img/crole2.png

  3. Add user Screen appears. Add the user details and click Save.

    img/crole3.png

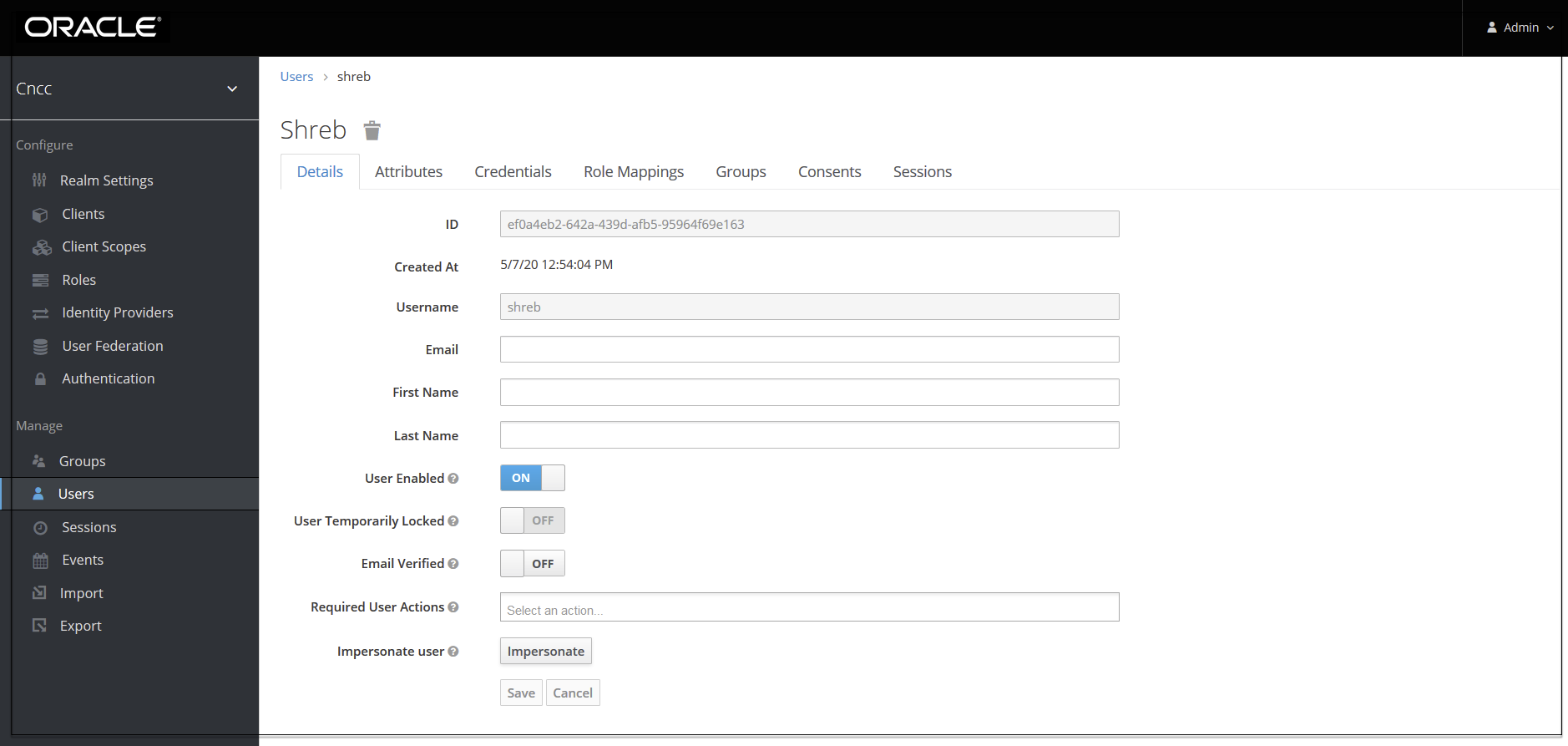

  4. The user has been created and the user details screen appears.

    img/crole4.png

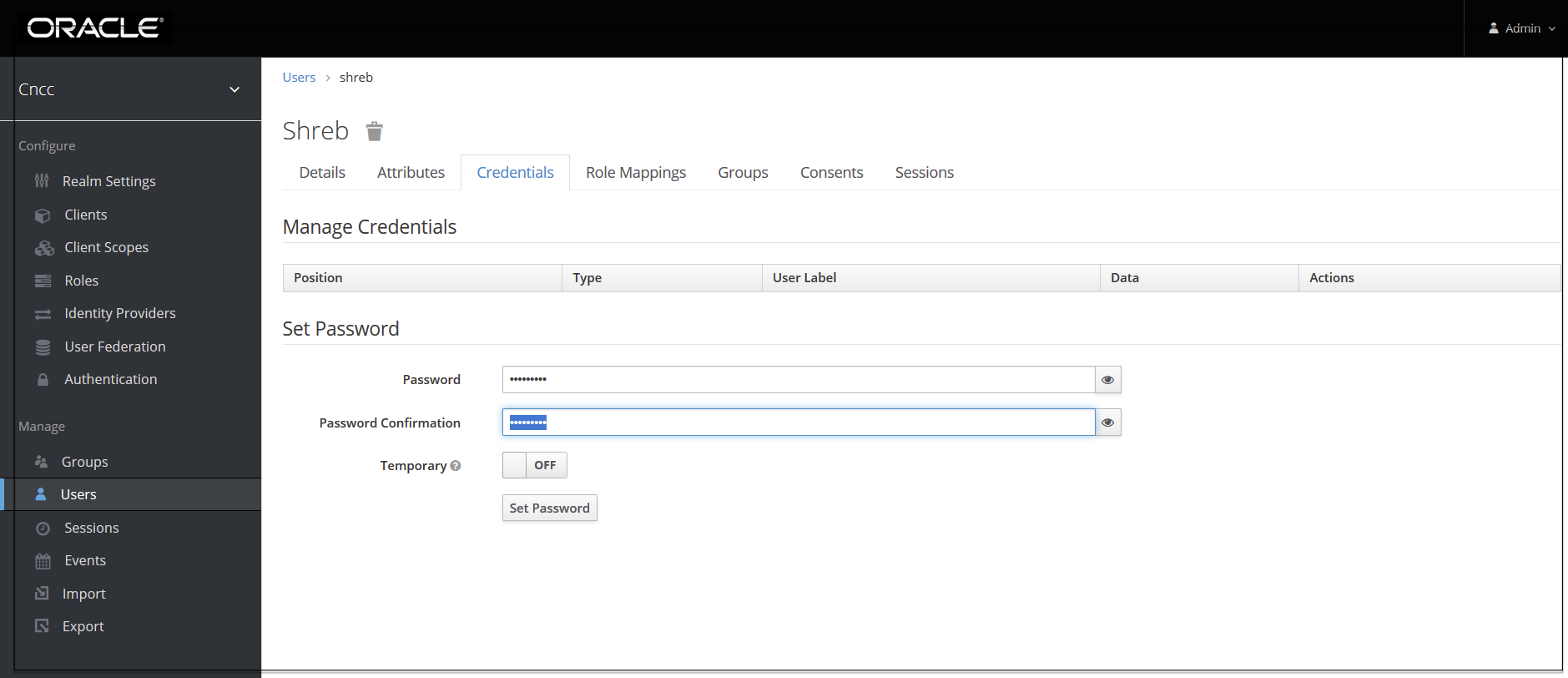

  5. For setting the password for the user, Select Users under Manage in the left pane and select the Credentials tab in the right pane. Set the password for the user.

    img/crole5.png

Note:

Setting the Temporary flag ON prompts the user to change the password while login for the first time to CNC Console Interface.

Viewing the Users

  1. Click Realm settings.

    img/vrole1.png

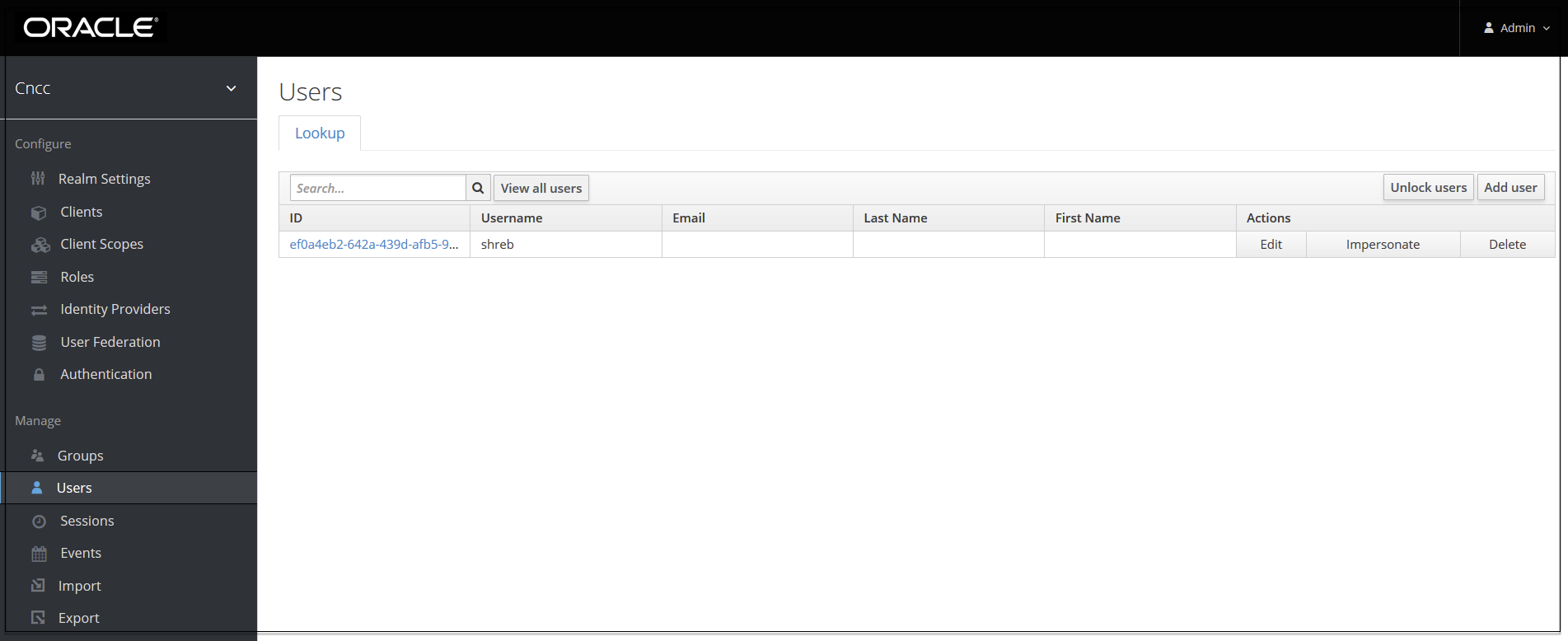

  2. Select Users under Manage in the left pane and select View all users in the right pane.

    img/vrole2.png

The list of users and their details appears in the right pane.

Assigning the Roles to User

Note:

This section is applicable only if CNC Console IAM is not integrated with LDAP.

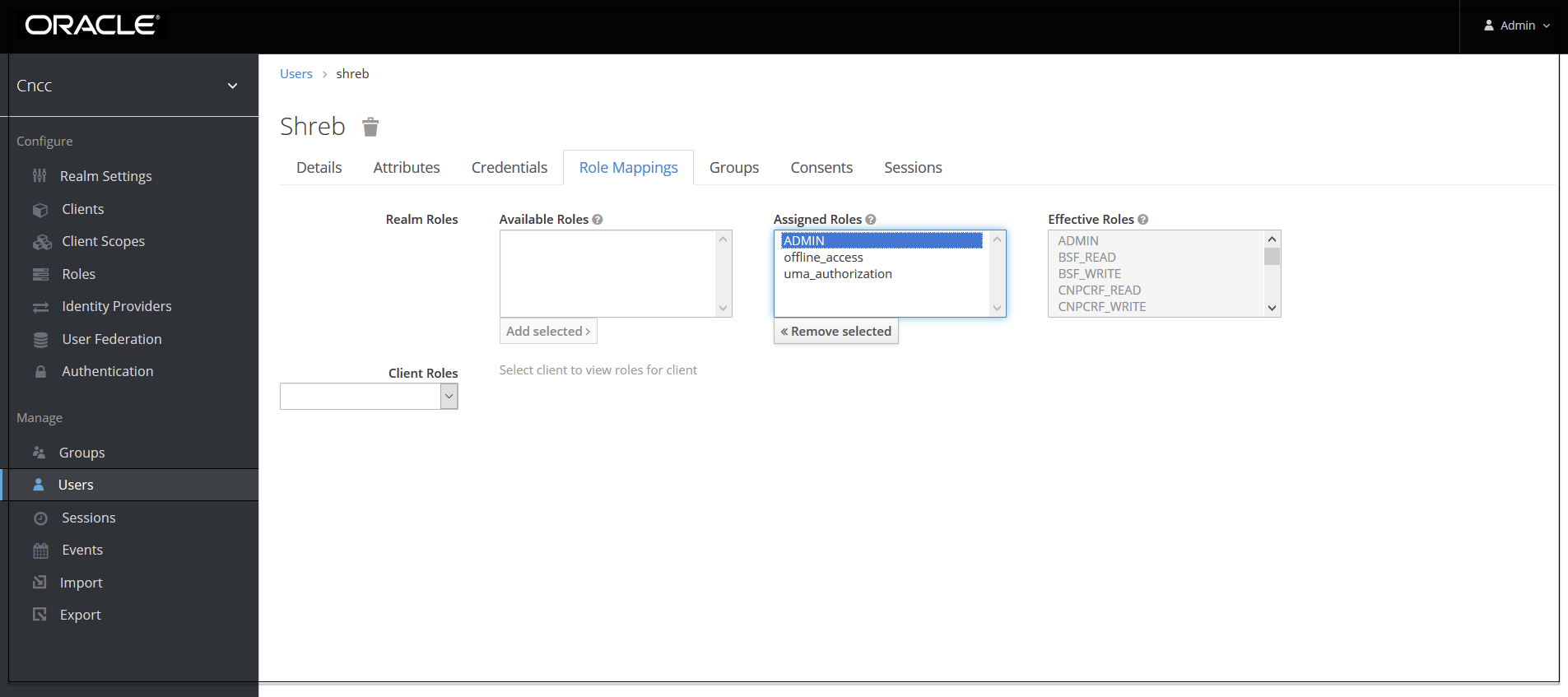

  1. Select Users under Manage in the left pane and click View all users in the right pane. Choose any user. Select Role Mappings tab in the right pane of the user screen and select the roles from Available roles and click Add selected.

    img/arole1.png

The selected roles will be assigned to the user.
