3 Bulk Import Provisioning

In this section, you will learn to install and use Bulk Import tool.

Understanding Bulk Import Tool

With the help of Bulk Import tool, you can provision 5G UDR subscribers data in bulk. This tool:

  • Reads the subscriber data from a text file in the CSV format.
  • Must be run manually as it reads the CSV file (pre-determined format) from a specified directory path present on the pod.
  • Sends requests to the UDR for provisioning the subscribers.
  • Supports PCF subscribers data and NRF(SLF) subscribers data.
  • Supports different type of operations: CREATE, UPDATE, DELETE.

Note:

  • The Bulk Import Tool uses PVC (Persistent Volume Claim) and PV (Persistent Volume) that you must create before deploying the tool. For more details on creating PVC and PV, refer to UDR installation document.
  • The user/operator needs to manually copy all the CSV files to the PV mountpath inside the container, which is /home/udruser/import/.

Viewing CSV File Format

The CSV file format is as follows:

Key Type Key value OpType Type Subs_data(JSON)
MSISDN 1234 CREATE PCF { .. }
IMSI 6786677 MODIFY PCF { .. }
NAI abcd@oracle.com DELETE PCF { .. }

Note:

The subs_data column must have JSON body enclosed in double quotes(").

To import CSV, you can use the following coding:

keyType,keyValue,operationType,nfType,jsonPayload
msisdn,1111111114,CREATE,PCF,
"{
  "profile-data": {
    "MSISDN": [
      "9111111112",
      "9211111112",
      "1111111114"
    ]
  },
  "policy-data": {
    "am-data": {
      "praInfos": {
        "p1": {
          "praId": "p1",
          "trackingAreaList": [
            {
              "plmnId": {
                "mcc": "976",
                "mnc": "32"
              },
              "tac": "5CB6"
            },
            {
              "plmnId": {
                "mcc": "977",
                "mnc": "33"
              },
              "tac": "5CB7"
            }
          ],
          "ecgiList": [
            {
              "plmnId": {
                "mcc": "976",
                "mnc": "32"
              },
              "eutraCellId": "92FFdBE"
            },
            {
              "plmnId": {
                "mcc": "977",
                "mnc": "33"
              },
              "eutraCellId": "8F868C4"
            }
          ],
          "ncgiList": [
            {
              "plmnId": {
                "mcc": "976",
                "mnc": "32"
              },
              "nrCellId": "b2fB6fE9D"
            },
            {
              "plmnId": {
                "mcc": "977",
                "mnc": "33"
              },
              "nrCellId": "5d1B4127b"
            }
          ],
          "globalRanNodeIdList": [
            {
              "plmnId": {
                "mcc": "965",
                "mnc": "235"
              },
              "n3IwfId": "fFf0f2AFbFa16CEfE7"
            },
            {
              "plmnId": {
                "mcc": "967",
                "mnc": "238"
              },
              "gNbId": {
                "bitLength": 25,
                "gNBValue": "1A8F1D"
              }
            }
          ]
        }
      },
      "subscCats": [
        "cat1",
        "cat2"
      ]
    }
  }
}"

accountID,12345678912345678912345678,MODIFY,SLF,"{
    "profile-data": {
        "imsi": [
            "2222222221",
            "2222222222"
        ],
        "nai": [
            "test@vzw.com"
        ],
        "accountID": [
            "12345678912345678912345678"
        ],
        "msisdn": [
            "19195225555",
            "19195225556"
        ],
        "extid": [
            "user@vzw.com"
        ]
    },
    "slfGroupName": "IMSGrp1"
}"

Features Supported

The Bulk Import tool supports following operation types:

  • CREATE: Allows to create subscribers with all keys mentioned in the payload. The PCF create and SLF create request payloads are available in the REST Guide.
  • UPDATE: Allows to update the existing subscribers with new data mentioned in the subs_data column.

    Note:

    You should provide complete subscriber information while using this operation as it replaces the old information with new data.
  • DELETE: Allows to delete complete subscriber information with all keys attached to the subscriber.

The Bulk Import tool supports following NF Types:

Note:

The Bulk Import tool does not support SLFGroupName provisioning. You can provision this using REST APIs or CNC-Console GUI.

Installing Bulk Import Tool

You can implement the Bulk Import tool as a kubernetes job that comes up as a pod when you deploy it using a template yaml file. Before installing the Bulk Import tool, you must create a PVC.

Creating Persistent Volume Claim (PVC)

To create a PVC:

  1. Create a namespace and then create a PVC using below yaml file:
    apiVersion: v1
    kind: PersistentVolumeClaim
    metadata:
      name: bulkimportpersistentclaim
    spec:
      storageClassName: #<Please Provide your StorageClass  Name>
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 10Gi

    Note:

    You must name the PVC as 'bulkimportpersistentclaim'.
  2. After creating a yaml file, execute the following command to create a PVC under the namespace:

    kubectl create -f <yaml file for PVC formed using the above code block> -n <namespace>

    Example: kubectl create -f bulk_pvc.yaml -n bulktest

  3. Execute the following command to verify whether PVC is created or not:

    kubectl get pvc -n <namespace>

    Figure 3-1 Verifying PVC Creation

    img/verifyign-pvc-creation.png
  4. Execute the following command to verify whether PV is created or not:

    kubectl get pv

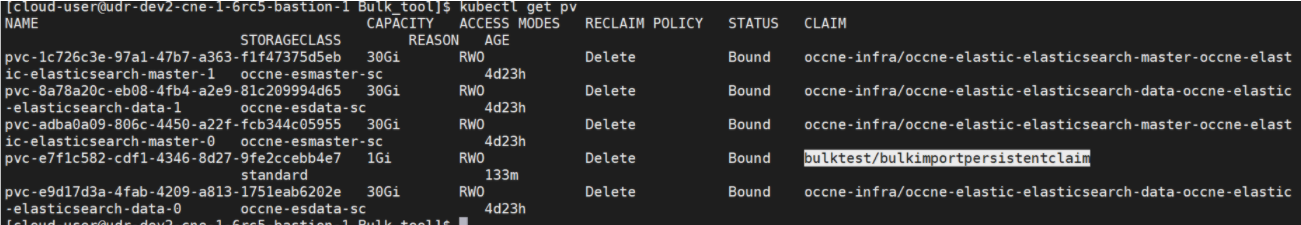

    Figure 3-2 Verifying PV Creation

    img/verifying-pv-creation.png

Installing Bulk Import Tool as a Job

To install Bulk Import tool as a job:
  1. Use the below template yaml file to install Bulk Import tool as a job:
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: ocudr-nudr-bulk-import     # <Please use releaseName-nudr-bulk-import>
      namespace: ocudr                 # <Use the namespace created>
    spec:
      backoffLimit: 0
      template:
        metadata:
          name: ocudr-nudr-bulk-import  # <Please use releaseName-nudr-bulk-import>
          annotations:
            "prometheus.io/port": "9000"
            "prometheus.io/path": "/actuator/prometheus"
            "prometheus.io/scrape": "true"
        spec:
          restartPolicy: Never
          securityContext:
            fsGroup: 1002
          volumes:
            - name: bulkimportpersistentvolume
              persistentVolumeClaim:
                claimName: bulkimportpersistentclaim
          containers:
          - env:
            - name: MYSQL_DATABASE
              valueFrom:
                secretKeyRef:
                  name: ocudr-secrets
                  key: dbname
            - name: DATASOURCE_USERNAME
              valueFrom:
                secretKeyRef:
                  name: ocudr-secrets
    # <Please use secrets created under UDR deployment >
                  key: dsusername
     # < key for username mentioned in secrets yaml file under UDR deployment >
            - name: DATASOURCE_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: ocudr-secrets
                  key: dspassword
     # < key for password mentioned in secrets yaml file under UDR deployment >
            - name: DB_SERVICE_NAME
              value: "mysql-connectivity-service.occne-infra"
     # <Default mysql-connectivity service used under occne-infra namespace >
            - name: DB_SERVICE_PORT
              value: "3306"
     # <Default port for mysql-connectivity service >
            - name: HIKARI_POOL_SIZE
              value: "10"
            - name: LOGGING_LEVEL_ROOT
              value: "INFO"
            - name: MANAGEMENT_SERVER_PORT
              value: "9000"
            - name: DATA_SERVICE_BASEURL
              value: "http://ocudr-ingressgateway.ocudr:80"
     # <Please use servicename.namespace:portNumber of ingressgateway>
            - name: POLLING_TIME_INTERVAL
    # <Time interval in milliseconds after which the csv file is polled >
              value: "5000"
            - name: HTTP_RETRY_CONFIGURE
    # <Number of retries made to dr-service for failed request>
              value: "2"
            - name: APPLICATION_NAME
              value: "ocudr-nudr-bulk-import"
            - name: ENGINEERING_VERSION
              value: "1.8.0"
            - name: MARKETING_VERSION
              value: "1.8.0.0.0"
            - name: MICROSERVICE_NAME
              value: "ocudr-nudr-bulk-import"
            - name: K8S_CLUSTER_NAME
              value: "ocudr"
            - name: K8S_NAMESPACE
              value: "ocudr"
            - name: K8S_NODE
              value: "5g-udr-dev-1-k8s-node-2"
            name: ocudr-nudr-bulk-import
            image: "ocudr-registry.us.oracle.com:5000/ocudr/nudr_bulk_import:1.8.0"
    # <Use the dockerregistry path for image:image tag>
            imagePullPolicy: Always
            volumeMounts:
              - name: bulkimportpersistentvolume
                mountPath: /home/udruser/import
    # <Path where csv files needs to be placed for polling>
            ports:
            - containerPort: 9000
              name: management
            resources:
              requests:
                cpu: "4"
                memory: "6Gi"
              limits:
                cpu: "4"
                memory: "6Gi"

  2. Execute the following command to install Bulk Import tool as a job:

    kubectl create -f <template yaml >-n <namespace>

    Example: kubectl create -f bulk_import_tool.yaml -n bulktest

    Output: Container comes up as shown below:

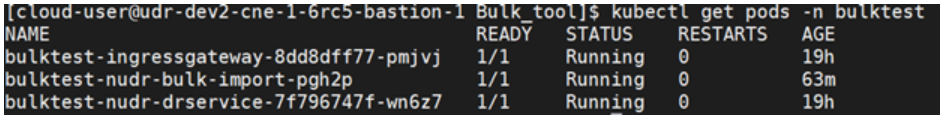

    Figure 3-3 Bulk Import Install Output

    img/container-bulk-import-install.png
  3. Execute the following command to check the pod details:

    kubectl describe pods <nudr-bulk-import pod name> -n <namespace>

    Example: kubectl describe pods bulktest-nudr-bulk-import-pgh2p -n bulktest

  4. After the pod is up and running, copy the csv file. The Bulk Import tool starts processing the records.

Using Bulk Import Tool

By default, the Bulk Import tool polls the /home/udruser/import path every 5000 ms. You can use the Bulk Import tool when:
  • The nudr-bulk-import pod is up and running.
  • Execute the following command to place the file inside the container:

    kubectl cp <csv file> <namespace>/<nudr-bulk-import pod name>:/home/udruser/import

    kubectl cp create_pcf.csv bulktest/bulktest-nudr-bulk-import-pgh2p:/home/udruser/import

  • Login to the bash of container and execute the following command to check whether file is present inside the container or not:

    kubectl exec -it <nudrbulk-import pod name>-n <namespace> -- bash

    Example: kubectl exec -it bulktest-nudr-bulk-import-pgh2p -n bulktest -- bash

    Note:

    After login to bash, you can find the file under /home/udruser/import location.
    bash-4.2$ pwd
      /home/udruser/import
    bash-4.2$ ls -l
       -rw-r--r--. 1 root udruser 28471 Aug 19 09:33 create_pcf.csv
  • The Bulk Import tool processes each CSV file at a time and provisions the subscribers on 5G UDR. It's summary report is available in the /home/udruser/import path with filename (<CSV_filename>.log). You can monitor its metrics on Prometheus/Grafana.

    Sample: create_pcf.log

    bash-4.2$ pwd
      /home/udruser/import
    bash-4.2$ ls -l
       -rw-r--r--. 1 root udruser 28471 Aug 19 09:33 create_pcf.csv  create_pcf.log
  • The Bulk Import container logs contains the summary report, when the INFO logging level is enabled.
  • Execute the following command to copy the report from pod container:

    kubectl cp <pod name>:home/udruser/import/modify_slf.log <file name> -n <namespace>

    Example: kubectl cp ocudr-nudr-bulk-import-8g8c8:home/udruser/import/modify_slf.log modify_slf.log -n myudr
