5 BSF Alerts

This section provides information on Oracle Communications Cloud Native Core, Binding Support Function (BSF) alerts and their configuration.

Note:

The performance and capacity of the BSF system may vary based on the call model, Feature/Interface configuration, and underlying CNE and hardware environment.

5.1 Configuring BSF Alerts

This section describes how to configure alerts for Oracle Communications Cloud Native Core, Binding Support Function. The Alert Manager uses the Prometheus measurements values as reported by microservices in conditions under alert rules to trigger alerts.

Note:

The Alertmanager and Prometheus tools must run in CNE namespace, for example, occne-infra.
Alert file is packaged with BSF Custom Templates. The BSF Custom Templates.zip file can be downloaded from MOS. Unzip the BSF Custom Templates.zip file to get BSF_Alertrules.yaml file. This file must be readily available before the user configures alerts in Prometheus.

Configuring Alerts for CNE versions prior to 1.5

To Configure BSF alerts in Prometheus:

Run the following command to find the configmap and configure alerts in the Prometheus server:
```
kubectl get configmap -n <Namespace>
```
Where:
<Namespace> is the prometheus server namespace used in Helm install command.
For Example, assuming Prometheus server is under occne-infra namespace, run the following command to find the configmap:
```
kubectl get configmaps -n occne-infra  | grep Prometheus-server
```
0utput: occne-prometheus-server 4 46d
Run the following command to take a backup of the current Prometheus server configmap:
```
kubectl get configmaps <Name> -o yaml -n <Namespace> > /tmp/t_mapConfig.yaml
```
where, <Name> is the Prometheus configmap name used in Helm install command.
Check if alertsbsf is present in the t_mapConfig.yaml file by running the following command:
```
cat /tmp/t_mapConfig.yaml  | grep alertsbsf
```
Depending on the outcome of the previous step, perform any of the following:
- If alertsbsf is present, delete the alertsbsf entry from the t_mapConfig.yaml file, by running the following command:
```
sed -i '/etc\/config\/alertsbsf/d' /tmp/t_mapConfig.yaml
```
  Note:
  Run this command only once.
- If alertsbsf is not present, add the alertsbsf entry in the t_mapConfig.yaml file by running the following command:
```
sed -i '/rule_files:/a\    \- /etc/config/alertsbsf'  /tmp/t_mapConfig.yaml
```
  Note:
  Run this command only once.
Run the following command to reload the configmap with the modified file:
```
kubectl replace configmap <Name> -f /tmp/t_mapConfig.yaml
```
Note:
It is not required for AlertRules.
Add BSF_Alertrules.yaml file into Prometheus server configmap by running the following command :
```
kubectl patch configmap <Name> -n <Namespace> --type merge --patch
"$(cat <PATH>/BSF_Alertrules.yaml)"
```
where, <PATH> is the location of the BSF_Alertrules.yaml file.
Restart prometheus-server pod.
Verify the alerts in Prometheus GUI.

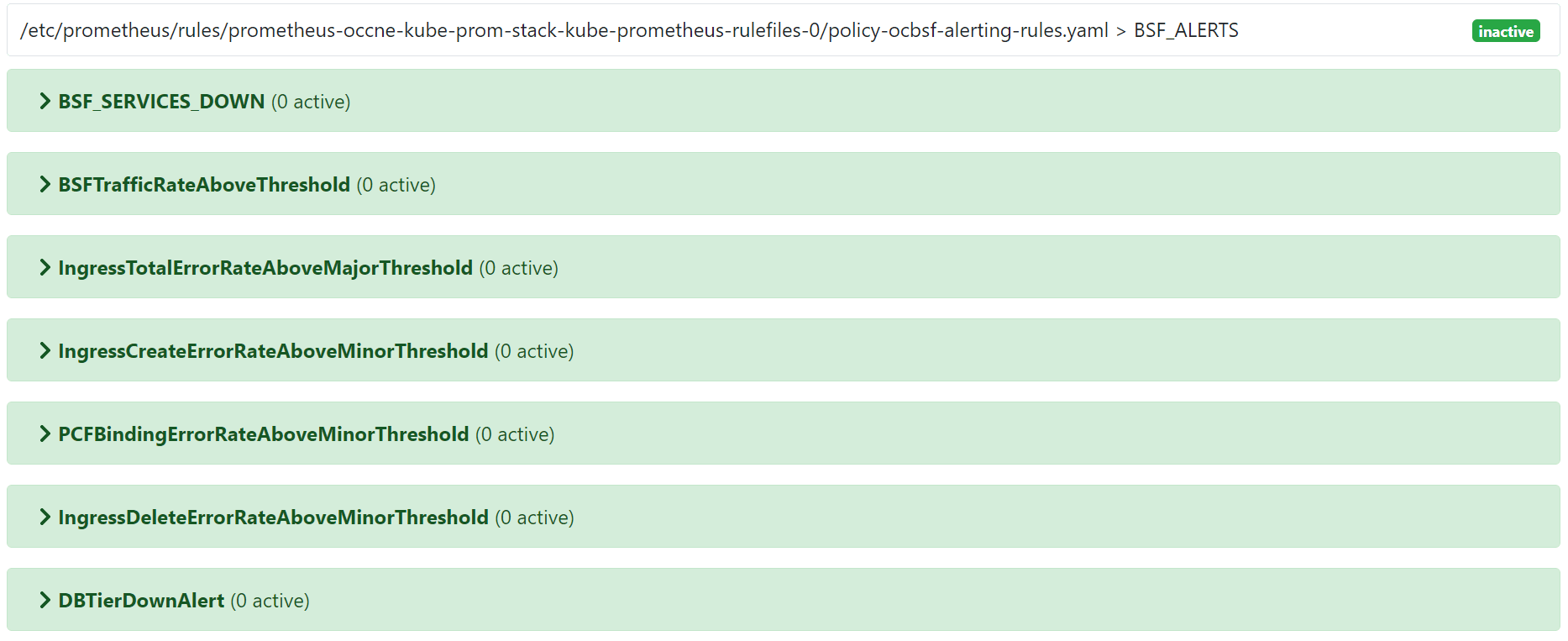

The following image shows the BSF Alerts:

Screen capture of BSF Alerts

Configuring Alerts for CNE version from 1.5.0 up to 1.8.x

To Configure BSF alerts in Prometheus:

Copy the BSF_Alertrules.yaml file to the Bastion Host. Place this file in the /var/occne/cluster/<cluster-name>/artifacts/alerts directory on the OCCNE Bastion Host.
```
$ pwd /var/occne/cluster/stark/artifacts/alerts
$ ls
occne_alerts.yaml
$ vi BSF_Alertrules.yaml
$ ls BSF_Alertrules.yaml occne_alerts.yaml
```
To set the correct file permissions, run the following command:
```
$ chmod 644 BSF_Alertrules.yaml
```

To load the updated rules from the Bastion host in the file to the existing occne-prometheus-alerts configmap, run the following command:

$ kubectl create configmap occne-prometheus-alerts --from-file=/var/occne/cluster/<cluster-name>/artifacts/alerts -o yaml --dry-run -n occne-infra | kubectl replace -f -
$ kubectl get configmap -n occne-infra

To verify the alerts in the Prometheus GUI, select the Alerts tab and view alert details by selecting any individual rule from the list of configured rules.

Configuring Alerts for CNE 1.9.0 and later versions

To configure BSF alerts in Prometheus for CNE 1.9.0, perform the following steps:

Copy the BSF_Alertrules.yaml file to the Bastion Host.
To create or replace the PrometheusRule CRD, run the following command:
```
$ kubectl apply -f ocbsf-alerting-rules.yaml -n <namespace>
```
To verify if the CRD is created, run the following command:
```
kubectl get prometheusrule -n <namespace>
```
To verify the alerts in the Prometheus GUI, select the Alerts tab and view alert details by selecting any individual rule from the list of configured alerts.

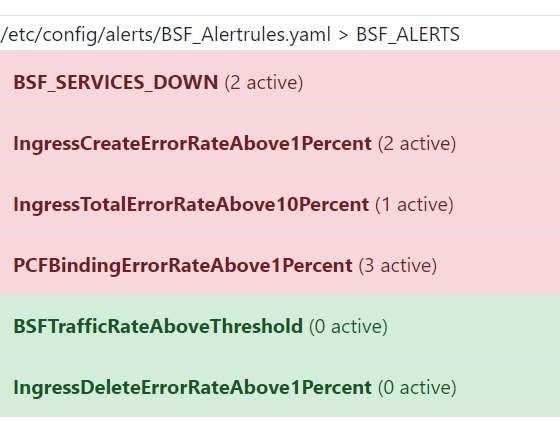

The following screen capture shows the Prometheus dashboard with BSF alerts configured for CNE 1.9.0:

Figure 5-1 BSF alerts on Prometheus Dashboard

Note:

For upgrading to BSF 1.11.0 from a previous supported version on CNE 1.8.x, use the BSF_Alertrules_cne1.5+.yaml file. On the Prometheus dashboard, configure both old and new alert rules.
For installing BSF 1.11.0 on CNE 1.9.0 and later versions, use the BSF_Alertrules_cne1.9+.yaml file. On the Prometheus dashboard, configure only the new alert rules.

5.2 List of Alerts

This section lists the alerts available for Oracle Communications Cloud Native Core, Binding Support Function (BSF).

5.2.1 AAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 5-1 AAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field	Details
Description	AAA Rx fail count exceeds the critical threshold limit.
Summary	AAA Rx fail count exceeds the critical threshold limit.
Severity	CRITICAL
Condition	sum by(namespace)(rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236", responseCode!~"2."}[5m]) / rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236"}[5m])) 100 > 90
OID	1.3.6.1.4.1.323.5.3.37.1.2.40
Metric Used	ocbsf_diam_response_network_total
Recommended Actions	For any additional guidance, contact My Oracle Support.

5.2.2 AAA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Description: AAA Rx fail count exceeds the major threshold limit
Summary: AAA Rx fail count exceeds the major threshold limit.
Severity: MAJOR
Condition: sum by(namespace)(rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236", responseCode!~"2.*"}[5m]) / rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236"}[5m])) * 100 <=90 and sum by(namespace)(rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236", responseCode!~"2.*"}[5m]) / rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236"}[5m])) * 100 > 80
OID: 1.3.6.1.4.1.323.5.3.37.1.2.40
Metric Used: ocbsf_diam_response_network_total
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.3 AAA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Description: AAA Rx fail count exceeds the minor threshold limit.
Summary: AAA Rx fail count exceeds the minor threshold limit.
Severity: MINOR
Condition: sum by(namespace)(rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236", responseCode!~"2.*"}[5m]) / rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236"}[5m])) * 100 <=80 and sum by(namespace)(rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236", responseCode!~"2.*"}[5m]) / rate(ocbsf_diam_response_network_total{msgType="AAA", appId="16777236"}[5m])) * 100 > 60
OID: 1.3.6.1.4.1.323.5.3.37.1.2.40
Metric Used: ocbsf_diam_response_network_total
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.4 SCP_PEER_UNAVAILABLE

Description: Configured SCP peer is unavailable.
Summary: ocbsf_oc_egressgateway_peer_health_status != 0. SCP peer [ {{$labels.peer}} ] is unavailable.
Severity: Major
Condition
OID: 1.3.6.1.4.1.323.5.3.37.1.2.38
Metric Used: ocbsf_oc_egressgateway_peer_health_status
Recommended Actions: This alert gets cleared when unavailable SCPs become available.
For any additional guidance, contact My Oracle Support.

5.2.5 SCP_PEER_SET_UNAVAILABLE

Description: None of the SCP peer available for configured peerset.
Summary: (ocbsf_oc_egressgateway_peer_count - ocbsf_oc_egressgateway_peer_available_count) !=0 and (ocbsf_oc_egressgateway_peer_count) > 0. {{ $value }} SCP peers under peer set {{$labels.peerset}} are currently available.
Severity: Critical
Condition: One of the SCPs has been marked unhealthy.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.39
Metric Used: oc_egressgateway_peer_count and oc_egressgateway_peer_available_count
Recommended Actions: NF clears the critical alarm when atleast one SCP peer in a peerset becomes available such that all other SCP peers in the given peerset are still unavailable.
For any additional guidance, contact My Oracle Support.

5.2.6 STALE_CONFIGURATION

Description: In last 10 minutes, the current service config_level does not match the config_level from the config-server.
Summary: In last 10 minutes, the current service config_level does not match the config_level from the config-server.
Severity: Major
Condition: (sum by(namespace) (topic_version{app_kubernetes_io_name="config-server",topicName="config.level"})) / (count by(namespace) (topic_version{app_kubernetes_io_name="config-server",topicName="config.level"})) != (sum by(namespace) (topic_version{app_kubernetes_io_name!="config-server",topicName="config.level"})) / (count by(namespace) (topic_version{app_kubernetes_io_name!="config-server",topicName="config.level"}))
OID: 1.3.6.1.4.1.323.5.3.37.1.2.40
Metric Used: topic_version
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.7 BSF_SERVICES_DOWN

Description

{{$labels.microservice}} service is not running!

Summary

{{$labels.microservice}} is not running!

Severity

Critical

Condition

None of the pods of the Binding Support Function (BSF) application is available.

OID

1.3.6.1.4.1.323.5.3.37.1.2.1

Metric Used

appinfo_service_running

Recommended Actions

Perform the following steps:

Check for service specific alerts that may be causing the issues with service exposure.
Verify if the POD is in a Running state by using the following command:
```
kubectl -n <namespace> get pod
```
If the output shows any pod that is not running, copy the pod name and run the following command:
```
kubectl describe pod <podname> -n <namespace>
```
Check the application logs on Kibana and look for database related failures such as connectivity, invalid secrets, and so on. The logs can be easily filtered for different services.
Check for Helm status to ensure no errors are present by using the following command:
```
helm status <release-name> -n <namespace>
```
If it is not in STATUS: DEPLOYED, capture the logs and events again.

In case the issue persists, capture the outputs for the preceding steps and contact My Oracle Support.

5.2.8 BSFTrafficRateAboveMinorThreshold

Description

BSF service Ingress traffic Rate is above threshold of Max MPS(1000) (current value is: {{ $value }})

Summary

Traffic Rate is above 70 Percent of Max requests per second(1000)

Severity

Minor

Condition

The total Binding Management service Ingress traffic rate has crossed the configured threshold of 700 TPS.

The default value of this alert trigger point in the BSF_Alertrules.yaml file is when the Binding management service Ingress Rate crosses 70% of maximum ingress requests per second.

OID

1.3.6.1.4.1.323.5.3.37.1.2.2

Metric Used

ocbsf_ingress_request_total

Recommended Actions

The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note:

Threshold levels can be configured using the BSF_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:

Refer Ingress Gateway section in Grafana to determine an increase in 4xx and 5xx error response codes.
Check Ingress Gateway logs on Kibana to determine the reason for the errors.

For any assistance, contact My Oracle Support.

5.2.9 BSFTrafficRateAboveMajorThreshold

Description

BSF service Ingress traffic Rate is above threshold of Max MPS(1000) (current value is: {{ $value }})

Summary

Traffic Rate is above 80 Percent of Max requests per second(1000)

Severity

Major

Condition

The total Binding Management service Ingress traffic rate has crossed the configured threshold of 800 TPS.

The default value of this alert trigger point in the BSF_Alertrules.yaml file is when the Binding management service Ingress Rate crosses 80% of maximum ingress requests per second.

OID

1.3.6.1.4.1.323.5.3.37.1.2.2

Metric Used

ocbsf_ingress_request_total

Recommended Actions

The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note:

Threshold levels can be configured using the BSF_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:

Refer Ingress Gateway section in Grafana to determine an increase in 4xx and 5xx error response codes.
Check Ingress Gateway logs on Kibana to determine the reason for the errors.

For any assistance, contact My Oracle Support.

5.2.10 BSFTrafficRateAboveCriticalThreshold

Description

BSF service Ingress traffic Rate is above threshold of Max MPS(1000) (current value is: {{ $value }})

Summary

Traffic Rate is above 90 Percent of Max requests per second(1000)

Severity

Critical

Condition

The total Binding Management service Ingress traffic rate has crossed the configured threshold of 900 TPS.

The default value of this alert trigger point in the BSF_Alertrules.yaml file is when the Binding management service Ingress Rate crosses 90% of maximum ingress requests per second.

OID

1.3.6.1.4.1.323.5.3.37.1.2.2

Metric Used

ocbsf_ingress_request_total

Recommended Actions

The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note:

Threshold levels can be configured using the BSF_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:

Refer Ingress Gateway section in Grafana to determine an increase in 4xx and 5xx error response codes.
Check Ingress Gateway logs on Kibana to determine the reason for the errors.

For any assistance, contact My Oracle Support.

5.2.11 BINDING_QUERY_RESPONSE_ERROR_MINOR

Description: At least 20% of the Binding Query connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Summary: At least 20% of the Binding Query connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Severity: Minor
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_bindingQuery_response_total
Condition: BSF is able to raise threshold based alerts for duplicate Binding request received and handled at BSF.
If 30% of the requests fails for 10 mins, BSF is able to raise Minor Alert indicating duplicate Binding request are being detected at BSF.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.12 BINDING_QUERY_RESPONSE_ERROR_MAJOR

Description: At least 50% of the Binding Query connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Summary: At least 50% of the Binding Query connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Severity: Major
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_bindingQuery_response_total
Condition: BSF is able to raise threshold based alerts for duplicate Binding request received and handled at BSF.
If 50% of the requests fails for 10 mins, BSF is able to raise Major Alert indicating duplicate Binding request are being detected at BSF.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.13 BINDING_QUERY_RESPONSE_ERROR_CRITICAL

Description: At least 70% of the Binding Query connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Summary: At least 70% of the Binding Query connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Severity: Minor
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_bindingQuery_response_total
Condition: BSF is able to raise threshold based alerts for duplicate Binding request received and handled at BSF.
If 70% of the requests fails for 10 mins, BSF is able to raise Critical Alert indicating duplicate Binding request are being detected at BSF.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.14 DIAM_RESPONSE_NETWORK_ERROR_MINOR

Description: At least 20% of the Binding Registration requests failed were duplicate failures.
Summary: At least 20% of the Binding Registration requests failed were duplicate failures.
Severity: Minor
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_diam_response_network_total
Condition: BSF is able to raise threshold based alerts for Message/Service Request Failure. When message failures like Binding Registration or deregistration request, Diameter Requests Failure with error "DIAMETER_UNABLE_TO_DELIVER" are observed, BSF is able to raise alerts.
If 20% of the requests fails for 10 mins, BSF is able to raise Minor Alert indicating the procedure or service which is failing.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.15 DIAM_RESPONSE_NETWORK_ERROR_MAJOR

Description: At least 50% of the Diam Response connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Summary: At least 50% of the Diam Response connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Severity: Major
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_diam_response_network_total
Condition: BSF is able to raise threshold based alerts for Message/Service Request Failure. When message failures like Binding Registration or deregistration request, Diameter Requests Failure with error "DIAMETER_UNABLE_TO_DELIVER" are observed, BSF is able to raise alerts.
If 50% of the requests fails for 10 mins, BSF is able to raise Major Alert indicating the procedure or service which is failing.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.16 DIAM_RESPONSE_NETWORK_ERROR_CRITICAL

Description: At least 70% of the Diam Response connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Summary: At least 70% of the Diam Response connection requests failed with error 'DIAMETER_UNABLE_TO_DELIVER'.
Severity: Critical
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_diam_response_network_total
Condition: BSF is able to raise threshold based alerts for Message/Service Request Failure. When message failures like Binding Registration or deregistration request, Diameter Requests Failure with error "DIAMETER_UNABLE_TO_DELIVER" are observed, BSF is able to raise alerts.
If 75% of the requests fails for 10 mins, BSF is able to raise Critical Alert indicating the procedure or service which is failing.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.17 DUPLICATE_BINDING_REQUEST_ERROR_MINOR

Description: At least 20% of the Binding Registration requests failed were duplicate failures.
Summary: At least 20% of the Binding Registration requests failed were duplicate failures.
Severity: Minor
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_ingress_request_total
Condition: If 30% of the requests fails for 10 mins, BSF is able to raise Minor Alert indicating duplicate Binding request are being detected at BSF.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.18 DUPLICATE_BINDING_REQUEST_ERROR_MAJOR

Description: At least 50% of the Binding Registration requests failed were duplicate failures.
Summary: At least 50% of the Binding Registration requests failed were duplicate failures.
Severity: Major
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_ingress_request_total
Condition: If 50% of the requests fails for 10 mins, BSF is able to raise Major Alert indicating duplicate Binding request are being detected at BSF.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.19 DUPLICATE_BINDING_REQUEST_ERROR_CRITICAL

Description: At least 70% of the Binding Registration requests failed were duplicate failures.
Summary: At least 70% of the Binding Registration requests failed were duplicate failures.
Severity: Critical
OID: 1.3.6.1.4.1.323.5.3.37.1.2.24
Metric Used: ocbsf_ingress_request_total
Condition: If 70% of the requests fails for 10 mins, BSF is ablel to raise Critical Alert indicating duplicate Binding request are being detected at BSF.
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.20 IngressTotalErrorRateAboveMinorThreshold

Description: Transaction Error Rate detected above 1 Percent of Total on BSF service (current value is: {{ $value }})
Summary: Transaction Error Rate detected above 1 Percent of Total Transactions
Severity: Minor
Condition: The total number of failed transactions for BSF service is above 1 percent of the total transactions.
OID: oid: "1.3.6.1.4.1.323.5.3.37.1.2.3"
Metric Used: ocbsf_ingress_response_total
Recommended Actions: The alert gets cleared when the number of failed transactions is below 1% of the total transactions.
For any assistance, contact My Oracle Support.

5.2.21 IngressTotalErrorRateAboveMajorThreshold

Description: Transaction Error Rate detected above 5 Percent of Total on BSF service (current value is: {{ $value }})
Summary: Transaction Error Rate detected above 5 Percent of Total Transactions
Severity: Major
Condition: The total number of failed transactions for BSF service is above 5 percent of the total transactions.
OID: oid: "1.3.6.1.4.1.323.5.3.37.1.2.3"
Metric Used: ocbsf_ingress_response_total
Recommended Actions: The alert gets cleared when the number of failed transactions is below 5% of the total transactions.
For any assistance, contact My Oracle Support.

5.2.22 IngressTotalErrorRateAboveCriticalThreshold

Description: Transaction Error Rate detected above 10 Percent of Total on BSF service (current value is: {{ $value }})
Summary: Transaction Error Rate detected above 10 Percent of Total Transactions
Severity: Critical
Condition: The total number of failed transactions for BSF service is above 10 percent of the total transactions.
OID: oid: "1.3.6.1.4.1.323.5.3.37.1.2.3"
Metric Used: ocbsf_ingress_response_total
Recommended Actions: The alert gets cleared when the number of failed transactions is below 10% of the total transactions.
For any assistance, contact My Oracle Support.

5.2.23 PCFBindingErrorRateAboveMinorThreshold

Description

PCF Binding Error Rate above 1 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

PCF Binding Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Minor

Condition

The total number of failed transactions for retrieving PCF Bindings is above 1 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.5

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 1% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the GET method.

For any assistance, contact My Oracle Support.

5.2.24 PCFBindingErrorRateAboveMajorThreshold

Description

PCF Binding Error Rate above 5 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

PCF Binding Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Major

Condition

The total number of failed transactions for retrieving PCF Bindings is above 5 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.5

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 5% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the GET method.

For any assistance, contact My Oracle Support.

5.2.25 PCFBindingErrorRateAboveCriticalThreshold

Description

PCF Binding Error Rate above 10 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

PCF Binding Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Critical

Condition

The total number of failed transactions for retrieving PCF Bindings is above 10 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.5

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 10% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the GET method.

For any assistance, contact My Oracle Support.

5.2.26 IngressCreateErrorRateAboveMinorThreshold

Description

BSF Ingress Create Error Rate above 1 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

Transaction Create Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Minor

Condition

The total number of failed transactions for creating requests (POST method of operation) for BSF service is above 1 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.4

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 1% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the POST method.

For any assistance, contact My Oracle Support.

5.2.27 IngressCreateErrorRateAboveCriticalThreshold

Description

BSF Ingress Create Error Rate above 10 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

Transaction Create Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Critical

Condition

The total number of failed transactions for creating requests (POST method of operation) for BSF service is above 10 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.4

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 10% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the POST method.

For any assistance, contact My Oracle Support.

5.2.28 IngressCreateErrorRateAboveMajorThreshold

Description

BSF Ingress Create Error Rate above 5 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

Transaction Create Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Major

Condition

The total number of failed transactions for creating requests (POST method of operation) for BSF service is above 5 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.4

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 5% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the POST method.

For any assistance, contact My Oracle Support.

5.2.29 IngressDeleteErrorRateAboveMinorThreshold

Description

Ingress Delete Error Rate above 1 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

Ingress Delete Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Minor

Condition

The total number of failed transactions for delete requests (DELETE method of operation) for BSF service is above 1 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.6

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 1% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the DELETE method.

For any assistance, contact My Oracle Support.

5.2.30 IngressDeleteErrorRateAboveMajorThreshold

Description

Ingress Delete Error Rate above 5 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

Ingress Delete Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Major

Condition

The total number of failed transactions for delete requests (DELETE method of operation) for BSF service is above 5 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.6

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 5% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the DELETE method.

For any assistance, contact My Oracle Support.

5.2.31 IngressDeleteErrorRateAboveCriticalThreshold

Description

Ingress Delete Error Rate above 10 Percent in {{$labels.microservice}} in {{$labels.namespace}}

Summary

Ingress Delete Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})

Severity

Critical

Condition

The total number of failed transactions for delete requests (DELETE method of operation) for BSF service is above 10 percent of the total transactions.

OID

1.3.6.1.4.1.323.5.3.37.1.2.6

Metric Used

http_server_requests_seconds_count

Recommended Actions

The alert gets cleared when the number of failed transactions is below 10% of the total transactions.

To assess the reason for failed transactions, check the service specific metrics for the DELETE method.

For any assistance, contact My Oracle Support.

5.2.32 DBTierDownAlert

Description

DB cannot be reachable!

Summary

DB cannot be reachable!

Severity

Critical

Condition

The database is not available.

OID

1.3.6.1.4.1.323.5.3.37.1.2.7

Metric Used

appinfo_category_running

Recommended Actions

Check whether the database service is up.

Check the status or age of the MySQL pod by using the following command:

kubectl get pods -n <namespace>

where <namespace> is the namespace used to deploy MySQL pod.

This alert is cleared automatically when the DB service is up and running.

5.2.33 CPUUsagePerServiceAboveMinorThreshold

Description: CPU usage for {{$labels.microservice}} service is above 60
Summary: CPU usage for {{$labels.microservice}} service is above 60
Severity: Minor
Condition: A service pod has reached the configured minor threshold (60%) of its CPU usage limits.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.8
Metric Used: cgroup_cpu_usage
Recommended Actions: The alert gets cleared when the CPU utilization falls below the minor threshold or crosses the major threshold, in which case CPUUsagePerServiceAboveMajorThreshold alert shall be raised.

Note:
Threshold levels can be configured using the BSF_Alertrules.yaml file.

For any assistance, contact My Oracle Support.

5.2.34 CPUUsagePerServiceAboveMajorThreshold

Description: CPU usage for {{$labels.microservice}} service is above 80
Summary: CPU usage for {{$labels.microservice}} service is above 80
Severity: Major
Condition: A service pod has reached the configured major threshold (80%) of its CPU usage limits.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.9
Metric Used: cgroup_cpu_usage
Recommended Actions: The alert gets cleared when the CPU utilization falls below the major threshold or crosses the critical threshold, in which case CPUUsagePerServiceAboveCriticalThreshold alert shall be raised.

Note:
Threshold levels can be configured using the BSF_Alertrules.yaml file.

For any assistance, contact My Oracle Support.

5.2.35 CPUUsagePerServiceAboveCriticalThreshold

Description: CPU usage for {{$labels.microservice}} service is above 90
Summary: CPU usage for {{$labels.microservice}} service is above 90
Severity: Critical
Condition: A service pod has reached the configured critical threshold (90%) of its CPU usage limits.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.10
Metric Used: cgroup_cpu_usage
Recommended Actions: The alert gets cleared when the CPU utilization falls below the critical threshold.

Note:
Threshold levels can be configured using the BSF_Alertrules.yaml file.

For any assistance, contact My Oracle Support.

5.2.36 MemoryUsagePerServiceAboveMinorThreshold

Description: Memory usage for {{$labels.microservice}} service is above 60
Summary: Memory usage for {{$labels.microservice}} service is above 60
Severity: Minor
Condition: A service pod has reached the configured minor threshold (60%) of its memory usage limits.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.11
Metric Used: cgroup_memory_usage
Recommended Actions: The alert gets cleared when the memory utilization falls below the minor threshold or crosses the major threshold, in which case MemoryUsagePerServiceAboveMajorThreshold alert shall be raised.

Note:
Threshold levels can be configured using the BSF_Alertrules.yaml file.

For any assistance, contact My Oracle Support.

5.2.37 MemoryUsagePerServiceAboveMajorThreshold

Description: Memory usage for {{$labels.microservice}} service is above 80
Summary: Memory usage for {{$labels.microservice}} service is above 80
Severity: Major
Condition: A service pod has reached the configured major threshold (80%) of its memory usage limits.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.12
Metric Used: cgroup_memory_usage
Recommended Actions: The alert gets cleared when the memory utilization falls below the major threshold or crosses the critical threshold, in which case MemoryUsagePerServiceAboveCriticalThreshold alert shall be raised.

Note:
Threshold levels can be configured using the BSF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.

5.2.38 MemoryUsagePerServiceAboveCriticalThreshold

Summary: Memory usage for {{$labels.microservice}} service is above 90
Description: Memory usage for {{$labels.microservice}} service is above 90
Severity: Critical
Condition: A service pod has reached the configured critical threshold (90%) of its memory usage limits.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.13
Metric Used: cgroup_memory_usage
Recommended Actions: The alert gets cleared when the memory utilization falls below the critical threshold.

Note:
Threshold levels can be configured using the BSF_Alertrules.yaml file.

For any assistance, contact My Oracle Support.

5.2.39 NRF_COMMUNICATION_FAILURE

Summary

There has been a external failure communication error with NRF.

Description

There has been a external failure communication error with NRF.

Severity

Info

Condition

BSF is able to raise and clear alarms for the failure of external communication, that is in case of the unavailability of producer NRF.

Raise alert if: ocbsf_nrfclient_nrf_operative_status == 0
Clear alert if: ocbsf_nrfclient_nrf_operative_status == 1

OID

1.3.6.1.4.1.323.5.3.37.1.2.18

Metric Used

ocbsf_nrfclient_nrf_operative_status

Recommended Actions

For any assistance, contact My Oracle Support.

5.2.40 NRF_SERVICE_REQUEST_FAILURE

Summary

There has been a Service Request Failure with NRF, either due to Registration failure or Profile update failure.

Description

There has been a Service Request Failure with NRF, either a Registration failure, Heartbeat failure, or Profile Update Failure.

Severity

Info

Condition

BSF is able to raise and clear alarms in case of Service Request Failures with NRF like the Registration failure, Heartbeat failure, Profile Update Failure.

raise alert if: ocbsf_nrfclient_nfUpdate_status == 0
clear alert if: ocbsf_nrfclient_nfUpdate_status == 1

OID

1.3.6.1.4.1.323.5.3.37.1.2.19

Metric Used

ocbsf_nrfclient_nfUpdate_status

Recommended Actions

For any assistance, contact My Oracle Support.

5.2.41 PERF_INFO_ACTIVE_OVERLOAD_THRESHOLD_FETCH_FAILED

Summary

The application fails to get the current active overload level threshold data.

Description

The application raises PERF_INFO_ACTIVE_OVERLOAD_THRESHOLD_FETCH_FAILED alert when it fails to fetch the current active overload level threshold data and active_overload_threshold_fetch_failed == 1.

Severity

Major

Condition

active_overload_threshold_fetch_failed == 1

OID

1.3.6.1.4.1.323.5.3.37.1.2.20

Metric Used

active_overload_threshold_fetch_failed

Recommended Actions

The alert gets cleared when the application fetches the current active overload level threshold data.

For any additional guidance, contact My Oracle Support.

5.2.42 PodDoc

Description: Pod Congestion status of {{$labels.microservice}} service is DoC
Summary: Pod Congestion status of {{$labels.microservice}} service is DoC
Severity: Major
Condition: The pod congestion status is set to Danger of Congestion.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.25
Metric Used: ocbsf_pod_congestion_state
Recommended Actions: The alert gets cleared when the system is back to normal state.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.43 PodCongested

Description: Pod Congestion status of {{$labels.microservice}} service is congested
Summary: Pod Congestion status of {{$labels.microservice}} service is congested
Severity: Critical
Condition: The pod congestion status is set to congested.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.26
Metric Used: ocbsf_pod_congestion_state
Recommended Actions: The alert gets cleared when the system is back to normal state.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.44 PodPendingRequestDoC

Description: Pod Resource Congestion status of {{$labels.microservice}} service is DoC for PendingRequest type
Summary: Pod Resource Congestion status of {{$labels.microservice}} service is DoC for PendingRequest type
Severity: Major
Condition: The pod congestion status is set to DoC for pending requests.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.27
Metric Used: ocbsf_pod_resource_congestion_state{type="queue"}
Recommended Actions: The alert gets cleared when the pending requests in the queue comes below the configured threshold value.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.45 PodPendingRequestCongested

Description: Pod Resource Congestion status of {{$labels.microservice}} service is congested for PendingRequest type
Summary: Pod Resource Congestion status of {{$labels.microservice}} service is congested for PendingRequest type
Severity: Critical
Condition: The pod congestion status is set to congested for PendingRequest.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.28
Metric Used: ocbsf_pod_resource_congestion_state{type="queue"}
Recommended Actions: The alert gets cleared when the pending requests in the queue comes below the configured threshold value.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.46 PodCPUDoC

Description: Pod Resource Congestion status of {{$labels.microservice}} service is DoC for CPU type
Summary: Pod Resource Congestion status of {{$labels.microservice}} service is DoC for CPU type
Severity: Major
Condition: The pod congestion status is set to DoC for CPU.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.29
Metric Used: ocbsf_pod_resource_congestion_state{type="cpu"}
Recommended Actions: The alert gets cleared when the system CPU usage comes below the configured threshold value.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.47 PodCPUCongested

Description: Pod Resource Congestion status of {{$labels.microservice}} service is congested for CPU type
Summary: Pod Resource Congestion status of {{$labels.microservice}} service is congested for CPU type
Severity: Critical
Condition: The pod congestion status is set to congested for CPU.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.30
Metric Used: ocbsf_pod_resource_congestion_state{type="cpu"}
Recommended Actions: The alert gets cleared when the system CPU usage comes below the configured threshold value.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.48 PodMemoryDoC

Description: Pod Resource Congestion status of {{$labels.microservice}} service is DoC for Memory type
Summary: Pod Resource Congestion status of {{$labels.microservice}} service is DoC for Memory type
Severity: Major
Condition: The pod congestion status is set to DoC for memory.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.31
Metric Used: ocbsf_pod_resource_congestion_state{type="memory"}
Recommended Actions: The alert gets cleared when the system memory comes below the configured threshold value.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.49 PodMemoryCongested

Description: Pod Resource Congestion status of {{$labels.microservice}} service is congested for Memory type
Summary: Pod Resource Congestion status of {{$labels.microservice}} service is congested for Memory type
Severity: Critical
Condition: The pod congestion status is set to congested for memory.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.32
Metric Used: ocbsf_pod_resource_congestion_state{type="memory"}
Recommended Actions: The alert gets cleared when the system memory comes below the configured threshold value.
For any additional guidance, contact My Oracle Support (https://support.oracle.com).

5.2.50 ServiceOverloaded

Description: Overload Level of {{$labels.microservice}} service is L1
Summary: Overload Level of {{$labels.microservice}} service is L1
Severity: Minor
Condition: The overload level of the service is L1.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.14
Metric Used: load_level
Recommended Actions: The alert gets cleared when the system is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: Overload Level of {{$labels.microservice}} service is L2
Summary: Overload Level of {{$labels.microservice}} service is L2
Severity: Major
Condition: The overload level of the service is L2.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.14
Metric Used: load_level
Recommended Actions: The alert gets cleared when the system is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: Overload Level of {{$labels.service}} service is L3
Summary: Overload Level of {{$labels.service}} service is L3
Severity: Critical
Condition: The overload level of the service is L3.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.14
Metric Used: load_level
Recommended Actions: The alert gets cleared when the system is back to normal state.
For any additional guidance, contact My Oracle Support.

5.2.51 ServiceResourceOverloaded

Alerts when service is in overload state due to memory usage

Description: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Severity: Minor
Condition: The overload level of the service is L1 due to memory usage.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="memory"}
Recommended Actions: The alert gets cleared when the memory usage of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Severity: Major
Condition: The overload level of the service is L2 due to memory usage.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="memory"}
Recommended Actions: The alert gets cleared when the memory usage of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Severity: Critical
Condition: The overload level of the service is L3 due to memory usage.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="memory"}
Recommended Actions: The alert gets cleared when the memory usage of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Alerts when service is in overload state due to CPU usage

Description: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Severity: Minor
Condition: The overload level of the service is L1 due to CPU usage.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="cpu"}
Recommended Actions: The alert gets cleared when the CPU usage of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Severity: Major
Condition: The overload level of the service is L2 due to CPU usage.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="cpu"}
Recommended Actions: The alert gets cleared when the CPU usage of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Severity: Critical
Condition: The overload level of the service is L3 due to CPU usage.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="cpu"}
Recommended Actions: The alert gets cleared when the CPU usage of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Alerts when service is in overload state due to number of pending messages

Description: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Severity: Minor
Condition: The overload level of the service is L1 due to number of pending messages.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="svc_pending_count"}
Recommended Actions: The alert gets cleared when the number of pending messages of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Severity: Major
Condition: The overload level of the service is L2 due to number of pending messages.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="svc_pending_count"}
Recommended Actions: The alert gets cleared when the number of pending messages of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Severity: Critical
Condition: The overload level of the service is L3 due to number of pending messages.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="svc_pending_count"}
Recommended Actions: The alert gets cleared when the number of pending messages of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Alerts when service is in overload state due to number of failed requests

Description: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L1 for {{$labels.type}} type
Severity: Minor
Condition: The overload level of the service is L1 due to number of failed requests.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="svc_failure_count"}
Recommended Actions: The alert gets cleared when the number of failed messages of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Summary: {{$labels.microservice}} service is L2 for {{$labels.type}} type
Severity: Major
Condition: The overload level of the service is L2 due to number of failed requests.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="svc_failure_count"}
Recommended Actions: The alert gets cleared when the number of failed messages of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

Description: {{$labels.microservice}} service is L3 for {{$labels.type}} type
Summary: {{$labels.microservice }} service is L3 for {{$labels.type}} type
Severity: Critical
Condition: The overload level of the service is L3 due to number of failed requests.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.15
Metric Used: service_resource_overload_level{type="svc_failure_count"}
Recommended Actions: The alert gets cleared when the number of failed messages of the service is back to normal state.
For any additional guidance, contact My Oracle Support.

5.2.52 SYSTEM_IMPAIRMENT_MAJOR

Description: Major Impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Summary: Major Impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Severity: Major
Condition: Major Impairment alert
OID: 1.3.6.1.4.1.323.5.3.36.1.2.43
Metric Used: db_tier_replication_status
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.53 SYSTEM_IMPAIRMENT_CRITICAL

Description: Critical Impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Summary: Critical Impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Severity: Critical
Condition: Critical Impairment alert
OID: 1.3.6.1.4.1.323.5.3.36.1.2.43
Metric Used: db_tier_replication_status
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.54 SYSTEM_OPERATIONAL_STATE_NORMAL

Description: System Operational State is now in normal state
Summary: System Operational State is now in normal state
Severity: Info
Condition: System Operational State is now in normal state
OID: 1.3.6.1.4.1.323.5.3.36.1.2.44
Metric Used: system_operational_state == 1
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.55 SYSTEM_OPERATIONAL_STATE_PARTIAL_SHUTDOWN

Description: System Operational State is now in partial shutdown state
Summary: System Operational State is now in partial shutdown state
Severity: Info
Condition: System Operational State is now in partial shutdown state
OID: 1.3.6.1.4.1.323.5.3.36.1.2.44
Metric Used: system_operational_state == 2
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.56 SYSTEM_OPERATIONAL_STATE_COMPLETE_SHUTDOWN

Description: System Operational State is now in complete shutdown state
Summary: System Operational State is now in complete shutdown state
Severity: Info
Condition: System Operational State is now in complete shutdown state
OID: 1.3.6.1.4.1.323.5.3.36.1.2.44
Metric Used: system_operational_state == 3
Recommended Actions: For any additional guidance, contact My Oracle Support.

5.2.57 DIAM_CONN_PEER_DOWN

Description: Diameter connection to peer {{ $labels.origHost }} is down.
Summary: Diameter connection to peer down.
Severity: Major
Condition: Diameter connection to peer origHost in given namespace is down.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.18
Metric Used: ocbsf_diam_conn_network
Recommended Actions: For any assistance, contact My Oracle Support.

5.2.58 DIAM_CONN_NETWORK_DOWN

Description: All diameter network connections are down.
Summary: All diameter network connections are down.
Severity: Critical
Condition: All diameter networks in a kubernetes namespace are down.
OID: 1.3.6.1.4.1.323.5.3.37.1.2.19
Metric Used: ocbsf_diam_conn_network
Recommended Actions: For any assistance, contact My Oracle Support.
