4 CNC Console Troubleshooting in Non OCI Deployment

This section provides information to troubleshoot the common errors which can be encountered during the installation and upgrade of CNC Console.

4.1 Unable to display the release version of the NF at CNC Console banner

Unable to display the release version of the NF at CNC Console banner

Problem: CNC Console banner displays the release version of CNC Console, but not displaying the release version of the NF.

Solution:

  • The “About” section and Application name displayed next to Oracle logo use the envSystemName and envNFVersion helm fields.
  • The value set of envSystemName and envNFVersion combines to display the Application name (Application name = envSystemName + envNFVersion).
  • CNC Console Core Custom values have envSystemName and envNFVersion mentioned in it, but these values can be overridden.

4.2 Unable to reach CNC Console Core IP or port directly

Unable to reach CNC Console Core IP or port directly

Problem: Unable to reach CNC Console Core IP or port directly. redirect_uri is inserted instead of directly accessing the CNC Console Core.

Solution: As per the design, CNC Console redirects requests to CNC Console IAM for authentication. On successful authentication, CNC Console IAM redirects the user back to CNC Console GUI.

4.3 Admin user created under CNC Console realm is unable to access CNC Console IAM

Admin user created under CNC Console realm is unable to access CNC Console IAM

Problem: The user with ‘Admin’ privileges is unable to access CNC Console IAM.

Solution: Users created under the Cncc realm have access only to CNC Console Core and not to CNC Console IAM. To access CNC Console IAM, create the admin user under the Master realm.

4.4 CNC Console returns 403 error during NF Configuration

CNC Console returns 403 error during NF Configuration

Problem: CNCConsole returns a 403 Error Code and error "Forbidden. Data could not be saved".

Error Code/Error Message:

403/Forbidden

Solution: Log into CNC Console IAM to check the roles of the user. The user must have <NF>_READ and <NF>_WRITE roles assigned to perform the write operation on any NF through the CNC Console.

4.5 CNC Console returns 500 - Internal Server Error

CNC Console returns 500 - Internal Server Error

Problem: CNC Console returns a 500 Error Code while accessing NF Resource.

Error Code/Error Message:

500/Internal Server Error

Solution: The internal server error occurs when the NF routes are not configured correctly. To resolve this error, ensure that correct routes for each NF are configured during deployment. You can provide routes in either of the IP/FQDN in the Instances section:

id: <Instance ID>
type: <NF type>
owner: <ID of cluster owning the Instance>
ip: <IP of NF deployment>
port: <Port of NF deployment

4.6 CNC Console IAM is accessible, but CNC Console Core is not accessible

CNC Console IAM is accessible, but CNC Console Core is not accessible

Problem: CNC Console IAM is accessible, but CNC Console Core is not accessible.

Error Message:

The ID Token contains invalid claims, which is a JWT validation error, indicating that the system clock on your server is off.

Observation: This issue occurs when Ingress Gateway is behind in time and when CNC Console IAM is ahead of time. For example, If IAM (node1) is ahead of time and Ingress Gateway (node2) is 5 minutes behind, the Ingress Gateway invalidates the received token and throws "The ID Token contains invalid claims: {iat=2020-05-26T08:32:12Z}" error.

Solution: To resolve the error, you must ensure that the same time is maintained in CNC Console IAM and Ingress Gateway when they run in the same instance or different NTP server instances.

4.7 CNC Console IAM admin password configured through Kubectl secret is not reflected

CNC Console IAM admin password configured through Kubectl secret is not reflected

Problem:

CNC Console IAM admin password change through cncc-iam-secret is not working (Example: if configured cncc-iam-secret).

Solution: During the first installation, CNC Console IAM reads the password from the cncc-iam-secret and stores it in the database. So any further changes to the admin password must be done through the CNC Console IAM GUI.

4.8 Access Error in CNC Console Core GUI

Access Error in CNC Console Core GUI

Problem:

Unable to access CNC Console Core GUI and an “Invalid redirect URI” error occurs.

Observation:

This error occurs when there is a mismatch between the Root URL provided in CNC Console IAM Admin Console and the URI through which you access the CNC Console Core GUI.

For example, In CNC Console IAM, the Root URL is mentioned as http://cncc-core-ingress-gateway.cncc.svc.cluster.local:30075/ and if you are accessing the CNC Console Core GUI with IP and NodePort, that is, http://10.75.xx.xx:30075/* or vice-versa, you get “invalid redirect_uri” error on CNC Console Core GUI.

Solution: To resolve this error, ensure that the Root URL provided in CNC Console IAM and the URI through which you access the CNC Console Core GUI are the same.

4.9 Changing the CNC Console IAM admin password

Changing the CNC Console IAM admin password

Problem:

How to change the CNC Console IAM admin password using the REST API call.

Solution: Refer the following sections in CNC Console User Guide:
  • Accessing NF Resources through Curl or Postman
  • CNC Console IAM REST APIs

4.10 Unable to access Kibana

Unable to access Kibana

Problem:

Kibana Common Service is not accessible

Solution: To resolve this issue, ensure that you are accessing Kibana through the correct path. The default access path to Kibana is through "/kibana". You can also access Kibana through the URL <node-ip>:<node-port>/mycne-cluster/kibana.

4.11 CNC Console installation failure while installing using cnDBTier

CNC Console installation failure while installing using cnDBTier

Problem:

While installing CNC Console using cnDBTier, the cncc-iam-kc pod does not come up and goes into a crash state.

Solution: cnDBTier needs additional grants such as "REFERENCES, INDEX" due to the addition of db hook job.

4.12 CNC Console IAM kc pod fails while ASM is enabled

CNC Console IAM kc pod fails while ASM is enabled

Problem:

While ASM is enabled, CNC Console IAM kc pod fails due to Readiness probe failure.

Solution: Check whether annotation "sidecar.istio.io/rewriteAppHTTPProbers" is enabled and set to true under 'nonlbStatefulSets' in custom_cncc-iam_values.yaml during CNC Console IAM deployment.

4.13 Unable to Access CNC Console GUI when ASM is Enabled

Unable to Access CNC Console GUI when ASM is Enabled

Problem:

Unable to access CNC Console GUI after installation as cncc-iam-ingress-gateway is listening on port 8080 instead of port 8081(ASM enabled).

Solution: After installing CNC Console, the cncc-iam-ingress-gateway is listening on port 8080 instead of port 8081 when ASM is enabled. To resolve this issue, configure the parameters in the custom_cncc-iam_values.yaml file as follows:
  • Annotation: sidecar.istio.io/rewriteAppHTTPProbers: "\"true\""
  • serviceMeshCheck: true
  • Annotation: sidecar.istio.io/inject: "true"

4.14 CNC Console Core GUI does not get loaded after logging in

CNC Console Core GUI does not get loaded after logging in

Problem

CNC Console Core microservices are up and running but CNC Console Core GUI does not get loaded after logging in.

Solution

CNC Console supports only single pod deployment, check the following configurations (must be set to 1).

ingress-gateway:
  # Number of Pods must always be available, even during a disruption.
  minAvailable: 1
  # Min replicas to scale to maintain an average CPU utilization
  minReplicas: 1
  # Max replicas to scale to maintain an average CPU utilization
  maxReplicas: 1

Note:

These are preset to 1 and these parameters are not exposed in custom values.

4.15 CNC Console is not supporting ASM with mTLS disabled configuration

CNC Console is not supporting ASM with mTLS disabled configuration

Problem

When service mesh is enabled and mTLS is set either to disabled or to permissive with insecure HTTP connections, CNC Console Core microservice doesn't come up or CNC Console Core GUI takes time to load because some internal CSS ir JS calls are still triggered with HTTPs.

Solution
  1. Update serviceMeshHttpsEnabled to false in custom-cncc-core_values.yaml file to allow insecure HTTP connections.

#Mandatory: This parameter must be set to "true" when CNC Console is deployed with the Service Mesh
serviceMeshCheck: true
# If Service Mesh is deployed with TLS/MTLS disabled then set this flag to false
serviceMeshHttpsEnabled: false
  2. Add a PeerAuthentication rule stating mTLS is disabled for CNC Console namespace. For example,
    kubectl apply -n <namespace> -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: cnccpeer
spec:
  mtls:
    mode: DISABLE
EOF

##################################
# Example with cncc as namespace #
##################################
kubectl apply -n cncc -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: cnccpeer
spec:
  mtls:
    mode: DISABLE
EOF

4.16 Pods not coming up in an ASM enabled CNC Console deployment in istio injected namespace

Pods not coming up in an ASM enabled CNC Console deployment in istio injected namespace

Problem

CNC Console pods don't come up when sidecar injection is enabled and CNC Console is deployed in CNE, and the following error is seen:
job/cncc-iam-pre-install          Error creating: pods "cncc-iam-pre-install-" is forbidden: PodSecurityPolicy: unable to admit pod:
 [spec.initContainers[0].securityContext.runAsNonRoot: Invalid value: false: must be true spec.initContainers[0].securityContext: Invalid value: []int64{0}: group 0 must be in the ranges: [{1 65535}] spec.initContainers[0].securityContext.capabilities.add: Invalid value: "NET_ADMIN": capability may not be added spec.initContainers[0].securityContext.capabilities.add: Invalid value: "NET_RAW": capability may not be added spec.initContainers[0].securityContext.runAsNonRoot: Invalid value: false: must be true]

Solution

You must bind the ClusterRole "psp:privileged" to the current namespace:
kubectl apply -f - <<EOF
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: "psp:<namespace>:cs-restricted"
  namespace: "<namespace>"
roleRef:
  kind: ClusterRole
  apiGroup: rbac.authorization.k8s.io
  name: "psp:privileged"
subjects:
- kind: Group
  apiGroup: rbac.authorization.k8s.io
  name: "system:serviceaccounts"
EOF

4.17 Failed to allocate IP for CNC Console IAM Ingress Gateway

Failed to allocate IP for CNC Console IAM Ingress Gateway

Problem

Installation of CNC Console IAM is successful but while checking CNC Console IAM service status, unable to assign the external IP for svc cncc-iam-ingress-gateway and received the following error: Warning Allocation Failed 61s (x3 over 8m48s) metallb-controller Failed to allocate IP for "cncc/cncc-iam-ingress-gateway": no available IPs.

Solution

Check if the annotations are missing from the cncc-iam-ingress-gateway service. Add the missing annotations, due to which the dynamic metalLbIpAllocation will work properly.

4.18 Unable to Create required tables in CNC Console IAM DB

Unable to Create required tables in CNC Console IAM DB

Problem

Deployment needs two instances of CNC Console where only the first instance is deployed correctly. After installing the second instance of CNC Console in a different namespace, the pod "cncc-voice-iam-kc-0" repeatedly crashes

Observation

After analyzing the logs, it was found that during the preinstall checks, the hook pods did not create all the required tables in the DB. For example, in the first instance DB, all tables created, while in the second instance DB, there are only 43 tables created. The cbDBTier has a maximum table limit of 512. So, during the deployment of the second instance of CNC Console, the maximum table limit threshold has exceeded, and hence 43 tables were created.

Deployment needs two instances of CNC Console, first instance is deployed correctly.

After the installation of the second cncc-iam in a different namespace, the pod cncc-voice-iam-kc-0 is crashed repeatedly. By analyzing the logs it seems that not all the tables has been created by the hook pods during the pre-install checks. In the first instance db we can see that there are all tables created while in the second instance we can see only 43 tables.

Solution

To resolve this issue, you must either increase the maximum table limit or clean up unwanted databases to bring table count within the threshold limits. For more information about configuring the table limits, see Oracle Communications Cloud Native Core DBTier Installation and Upgrade Guide.

Default limits in ndb:

MaxNoOfOrderedIndexes: 512

MaxNoOfTables: 512

NoOfFragmentLogFiles: 256

4.19 Resolve CNC Console Validation hook error

Resolve CNC Console Validation hook error

Problem

Validation hook error occurs during CNC Console Core Deployment.

Solution

To resolve this issue, enable Helm Configuration Validation for CNC Console Deployment, applicable for M-CNCC Core and A-CNCC deployment.

Check the cncc-acore-validation-hook or cncc-mcore-validation-hook pod logs for the error codes. Make the required corrections in the custom-cncc-core_values.yaml file and reinstall M-CNCC Core or A-CNCC. For more information about validation hook and error details, see "CNC Console Multi Cluster Deployment Helm Configuration Validation" section in Oracle Communications Cloud Native Configuration Console Installation and Upgrade Guide.

Error Code Error Message Format Error Scenarios Sample Error Messages
1001 Invalid value. Resource: <Configuration Name>, ID: <ID>, Attribute: <Attribute>. <More Info>
  • Port should be Numeric
  • Scheme should be either HTTP/HTTPS
  • IDs should follow the alphanumeric pattern
  • Max Limit should be satisfied for M-CNCC IAM, A-CNCC and Instance
  • Max Length for Instance Id
  • Max Length for Self Cncc Id
  • CS instance must have one of these CS subtypes <grafana, kibana, jaeger, prometheus, alertmanager>
  • Both ip and fqdn cannot be provided.
  • Unsupported type
  • InvalidConfig
  • multicluster flag should be false in case of single-cluster deployment
  • multicluster flag should be true in case of multi-cluster deployment

Invalid value. Resource: mCnccIam, ID: Cluster1, Attribute: Port. It should be numeric value.

Invalid value. Resource: instance, ID:

Cluster3

Cluster3-instance1, Attribute: Scheme. Allowed values are: [http, https].

Invalid value. Resource: instance, ID: Cluster1-grafana##$$%, Attribute: id. Ids should be alphanumeric with hyphen allowed as special character.

The count of mCnccIam exceeded max limit. Allowed Value:x. Actual Value: y

Max limit exceeded. Allowed Value:x. Actual Value: y

Invalid value. Resource: aCncc, ID: Cluster3, Attribute: N/A. Both ip and fqdn cannot be provided.

Invalid value. Resource: isMultiClusterEnabled, ID:,Attribute: False.

isMultiClusterEnabled is set as false, only single cluster configuration is allowed.

Invalid value. Resource: isMultiClusterEnabled, ID:,Attribute: True.

isMultiClusterEnabled is set as true, only multi cluster configuration is allowed.
1002 Duplicate value. Resource: <Configuration Name>, ID: <ID>, Attribute: <Attribute>. <More Info>
  • All A-CNCC IDs must be unique
  • API prefix must be unique for all instances
  • Owner(Cluster) must have unique CS subtype
 Duplicate value(s). Resource: aCncc, ID: [Cluster3], Attribute: id.
1003 Invalid Reference. Resource: <Configuration Name>, ID: <ID>, Attribute: <Attribute>. <More Info>
  • All the Instance owners must be referenced in M-CNCC IAM IDs or A-CNCC IDs
  • M-CNCC IAM IDs and M-CNCC Core IDs must be same

Invalid Reference. Resource: instance, ID: Cluster5, Attribute: Owner. Not present in mCncc ids or aCncc ids.

Invalid Reference. Resource: instance, ID: N/A, Attribute: N/A. M-Cncc Iam ids and M-Cncc Core ids do not match.
1004 Missing value. Resource: <Configuration Name>, ID: <ID>, Attribute: <Attribute>. <More Info>
  • Missing apiPrefix parameter for type CS
  • Either of IP/FQDN should be present

Missing value. Resource: instance, ID: Cluster4-grafana, Attribute: apiPrefix.

Missing value. Resource: instance, ID: Cluster3-PolicyInstance, Attribute: N/A. Either ip or fqdn is required.

4.20 How to Reset CNC Console IAM Admin Password

How to Reset CNC Console IAM Admin Password

Problem: How to Reset CNC Console IAM Admin Password

Solution: To reset the CNC Console IAM admin password, perform the following procedure:
  1. Run the following command to get into the mysql pod of cnDBTier:
    k exec -it <mysql pod name> -n <namespace> bash
  2. Run the following command to login to mysql:
    mysql -h 127.0.0.1 -u <username> -p<password>
  3. Run the following command to use the database that you used to deploy the CNC Console application:
    use <database name>
  4. Run the following command to find the admin user ID from the USER_ENTITY table:
    select * from USER_ENTITY
  5. Run the following command to delete the admin user ID entry from CREDENTIAL table:
    delete from CREDENTIAL where user_id = '<user-id>'
  6. Run the following command to delete the admin user ID entry from ROLE_MAPPING table:
    delete from USER_ROLE_MAPPING where user_id = '<user-id>'
  7. Run the following command to delete the admin user ID entry from USER_ENTITY table:
    delete from USER_ENTITY where ID = '<user-id>'

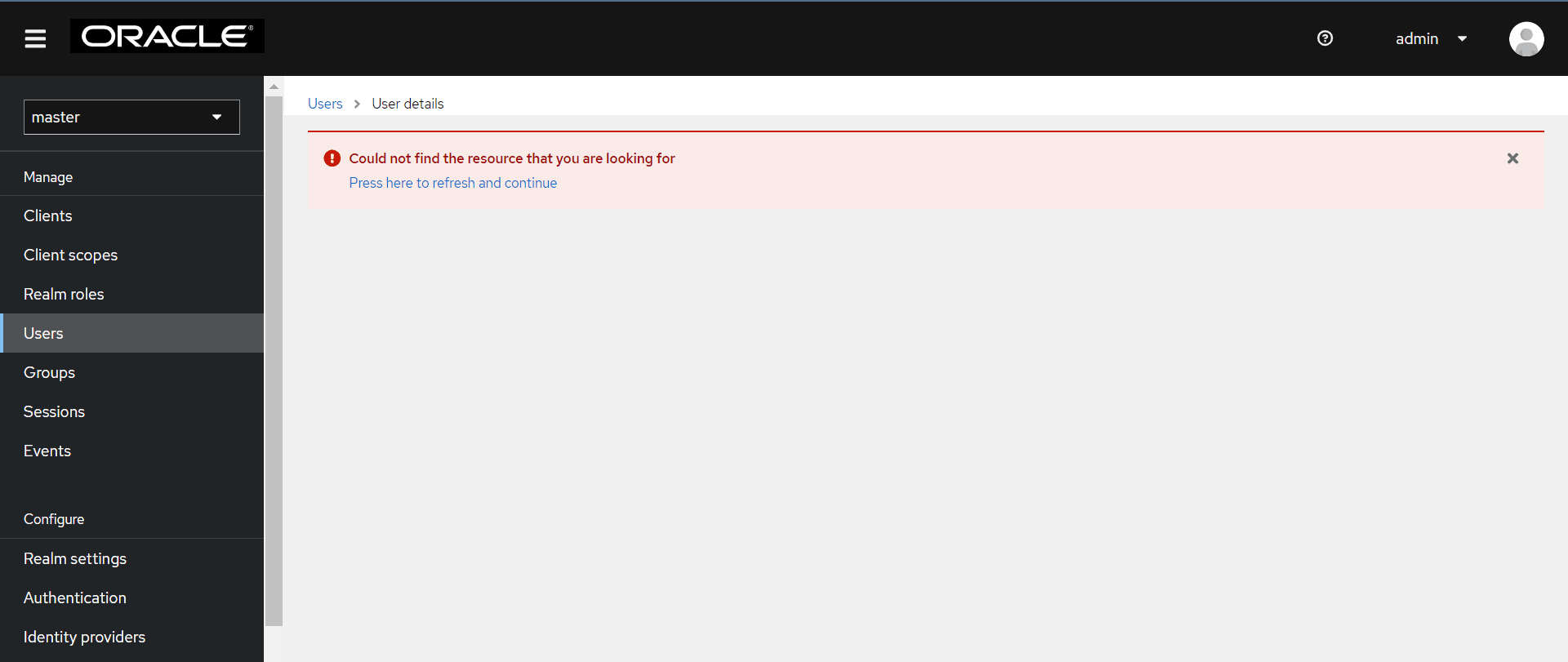

  8. Run the following command to restart the IAM-KC-0 pod and login to CNC Console IAM using the password given in the cncc-iam secret:
    Kubectl delete po <IAM-KC Pod> -n <namespace>

4.21 Does CNC Console support Command Line Interface (CLI)

Does CNC Console support Command Line Interface (CLI)

Problem: Can NF APIs integrated with CNC Console be accessed through curl or postman.

Solution The NF configuration APIs can be accessed through CNC Console GUI or directly using postman or curl. CNC Console providess authentication and authorization in both ways. For more information, see "Generating Access Tokens and Accessing NF Resources" section in Oracle Communications Cloud Native Configuration Console User Guide.

4.22 Upgrade or Rollback Failure

Upgrade or Rollback Failure

Problem: Upgrade or Rollback Failure

Solution

When CNC Console upgrade or rollback fails, perform the following procedure:

  1. Check the pre or post upgrade or rollback hook logs as applicable.
  2. If the failure occurs, then check the cause of the failure from the logs by running the following command:
    kubectl logs <pod name> -n <namespace>
  3. After detecting the cause of failure, do the following:
    • For upgrade failure:
      • If the cause of upgrade failure is database or network connectivity issue, then resolve the issue and rerun the upgrade command.
      • If the upgrade failure occurs during the postupgrade phase, for example, post upgrade hook failure due to target release pod not moving to ready state, then perform a rollback.
  • For rollback failure: If the cause of rollback failure is database or network connectivity issue, then resolve the issue and rerun the rollback command.

4. If the issue persists, contact My Oracle Support.

4.23 CNC Console Upgrade Results IP in Pending state

CNC Console Upgrade Results IP in Pending state

Problem: CNC Console deployment using static IP is not allocated to the new mcore service during upgrade.

Solution

CNCC supports the single helm chart deployment for deploying all three components M-CNCC IAM, M-CNCC Core and A-CNCC Core.

Earlier CNCC IAM and CNCC Core were deployed independently, now with single helm chart all 3 components can be deployed using single helm install command.

Upgrade from two helm deployments to one helm deployment is supported but one of the helm deployment must be manually deleted.

CNCC IAM deployment can be upgraded which upgrades M-CNCC IAM and freshly install M-CNCC Core and A-CNCC Core services. User can manuallydelete CNCC Core deployment. For more information, see Upgrade and Rollback sections of Oracle Communications Cloud Native Configuration Console Installation and Upgrade Guide..

In case, if static LoadBalancer IP is used in existing deployment, after the upgrade, new mcore service IP will be shown as pending. IP will be allocated once the existing M-CNCC Core service is uninstalled.

4.24 CNC Console Upgrade Displays Port Already in Use Error

CNC Console Upgrade Displays Port Already in Use Error

Problem: CNC Console deployment using static node port throws Port already in use error during upgrade.

Solution

If static port is used in existing deployment, before upgrade, in custom values file port needs to be updated to use another port to avoid port conflict error.

4.25 CNC Console Helm Test Fails

CNC Console Helm Test Fails

Problem: CNC Console helm test fails when there are stale jobs or pods.

Solution

In some cases, Helm RC builds have intermittent issues which blocks auto deletion of jobs.

Ensure stable helm version is installed in your environment.

4.26 CNC Console Helm Test Fails with Service Account Error

CNC Console Helm Test Fails with Service Account Error

Problem: CNC Console helm test fails when there are stale jobs or pods.

CNCC helm test fails with error message "Unauthorized! Configured service account doesn't have access. Service account may have been revoked.".

Solution

The time sync between worker nodes is must for helm test to work. Ensure CNE worker nodes time is in sync.

4.27 Unable to integrate LDAP with Console deployed on ASM setup

Unable to integrate LDAP with Console deployed on ASM setup

Problem: While integrating LDAP/LDAPs with CNC console, Test Connection is successful but Test Authentication fails. Generic error is displayed on screen "Error when trying to connect to LDAP. See server.log for details. LDAP test error "

Solution:

Apply the following yaml. This YAML sets up Kubernetes resources and Istio configurations to facilitate communication with an external LDAP connectivity service from within the cncc namespace. It ensures that internal services can access the external LDAP service using DNS resolution and defines routing and traffic policies specific to Istio.
kubectl apply -n cncc -f - <<EOF
apiVersion: v1
kind: Endpoints
metadata:
  name: <Unique ServiceEntry Name for Service>
  namespace: <CNCC-NAMESPACE>
subsets:
- addresses:
  - ip: <Service-public-IP>
  ports:
  - port: <Service-public-PORT>
    protocol: <Service-PROTOCOL>
---
apiVersion: v1
kind: Service
metadata:
  name: <Unique Endpoint Name for Service>-headless
  namespace: <CNCC-NAMESPACE>
spec:
  clusterIP: None
  ports:
  - port: <Service-public-PORT>
    protocol: <Service-PROTOCOL>
    targetPort: <Service-public-PORT>
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: <Unique ServiceEntry Name for Service>
  namespace: <CNCC-NAMESPACE>
spec:
  externalName: <Unique ServiceEntry Name for Service>-headless.<CNCC-NAMESPACE>.svc.cluster.local
  sessionAffinity: None
  type: ExternalName
---
apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
  name: <Unique ServiceEntry Name for Service>
  namespace: <CNCC-NAMESPACE>
spec:
  hosts:
  - <Service-public-FQDN>
  ports:
  - number: <Service-public-PORT>
    name: <Service-PORTNAME>
  location: MESH_EXTERNAL
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: <Unique DestinationRule Name for Service>
  namespace: cncc
spec:
  host: <Service-public-FQDN>
  trafficPolicy:
    tls:
      mode: DISABLE
---
EOF
Example:
kubectl apply -n cncc -f - <<EOF
apiVersion: v1
kind: Endpoints
metadata:
  name: ldap-connectivity-service-headless
  namespace: cncc
subsets:
- addresses:
  - ip: 10.75.212.154
  ports:
  - port: 30763
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: ldap-connectivity-service-headless
  namespace: cncc
spec:
  clusterIP: None
  ports:
  - port: 30763
    protocol: TCP
    targetPort: 30763
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: ldap-connectivity-service
  namespace: cncc
spec:
  externalName: ldap-connectivity-service-headless.cncc.svc.cluster.local
  sessionAffinity: None
  type: ExternalName
---
apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
  name: ldap-external-se
  namespace: cncc
spec:
  hosts:
  - ldap-connectivity-service-headless.cncc.svc.cluster.local
  ports:
  - number: 30763
    name: ldap
  location: MESH_EXTERNAL
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: ldap-external-dr
  namespace: cncc
spec:
  host: ldap-connectivity-service-headless.cncc.svc.cluster.local
  trafficPolicy:
    tls:
      mode: DISABLE
---
EOF

Once the yaml file is applied, LDAP Server can be integrated.

While setting up User Federation with CNCC IAM, when providing your company LDAP server details, connection URL needs to be configured using ldap-connectivity-service.

4.28 CNC Console IAM GUI gives an error while accessing some resources under master realm

CNC Console IAM GUI gives an error while accessing some resources under master realm.

Problem:

CNC Console IAM GUI throws the following error when some resources are accessed under the master realm:

"Error: Could not find the resource that you are looking for. Press here to refresh and continue."

Solution:

Some resources (APIs) are blocked under the "master realm" or "cncc realm" because of security reasons. This restricts the user from making any configuration changes. These resources are not applicable for Console. So, whenever the user tries to access blocked resources(APIs), the admin user always gets the error message asking the user to refresh and continue. It is expected behavior. Also note that CNC Console IAM is enabled with a single admin user. All admin operations must be carried out by the same admin user.

Figure 4-1 Unable to Find Resource Error


Unable to find resource error
