8 Alerts

This section provides information on Policy alerts and their configuration.

Note:

The performance and capacity of the system can vary based on the call model, configuration, including but not limited to the deployed policies and corresponding data, for example, policy tables.

8.1 Configuring Alerts

This section describes how to configure alerts in Policy. The Alert Manager uses the Prometheus measurements values as reported by microservices in conditions under alert rules to trigger alerts.

Note:

  • Sample alert files are packaged with Policy Custom Templates. The Policy Custom Templates.zip file can be downloaded from MOS. Unzip the folder to access the following files:
    • Common_Alertrules_cne1.5+.yaml
    • Common_Alertrules_cne1.9+.yaml
    • PCF_Alertrules_cne1.5+.yaml
    • PCF_Alertrules_cne1.9+.yaml
    • PCRF_Alertrules_cne1.5+.yaml
    • PCRF_Alertrules_cne1.9+.yaml
  • Name in the metadata section should be unique while applying more than one unique files. For example:
    apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  creationTimestamp: null
  labels:
    role: cnc-alerting-rules
  name: occnp-pcf-alerting-rules
  • If required, edit the threshold values of various alerts in the alert files before configuring the alerts.
  • The Alert Manager and Prometheus tools should run in CNE namespace, for example, occne-infra.
  • Use the following table to select the appropriate files on the basis of deployment mode and CNE version

    Table 8-1 Alert Configuration

    Deployment Mode CNE 1.5+ CNE 1.9+
    Converged Mode

    Common_Alertrules_cne1.5+.yaml

    PCF_Alertrules_cne1.5+.yaml

    PCRF_Alertrules_cne1.5+.yaml

    Common_Alertrules_cne1.9+.yaml

    PCF_Alertrules_cne1.9+.yaml

    PCRF_Alertrules_cne1.9+.yaml
    PCF only

    Common_Alertrules_cne1.5+.yaml

    PCF_Alertrules_cne1.5+.yaml

    Common_Alertrules_cne1.9+.yaml

    PCF_Alertrules_cne1.9+.yaml
    PCRF only

    Common_Alertrules_cne1.5+.yaml

    PCRF_Alertrules_cne1.5+.yaml

    Common_Alertrules_cne1.9+.yaml

    PCRF_Alertrules_cne1.9+.yaml

Configuring Alerts in Prometheus for CNE version from 1.5.0 up to 1.8.x

To configure alerts in Prometheus:
  1. Copy the required files to the Bastion Host. Place the files in the /var/occne/cluster/<cluster-name>/artifacts/alerts directory on the OCCNE Bastion Host.
    $ pwd /var/occne/cluster/stark/artifacts/alerts
$ ls
occne_alerts.yaml
$ vi PCF_Alertrules.yaml
$ ls PCF_Alertrules.yaml occne_alerts.yaml
  2. To set the correct file permissions, run the following command:
    $ chmod 644 PCF_Alertrules.yaml
  3. To load the updated rules from the Bastion host in the file to the existing occne-prometheus-alerts Configmap, run the following command:
    $ kubectl create configmap occne-prometheus-alerts --from-file=/var/occne/cluster/<cluster-name>/artifacts/alerts -o yaml --dry-run -n occne-infra | kubectl replace -f -
$ kubectl get configmap -n occne-infra
  4. Verify the alerts in the Prometheus GUI. To do so, select the Alerts tab, and view alert details by selecting any individual rule from the list.

Configuring Alerts in Prometheus for CNE 1.9.0 and later versions

To configure PCF alerts in Prometheus for CNE 1.9.0, perform the following steps:
  1. Copy the the required file to the Bastion Host.
  2. To create or replace the PrometheusRule CRD, run the following command:
    $ kubectl apply -f Common_Alertrules_cne1.9+.yaml -n <namespace>
    $ kubectl apply -f PCF_Alertrules_cne1.9+.yaml -n <namespace>
    $ kubectl apply -f PCRF_Alertrules_cne1.9+.yaml -n <namespace>

    Note:

    This is a sample command for Converged mode of deployment.
    To verify if the CRD is created, run the following command:
    kubectl get prometheusrule -n <namespace>
    Example:
    kubectl get prometheusrule -n occnp
  3. Verify the alerts in the Prometheus GUI. To do so, select the Alerts tab, and view alert details by selecting any individual rule from the list.

Validating Alerts

After configuring the alerts in Prometheus server, a user can verify using the following procedure:
  • Open the Prometheus server from your browser using the <IP>:<Port>
  • Navigate to Status and then Rules
  • Search Policy. Policy Alerts list is displayed.

If you are unable to see the alerts, verify if the alert file is correct and then try again.

Adding worker node name in metrics

To add the worker node name in metrics, perform the following steps:
  1. Edit the configmap occne-prometheus-server in namespace - occne-infra.
  2. Locate the the following job:
    job_name: kubernetes-pods
kubernetes_sd_configs:
role: pod
  3. Add the following in the relabel_configs:
    action: replace
source_labels:
__meta_kubernetes_pod_node_name
target_label: kubernetes_pod_node_name

8.2 Configuring SNMP Notifier

This section describes the procedure to configure SNMP Notifier.

Configure the IP and port of the SNMP trap receiver in the SNMP Notifier using the following procedure:
  1. Run the following command to edit the deployment:
    $ kubectl edit deploy <snmp_notifier_deployment_name> -n <namespace>

    Example:

    $ kubectl edit deploy occne-snmp-notifier -n occne-infra

    SNMP deployment yaml file is displayed.

  2. Edit the SNMP destination in the deployment yaml file as follows:
    --snmp.destination=<destination_ip>:<destination_port>

    Example:

    --snmp.destination=10.75.203.94:162
  3. Save the file.
Checking SNMP Traps
Following is an example on how to capture the logs of the trap receiver server to view the generated SNMP traps:
$ docker logs <trapd_container_id>
Sample output:

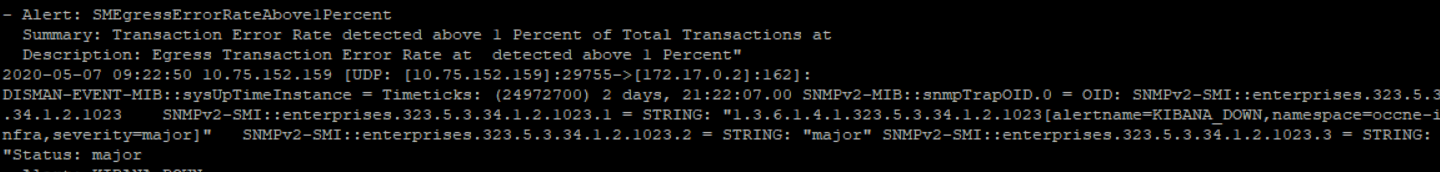

Figure 8-1 Sample output for SNMP Trap

Sample output for SNMP Trap
MIB Files for CNC Policy

There are two MIB files which are used to generate the traps. Update these files along with the Alert file in order to fetch the traps in their environment.

  • toplevel.mib

    This is the top level mib file, where the Objects and their data types are defined.

  • policy-alarm-mib.mib

    This file fetches objects from the top level mib file and these objects can be selected for display.

Note:

MIB files are packaged along with CNC Policy Custom Templates. Download the file from MOS. For more information on downloading custom templates, see Oracle Communications Cloud Native Core Policy Installation and Upgrade Guide.

8.3 List of Alerts

This section provides detailed information about the alert rules defined for Policy. It consists of the following three types of alerts:
  1. Common Alerts - This category of alerts is common and required for all three modes of deployment.
  2. PCF Alerts - This category of alerts is specific to PCF microservices and required for Converged and PCF only modes of deployment.
  3. PCRF Alerts - This category of alerts is specific to PCRF microservices and required for Converged and PCRF only modes of deployment.

8.3.1 Common Alerts

This section provides information about alerts that are common for PCF and PCRF.

8.3.1.1 PodMemoryDoC

Table 8-2 PodMemoryDoC

Field Details
Description Pod Resource Congestion status of {{$labels.service}} service is DoC for Memory type
Summary Pod Resource Congestion status of {{$labels.service}} service is DoC for Memory type
Severity Major
Condition occnp_pod_resource_congestion_state{type="memory"} == 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.31
Metric Used occnp_pod_resource_congestion_state
Recommended Actions
Alert triggers based on the resource limit usage and load shedding configurations in congestion control. The CPU, Memory, and queue usage can be referred using the Grafana Dashboard.

Note:

Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.2 PodMemoryCongested

Table 8-3 PodMemoryCongested

Field Details
Description Pod Resource Congestion status of {{$labels.service}} service is congested for Memory type
Summary Pod Resource Congestion status of {{$labels.service}} service is congested for Memory type
Severity Critical
Condition occnp_pod_resource_congestion_state{type="memory"} == 2
OID 1.3.6.1.4.1.323.5.3.52.1.2.32
Metric Used occnp_pod_resource_congestion_state
Recommended Actions

Alert triggers based on the resource limit usage and load shedding configurations in congestion control. The CPU, Memory, and queue usage can be referred using the Grafana Dashboard.

For any additional guidance, contact My Oracle Support.
8.3.1.3 PodDoc

Table 8-4 PodDoc

Field Details
Description Pod Congestion status of {{$labels.service}} service is DoC.
Summary Pod Congestion status of {{$labels.service}} service is DoC.
Severity Major
Condition occnp_pod_congestion_state == 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.25
Metric Used occnp_pod_congestion_state
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.4 RAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-5 RAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description RAA Rx fail count exceeds the critical threshold limit.
Summary RAA Rx fail count exceeds the critical threshold limit.
Severity CRITICAL
Condition sum(rate(occnp_diam_response_local_total{msgType="RAA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="RAA", appId="16777236"}[5m])) * 100 > 90
OID 1.3.6.1.4.1.323.5.3.52.1.2.35
Metric Used occnp_diam_response_local_total
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.5 RAA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Table 8-6 RAA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Field Details
Description RAA Rx fail count exceeds the major threshold limit.
Summary RAA Rx fail count exceeds the major threshold limit.
Severity MAJOR
Condition sum(rate(occnp_diam_response_local_total{msgType="RAA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="RAA", appId="16777236"}[5m])) * 100 > 80 and sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="RAA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="RAA"}[5m])) * 100 <= 90
OID 1.3.6.1.4.1.323.5.3.52.1.2.35
Metric Used occnp_diam_response_local_total
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.6 RAA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Table 8-7 RAA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Field Details
Description RAA Rx fail count exceeds the minor threshold limit.
Summary RAA Rx fail count exceeds the minor threshold limit.
Severity MINOR
Condition sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="RAA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="RAA"}[5m])) * 100 > 60 and sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="RAA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="RAA"}[5m])) * 100 <= 80
OID 1.3.6.1.4.1.323.5.3.52.1.2.35
Metric Used occnp_diam_response_local_total
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.7 ASA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-8 ASA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description ASA Rx fail count exceeds the critical threshold limit.
Summary ASA Rx fail count exceeds the critical threshold limit.
Severity CRITICAL
Condition sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA"}[5m])) * 100 > 90
OID 1.3.6.1.4.1.323.5.3.52.1.2.66
Metric Used occnp_diam_response_local_total
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.8 ASA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Table 8-9 ASA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Field Details
Description ASA Rx fail count exceeds the major threshold limit.
Summary ASA Rx fail count exceeds the major threshold limit.
Severity MAJOR
Condition sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA"}[5m])) * 100 > 80 and sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA"}[5m])) * 100 <= 90
OID 1.3.6.1.4.1.323.5.3.52.1.2.66
Metric Used occnp_diam_response_local_total
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.9 ASA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Table 8-10 ASA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Field Details
Description ASA Rx fail count exceeds the minor threshold limit.
Summary ASA Rx fail count exceeds the minor threshold limit.
Severity MINOR
Condition sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA"}[5m])) * 100 > 60 and sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA",responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{appId="16777236",msgType="ASA"}[5m])) * 100 <= 80
OID 1.3.6.1.4.1.323.5.3.52.1.2.66
Metric Used occnp_diam_response_local_total
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.10 SCP_PEER_UNAVAILABLE

Table 8-11 SCP_PEER_UNAVAILABLE

Field Details
Description Configured SCP peer is unavailable.
Summary Configured SCP peer is unavailable.
Severity Major
Condition occnp_oc_egressgateway_peer_health_status != 0. SCP peer [ {{$labels.peer}} ] is unavailable.
OID 1.3.6.1.4.1.323.5.3.52.1.2.60
Metric Used occnp_oc_egressgateway_peer_health_status
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.11 SCP_PEER_SET_UNAVAILABLE

Table 8-12 SCP_PEER_SET_UNAVAILABLE

Field Details
Description None of the SCP peer available for configured peerset.
Summary None of the SCP peer available for configured peerset.
Severity Critical
Condition One of the SCPs has been marked unhealthy.
OID 1.3.6.1.4.1.323.5.3.52.1.2.61
Metric Used oc_egressgateway_peer_count and oc_egressgateway_peer_available_count
Recommended Actions

NF clears the critical alarm when atleast one SCP peer in a peerset becomes available such that all other SCP peers in the given peerset are still unavailable.

For any additional guidance, contact My Oracle Support.
8.3.1.12 STALE_CONFIGURATION

Table 8-13 STALE_CONFIGURATION

Field Details
Description In last 10 minutes, the current service config_level does not match the config_level from the config-server.
Summary In last 10 minutes, the current service config_level does not match the config_level from the config-server.
Severity Major
Condition (sum by(namespace) (topic_version{app_kubernetes_io_name="config-server",topicName="config.level"})) / (count by(namespace) (topic_version{app_kubernetes_io_name="config-server",topicName="config.level"})) != (sum by(namespace) (topic_version{app_kubernetes_io_name!="config-server",topicName="config.level"})) / (count by(namespace) (topic_version{app_kubernetes_io_name!="config-server",topicName="config.level"}))
OID 1.3.6.1.4.1.323.5.3.52.1.2.62
Metric Used topic_version
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.13 POLICY_SERVICES_DOWN

Table 8-14 POLICY_SERVICES_DOWN

Field Details
Name in Alert Yaml File PCF_SERVICES_DOWN
Description {{$labels.service}} service is not running.
Summary {{$labels.service}} service is not running.
Severity Critical
Condition None of the pods of the CNC Policy application are available.
OID 1.3.6.1.4.1.323.5.3.36.1.2.1
Metric Used appinfo_service_running{vendor="Oracle", application="occnp", category!=""}!= 1
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.1.14 DIAM_TRAFFIC_RATE_ABOVE_THRESHOLD

Table 8-15 DIAM_TRAFFIC_RATE_ABOVE_THRESHOLD

Field Details
Name in Alert Yaml File DiamTrafficRateAboveThreshold
Description Diameter Connector Ingress traffic Rate is above threshold of Max MPS (current value is: {{ $value }})
Summary Traffic Rate is above 90 Percent of Max requests per second.
Severity Major
Condition The total Ingress traffic rate for Diameter connector has crossed the configured threshold of 900 TPS.

Default value of this alert trigger point in Common_Alertrules.yaml file is when Diameter Connector Ingress Rate crosses 90% of maximum ingress requests per second.
OID 1.3.6.1.4.1.323.5.3.36.1.2.6
Metric Used ocpm_ingress_request_total
Recommended Actions The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note: Threshold levels can be configured using the Common_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:
  1. Refer Ingress Gateway section in Grafana to determine increase in 4xx and 5xx error response codes.
  2. Check Ingress Gateway logs on Kibana to determine the reason for the errors.
For any additional guidance, contact My Oracle Support.
8.3.1.15 DIAM_INGRESS_ERROR_RATE_ABOVE_10_PERCENT

Table 8-16 DIAM_INGRESS_ERROR_RATE_ABOVE_10_PERCENT

Field Details
Name in Alert Yaml File DiamIngressErrorRateAbove10Percent
Description Transaction Error Rate detected above 10 Percent of Total on Diameter Connector (current value is: {{ $value }})
Summary Transaction Error Rate detected above 10 Percent of Total Transactions.
Severity Critical
Condition The number of failed transactions is above 10 percent of the total transactions on Diameter Connector.
OID 1.3.6.1.4.1.323.5.3.36.1.2.7
Metric Used ocpm_ingress_response_total
Recommended Actions The alert gets cleared when the number of failed transactions are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: ocpm_ingress_response_total{servicename_3gpp="rx",response_code!~"2.*"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.
For any additional guidance, contact My Oracle Support.
8.3.1.16 DIAM_EGRESS_ERROR_RATE_ABOVE_1_PERCENT

Table 8-17 DIAM_EGRESS_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Name in Alert Yaml File DiamEgressErrorRateAbove1Percent
Description Egress Transaction Error Rate detected above 1 Percent of Total on Diameter Connector (current value is: {{ $value }})
Summary Transaction Error Rate detected above 1 Percent of Total Transactions
Severity Minor
Condition The number of failed transactions is above 1 percent of the total Egress Gateway transactions on Diameter Connector.
OID 1.3.6.1.4.1.323.5.3.36.1.2.8
Metric Used ocpm_egress_response_total
Recommended Actions The alert gets cleared when the number of failed transactions are below 1% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the errors. For instance: ocpm_egress_response_total{servicename_3gpp="rx",response_code!~"2.*"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.
For any additional guidance, contact My Oracle Support.
8.3.1.17 UDR_INGRESS_TRAFFIC_RATE_ABOVE_THRESHOLD

Table 8-18 UDR_INGRESS_TRAFFIC_RATE_ABOVE_THRESHOLD

Field Details
Description User service Ingress traffic Rate from UDR is above threshold of Max MPS (current value is: {{ $value }})
Summary Traffic Rate is above 90 Percent of Max requests per second
Severity Major
Condition The total User Service Ingress traffic rate from UDR has crossed the configured threshold of 900 TPS.

Default value of this alert trigger point in Common_Alertrules.yaml file is when user service Ingress Rate from UDR crosses 90% of maximum ingress requests per second.
OID 1.3.6.1.4.1.323.5.3.36.1.2.9
Metric Used ocpm_userservice_inbound_count_total{service_resource="udr-service"}
Recommended Actions The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note: Threshold levels can be configured using the Common_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:
  1. Refer Ingress Gateway section in Grafana to determine increase in 4xx and 5xx error response codes.
  2. Check Ingress Gateway logs on Kibana to determine the reason for the errors.

For any additional guidance, contact My Oracle Support.
8.3.1.18 UDR_EGRESS_ERROR_RATE_ABOVE_10_PERCENT

Table 8-19 UDR_EGRESS_ERROR_RATE_ABOVE_10_PERCENT

Field Details
Description Egress Transaction Error Rate detected above 10 Percent of Total on User service (current value is: {{ $value }})
Summary Transaction Error Rate detected above 10 Percent of Total Transactions
Severity Critical
Condition The number of failed transactions from UDR is more than 10 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.36.1.2.10
Metric Used ocpm_udr_tracking_response_total{servicename_3gpp="nudr-dr",response_code!~"2.*"}
Recommended Actions The alert gets cleared when the number of failure transactions falls below the configured threshold.

Note: Threshold levels can be configured using the Common_Alertrules.yaml file.

It is recommended to assess the reason for failed transactions. Perform the following steps to analyze the cause of increased traffic:
  1. Refer Egress Gateway section in Grafana to determine increase in 4xx and 5xx error response codes.
  2. Check Egress Gateway logs on Kibana to determine the reason for the errors.

For any additional guidance, contact My Oracle Support.
8.3.1.19 POLICYDS_INGRESS_TRAFFIC_RATE_ABOVE_THRESHOLD

Table 8-20 POLICYDS_INGRESS_TRAFFIC_RATE_ABOVE_THRESHOLD

Field Details
Description Ingress Traffic Rate is above threshold of Max MPS (current value is: {{ $value }})
Summary Traffic Rate is above 90 Percent of Max requests per second
Severity Critical
Condition The total PolicyDS Ingress message rate has crossed the configured threshold of 900 TPS. 90% of maximum Ingress request rate.

Default value of this alert trigger point in Common_Alertrules.yaml file is when PolicyDS Ingress Rate crosses 90% of maximum ingress requests per second.
OID 1.3.6.1.4.1.323.5.3.36.1.2.13
Metric Used client_request_total

Note: This is a Kubernetes metric used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note: Threshold levels can be configured using the Common_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:
  1. Refer Ingress Gateway section in Grafana to determine increase in 4xx and 5xx error response codes.
  2. Check Ingress Gateway logs on Kibana to determine the reason for the errors.

For any additional guidance, contact My Oracle Support.
8.3.1.20 POLICYDS_INGRESS_ERROR_RATE_ABOVE_10_PERCENT

Table 8-21 POLICYDS_INGRESS_ERROR_RATE_ABOVE_10_PERCENT

Field Details
Description Ingress Transaction Error Rate detected above 10 Percent of Totat on PolicyDS service (current value is: {{ $value }})
Summary Transaction Error Rate detected above 10 Percent of Total Transactions
Severity Critical
Condition The number of failed transactions is above 10 percent of the total transactions for PolicyDS service.
OID 1.3.6.1.4.1.323.5.3.36.1.2.14
Metric Used client_response_total
Recommended Actions The alert gets cleared when the number of failed transactions are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: client_response_total{response!~"2.*"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.1.21 POLICYDS_EGRESS_ERROR_RATE_ABOVE_1_PERCENT

Table 8-22 POLICYDS_EGRESS_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Description Egress Transaction Error Rate detected above 1 Percent of Total on PolicyDS service (current value is: {{ $value }})
Summary Transaction Error Rate detected above 1 Percent of Total Transactions
Severity Minor
Condition The number of failed transactions is above 1 percent of the total transactions for PolicyDS service.
OID 1.3.6.1.4.1.323.5.3.36.1.2.15
Metric Used server_response_total
Recommended Actions The alert gets cleared when the number of failed transactions are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: server_response_total{response!~"2.*"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.1.22 UDR_INGRESS_TIMEOUT_ERROR_ABOVE_MAJOR_THRESHOLD

Table 8-23 UDR_INGRESS_TIMEOUT_ERROR_ABOVE_MAJOR_THRESHOLD

Field Details
Description Ingress Timeout Error Rate detected above 10 Percent of Totat towards UDR service (current value is: {{ $value }})
Summary Timeout Error Rate detected above 10 Percent of Total Transactions
Severity Major
Condition The number of failed transactions due to timeout is above 10 percent of the total transactions for UDR service.
OID 1.3.6.1.4.1.323.5.3.36.1.2.16
Metric Used ocpm_udr_tracking_request_timeout_total{servicename_3gpp="nudr-dr"}
Recommended Actions The alert gets cleared when the number of failed transactions due to timeout are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: ocpm_udr_tracking_request_timeout_total{servicename_3gpp="nudr-dr"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.1.23 DB_TIER_DOWN_ALERT

Table 8-24 DB_TIER_DOWN_ALERT

Field Details
Description DB cannot be reachable.
Summary DB cannot be reachable.
Severity Critical
Condition Database is not available.
OID 1.3.6.1.4.1.323.5.3.36.1.2.18
Metric Used appinfo_category_running{category="database"}
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.24 CPUUsagePerServiceAboveMinorThreshold

Table 8-25 CPUUsagePerServiceAboveMinorThreshold

Field Details
Description CPU usage for {{$labels.service}} service is above 60
Summary CPU usage for {{$labels.service}} service is above 60
Severity Minor
Condition A service pod has reached the configured minor threshold (60%) of its CPU usage limits.
OID 1.3.6.1.4.1.323.5.3.36.1.2.19
Metric Used container_cpu_usage_seconds_total

Note: This is a Kubernetes used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the CPU utilization falls below the minor threshold or crosses the major threshold, in which case CPUUsagePerServiceAboveMajorThreshold alert shall be raised.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.25 CPUUsagePerServiceAboveMajorThreshold

Table 8-26 CPUUsagePerServiceAboveMajorThreshold

Field Details
Description CPU usage for {{$labels.service}} service is above 80
Summary CPU usage for {{$labels.service}} service is above 80
Severity Major
Condition A service pod has reached the configured major threshold (80%) of its CPU usage limits.
OID 1.3.6.1.4.1.323.5.3.36.1.2.20
Metric Used container_cpu_usage_seconds_total

Note: This is a Kubernetes used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the CPU utilization falls below the major threshold or crosses the critical threshold, in which case CPUUsagePerServiceAboveCriticalThreshold alert shall be raised.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.26 CPUUsagePerServiceAboveCriticalThreshold

Table 8-27 CPUUsagePerServiceAboveCriticalThreshold

Field Details
Description CPU usage for {{$labels.service}} service is above 90
Summary CPU usage for {{$labels.service}} service is above 90
Severity Critical
Condition A service pod has reached the configured critical threshold (90%) of its CPU usage limits.
OID 1.3.6.1.4.1.323.5.3.36.1.2.21
Metric Used container_cpu_usage_seconds_total

Note: This is a Kubernetes used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the CPU utilization falls below the critical threshold.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.27 MemoryUsagePerServiceAboveMinorThreshold

Table 8-28 MemoryUsagePerServiceAboveMinorThreshold

Field Details
Description Memory usage for {{$labels.service}} service is above 60
Summary Memory usage for {{$labels.service}} service is above 60
Severity Minor
Condition A service pod has reached the configured minor threshold (60%) of its memory usage limits.
OID 1.3.6.1.4.1.323.5.3.36.1.2.22
Metric Used container_memory_usage_bytes

Note: This is a Kubernetes used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the memory utilization falls below the minor threshold or crosses the critical threshold, in which case MemoryUsagePerServiceAboveMajorThreshold alert shall be raised.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.28 MemoryUsagePerServiceAboveMajorThreshold

Table 8-29 MemoryUsagePerServiceAboveMajorThreshold

Field Details
Description Memory usage for {{$labels.service}} service is above 80
Summary Memory usage for {{$labels.service}} service is above 80
Severity Major
Condition A service pod has reached the configured major threshold (80%) of its memory usage limits.
OID 1.3.6.1.4.1.323.5.3.36.1.2.23
Metric Used container_memory_usage_bytes

Note: This is a Kubernetes used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the memory utilization falls below the major threshold or crosses the critical threshold, in which case MemoryUsagePerServiceAboveCriticalThreshold alert shall be raised.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.29 MemoryUsagePerServiceAboveCriticalThreshold

Table 8-30 MemoryUsagePerServiceAboveCriticalThreshold

Field Details
Description Memory usage for {{$labels.service}} service is above 90
Summary Memory usage for {{$labels.service}} service is above 90
Severity Critical
Condition A service pod has reached the configured critical threshold (90%) of its memory usage limits.
OID 1.3.6.1.4.1.323.5.3.36.1.2.24
Metric Used container_memory_usage_bytes

Note: This is a Kubernetes used for instance availability monitoring. If the metric is not available, use similar metrics exposed by the monitoring system.

Recommended Actions The alert gets cleared when the memory utilization falls below the critical threshold.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

For any additional guidance, contact My Oracle Support.
8.3.1.30 POD_CONGESTED

Table 8-31 POD_CONGESTED

Field Details
Description Pod Congestion status of {{$labels.service}} service is congested
Summary Pod Congestion status of {{$labels.service}} service is congested
Severity Critical
Condition The pod congestion status is set to congested.
OID 1.3.6.1.4.1.323.5.3.36.1.2.26
Metric Used occnp_pod_congestion_state
Recommended Actions The alert gets cleared when the system is back to normal state.

For any additional guidance, contact My Oracle Support.
8.3.1.31 POD_DANGER_OF_CONGESTION

Table 8-32 POD_DANGER_OF_CONGESTION

Field Details
Description Pod Congestion status of {{$labels.service}} service is DoC
Summary Pod Congestion status of {{$labels.service}} service is DoC
Severity Major
Condition The pod congestion status is set to Danger of Congestion.
OID 1.3.6.1.4.1.323.5.3.36.1.2.25
Metric Used occnp_pod_congestion_state
Recommended Actions The alert gets cleared when the system is back to normal state.

For any additional guidance, contact My Oracle Support.
8.3.1.32 POD_PENDING_REQUEST_CONGESTED

Table 8-33 POD_PENDING_REQUEST_CONGESTED

Field Details
Description Pod Resource Congestion status of {{$labels.service}} service is congested for PendingRequest type.
Summary Pod Resource Congestion status of {{$labels.service}} service is congested for PendingRequest type.
Severity Critical
Condition The pod congestion status is set to congested for PendingRequest.
OID 1.3.6.1.4.1.323.5.3.36.1.2.28
Metric Used occnp_pod_resource_congestion_state{type="queue"}
Recommended Actions The alert gets cleared when the pending requests in the queue comes below the configured threshold value.

For any additional guidance, contact My Oracle Support.
8.3.1.33 POD_PENDING_REQUEST_DANGER_OF_CONGESTION

Table 8-34 POD_PENDING_REQUEST_DANGER_OF_CONGESTION

Field Details
Description Pod Resource Congestion status of {{$labels.service}} service is DoC for PendingRequest type.
Summary Pod Resource Congestion status of {{$labels.service}} service is DoC for PendingRequest type.
Severity Major
Condition The pod congestion status is set to DoC for pending requests.
OID 1.3.6.1.4.1.323.5.3.36.1.2.27
Metric Used occnp_pod_resource_congestion_state{type="queue"}
Recommended Actions The alert gets cleared when the pending requests in the queue comes below the configured threshold value.

For any additional guidance, contact My Oracle Support.
8.3.1.34 POD_CPU_CONGESTED

Table 8-35 POD_CPU_CONGESTED

Field Details
Description Pod Resource Congestion status of {{$labels.service}} service is congested for CPU type.
Summary Pod Resource Congestion status of {{$labels.service}} service is congested for CPU type.
Severity Critical
Condition The pod congestion status is set to congested for CPU.
OID 1.3.6.1.4.1.323.5.3.36.1.2.30
Metric Used occnp_pod_resource_congestion_state{type="cpu"}
Recommended Actions The alert gets cleared when the system CPU usage comes below the configured threshold value.

For any additional guidance, contact My Oracle Support.
8.3.1.35 POD_CPU_DANGER_OF_CONGESTION

Table 8-36 POD_CPU_DANGER_OF_CONGESTION

Field Details
Description Pod Resource Congestion status of {{$labels.service}} service is DoC for CPU type.
Summary Pod Resource Congestion status of {{$labels.service}} service is DoC for CPU type.
Severity Major
Condition The pod congestion status is set to DoC for CPU.
OID 1.3.6.1.4.1.323.5.3.36.1.2.29
Metric Used occnp_pod_resource_congestion_state{type="cpu"}
Recommended Actions The alert gets cleared when the system CPU usage comes below the configured threshold value.

For any additional guidance, contact My Oracle Support.
8.3.1.36 SERVICE_OVERLOADED

Table 8-37 SERVICE_OVERLOADED

Field Details
Description Overload Level of {{$labels.service}} service is L1
Summary Overload Level of {{$labels.service}} service is L1
Severity Minor
Condition The overload level of the service is L1.
OID 1.3.6.1.4.1.323.5.3.36.1.2.40
Metric Used load_level
Recommended Actions The alert gets cleared when the system is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-38 SERVICE_OVERLOADED

Field Details
Description Overload Level of {{$labels.service}} service is L2
Summary Overload Level of {{$labels.service}} service is L2
Severity Major
Condition The overload level of the service is L2.
OID 1.3.6.1.4.1.323.5.3.36.1.2.40
Metric Used load_level
Recommended Actions The alert gets cleared when the system is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-39 SERVICE_OVERLOADED

Field Details
Description Overload Level of {{$labels.service}} service is L3
Summary Overload Level of {{$labels.service}} service is L3
Severity Critical
Condition The overload level of the service is L3.
OID 1.3.6.1.4.1.323.5.3.36.1.2.40
Metric Used load_level
Recommended Actions The alert gets cleared when the system is back to normal state.

For any additional guidance, contact My Oracle Support.
8.3.1.37 SERVICE_RESOURCE_OVERLOADED

Alerts when service is in overload state due to memory usage

Table 8-40 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L1 for {{$labels.type}} type
Summary {{$labels.service}} service is L1 for {{$labels.type}} type
Severity Minor
Condition The overload level of the service is L1 due to memory usage.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="memory"}
Recommended Actions The alert gets cleared when the memory usage of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-41 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L2 for {{$labels.type}} type
Summary {{$labels.service}} service is L2 for {{$labels.type}} type
Severity Major
Condition The overload level of the service is L2 due to memory usage.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="memory"}
Recommended Actions The alert gets cleared when the memory usage of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-42 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L3 for {{$labels.type}} type.
Summary {{$labels.service}} service is L3 for {{$labels.type}} type
Severity Critical
Condition The overload level of the service is L3 due to memory usage.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="memory"}
Recommended Actions The alert gets cleared when the memory usage of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Alerts when service is in overload state due to CPU usage

Table 8-43 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L1 for {{$labels.type}} type
Summary {{$labels.service}} service is L1 for {{$labels.type}} type
Severity Minor
Condition The overload level of the service is L1 due to CPU usage.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="cpu"}
Recommended Actions The alert gets cleared when the CPU usage of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-44 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L2 for {{$labels.type}} type
Summary {{$labels.service}} service is L2 for {{$labels.type}} type
Severity Major
Condition The overload level of the service is L2 due to CPU usage.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="cpu"}
Recommended Actions The alert gets cleared when the CPU usage of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-45 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L3 for {{$labels.type}} type
Summary {{$labels.service}} service is L3 for {{$labels.type}} type
Severity Major
Condition The overload level of the service is L3 due to CPU usage.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="cpu"}
Recommended Actions The alert gets cleared when the CPU usage of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Alerts when service is in overload state due to number of pending messages

Table 8-46 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L1 for {{$labels.type}} type
Summary {{$labels.service}} service is L1 for {{$labels.type}} type
Severity Minor
Condition The overload level of the service is L1 due to number of pending messages.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="svc_pending_count"}
Recommended Actions The alert gets cleared when the number of pending messages of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-47 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L2 for {{$labels.type}} type
Summary {{$labels.service}} service is L2 for {{$labels.type}} type
Severity Major
Condition The overload level of the service is L2 due to number of pending messages.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="svc_pending_count"}
Recommended Actions The alert gets cleared when the number of pending messages of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-48 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L3 for {{$labels.type}} type
Summary {{$labels.service}} service is L3 for {{$labels.type}} type
Severity Critical
Condition The overload level of the service is L3 due to number of pending messages.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="svc_pending_count"}
Recommended Actions The alert gets cleared when the number of pending messages of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Alerts when service is in overload state due to number of failed requests

Table 8-49 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L1 for {{$labels.type}} type.
Summary {{$labels.service}} service is L1 for {{$labels.type}} type.
Severity Minor
Condition The overload level of the service is L1 due to number of failed requests.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="svc_failure_count"}
Recommended Actions The alert gets cleared when the number of failed messages of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-50 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L2 for {{$labels.type}} type.
Summary {{$labels.service}} service is L2 for {{$labels.type}} type.
Severity Major
Condition The overload level of the service is L2 due to number of failed requests.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="svc_failure_count"}
Recommended Actions The alert gets cleared when the number of failed messages of the service is back to normal state.

For any additional guidance, contact My Oracle Support.

Table 8-51 SERVICE_RESOURCE_OVERLOADED

Field Details
Description {{$labels.service}} service is L3 for {{$labels.type}} type.
Summary {{$labels.service}} service is L3 for {{$labels.type}} type.
Severity Critical
Condition The overload level of the service is L3 due to number of failed requests.
OID 1.3.6.1.4.1.323.5.3.36.1.2.41
Metric Used service_resource_overload_level{type="svc_failure_count"}
Recommended Actions The alert gets cleared when the number of failed messages of the service is back to normal state.

For any additional guidance, contact My Oracle Support.
8.3.1.38 SUBSCRIBER_NOTIFICATION_ERROR_EXCEEDS_CRITICAL_THRESHOLD

Table 8-52 SUBSCRIBER_NOTIFICATION_ERROR_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description Notification Transaction Error exceeds the critical threshold limit for a given Subscriber Notification server
Summary Transaction Error exceeds the critical threshold limit for a given Subscriber Notification server
Severity Critical
Condition The number of error responses for a given subscriber notification server exceeds the critical threshold of 1000.
OID 1.3.6.1.4.1.323.5.3.36.1.2.42
Metric Used http_notification_response_total{responseCode!~"2.*"}
Recommended Actions

For any additional guidance, contact My Oracle Support.

Table 8-53 SUBSCRIBER_NOTIFICATION_ERROR_EXCEEDS_MAJOR_THRESHOLD

Field Details
Description Notification Transaction Error exceeds the major threshold limit for a given Subscriber Notification server
Summary Transaction Error exceeds the major threshold limit for a given Subscriber Notification server
Severity Major
Condition The number of error responses for a given subscriber notification server exceeds the major threshold value, that is, between 750 and 1000.
OID 1.3.6.1.4.1.323.5.3.36.1.2.42
Metric Used http_notification_response_total{responseCode!~"2.*"}
Recommended Actions

For any additional guidance, contact My Oracle Support.

Table 8-54 SUBSCRIBER_NOTIFICATION_ERROR_EXCEEDS_MINOR_THRESHOLD

Field Details
Description Notification Transaction Error exceeds the minor threshold limit for a given Subscriber Notification server
Summary Transaction Error exceeds the minor threshold limit for a given Subscriber Notification server
Severity Minor
Condition The number of error responses for a given subscriber notification server exceeds the minor threshold value, that is, between 500 and 750.
OID 1.3.6.1.4.1.323.5.3.36.1.2.42
Metric Used http_notification_response_total{responseCode!~"2.*"}
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.39 SYSTEM_IMPAIRMENT_MAJOR

Table 8-55 SYSTEM_IMPAIRMENT_MAJOR

Field Details
Description Major impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Summary Major impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Severity Major
Condition Major Impairment alert
OID 1.3.6.1.4.1.323.5.3.36.1.2.43
Metric Used db_tier_replication_status
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.40 SYSTEM_IMPAIRMENT_CRITICAL

Table 8-56 SYSTEM_IMPAIRMENT_CRITICAL

Field Details
Description Critical Impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Summary Critical Impairment alert raised for REPLICATION_FAILED or REPLICATION_CHANNEL_DOWN or BINLOG_STORAGE usage
Severity Critical
Condition Critical Impairment alert
OID 1.3.6.1.4.1.323.5.3.36.1.2.43
Metric Used db_tier_replication_status
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.41 SYSTEM_OPERATIONAL_STATE_NORMAL

Table 8-57 SYSTEM_OPERATIONAL_STATE_NORMAL

Field Details
Description System Operational State is now in normal state
Summary System Operational State is now in normal state
Severity Info
Condition System Operational State is now in normal state
OID 1.3.6.1.4.1.323.5.3.36.1.2.44
Metric Used system_operational_state == 1
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.42 SYSTEM_OPERATIONAL_STATE_PARTIAL_SHUTDOWN

Table 8-58 SYSTEM_OPERATIONAL_STATE_PARTIAL_SHUTDOWN

Field Details
Description System Operational State is now in partial shutdown state.
Summary System Operational State is now in partial shutdown state.
Severity Info
Condition System Operational State is now in partial shutdown state
OID 1.3.6.1.4.1.323.5.3.36.1.2.44
Metric Used system_operational_state == 2
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.43 SYSTEM_OPERATIONAL_STATE_COMPLETE_SHUTDOWN

Table 8-59 SYSTEM_OPERATIONAL_COMPLETE_SHUTDOWN

Field Details
Description System Operational State is now in complete shutdown state
Summary System Operational State is now in complete shutdown state
Severity Info
Condition System Operational State is now in complete shutdown state
OID 1.3.6.1.4.1.323.5.3.36.1.2.44
Metric Used system_operational_state == 3
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.44 TDFConnectionDown

Table 8-60 TDFConnectionDown

Field Details
Description TDF connection is down.
Summary TDF connection is down.
Severity Critical
Condition occnp_diam_conn_app_network{applicationName="Sd"} == 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.48
Metric Used occnp_diam_conn_app_network
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.45 DiamConnPeerDown

Table 8-61 DiamConnPeerDown

Field Details
Description Diameter connection to peer is down.
Summary Diameter connection to peer is down.
Severity Major
Condition Diameter connection to peer is down.
OID 1.3.6.1.4.1.323.5.3.52.1.2.50
Metric Used occnp_diam_conn_network
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.46 DiamConnNetworkDown

Table 8-62 DiamConnNetworkDown

Field Details
Description All the diameter network connections are down.
Summary All the diameter network connections are down.
Severity Critical
Condition sum by (kubernetes_namespace)(occnp_diam_conn_network) == 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.51
Metric Used occnp_diam_conn_network
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.47 DiamConnBackendDown

Table 8-63 DiamConnBackendDown

Field Details
Description All the diameter backend connections are down.
Summary All the diameter backend connections are down.
Severity Critical
Condition sum by (kubernetes_namespace)(occnp_diam_conn_backend) == 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.52
Metric Used occnp_diam_conn_network
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.48 PerfInfoActiveOverloadThresholdFetchFailed

Table 8-64 PerfInfoActiveOverloadThresholdFetchFailed

Field Details
Description The application fails to get the current active overload level threshold data.
Summary The application fails to get the current active overload level threshold data.
Severity Major
Condition active_overload_threshold_fetch_failed == 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.53
Metric Used active_overload_threshold_fetch_failed
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.1.49 SLASYFailCountExceedsCritcalThreshold

Table 8-65 SLASYFailCountExceedsCritcalThreshold

Field Details
Description SLA Sy fail count exceeds the critical threshold limit
Summary SLA Sy fail count exceeds the critical threshold limit
Severity Critical
Condition

sum(rate(occnp_diam_response_local_total{msgType="SLA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SLA"}[5m])) * 100 > 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.58
Metric Used

occnp_diam_response_local_total
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.50 SLASYFailCountExceedsMajorThreshold

Table 8-66 SLASYFailCountExceedsMajorThreshold

Field Details
Description

SLA Sy fail count exceeds the major threshold limit
Summary

SLA Sy fail count exceeds the major threshold limit
Severity Major
Condition

sum(rate(occnp_diam_response_local_total{msgType="SLA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SLA"}[5m])) * 100 > 80 and sum(rate(occnp_diam_response_local_total{msgType="SLA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SLA"}[5m])) * 100 <= 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.58
Metric Used

occnp_diam_response_local_total
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.51 SLASYFailCountExceedsMinorThreshold

Table 8-67 SLASYFailCountExceedsMinorThreshold

Field Details
Description

SLA Sy fail count exceeds the minor threshold limit
Summary

SLA Sy fail count exceeds the minor threshold limit
Severity Minor
Condition

sum(rate(occnp_diam_response_local_total{msgType="SLA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SLA"}[5m])) * 100 > 60 and sum(rate(occnp_diam_response_local_total{msgType="SLA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SLA"}[5m])) * 100 <= 80
OID

1.3.6.1.4.1.323.5.3.52.1.2.58
Metric Used

occnp_diam_response_local_total
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.52 STASYFailCountExceedsCritcalThreshold

Table 8-68 STASYFailCountExceedsCritcalThreshold

Field Details
Description

STA Sy fail count exceeds the critical threshold limit.
Summary

STA Sy fail count exceeds the critical threshold limit.
Severity Critical
Condition

The failure rate of Sy STA responses is more than 90% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302"}[5m])) * 100 > 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.59
Metric Used

occnp_diam_response_local_total
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.53 STA_SY_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Table 8-69 STA_SY_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Field Details
Description

STA Sy fail count exceeds the major threshold limit.
Summary

STA Sy fail count exceeds the major threshold limit.
Severity Major
Condition

The failure rate of Sy STA responses is more than 80% and less and or equal to 90% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302"}[5m])) * 100 > 80 and sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302"}[5m])) * 100 <= 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.59
Metric Used

occnp_diam_response_local_total
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.54 STASYFailCountExceedsMinorThreshold

Table 8-70 STASYFailCountExceedsMinorThreshold

Field Details
Description

STA Sy fail count exceeds the minor threshold limit.
Summary

STA Sy fail count exceeds the minor threshold limit.
Severity Minor
Condition

The failure rate of Sy STA responses is more than 60% and less and or equal to 80% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302"}[5m])) * 100 > 60 and sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777302"}[5m])) * 100 <= 80
OID

1.3.6.1.4.1.323.5.3.52.1.2.59
Metric Used

occnp_diam_response_local_total
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.55 SMSC_CONNECTION_DOWN

Table 8-71 STASYFailCountExceedsCritcalThreshold

Field Details
Description This alert is triggered when connection to SMSC host is down.
Summary Connection to SMSC peer {{$labels.smscName}} is down in notifier service pod {{$labels.pod}}
Severity Major
Condition sum by(namespace, pod, smscName)(occnp_active_smsc_conn_count) == 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.63
Metric Used occnp_active_smsc_conn_count
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present. If the user hasn't been added in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.56 STA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-72 STASYFailCountExceedsCritcalThreshold

Field Details
Description

STA Rx fail count exceeds the critical threshold limit.
Summary

STA Rx fail count exceeds the critical threshold limit.
Severity Critical
Condition

The failure rate of Rx STA responses is more than 90% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236"}[5m])) * 100 > 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.64
Metric Used

occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present.

Check that the session and user hasn't been removed in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.57 STA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Table 8-73 STA_RX_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Field Details
Description

STA Rx fail count exceeds the major threshold limit.
Summary

STA Rx fail count exceeds the major threshold limit.
Severity Major
Condition

The failure rate of Rx STA responses is more than 80% and less and or equal to 90% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236"}[5m])) * 100 > 80 and sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236"}[5m])) * 100 <= 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.64
Metric Used

occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}
Recommended Actions

Check the connectivity between diam-gw pod(s) & AF and ensure connectivity is present.

Check that the session and user is valid and hasn't been removed in the Policy database, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.58 STA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Table 8-74 STA_RX_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Field Details
Description

STA Rx fail count exceeds the minor threshold limit.
Summary

STA Rx fail count exceeds the minor threshold limit.
Severity Minor
Condition

The failure rate of Rx STA responses is more than 60% and less and or equal to 80% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236"}[5m])) * 100 > 60 and sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="STA", appId="16777236"}[5m])) * 100 <= 80
OID

1.3.6.1.4.1.323.5.3.52.1.2.64
Metric Used

occnp_diam_response_local_total{msgType="STA", appId="16777236", responseCode!~"2.*"}
Recommended Actions

Check the connectivity between diam-gw pod(s) & AF and ensure connectivity is present.

Check that the session and user is valid and hasn't been removed in the Policy database, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.59 SNA_SY_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-75 SNA_SY_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description

SNA Sy fail count exceeds the critical threshold limit
Summary

SNA Sy fail count exceeds the critical threshold limit
Severity Critical
Condition

The failure rate of Sy SNA responses is more than 90% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SNA"}[5m])) * 100 > 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.65
Metric Used

occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present.

Check that the session and user hasn't been removed in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.60 SNA_SY_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Table 8-76 SNA_SY_FAIL_COUNT_EXCEEDS_MAJOR_THRESHOLD

Field Details
Description

SNA Sy fail count exceeds the major threshold limit
Summary

SNA Sy fail count exceeds the major threshold limit
Severity Major
Condition

The failure rate of Sy SNA responses is more than 80% and less and or equal to 90% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SNA"}[5m])) * 100 > 80 and sum(rate(occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SNA"}[5m])) * 100 <= 90
OID

1.3.6.1.4.1.323.5.3.52.1.2.65
Metric Used

occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present.

Check that the session and user hasn't been removed in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.
8.3.1.61 SNA_SY_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Table 8-77 SNA_SY_FAIL_COUNT_EXCEEDS_MINOR_THRESHOLD

Field Details
Description

SNA Sy fail count exceeds the minor threshold limit
Summary

SNA Sy fail count exceeds the minor threshold limit
Severity Minor
Condition

The failure rate of Sy STA responses is more than 60% and less and or equal to 80% of the total responses.
Expression

sum(rate(occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SNA"}[5m])) * 100 > 60 and sum(rate(occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}[5m])) / sum(rate(occnp_diam_response_local_total{msgType="SNA"}[5m])) * 100 <= 80
OID

1.3.6.1.4.1.323.5.3.52.1.2.65
Metric Used

occnp_diam_response_local_total{msgType="SNA", responseCode!~"2.*"}
Recommended Actions

Check the connectivity between diam-gw pod(s) and OCS server and ensure connectivity is present.

Check that the session and user hasn't been removed in the OCS configuration, then configure the user(s).

For any additional guidance, contact My Oracle Support.

8.3.2 PCF Alerts

This section provides information on PCF alerts.

8.3.2.1 INGRESS_ERROR_RATE_ABOVE_10_PERCENT_PER_POD

Table 8-78 INGRESS_ERROR_RATE_ABOVE_10_PERCENT_PER_POD

Field Details
Description Ingress Error Rate above 10 Percent in {{$labels.kubernetes_name}} in {{$labels.kubernetes_namespace}}
Summary Transaction Error Rate in {{$labels.kubernetes_node}} (current value is: {{ $value }})
Severity Critical
Condition The total number of failed transactions per pod is above 10 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.36.1.2.2
Metric Used ocpm_ingress_response_total
Recommended Actions The alert gets cleared when the number of failed transactions are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors.
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.2.2 SM_TRAFFIC_RATE_ABOVE_THRESHOLD

Table 8-79 SM_TRAFFIC_RATE_ABOVE_THRESHOLD

Field Details
Description SM service Ingress traffic Rate is above threshold of Max MPS (current value is: {{ $value }})
Summary Traffic Rate is above 90 Percent of Max requests per second
Severity Major
Condition The total SM service Ingress traffic rate has crossed the configured threshold of 900 TPS.

Default value of this alert trigger point in PCF_Alertrules.yaml file is when SM service Ingress Rate crosses 90% of maximum ingress requests per second.
OID 1.3.6.1.4.1.323.5.3.36.1.2.3
Metric Used ocpm_ingress_request_total{servicename_3gpp="npcf-smpolicycontrol"}
Recommended Actions The alert gets cleared when the Ingress traffic rate falls below the threshold.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

It is recommended to assess the reason for additional traffic. Perform the following steps to analyze the cause of increased traffic:
  1. Refer Ingress Gateway section in Grafana to determine increase in 4xx and 5xx error response codes.
  2. Check Ingress Gateway logs on Kibana to determine the reason for the errors.

For any additional guidance, contact My Oracle Support.
8.3.2.3 SM_INGRESS_ERROR_RATE_ABOVE_10_PERCENT

Table 8-80 SM_INGRESS_ERROR_RATE_ABOVE_10_PERCENT

Field Details
Description Transaction Error Rate detected above 10 Percent of Total on SM service (current value is: {{ $value }})
Summary Transaction Error Rate detected above 10 Percent of Total Transactions
Severity Critical
Condition The number of failed transactions is above 10 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.36.1.2.4
Metric Used ocpm_ingress_response_total
Recommended Actions The alert gets cleared when the number of failed transactions are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: ocpm_ingress_response_total{servicename_3gpp="npcf-smpolicycontrol",response_code!~"2.*"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.2.4 SM_EGRESS_ERROR_RATE_ABOVE_1_PERCENT

Table 8-81 SM_EGRESS_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Description Egress Transaction Error Rate detected above 1 Percent of Total Transactions (current value is: {{ $value }})
Summary Transaction Error Rate detected above 1 Percent of Total Transactions
Severity Minor
Condition The number of failed transactions is above 1 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.36.1.2.5
Metric Used system_operational_state == 1
Recommended Actions The alert gets cleared when the number of failed transactions are below 1% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: ocpm_egress_response_total{servicename_3gpp="npcf-smpolicycontrol",response_code!~"2.*"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.2.5 PCF_CHF_INGRESS_TRAFFIC_RATE_ABOVE_THRESHOLD

Table 8-82 PCF_CHF_INGRESS_TRAFFIC_RATE_ABOVE_THRESHOLD

Field Details
Description User service Ingress traffic Rate from CHF is above threshold of Max MPS (current value is: {{ $value }})
Summary Traffic Rate is above 90 Percent of Max requests per second
Severity Major
Condition The total User Service Ingress traffic rate from CHF has crossed the configured threshold of 900 TPS.

Default value of this alert trigger point in PCF_Alertrules.yaml file is when user service Ingress Rate from CHF crosses 90% of maximum ingress requests per second.
OID 1.3.6.1.4.1.323.5.3.36.1.2.11
Metric Used ocpm_userservice_inbound_count_total{service_resource="chf-service"}
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.6 PcfChfEgressErrorRateAbove10Percent

Table 8-83 PcfChfEgressErrorRateAbove10Percent

Field Details
Description Egress Transaction Error Rate detected above 10 Percent of Total on User service (current value is: {{ $value }})
Summary Transaction Error Rate detected above 10 Percent of Total Transactions
Severity Critical
Condition The number of failed transactions from UDR is more than 10 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.36.1.2.12
Metric Used ocpm_chf_tracking_response_total{servicename_3gpp="nchf-spendinglimitcontrol",response_code!~"2.*"}
Recommended Actions The alert gets cleared when the number of failure transactions falls below the configured threshold.

Note: Threshold levels can be configured using the PCF_Alertrules.yaml file.

It is recommended to assess the reason for failed transactions. Perform the following steps to analyze the cause of increased traffic:
  1. Refer Egress Gateway section in Grafana to determine increase in 4xx and 5xx error response codes.
  2. Check Egress Gateway logs on Kibana to determine the reason for the errors.

For any additional guidance, contact My Oracle Support.
8.3.2.7 PcfChfIngressErrorAboveMajorThreshold

Table 8-84 PcfChfIngressErrorAboveMajorThreshold

Field Details
Description Ingress Timeout Error Rate detected above 10 Percent of Total towards CHF service (current value is: {{ $value }})
Summary Timeout Error Rate detected above 10 Percent of Total Transactions
Severity Major
Condition The number of failed transactions due to timeout is above 10 percent of the total transactions for CHF service.
OID 1.3.6.1.4.1.323.5.3.36.1.2.17
Metric Used ocpm_chf_tracking_request_timeout_total{servicename_3gpp="nchf-spendinglimitcontrol"}
Recommended Actions The alert gets cleared when the number of failed transactions due to timeout are below 10% of the total transactions.
To assess the reason for failed transactions, perform the following steps:
  1. Check the service specific metrics to understand the service specific errors. For instance: ocpm_chf_tracking_request_timeout_total{servicename_3gpp="nchf-spendinglimitcontrol"}
  2. The service specific errors can be further filtered for errors specific to a method such as GET, PUT, POST, DELETE, and PATCH.

For any additional guidance, contact My Oracle Support.
8.3.2.8 PCF_PENDING_BINDING_SITE_TAKEOVER

Table 8-85 PCF_PENDING_BINDING_SITE_TAKEOVER

Field Details
Description The site takeover configuration has been activated
Summary The site takeover configuration has been activated
Severity CRITICAL
Condition sum by (application, container, namespace) (changes(occnp_pending_binding_site_takeover_total[2m])) > 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.45
Metric Used occnp_pending_binding_site_takeover_total
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.9 PCF_PENDING_BINDING_THRESHOLD_LIMIT_REACHED

Table 8-86 PCF_PENDING_BINDING_THRESHOLD_LIMIT_REACHED

Field Details
Description The Pending Operation table threshold has been reached.
Summary The Pending Operation table threshold has been reached.
Severity CRITICAL
Condition sum by (application, container, namespace) (changes(occnp_threshold_limit_reached_total[2m])) > 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.46
Metric Used occnp_threshold_limit_reached_total
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.10 PCF_PENDING_BINDING_RECORDS_COUNT

Table 8-87 PCF_PENDING_BINDING_RECORDS_COUNT

Field Details
Description An attempt to internally recreate a PCF binding has been triggered by PCF
Summary An attempt to internally recreate a PCF binding has been triggered by PCF
Severity MINOR
Condition sum by (application, container, namespace) (changes(occnp_pending_operation_records_count[10s])) > 0
OID 1.3.6.1.4.1.323.5.3.52.1.2.47
Metric Used occnp_pending_operation_records_count
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.11 TDF_CONNECTION_DOWN

Table 8-88 TDF_CONNECTION_DOWN

Field Details
Description TDF connection is down.
Summary TDF connection is down.
Severity Critical
Condition Diameter gateway raises an alert any time there is a disconnection with TDF peer node that is configured.
OID 1.3.6.1.4.1.323.5.3.52.1.2.48
Metric Used occnp_diam_conn_app_network{applicationName="Sd"} == 0
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.12 AUTONOMOUS_SUBSCRIPTION_FAILURE

Table 8-89 AUTONOMOUS_SUBSCRIPTION_FAILURE

Field Details
Description Autonomous subscription failed for a configured Slice Load Level
Summary Autonomous subscription failed for a configured Slice Load Level
Severity Critical
Condition The number of failed Autonomous Subscription for a configured Slice Load Leve in nwdaf-agent is greater than zero.
OID 1.3.6.1.4.1.323.5.3.52.1.2.49
Metric Used subscription_failure{requestType="autonomous"}
Recommended Actions The alert gets cleared when the failed Autonomous Subscription is corrected.
To clear the alert, perform the following steps:
  1. Delete the Slice Load Level configuration.
  2. Re-provision the Slice Load Level configuration.

For any additional guidance, contact My Oracle Support.
8.3.2.13 AM_NOTIFICATION_ERROR_RATE_ABOVE_1_PERCENT

Table 8-90 AM_NOTIFICATION_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Description AM Notification Error Rate detected above 1 Percent of Total (current value is: {{ $value }})
Summary AM Notification Error Rate detected above 1 Percent of Total (current value is: {{ $value }})
Severity MINOR
Condition (sum(rate(http_out_conn_response_total{pod=~".*amservice.*",responseCode!~"2.*",servicename3gpp="npcf-am-policy-control"}[1d])) / sum(rate(http_out_conn_response_total{pod=~".*amservice.*",servicename3gpp="npcf-am-policy-control"}[1d]))) * 100 >= 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.54
Metric Used http_out_conn_response_total
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.14 AM_AR_ERROR_RATE_ABOVE_1_PERCENT

Table 8-91 AM_AR_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Description Alternate Routing Error Rate detected above 1 Percent of Total on AM Service (current value is: {{ $value }})
Summary Alternate Routing Error Rate detected above 1 Percent of Total on AM Service (current value is: {{ $value }})
Severity MINOR
Condition (sum by (fqdn) (rate(ocpm_ar_response_total{pod=~".*amservice.*",responseCode!~"2.*",servicename3gpp="npcf-am-policy-control"}[1d])) / sum by (fqdn) (rate(ocpm_ar_response_total{pod=~".*amservice.*",servicename3gpp="npcf-am-policy-control"}[1d]))) * 100 >= 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.55
Metric Used ocpm_ar_response_total
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.15 UE_NOTIFICATION_ERROR_RATE_ABOVE_1_PERCENT

Table 8-92 UE_NOTIFICATION_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Description UE Notification Error Rate detected above 1 Percent of Total (current value is: {{ $value }})
Summary UE Notification Error Rate detected above 1 Percent of Total (current value is: {{ $value }})
Severity MINOR
Condition (sum(rate(http_out_conn_response_total{pod=~".*ueservice.*",responseCode!~"2.*",servicename3gpp="npcf-ue-policy-control"}[1d])) / sum(rate(http_out_conn_response_total{pod=~".*ueservice.*",servicename3gpp="npcf-ue-policy-control"}[1d]))) * 100 >= 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.56
Metric Used http_out_conn_response_total
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.2.16 UE_AR_ERROR_RATE_ABOVE_1_PERCENT

Table 8-93 UE_AR_ERROR_RATE_ABOVE_1_PERCENT

Field Details
Description Alternate Routing Error Rate detected above 1 Percent of Total on UE Service (current value is: {{ $value }})
Summary Alternate Routing Error Rate detected above 1 Percent of Total on UE Service (current value is: {{ $value }})
Severity MINOR
Condition (sum by (fqdn) (rate(ocpm_ar_response_total{pod=~".*ueservice.*",responseCode!~"2.*",servicename3gpp="npcf-ue-policy-control"}[1d])) / sum by (fqdn) (rate(ocpm_ar_response_total{pod=~".*ueservice.*",servicename3gpp="npcf-ue-policy-control"}[1d]))) * 100 >= 1
OID 1.3.6.1.4.1.323.5.3.52.1.2.57
Metric Used ocpm_ar_response_total
Recommended Actions

For any additional guidance, contact My Oracle Support.

8.3.3 CNC Policy and Charging Rule Function Alerts

This section includes information about the Policy and Charging Rule Function (PCRF) alerts.

8.3.3.1 PRE_UNREACHABLE_EXCEEDS_CRITICAL_THRESHOLD

PRE_UNREACHABLE_EXCEEDS_CRITICAL_THRESHOLD

Table 8-94 PRE_UNREACHABLE_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description PRE fail count exceeds the critical threshold limit.
Summary Alert PRE unreachable NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition PRE fail count exceeds the critical threshold limit.
OID 1.3.6.1.4.1.323.5.3.44.1.2.9
Metric Used http_out_conn_response_total{container="pcrf-core", responseCode!~"2.*", serviceResource="PRE"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.2 PcrfDown

Table 8-95 PcrfDown

Field Details
Description PCRF Service is down
Summary Alert PCRF_DOWN NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition None of the pods of the PCRF service are available.
OID 1.3.6.1.4.1.323.5.3.44.1.2.33
Metric Used appinfo_service_running{service=~".*pcrf-core"}
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.3.3 CCA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

CCA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-96 CCA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description CCA fail count exceeds the critical threshold limit
Summary Alert CCA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of CCA messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.44.1.2.13
Metric Used occnp_diam_response_local_total{msgType=~"CCA.*", responseCode!~"2.*"}
Recommended Actions

For any additional guidance, contact My Oracle Support.
8.3.3.4 AAA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

AAA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-97 AAA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description AAA fail count exceeds the critical threshold limit
Summary Alert AAA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of AAA messages has exceeded the critical threshold limit.
OID 1.3.6.1.4.1.323.5.3.36.1.2.34
Metric Used occnp_diam_response_local_total{msgType=~"AAA.*", responseCode!~"2.*"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.5 RAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

RAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-98 RAA_RX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description RAA Rx fail count exceeds the critical threshold limit
Summary Alert RAA_Rx_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of RAA Rx messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.36.1.2.35
Metric Used occnp_diam_response_local_total{msgType="RAA", appType="Rx", responseCode!~"2.*"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.6 RAA_GX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

RAA_GX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-99 RAA_GX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description RAA Gx fail count exceeds the critical threshold limit
Summary Alert RAA_GX_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of RAA Gx messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.44.1.2.18
Metric Used occnp_diam_response_local_total{msgType="RAA", appType="Gx", responseCode!~"2.*"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.7 ASA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

ASA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-100 ASA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description ASA fail count exceeds the critical threshold limit
Summary Alert ASA_FAIL_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of ASA messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.44.1.2.17
Metric Used occnp_diam_response_local_total{msgType=~"ASA.*", responseCode!~"2.*"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.8 ASATimeoutlCountExceedsThreshold

ASA_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-101 ASA_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description ASA timeout count exceeds the critical threshold limit
Summary Alert ASA_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The timeout rate of ASA messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.44.1.2.31
Metric Used occnp_diam_response_local_total{msgType="ASA", responseCode="timeout"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.9 RAA_RX_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD

RAA Rx Timeout Count Exceeds Critical Threshold

Table 8-102 RAA Rx Timeout Count Exceeds Critical Threshold

Field Details
Description RAA Rx timeout count exceeds the critical threshold limit
Summary Alert RAA_RX_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The timeout rate of RAA Rx messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.36.1.2.36
Metric Used occnp_diam_response_local_total{msgType="RAA", appType="Rx", responseCode!~"timeout"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.10 RAA_GX_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD

RAA_GX_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Table 8-103 RAA_GX_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD

Field Details
Description RAA Gx timeout count exceeds the critical threshold limit
Summary Alert RAA_GX_TIMEOUT_COUNT_EXCEEDS_CRITICAL_THRESHOLD NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The timeout rate of RAA Gx messages has exceeded the configured threshold limit.
OID 1.3.6.1.4.1.323.5.3.44.1.2.32
Metric Used occnp_diam_response_local_total{msgType="RAA", appType="Gx", responseCode!~"timeout"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.11 RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Table 8-104 RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Field Details
Description CCA, AAA, RAA, ASA and STA error rate combined is above 10 percent
Summary Alert RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The combined failure rate of CCA, AAA, RAA, ASA, and STA messages is more than 10% of the total responses.
OID 1.3.6.1.4.1.323.5.3.36.1.2.37
Metric Used occnp_diam_response_local_total{ responseCode!~"2.*"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.12 Rx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Rx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Table 8-105 Rx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Field Details
Description Rx error rate combined is above 10 percent
Summary Alert Rx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of Rx responses is more than 10% of the total responses.
OID 1.3.6.1.4.1.323.5.3.36.1.2.38
Metric Used occnp_diam_response_local_total{ responseCode!~"2.*", appType="Rx"}
Recommended Actions For any additional guidance, contact My Oracle Support.
8.3.3.13 Gx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Gx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Table 8-106 Gx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT

Field Details
Description Gx error rate combined is above 10 percent
Summary Alert Gx_RESPONSE_ERROR_RATE_ABOVE_CRITICAL_PERCENT NS:{{ $labels.kubernetes_namespace }}, PODNAME:{{ $labels.kubernetes_pod_name }}, INST:{{ $labels.instance }} REL:{{ $labels.release }}
Severity Critical
Condition The failure rate of Gx responses is more than 10% of the total responses.
OID 1.3.6.1.4.1.323.5.3.36.1.2.39
Metric Used occnp_diam_response_local_total{ responseCode!~"2.*", appType="Gx"}
Recommended Actions For any additional guidance, contact My Oracle Support.
