3 UDR Benchmark Testing

This chapter describes UDR, SLF, and EIR test scenarios.

3.1 Test Scenario 1: SLF Call Deployment Model

This section provides information about SLF call deployment model test scenarios.

3.1.1 SLF Call Model: 24.2K TPS for Performance-Medium Resource Profile for SLF Lookup

This test scenario describes performance and capacity of SLF functionality offered by UDR and provides the benchmarking results for various deployment sizes.

The following features are enabled for this testcase:
  • LCI and OCI handling
  • User Agent in Egress Traffic
  • Subscriber Activity Logging - Enable and configure 100 keys
  • Overload and Rate Limiting
You can perform benchmark tests on UDR/SLF for compute and storage resources by considering the following conditions:
  • Signaling (SLF Look Up): 24.2K TPS
  • Provisioning: 1260 TPS
  • Total Subscribers: 37M
  • Profile Size: 450 bytes
  • Average HTTP Provisioning Request Packet Size: 350
  • Average HTTP Provisioning Response Packet Size: 250
The following table describes the benchmarking parameters and their values:

Table 3-1 Traffic Model Details

Request Type Details Provisioning % TPS
Lookup 24.2k SLF Lookup GET Requests - 24.2K
Provisioning (1.26K using Provgw one site) CREATE 10% 126K
DELETE 10% 126K
UPDATE 40% 504K
GET 40% 504K

Note:

  • To run this model, one UDR site is brought down and 24.2K look up traffic and 1.26K provisioning traffic are run from one site.
  • The values provided is for single site deployment
The following table describes the testcase parameters and their values:

Table 3-2 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 24.1.0
Target TPS 24.2K Lookup + 1.26K Provisioning
Traffic Profile SLF 24.2K Profile
Notification Rate OFF
UDR Response Timeout 5s
Client Timeout 30s
Signaling Requests Latency Recorded on Client 10ms
Provisioning Requests Latency Recorded on Client 30ms
The following table describes consolidated resource requirement and their utilization:

Table 3-3 Consolidated Resource Requirement

Resource CPU Memory
cnDBTier 69 252
SLF 184 116
ProvGw 32 30
Buffer 50 50
Total 335 448

Note:

All values are inclusive of ASM sidecar.

The following table describes cnDBTier1 resources and their utilization:

Note:

  • The same resources and usage are application for cnDBTier2
  • For cnDBTier, you must use ocudr_slf_37msub_dbtier and ocudr_udr_10msub_dbtier custom value files for SLF and UDR respectively. For more information, see Cloud Native Core, Unified Data Repository Installation, Upgrade, and Fault Recovery Guide.

Table 3-4 cnDBTier Resources and Usage

Microservice Name Container Name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB 6 CPUs

26 GB

 Minimal resources are used
1 CPUs 4 GB
Data node (ndbmtd) mysqlndbcluster 4 4 CPUs 33 GB

28 CPUs

156 GB

 3 CPU/pod 20 GB/pod
istio-proxy 2 CPUs 4 GB
db-backup-executor-svc 1 CPU 2GB
APP SQL node (ndbappmysqld) mysqlndbcluster 5 4 CPUs 2 GB

14 CPUs

12 GB

 4 CPU/pod 1 GB/pod
istio-proxy 3 CPUs 4 GB
SQL node (Used for Replication) (ndbmysqld) mysqlndbcluster 2 4 CPUs 16 GB

13 CPUs

41GB

 Minimal resources are used
istio-proxy 2 CPUs 4 GB
init-sidecar 100m CPU 256 MB
DB Monitor Service (db-monitor-svc) db-monitor-svc 1 200m CPUs 500 MB

3 CPUs

2 GB

 Minimal resources are used
istio-proxy 1 CPUs 1 GB
DB Backup Manager Service (backup-manager-svc) backup-manager-svc 1 100m CPU 128 MB

2 CPUs

2 GB

 Minimal resources are used
istio-proxy 1 CPUs 1 GB
Replication Service (db-replication-svc) db-replication-svc 1 2 CPU 12 GB

3 CPUs

13 GB

 Minimal resources are used
istio-proxy 200m CPU 500MB
The following table describes SLF resources and their utilization for Site1 (Lookup Latency: 10ms):

Table 3-5 SLF Resources and Usage

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage CPU Utilization hpa
Ingress-gateway-sig ingressgateway-sig 8 6 CPUs 4 GB

80 CPUs

40 GB Memory

 3 CPU/pod 2 GB/pod 49%
istio-proxy 4 CPUs 1 GB 2.1 CPU/pod 350 MB/pod
Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB

12 CPUs

10 GB

 0.9 CPU/pod 1.4 GB/pod 24%
istio-proxy 2 CPUs 1 GB 0.65 CPU/pod 300 MB/pod
Nudr-dr-service nudr-drservice 6 6 CPUs 4 GB

54 CPUs

30 GB

 3.1 CPU/pod 1.7 GB/pod 55%
istio-proxy 3 CPUs 1 GB 2 CPU/pod 325 MB/pod
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB

12 CPUs

10 GB

 .9 CPU/pod 1.5 GB/pod 22%
istio-proxy 2 CPUs 1 GB 0.5 CPU/pod 300 MB/pod
Nudr-nrf-client-nfmanagement nrf-client-nfmanagement 2 1 CPU 1 GB

4 CPUs

4 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB
Nudr-egress-gateway egressgateway 2 1 CPUs 1 GB

4 CPUs

4 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB
Nudr-config nudr-config 1 2 CPUs 2 GB

3 CPUs

3 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB
Nudr-config-server nudr-config-server 1 2 CPUs 2 GB

3 CPUs

3 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB
alternate-route alternate-route 2 1 CPUs 1 GB

4 CPUs

4 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB
app-info app-info 2 1 CPUs 1 GB

4 CPUs

4 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB
perf-info perf-info 2 1 CPUs 1 GB

4 CPUs

4 GB

 Minimal resources are used.
istio-proxy 1 CPUs 1 GB

Note:

The same resources and usage are used for Site2.

The following table describes provision gateway resources and their utilization (Provisioning Latency: 30ms):

Table 3-6 Provision Gateway Resources and their utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage CPU Utilization hpa
provgw-ingress-gateway ingressgateway 2 2 CPUs 2 GB

6 CPUs

6 GB Memory

 0.7 CPU/pod 1.6 GB/pod 45%
istio-proxy 1 CPUs 1 GB 0.5 CPU/pod 300 MB/pod
provgw-egress-gateway egressgateway 2 3 CPUs 2 GB

6 CPUs

6 GB Memory

 0.8 CPU/pod 1 GB/pod 51%
istio-proxy 1 CPUs 1 GB 0.6 CPU/pod 300 MB/pod
provgw-service provgw-service 2 3 CPUs 2 GB

8 CPUs

6 GB Memory

 1 CPU/pod 1.2 GB/pod 40%
istio-proxy 1 CPUs 1 GB 0.6 CPU/pod 300 MB/pod
provgw-config provgw-config 2 2 CPUs 2 GB

6 CPUs

6 GB Memory

 Minimal resources are used. Utilization data is not captured.
istio-proxy 1 CPUs 1 GB
provgw-config-server provgw-config-server 2 2 CPUs 2 GB

6 CPUs

6 GB Memory

 Minimal resources are used. Utilization data is not captured.
istio-proxy 1 CPUs 1 GB
The following table provides observation data for the performance test that can be used for the benchmark testing to scale up SLF performance:

Table 3-7 Result and Observation

Parameter Values
Test Duration 17hr
TPS Achieved 24.2k SLF Lookup + 1.26k Provisioning
Success Rate 100%
Average UDR processing time (Request and Response) 40ms

3.2 Test Scenario 2: EIR Deployment Model

Performance Requirement - 300K subscriber DB size with 10K EIR lookup TPS

This test scenario describes performance and capacity improvements of EIR functionality offered by UDR and provides the benchmarking results for various deployment sizes.

The following features are disabled for this testcase:
  • TLS
  • OAuth2.0
  • Default Response set to EQUIPMENT_UNKNOWN
  • Header Validations like XFCC, server header, and user agent header

EIR is benchmarked for compute and storage resources under following conditions:

  • Signaling (EIR Look Up): 10K TPS
  • Total Subscribers: 300K
  • Profile Size: 130 bytes
  • Average HTTP Provisioning Request Packet Size: NA
  • Average HTTP Provisioning Response Packet Size: NA

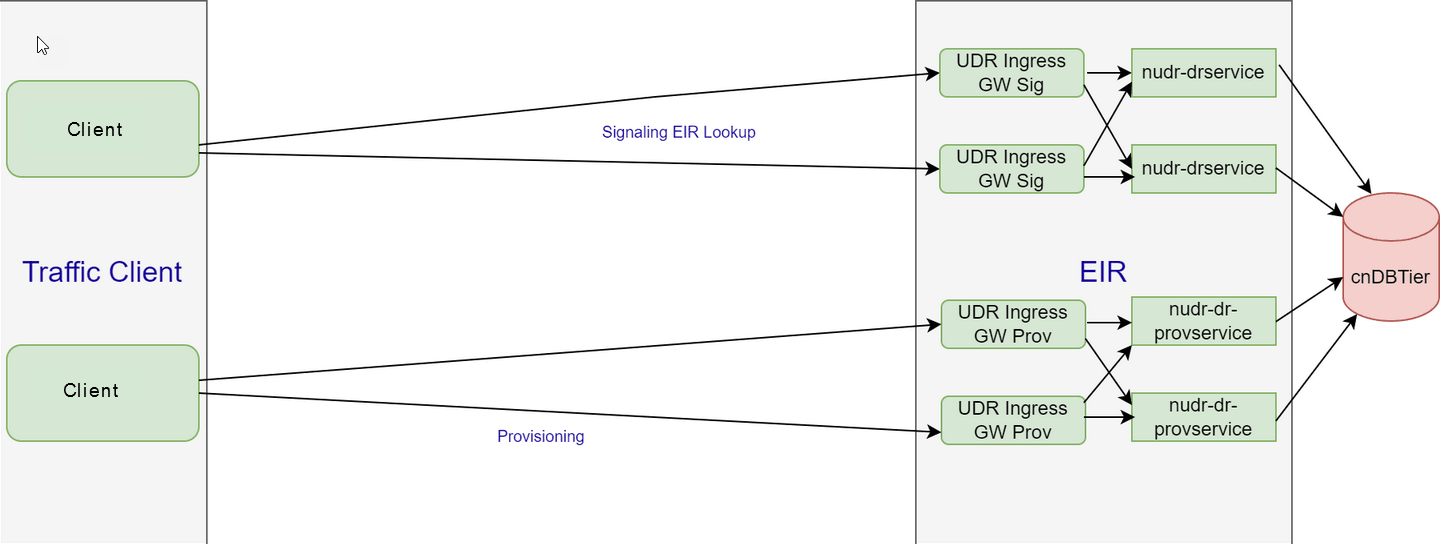

Figure 3-1 EIR Deployment Model


EIR Deployment Model

The following table describes the benchmarking parameters and their values:

Table 3-8 Traffic Model Details

Request Type Details TPS
Lookup 10k EIR EIC 10k

The following table describes the testcase parameters and their values:

Table 3-9 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 22.3.0
Target TPS 10k Lookup
Traffic Profile 10k EIR EIC
Notification Rate OFF
EIR Response Timeout 5s
Client Timeout 10s
Signaling Requests Latency Recorded on Client NA
Provisioning Requests Latency Recorded on Client NA
The following table describes the consolidated resource requirements and their utilization:

Table 3-10 Consolidated Resource Requirement

Resource CPUs Memory
EIR 32 30 GB
cnDBTier 177 616 GB
Total 600 903 GB
The following table describes cnDBTier resources and their utilization:

Table 3-11 cnDBTier Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
Management node mysqlndbcluster 2 4 CPUs 4 GB

4 CPU

8 GB Memory

 .013 CPU/pod .031 GB/pod
Data node mysqlndbcluster 4 16 CPUs 32 GB

64 CPU

128 GB Memory

 1 CPU/pod 15.5 GB/pod
APP SQL node mysqlndbcluster 3 16 CPUs 32 GB

48 CPU

96 GB Memory

 4.1 CPU/pod .8 GB/pod
SQL node (Used for Replication) mysqlndbcluster 2 2 CPUs 4 GB

4 CPU

8 GB Memory

 .02 CPU/pod .6 GB/pod
DB Monitor Service db-monitor-svc 1 500m CPUs 500 MB

1 CPU

1 GB Memory

 Minimal resources are used. Utilization is not captured
DB Backup Manager Service replication-svc 1 250m CPUs 320 MB

1 CPU

1 GB Memory

 Minimal resources are used. Utilization is not captured
The following table describes EIR resources and their utilization:

Table 3-12 EIR Resources and their Utilization (Lookup Latency: 16.9ms) without Aspen Service Mesh (ASM) Enabled

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
Ingress-gateway-sig Ingress-gateway-sig 5 6 CPUs 4 GB

30 CPUs

20 GB Memory

 3 CPU/pod 2 GB/pod
Ingress-gateway-prov Ingress-gateway-prov 2 6 CPUs 4 GB

12 CPUs

8 GB Memory

 .07 CPU/pod .9 GB/pod
Nudr-dr-service nudr-drservice 6 4 CPUs 4 GB

24 CPUs

24 GB Memory

 3 CPU/pod 1.2 GB/pod
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB

8 CPUs

8 GB Memory

 .02 CPU/pod .5 GB/pod
Nudr-egress-gateway egressgateway 1 2 CPUs 2 GB

2 CPUs

2 GB Memory

 .04 CPU/pod .4 GB/Pod
Nudr-config nudr-config 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-config-server nudr-config-server 2 2 CPUs 2 GB

4 CPU

4 GB Memory

 Minimal resources are used. Utilization is not captured

Note:

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up EIR performance:

Table 3-13 Result and Observation

Parameter Values
Test Duration 8hr
TPS Achieved 10k
Success Rate 100%
Average EIR processing time (Request and Response) 16.9ms

3.3 Test Scenario 3: SOAP and Diameter Deployment Model

2K SOAP provisioning TPS for ProvGw for Medium profile + Diameter 25K with Large profile

The following features are disabled for this testcase:
  • TLS
  • OAuth2.0
  • Header Validations like XFCC, server header, and user agent header

UDR is benchmarked for compute and storage resources under following conditions:

  • Signaling : 10K TPS
  • Provisioning: 2K TPS
  • Total Subscribers: 1M - 10M range used for Diameter Sh and 1M range used for SOAP/XML
  • Profile Size: 2.2KB
  • Average HTTP Provisioning Request Packet Size: NA
  • Average HTTP Provisioning Response Packet Size: NA

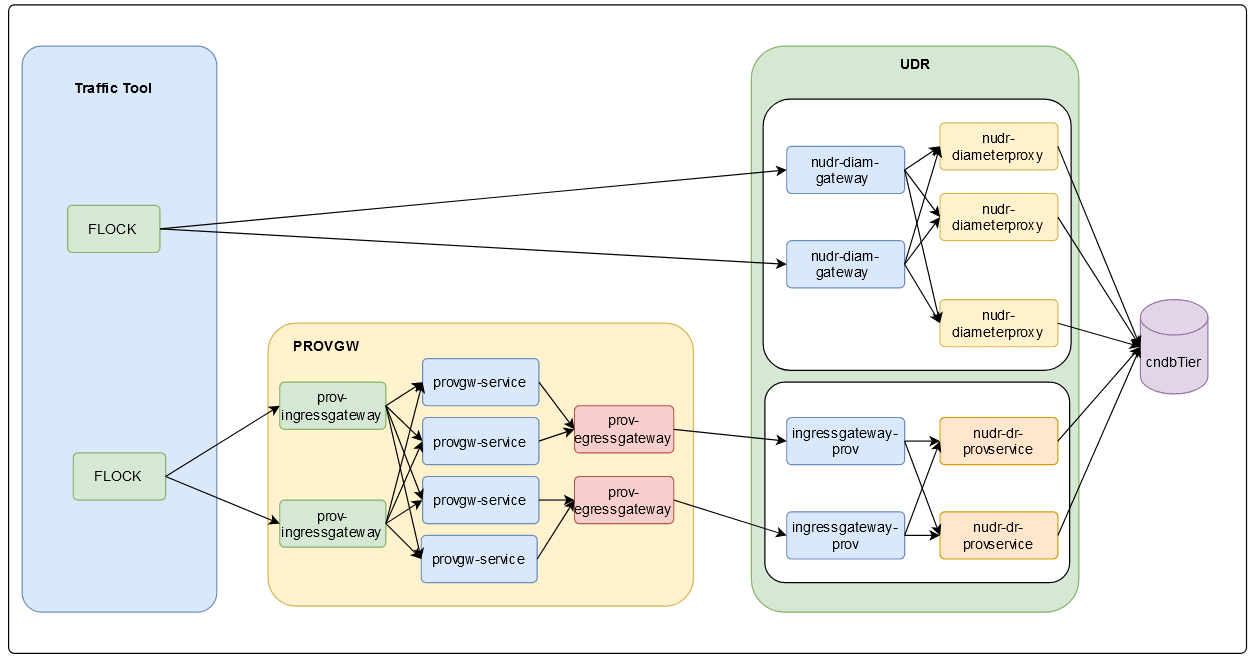

Figure 3-2 SOAP and Diameter Deployment Model


SOAP and Diameter Deployment Model

The following table describes the benchmarking parameters and their values:

Table 3-14 Traffic Model Details

Request Type Details TPS
Diameter SH Traffic SH Traffic 25K
Provisioning (2K using Provgw) SOAP Traffic 2K

Table 3-15 SOAP Traffic Model

Request Type SOAP Traffic %
GET 33%
DELETE 11%
POST 11%
PUT 45%

Table 3-16 Diameter Traffic Model

Request Type Diameter Traffic %
SNR 25%
PUR 50%
UDR 25%

The following table describes the benchmarking parameters and their values:

Table 3-17 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 22.2.0
Target TPS 25K + 2K
Traffic Profile 25K sh + 2K SOAP
Notification Rate OFF
UDR Response Timeout 5s
Client timeout 10s
Signaling Requests Latency Recorded on Client NA
Provisioning Requests Latency Recorded on Client NA

Note:

PNR scenarios are not tested because server stub is not used.
The following table describes cnDBTier resources and their utilization:

Table 3-18 cnDBTier Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
Management node mysqlndbcluster 3 4 CPUs 10 GB

12 CPUs

30 GB Memory

 0.2 CPU/pod .2 GB/pod
Data node mysqlndbcluster 4 15 CPUs 98 GB

64 CPU

408 GB Memory

 5.8 CPU/pod 92 GB/pod
db-backup-executor-svc 100m CPU 128 MB NA NA
APP SQL node mysqlndbcluster 4 16 CPUs 16 GB

64 CPUs

64 GB Memory

 9.5 CPU/pod 8.8 GB/pod
SQL node (Used for Replication) mysqlndbcluster 4 8 CPUs 16 GB

49 CPUs

81 GB Memory

 Utilization data is not available for this service because of resource constraints, pods are not used.
DB Monitor Service db-monitor-svc 1 200m CPUs 500 MB

3 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured
DB Backup Manager Service replication-svc 1 200m CPU 500 MB

3 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured

cnDBTier Usage

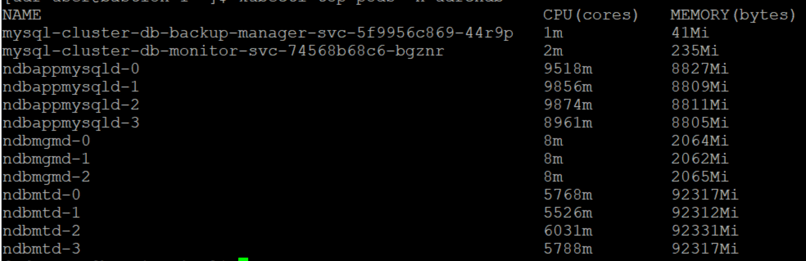

Results for Kubectl top pods on cndbtier is shown below:
Results for Kubectl top pods on cndbtier

Results for Kubectl get hpa on cndbtier is shown below:
Results for Kubectl get hpa on cndbtier

cnDBTier Metrics:
  • Data memory usage: 72GB (5.164GB used)
  • DB Reads per second: 52k
  • DB Writes per second: 24k
The following table describes UDR resources and their utilization:

Table 3-19 UDR Resources and their Utilization (Request Latency: 40ms)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
nudr-diameterproxy nudr-diameterproxy 19 2.5 CPUs 4 GB

47.5 CPUs

76 GB Memory

 1.75 CPU/pod 1 GB/pod
nudr-diam-gateway nudr-diam-gateway 3 6 CPUs 4 GB

18 CPUs

12 GB Memory

 .2.5 CPU/pod 2 GB/pod
Ingress-gateway-sig ingressgateway-sig 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 Minimal resources are used. Utilization is not captured
Ingress-gateway-prov ingressgateway-prov 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 1 CPU/pod 1 GB/pod
Nudr-dr-service nudr-drservice 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-dr-provservice nudr-dr-provservice 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 1.4 CPU/pod 1 GB/pod
Nudr-nrf-client-nfmanagement nrf-client-nfmanagement 2 1 CPUs 1 GB

2 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-egress-gateway egressgateway 2 2 CPUs 2 GB

4 CPU

4 GB Memory

 Minimal resources are used. Usage is not captured
Nudr-config nudr-config 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-config-server nudr-config-server 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Utilization is not captured
alternate-route alternate-route 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Usage is not captured
app-info app-info 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Utilization is not captured
perf-info perf-info 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Usage is not captured

Resource Utilization

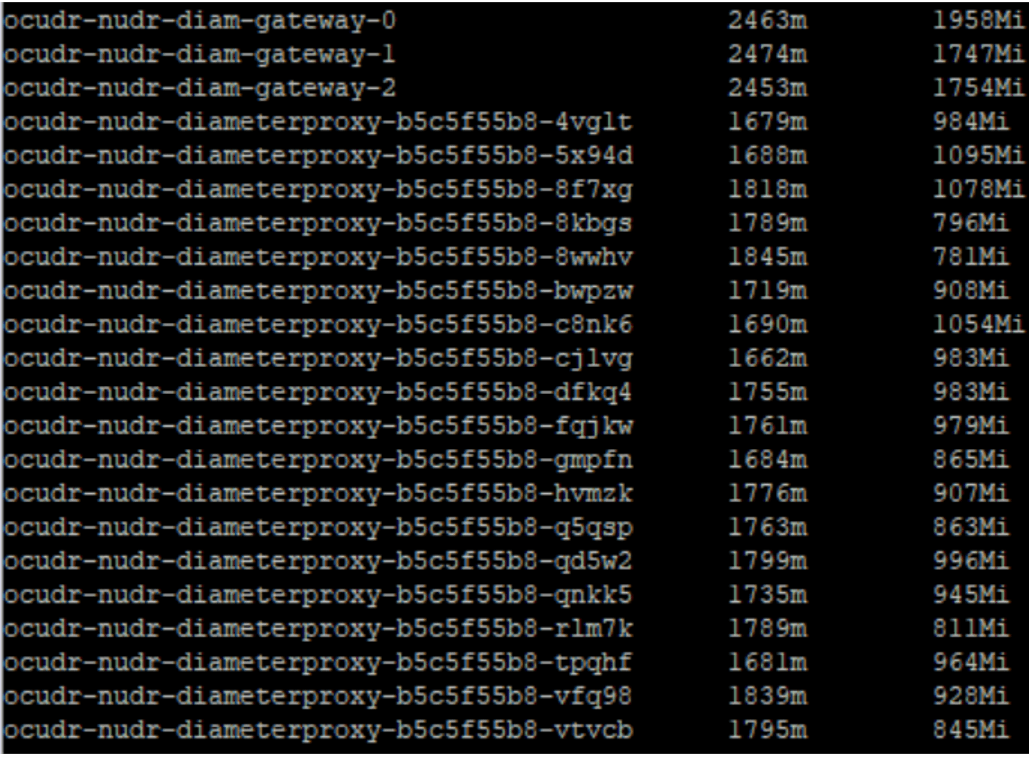

Diameter resource utilization is shown below:
Diameter Usage

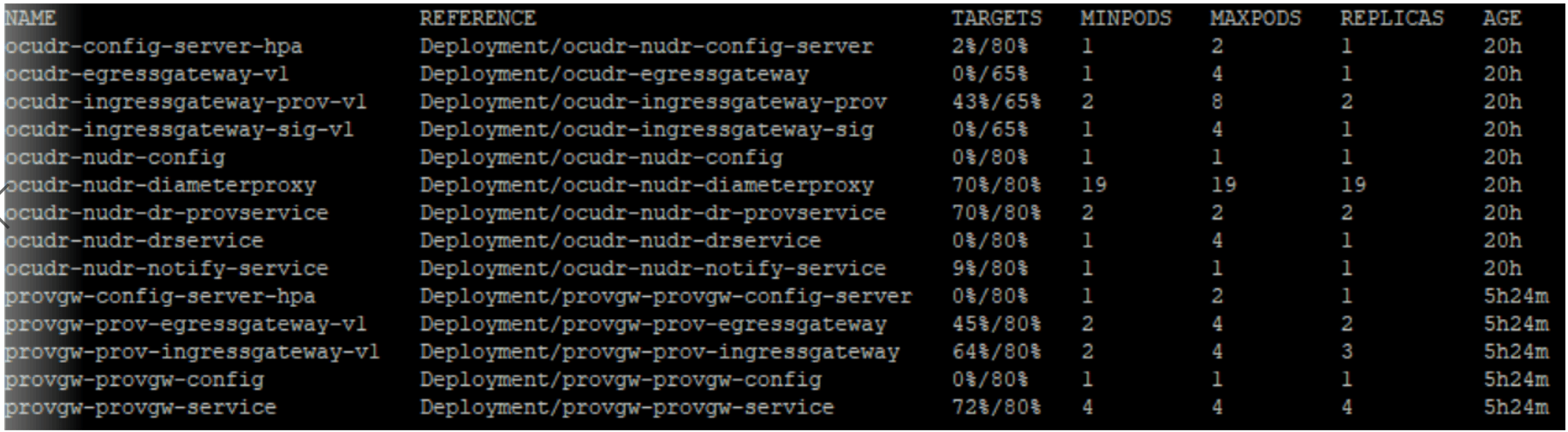

UDR HPA resource utilization is shown below:
UDR HPA

The following table describes provision gateway resources and their utilization:

Table 3-20 Provision Gateway Resources aand their Utilization (Provisioning Request Latency: 40ms)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
provgw-ingress-gatewa ingressgateway 3 2 CPUs 2 GB

6 CPUs

6 GB Memory

 1.3 CPU/pod 1 GB/pod
provgw-egress-gateway egressgateway 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 .0.9 CPU/pod 700 Mi/pod
provgw-service provgw-service 4 2.5 CPUs 3 GB

10 CPUs

12 GB Memory

 1.75 CPU/pod 1 GB/pod
provgw-config provgw-config 2 1 CPUs 1 GB

2 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured
provgw-config-server provgw-config-server 2 1 CPUs 1 GB

2 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured

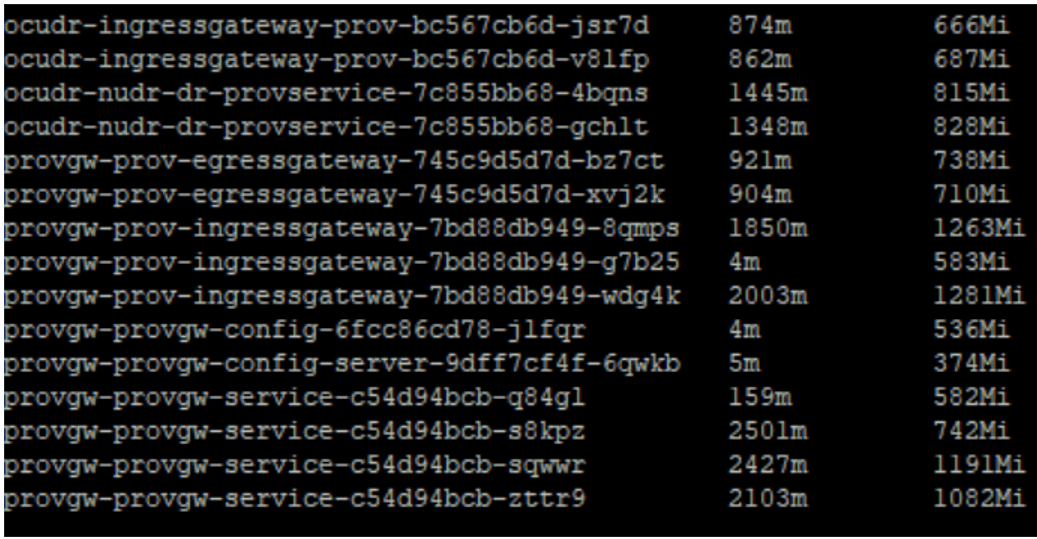

Provisioning Gateway resource utilization is shown below:
ProvGW Usage

Resources calculation for UDR, Provisioning Gateway, and cnDbTier are shown below:

Table 3-21 cnUDR and ProvGw Resources Calculation

Resources cnUDR ProvGw
  Core services used for traffic runs (Nudr-diamgw, Nudr-diamproxy, Nudr-ingressgateway-prov and Nudr-dr-prov) at 70% usage Other Microservices Total Core services used for traffic runs (ProvGw-ingressgateway, ProvGw-provgw service and ProvGw-egressgateway) at 70% usage Other Microservice Total
CPU 73.5 24 97.5 20 4 24
Memory in GB 96 24 120 22 4 26
Disk Volume (Ephemeral storage) in GB 26 16 42 9 4 13

Table 3-22 cnDbTier Resources Calculation

Resources cnDbTier
  SQL nodes (at actual usage) SQL Nodes (Overhead/ Buffer resources at 20%) Data nodes (at actual usage) Data nodes (Overhead/ Buffer resources at 10%) MGM nodes and other resources (Default resources) Total
CPU 76 16 23.2 5 18 138.5
Memory in GB 70.4 14 368 36 34 522
Disk Volume (Ephemeral storage) in GB 8 NA 960 (ndbdisksize= 240*4) NA 20 988

Table 3-23 Total Resources Calculation

Resources Total
CPU 260
Memory in GB 668 GB
Disk Volume (Ephemeral storage) in GB 104 GB

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-24 Result and Observation

Parameter Values
Test Duration 18hr
TPS Achieved 10K
Success Rate 100%
Average UDR processing time (Request and Response) 40ms

3.4 Test Scenario 4: Policy Data Traffic Deployment Model

This section provides information about policy data traffic deployment model test scenarios.

3.4.1 Policy Data Large Profile 10K Mix Traffic with 3K Notifications

The following features are disabled for this testcase:
  • TLS
  • OAuth2.0
  • Header Validations like XFCC, server header, and user agent header

You can perform benchmark tests on UDR for compute and storage resources by considering the following conditions:

  • Signaling : 10k (includes subscriptions)
  • Provisioning: NA
  • Total Subscribers: 4M
  • Profile Size: NA
  • Average HTTP Provisioning Request Packet Size: NA
  • Average HTTP Provisioning Response Packet Size: NA

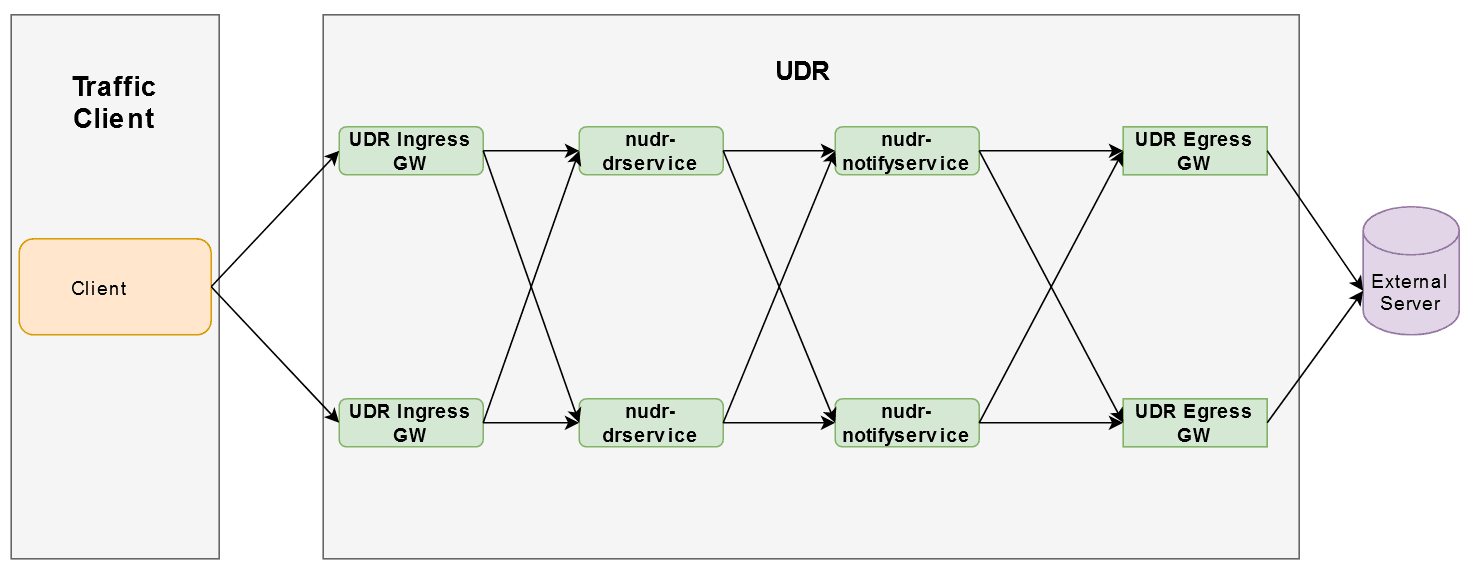

Figure 3-3 Policy Data Traffic Deployment Model


Policy Data Traffic Deployment Model

The following table describes the benchmarking parameters and their values:

Table 3-25 Traffic Model Details

Request Type Details TPS
Notifications 3k Notifications Requests triggered from UDR 3k
Signaling (10k mix traffic) GET 18%
PUT 37%
PATCH 15%
DELETE 15%
POST Subscription 7.5%
DELETE Subscription 7.5%
The following table describes the testcase parameters and their values:

Table 3-26 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 1.15.0
Target TPS 10k SignalingTPS + 3k Notifications
Notification Rate 3k
UDR Response Timeout 45ms
Client Timeout 10s
Signaling Requests Latency Recorded on Client NA
Provisioning Requests Latency Recorded on Client NA

Table 3-27 Average Deployment Size to Achieve Higher TPS

Subscriber profile (number of subscribers on DB) Microservice name TPS rate Number of pods CPU allocation per pod Memory allocation per pod Average CPU used Average memory used Latency values on httpGo tool
4M ocudr-ingress-gateway 10000 5 6 5Gi 2.8 1352Mi 45ms
nudr-dr-service 10000 10 5 4Gi 4.15 1512Mi NA
nudr-notify-service 3.0 K 7 4 4Gi 4.5 1050Mi NA
ocudr-egress-gateway 3.0 K 4 4 3Gi 2.7 991Mi NA
The following table describes cnDBTier pod details:

Table 3-28 cnDBTier Pod Details

VM name vCPU RAM Storage
ndbmysqld-0 16 64 GB 90
ndbmysqld-1 16 64 GB 90
ndbmysqld-2 16 64 GB 90
ndbmysqld-3 16 64 GB 90
ndbmgmd-0 8 8 GB 50
ndbmtd-0 16 64 GB 190
ndbmtd-1 16 64 GB 190
ndbmtd-2 16 64 GB 190
ndbmtd-3 16 64 GB 190

Table 3-29 TPS Rate

TPS TPS Rate
TPS of DB writes 3.91K x 4
TPS of DB reads 15.4K x 4
Total DB reads 29.42 Mil x 4
Total DB writes 12.31 Mil x 4

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-30 Result and Observation

Parameter Values
Test Duration 4h
TPS Achieved 10k Provisioning (Includes Subscription) + 3k Notifications
Success rate 100%
Average UDR processing time (Request and Response) 45ms

3.4.2 Policy Data: 10K TPS Signaling Traffic

The following feature is enabled for this testcase:
  • Entity Tag (ETag) is enabled

You can perform benchmark tests on UDR for compute and storage resources by considering the following conditions:

  • Signaling : 10K
  • Provisioning: NA
  • Total Subscribers: 1M
  • Profile Size: 2.5KB
  • Average HTTP Provisioning Request Packet Size: NA
  • Average HTTP Provisioning Response Packet Size: NA

The following table describes the benchmarking parameters and their values:

Table 3-31 Traffic Model Details

Request Type Details TPS
N36 traffic (100%) 10K TPS for sm-data GET 2500
PUT 2500
PATCH 2500
DELETE 2500

Note:

Provisioning and Egress traffic are not included in this model.
The following table describes the test case parameters and their values:

Table 3-32 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 23.4.0
Target TPS 10k Signaling
Notification Rate NA
UDR Response Timeout 5s
Client Timeout 30s
Signaling Requests Latency Recorded on Client NA
Provisioning Requests Latency Recorded on Client NA

Table 3-33 Consolidated Resource Requirement

Resource CPU Memory
cnDBTier 50 434
UDR 73 55
Buffer 50 50
Total 173 539
The following table describes cnDBTier resources and their utilization:

Note:

For cnDBTier, you must use ocudr_slf_37msub_dbtier and ocudr_udr_10msub_dbtier custom value files for SLF and UDR respectively. For more information, see Cloud Native Core, Unified Data Repository Installation, Upgrade, and Fault Recovery Guide.

Table 3-34 cnDBTier Resources and their Utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage CPU Utilization
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB

4 CPUs

18 GB

 Minimal resources are used.
Data node (ndbmtd) mysqlndbcluster 4 4 CPUs 93 GB

16 CPUs

372 GB

 1.5 CPU/pod 77.5 GB/pod 37%
APP SQL node (ndbappmysqld) mysqlndbcluster 5 4 CPUs 2 GB

20 CPUs

10 GB

 3.5 CPU/pod 700 MB/pod 82%
SQL node (ndbmysqld,used for replication) mysqlndbcluster 2 4 CPUs 16 GB

8 CPUs

32 GB

 Minimal resources are used.
DB Monitor Service db-monitor-svc 1 200m CPUs 500 MB

1 CPUs

500 MB

 Minimal resources are used.
DB Backup Manager Service backup-manager-svc 1 100m CPU 128 MB

1 CPUs

128 MB

 Minimal resources are used.
Additional cnDBTier configurations in custom value file are shown as follows:
# values for configuration files, cnf
  ndbconfigurations:
    mgm:
      HeartbeatIntervalMgmdMgmd: 2000
      TotalSendBufferMemory: 16M
      startNodeId: 49
    ndb:
      MaxNoOfAttributes: 5000
      MaxNoOfOrderedIndexes: 1024
      NoOfFragmentLogParts: 4
      MaxNoOfExecutionThreads: 4
      StopOnError: 0
      MaxNoOfTables: 1024
      NoOfFragmentLogFiles: 64
    api:
      user: mysql
      max_connections: 4096
      all_row_changes_to_bin_log: 1
      binlog_expire_logs_seconds: '86400'
      auto_increment_increment: 2
      auto_increment_offset: 1
      wait_timeout: 600
      interactive_timeout: 600

  additionalndbconfigurations:
    mgm: {}
    ndb:
      __TransactionErrorLogLevel: '0x0000'
      TotalSendBufferMemory: '32M'
      CompressedLCP: true
      TransactionDeadlockDetectionTimeout: 1200
      HeartbeatIntervalDbDb: 500
      ConnectCheckIntervalDelay: 0
      LockPagesInMainMemory: 0
      MaxNoOfConcurrentOperations: 128K
      MaxNoOfConcurrentTransactions: 65536
      MaxNoOfUniqueHashIndexes: 16K
      FragmentLogFileSize: 128M
      ODirect: false
      RedoBuffer: 1024M
      SchedulerExecutionTimer: 50
      SchedulerSpinTimer: 0
      TimeBetweenEpochs: 100
      TimeBetweenGlobalCheckpoints: 2000
      TimeBetweenLocalCheckpoints: 6
      TimeBetweenEpochsTimeout: 4000
      TimeBetweenGlobalCheckpointsTimeout: 60000
      # By default LcpScanProgressTimeout is configured to overwrite configure LcpScanProgressTimeout
      # with required value.
      # LcpScanProgressTimeout: 180
      RedoOverCommitLimit: 60
      RedoOverCommitCounter: 3
      StartPartitionedTimeout: '1800000'
      CompressedBackup: 'true'
      MaxBufferedEpochBytes: '26214400'
      MaxBufferedEpochs: '100'
    api:
      TotalSendBufferMemory: '32M'
      DefaultOperationRedoProblemAction: 'ABORT'
    mysqld:
      max_connect_errors: '4294967295'
      ndb_applier_allow_skip_epoch: 0
      ndb_batch_size: '2000000'
      ndb_blob_write_batch_bytes: '2000000'
      replica_allow_batching: 'ON'
      max_allowed_packet: '134217728'
      ndb_log_update_minimal: 1
      replica_parallel_workers: 0
      binlog_transaction_compression: 'ON'
      binlog_transaction_compression_level_zstd: '3'
      ndb_report_thresh_binlog_epoch_slip: 50
      ndb_eventbuffer_max_alloc: 0
      ndb_allow_copying_alter_table: 'ON'
      ndb_clear_apply_status: 'OFF'
    tcp:
      SendBufferMemory: '2M'
      ReceiveBufferMemory: '2M'
      TCP_SND_BUF_SIZE: '0'
      TCP_RCV_BUF_SIZE: '0'

  # specific mysql cluster node values needed in different charts
  mgm:
    ndbdisksize: 15Gi
  ndb:
    ndbdisksize: 132Gi
    ndbbackupdisksize: 164Gi
    datamemory: 69G
    KeepAliveSendIntervalMs: 60000
    use_separate_backup_disk: true
    restoreparallelism: 128
  api:
    ndbdisksize: 12.6Gi
    startNodeId: 56
    startEmptyApiSlotNodeId: 222
    numOfEmptyApiSlots: 4
    ndb_extra_logging: 99
    general_log: 'OFF'
  ndbapp:
    ndbdisksize: 2Gi
    ndb_cluster_connection_pool: 1
    ndb_cluster_connection_pool_base_nodeid: 100
    startNodeId: 70
The following table describes UDR resources and their utilization:

Table 3-35 UDR Resources and their Utilization (Average Latency: 10ms)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage CPU Utilization (hpa)
Ingress-gateway-sig ingressgateway-sig 4 6 CPUs 4 GB

24 CPUs

16 GB

 2.9 CPU/pod 1.4 GB/pod 49%
Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB

8 CPUs

8 GB

 Minimal resources are used.
Nudr-dr-service nudr-drservice 5 6 CPUs 4 GB

30 CPUs

20 GB

 4.5 CPU/pod 2 GB/pod 74%
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB

8 CPUs

8 GB

 Minimal resources are used.
Nudr-egress-gateway egressgateway 1 1 CPUs 1 GB

1 CPUs

1 GB

 Minimal resources are used.
Nudr-config nudr-config 1 1 CPUs 1 GB

1 CPUs

1 GB

 Minimal resources are used.
Nudr-config-server nudr-config-server 1 1 CPUs 1 GB

1 CPU

1 GB

 Minimal resources are used.
Subscriber payload:
{
    "sm-data": {
        "umData": {
            "mk1": {
                "scopes": {
                    "11-abc123": {
                        "dnn": [
                            "dnn1"
                        ],
                        "snssai": {
                            "sd": "abc123",
                            "sst": 11
                        }
                    }
                },
                "limitId": "mk1",
                "umLevel": "SERVICE_LEVEL",
                "resetTime": "2018-01-02T08:17:14.090Z",
                "allowedUsage": {
                    "duration": 9000,
                    "totalVolume": 8888,
                    "uplinkVolume": 6666,
                    "downlinkVolume": 7777
                }
            }
        },
        "umDataLimits": {
            "mk1": {
                "scopes": {
                    "11-abc123": {
                        "dnn": [
                            "dnn1"
                        ],
                        "snssai": {
                            "sd": "abc123",
                            "sst": 11
                        }
                    }
                },
                "endDate": "2018-11-05T08:17:14.090Z",
                "limitId": "mk1",
                "umLevel": "SESSION_LEVEL",
                "startDate": "2018-09-05T08:17:14.090Z",
                "usageLimit": {
                    "duration": 6000,
                    "totalVolume": 9000,
                    "uplinkVolume": 5000,
                    "downlinkVolume": 4000
                },
                "resetPeriod": {
                    "period": "YEARLY"
                }
            }
        },
        "smPolicySnssaiData": {
            "11-abc123": {
                "snssai": {
                    "sd": "abc123",
                    "sst": 11
                },
                "smPolicyDnnData": {
                    "dnn1": {
                        "dnn": "dnn1",
                        "bdtRefIds": {

                            "xyz": "bdtRefIds",
                            "abc": "xyz"
                        },
                        "gbrDl": "7788 Kbps",
                        "gbrUl": "5566 Kbps",
                        "online": true,
                        "chfInfo": {
                            "primaryChfAddress": "1.1.1.1",
                            "secondaryChfAddress": "2.2.2.2"
                        },
                        "offline": true,
                        "praInfos": {
                            "p1": {
                                "praId": "p1",
                                "trackingAreaList": [{
                                        "plmnId": {
                                            "mcc": "976",
                                            "mnc": "32"
                                        },
                                        "tac": "5CB6"
                                    },
                                    {
                                        "plmnId": {
                                            "mcc": "977",
                                            "mnc": "33"
                                        },
                                        "tac": "5CB7"
                                    }
                                ],
                                "ecgiList": [{
                                        "plmnId": {
                                            "mcc": "976",
                                            "mnc": "32"
                                        },
                                        "eutraCellId": "92FFdBE"
                                    },
                                    {
                                        "plmnId": {
                                            "mcc": "977",
                                            "mnc": "33"
                                        },
                                        "eutraCellId": "8F868C4"
                                    }
                                ],
                                "ncgiList": [{
                                        "plmnId": {
                                            "mcc": "976",
                                            "mnc": "32"
                                        },
                                        "nrCellId": "b2fB6fE9D"
                                    },
                                    {
                                        "plmnId": {
                                            "mcc": "977",
                                            "mnc": "33"
                                        },
                                        "nrCellId": "5d1B4127b"
                                    }
                                ],
                                "globalRanNodeIdList": [{
                                        "plmnId": {
                                            "mcc": "965",
                                            "mnc": "235"
                                        },
                                        "n3IwfId": "fFf0f2AFbFa16CEfE7"

                                    },
                                    {
                                        "plmnId": {
                                            "mcc": "967",
                                            "mnc": "238"
                                        },

                                        "gNbId": {
                                            "bitLength": 25,
                                            "gNbValue": "1A8F1D"
                                        }
                                    }
                                ]
                            }
                        },
                        "ipv4Index": 0,
                        "ipv6Index": 0,
                        "subscCats": [
                            "cat1",
                            "cat2"
                        ],
                        "adcSupport": true,
                        "mpsPriority": true,
                        "allowedServices": [
                            "ser1",
                            "ser2"
                        ],
                        "mpsPriorityLevel": 2,
                        "imsSignallingPrio": true,
                        "refUmDataLimitIds": {
                            "mk1": {
                                "monkey": [
                                    "monkey1"
                                ],
                                "limitId": "mk1"
                            }
                        },
                        "subscSpendingLimits": true
                    }
                }
            }
        }
    }
}
The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-36 Result and Observation

Parameter Values
Test Duration 48h
TPS Achieved 10K Signaling
Success rate 100%
Average UDR processing time (Request and Response) 10ms

3.4.3 Policy Data: Performance 17.2K N36 and 6.56K Notifications Policy

You can perform benchmark tests on UDR for compute and storage resources by considering the following conditions:

  • Signaling : 17.2K
  • Provisioning: NA
  • Total Subscribers: 10M

The following table describes the benchmarking parameters and their values:

Table 3-37 Traffic Model Details

Request Type Details TPS
N36 traffic (100%) 17.2K TPS for sm-data and subs-to-notify subs-to-notify POST 4.57K (26%)
sm-data GET 4.63K (27%)
subs-to-notify DELETE 1.39K (8%)
sm-data PATCH 6.56K (39%)
NOTIFICATIONS POST Operation (Egress) 6.56K

Note:

Provisioning traffic are not included in this model.
The following table describes the test case parameters and their values:

Table 3-38 Testcase Parameters

Input Parameter Details Configuration Values
Target TPS 17.2K Signaling
Notification Rate 6.56K
UDR Response Timeout 2.7s
Client Timeout 3s
Signaling Requests Latency Recorded on Client 150ms
Provisioning Requests Latency Recorded on Client 150ms

Table 3-39 Consolidated Resource Requirement

Resource CPU Memory
cnDBTier 84 CPUs 451 GB
UDR 229 CPUs 177 GB
Buffer 50 CPUs 50 GB
Total 363 CPUs 678 GB
The following table describes cnDBTier resources and their utilization:

Note:

For cnDBTier, you must use ocudr_udr_10msub17.2K_TPS_dbtier_24.1.0_custom_values_24.1.0 file. For more information, see Oracle Communications Cloud Native Core, Unified Data Repository Installation, Upgrade, and Fault Recovery Guide.

Table 3-40 cnDBTier Resources and their Utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB

4 CPUs

18 GB
Data node (ndbmtd) mysqlndbcluster 4 4 CPUs 93 GB

16 CPUs

372 GB
APP SQL node (ndbappmysqld) mysqlndbcluster 9 6 CPUs 3 GB

54 CPUs

27 GB
SQL node (ndbmysqld,used for replication) mysqlndbcluster 2 4 CPUs 16 GB

8 CPUs

32 GB
DB Monitor Service db-monitor-svc 1 200 millicores CPUs 500 MB

1 CPU

500 MB
DB Backup Manager Service backup-manager-svc 1 100 millicores CPUs 128 MB

1 CPU

128 MB
The following table describes UDR resources and their utilization:

Table 3-41 UDR Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources
Ingress-gateway-sig ingressgateway-sig 9 6 CPUs 4 GB

54 CPUs

36 GB
Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB

8 CPUs

8 GB
Nudr-dr-service nudr-drservice 17 6 CPUs 4 GB

102 CPUs

68 GB
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB

8 CPUs

8 GB
Nudr-notify-service nudr-notify-service 7 4 CPUs 4 GB

28 CPUs

28 GB
Nudr-egress-gateway egressgateway 4 4 CPUs 4 GB

16 CPUs

16 GB
Nudr-config nudr-config 2 1 CPU 1 GB

2 CPUs

2 GB
Nudr-config-server nudr-config-server 2 1 CPU 1 GB

2 CPUs

2 GB
Alternate-route alternate-route 2 1 CPU 1 GB

2 CPUs

2 GB
Nudr-nrf-client-nfmanagement-service nrf-client-nfmanagement 2 1 CPU 1 GB

2 CPUs

2 GB
App-info app-info 2 1 CPU 1 GB

2 CPUs

2 GB
Perf-info perf-info 2 1 CPU 1 GB

2 CPUs

2 GB
Nudr-dbcr-auditor-service nudr-dbcr-auditor-service 1 1 CPU 1 GB

1 CPU

1 GB
The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-42 Result and Observation

Parameter Values
Test Duration 2h
TPS Achieved 17.2K Signaling
Success rate 100%
Average UDR processing time (Request and Response) 150ms
