1.1 Overview

OCCM integrates with the Certificate Authority(s) using Certificate Management Protocol Version 2 (CMPv2) and RFC4210 to facilitate these certificate management operations:

  • Operator-initiated certificate creation
  • Operator-initiated certificate recreation
  • Automatic certificate monitoring and renewal

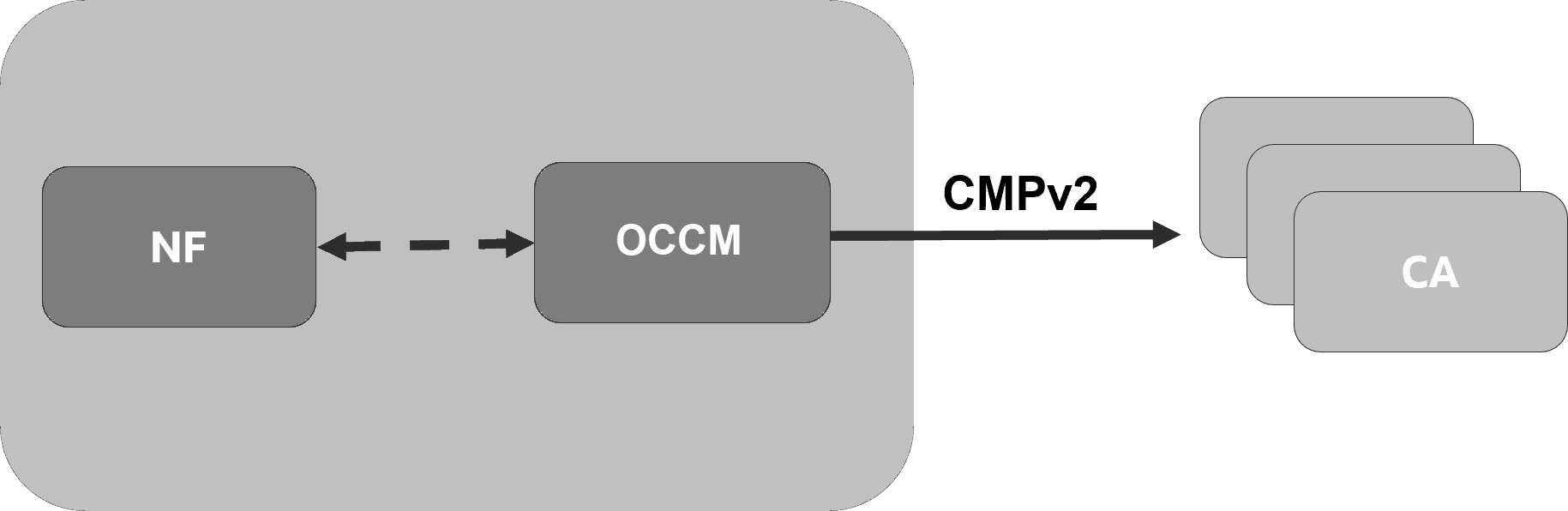

Figure 1-1 OCCM Integration with CA


CMPv2 Message Authentication

OCCM supports transport of CMPv2 messages using HTTP-based protocol.

OCCM provides the following mechanisms to establish initial trust between OCCM and CA(s):
  1. Certificate-based message signing
  2. Pre-shared key or MAC based authentication

All the subsequent CMPv2 procedures are authenticated using the certificate-based mechanism in compliance with 3GPP TS 33.310.

The keys and X.509 certificates are managed using Kubernetes secrets.
