A.1.1 Creating End Entity (NF) Certificate Using OCCM - Sample Configuration

This section describes the sequence of steps to be performed to generate a signed certificate (NF certificate) using OCCM

Create the Issuer:
The following screenshots provide a sample configuration for creating the issuer using CNC Console GUI

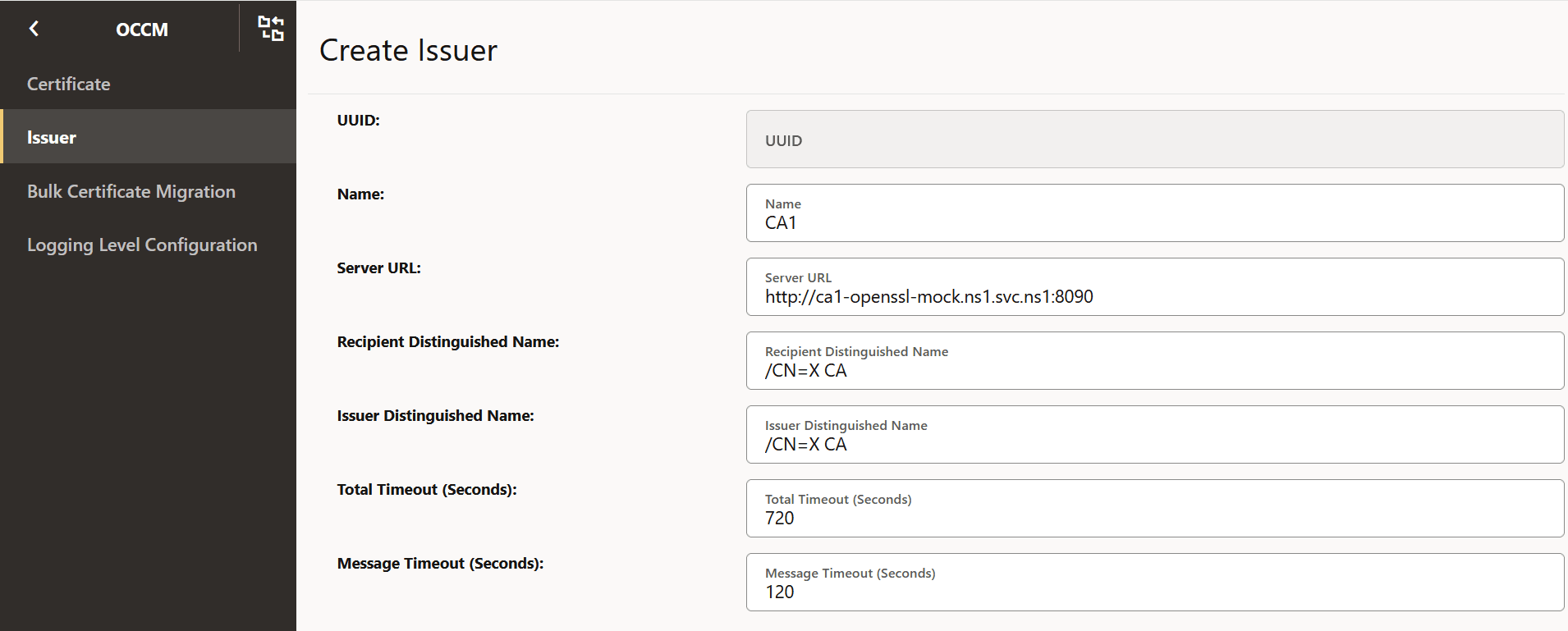

1. Figure -7 Create Issuer

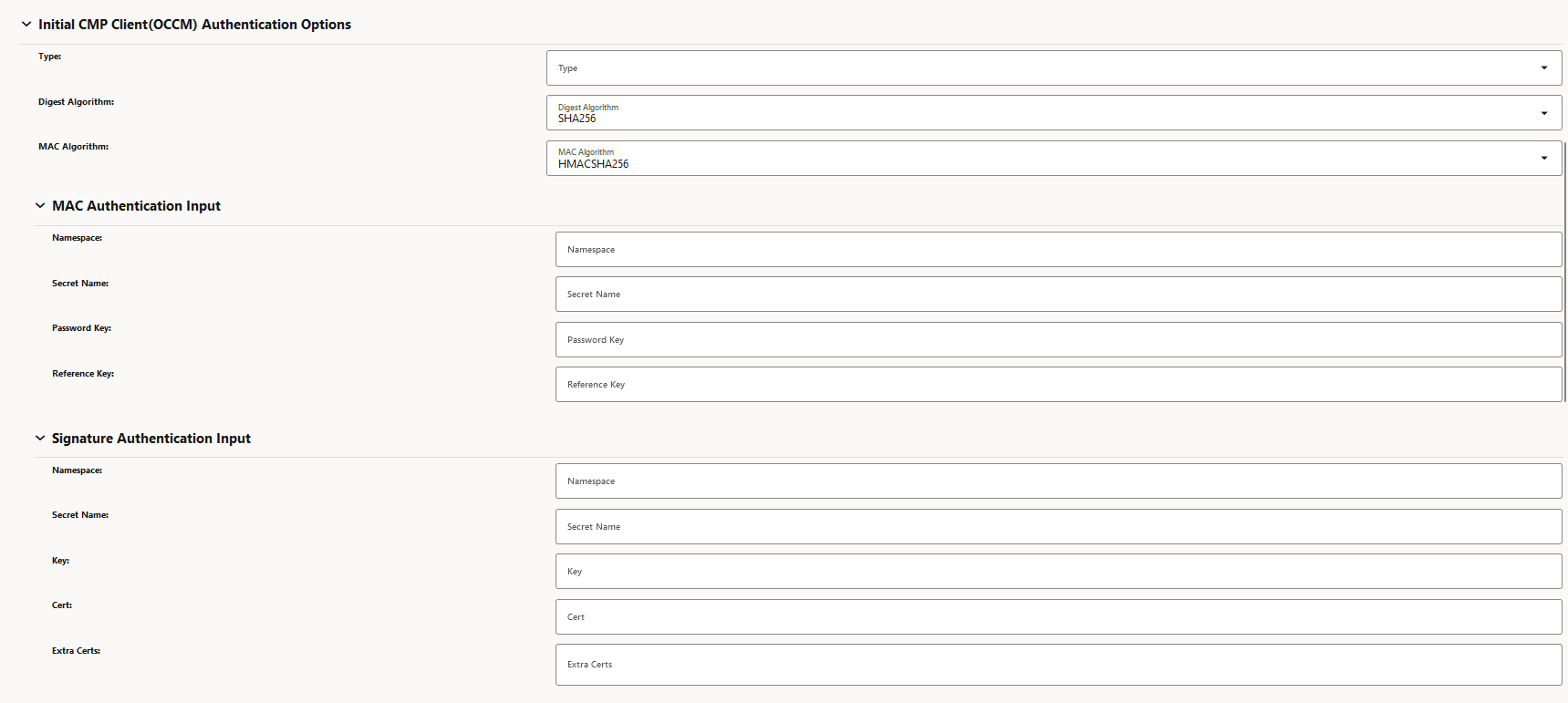

2. Figure -8 Initial CMP Client (OCCM) Authentication Options

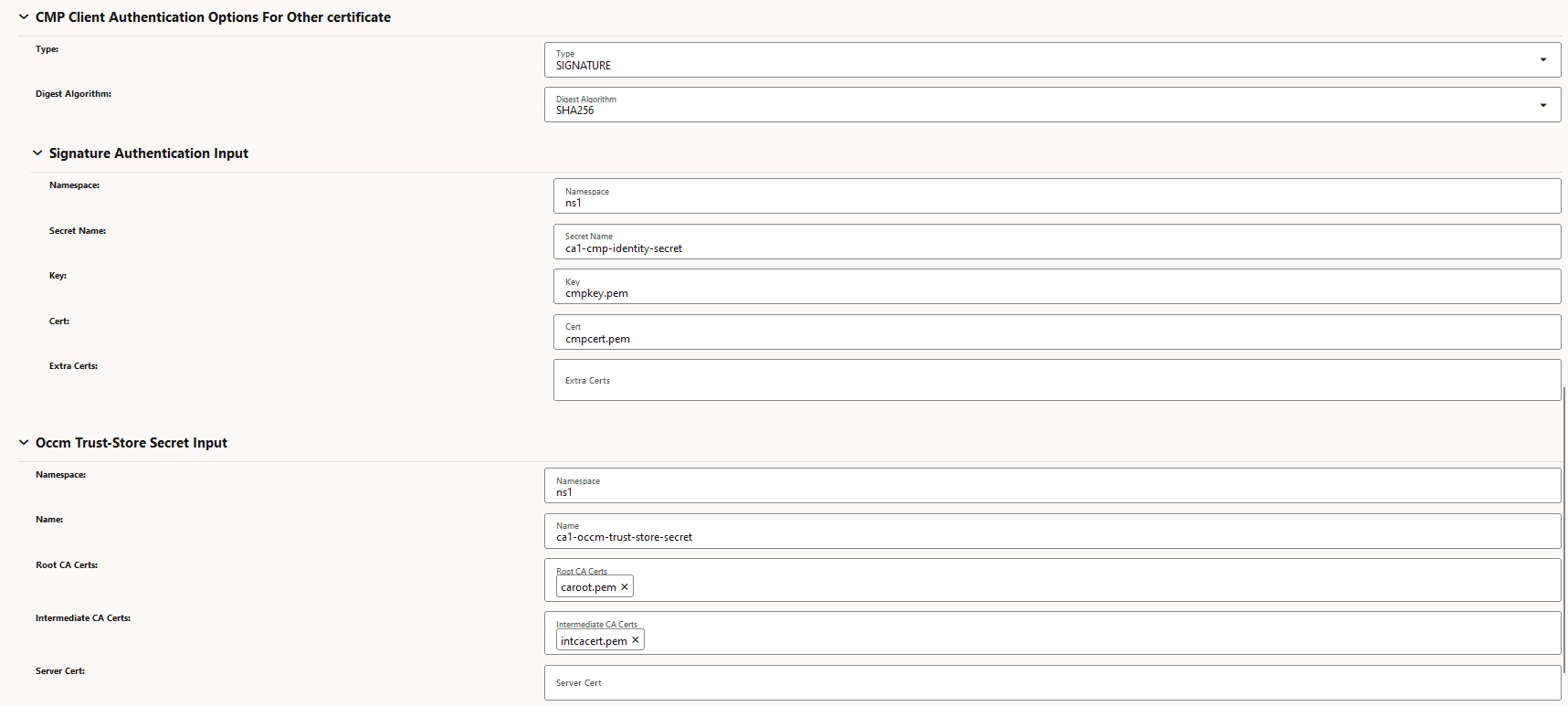

3. Figure -9 CMP Client Authentication Options for Other Certificate
4. To enable HTTPS communication, provide HTTPS scheme in the server URL field and provide the TLS trust store certificates under TLS config.

  Figure -10 HTTPS Scheme

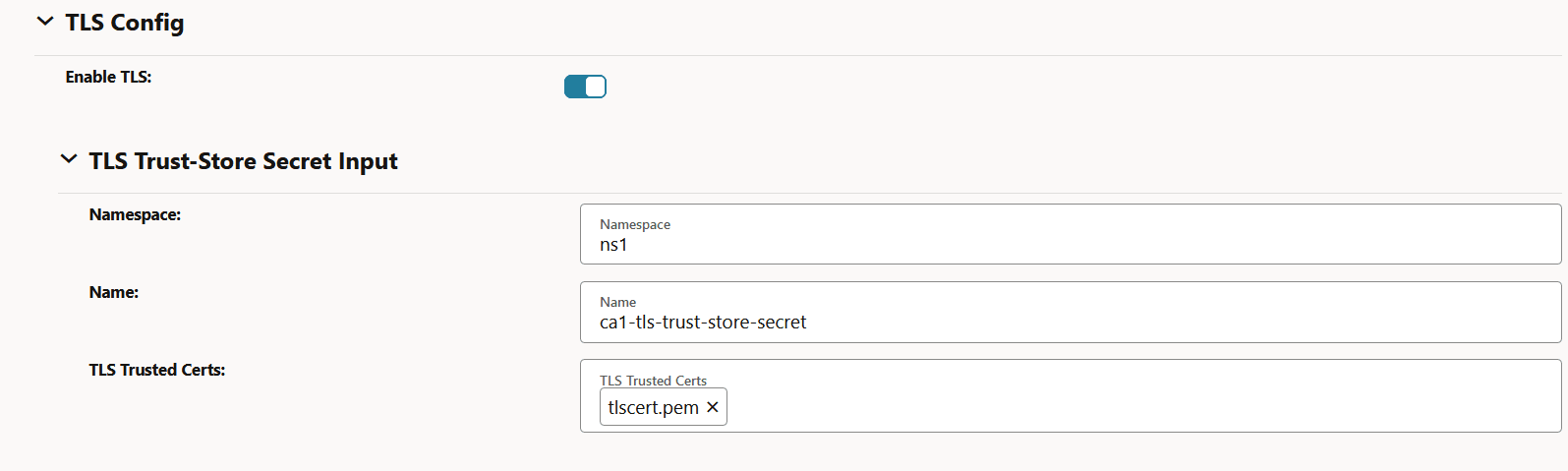

  Figure -11 Enable TLS Config
Create CMP Identity (OCCM) Certificate:
The following screenshots provide a sample configuration for creating CMP Identity (OCCM) certificate using CNC Console GUI. Here, OCCM certificate is configured manually.

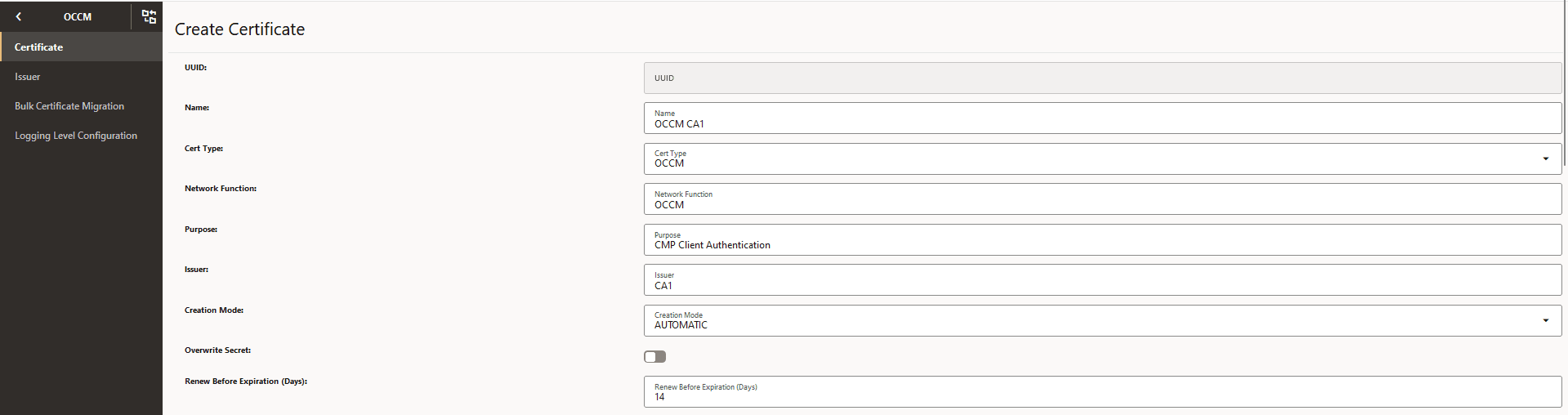

1. Figure -12 Create CMP Identity (OCCM) Certificate

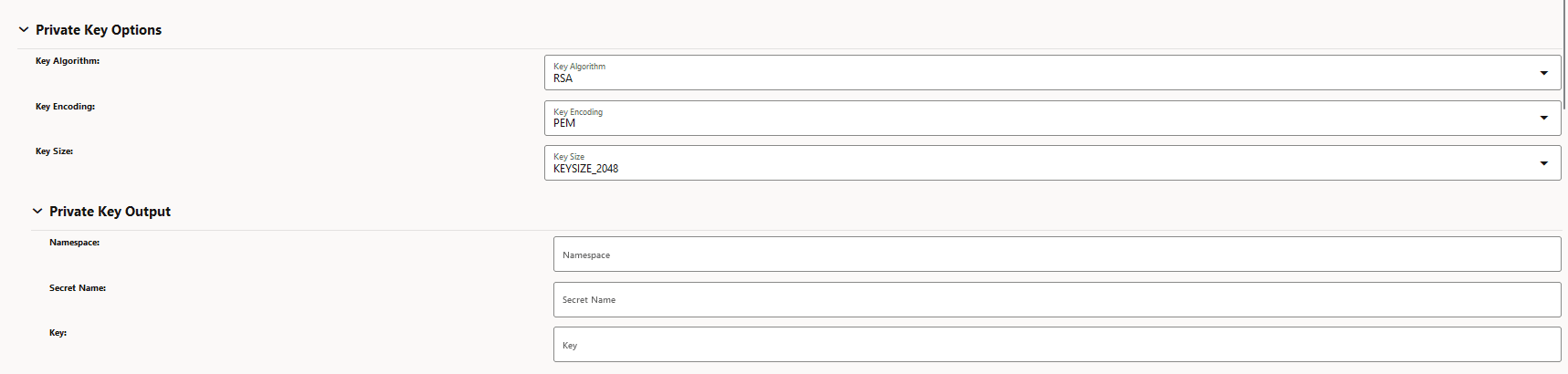

2. Figure -13 Private Key Options

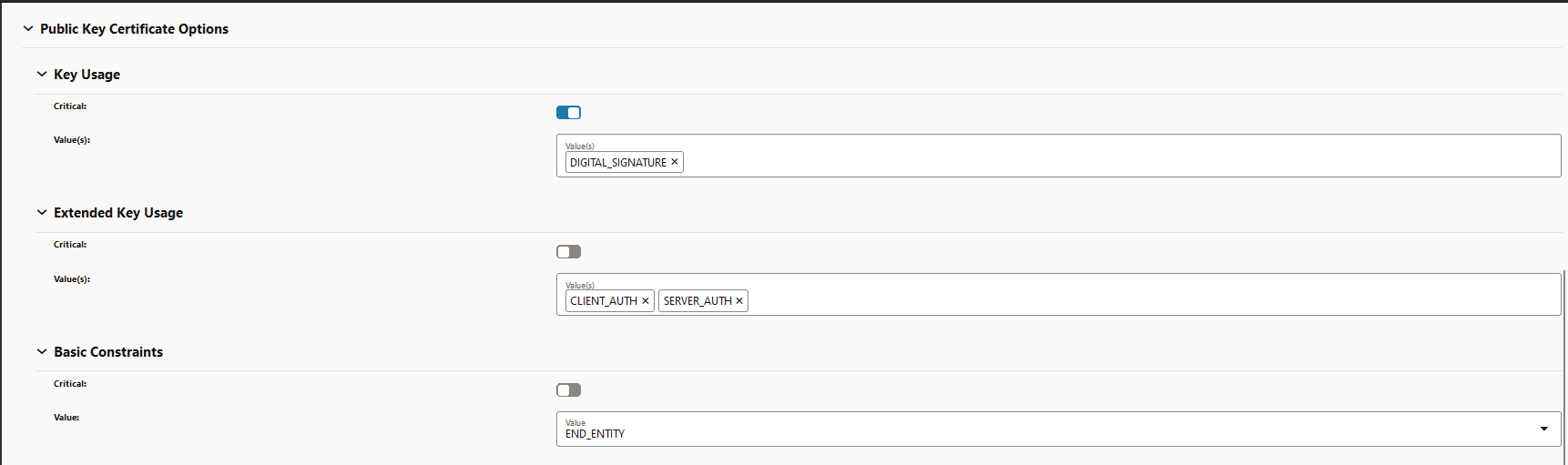

3. Figure -14 Public Key Certificate Options

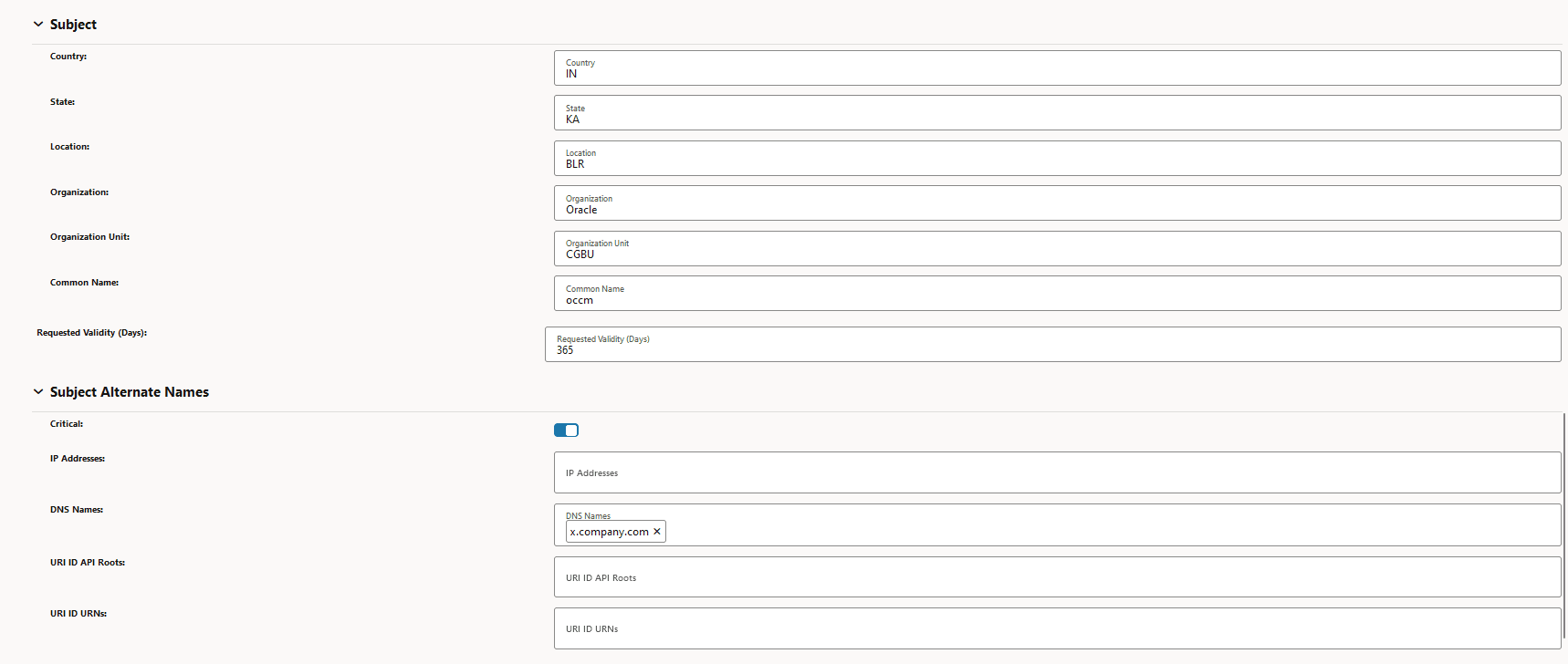

4. Figure -15 Subject and Subject Alternate Name

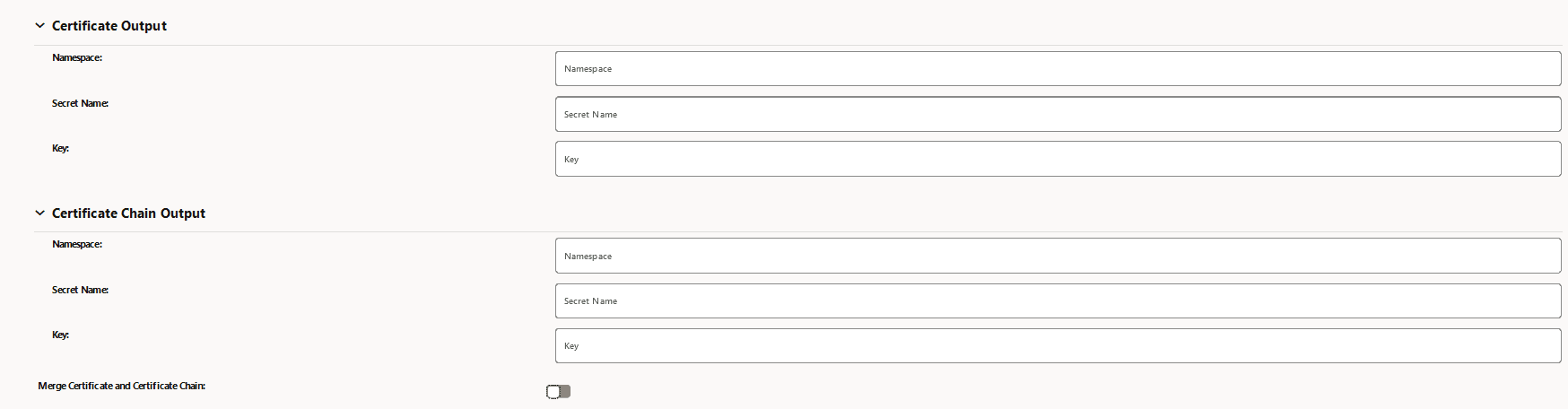

5. Figure -16 Certificate Output and Certificate Chain Output
Create End Entity (NF) Certificate: (PEM encoding):
The following screenshots provide a sample configuration for creating NF Certificate using CNC Console GUI.
1. Figure -17 Create End Entity (NF) Certificate

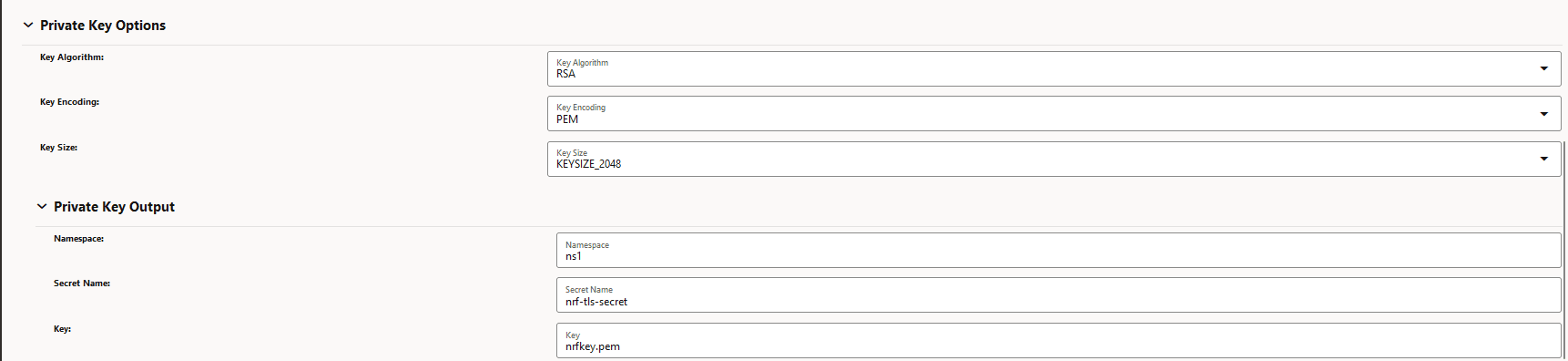

2. Figure -18 Private Key Options
3. Figure -19 Public Key Options

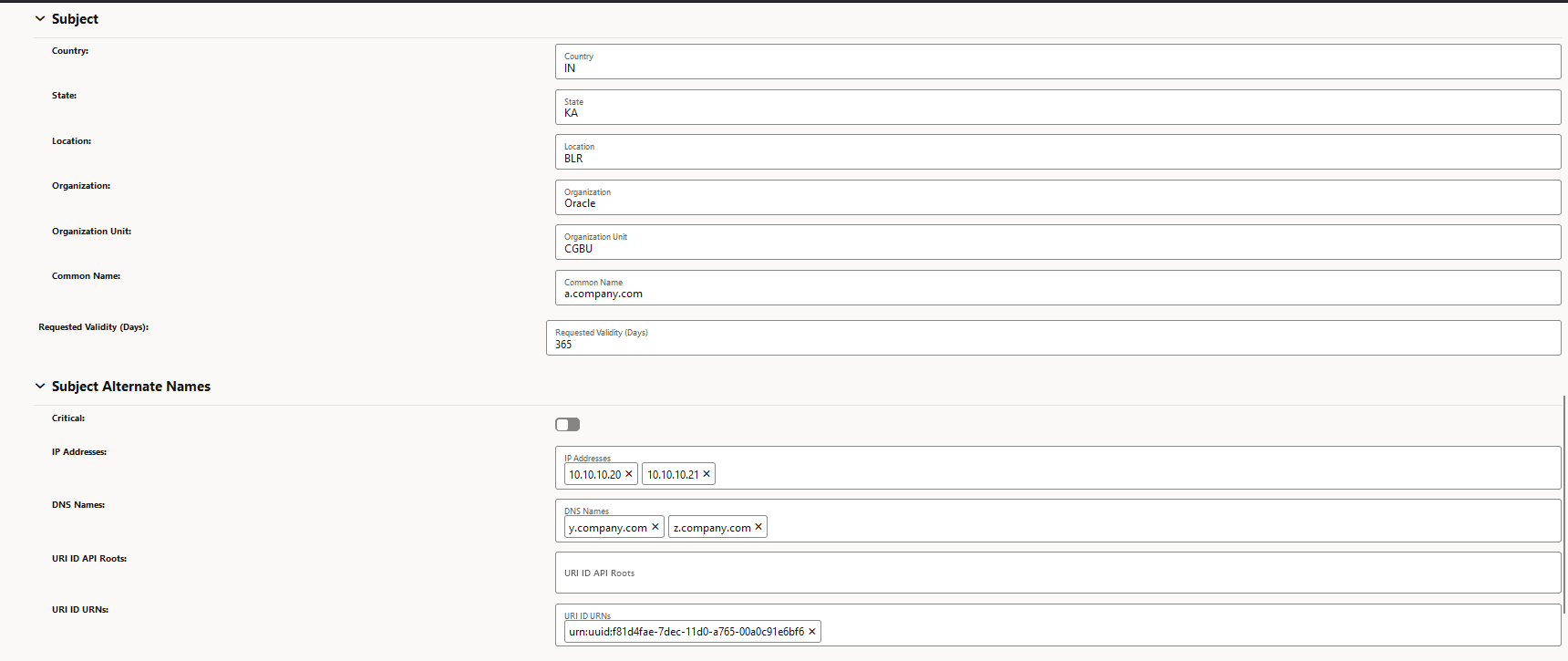

4. Figure -20 Subject and Subject Alternate Names

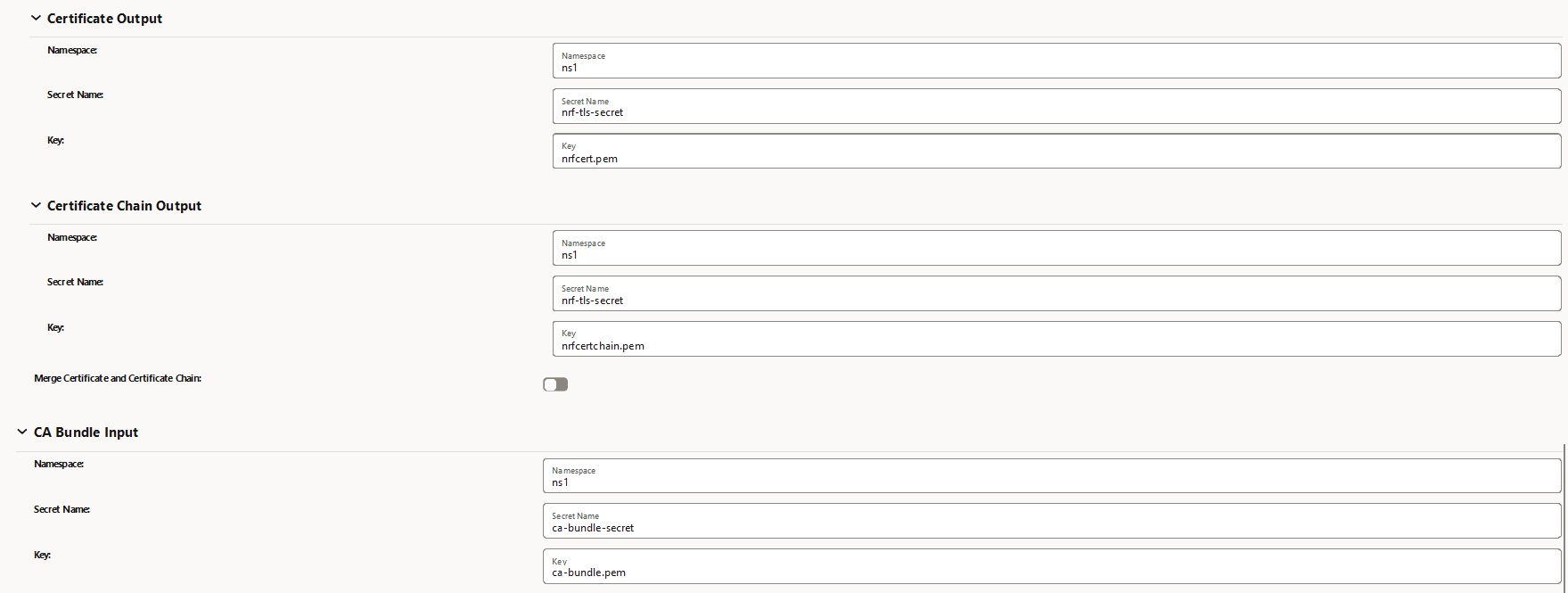

5. Figure -21 Certificate Output
Check Grafana Dashboard
Check the grafana dashboard to view the certificates created.

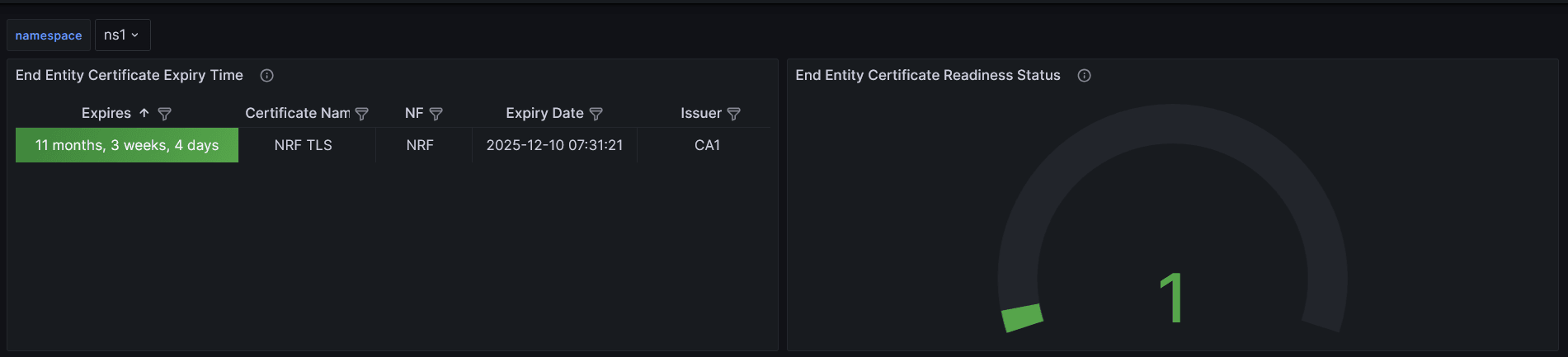

Figure -22 End Entity (NF) Sample Grafana Dasboard

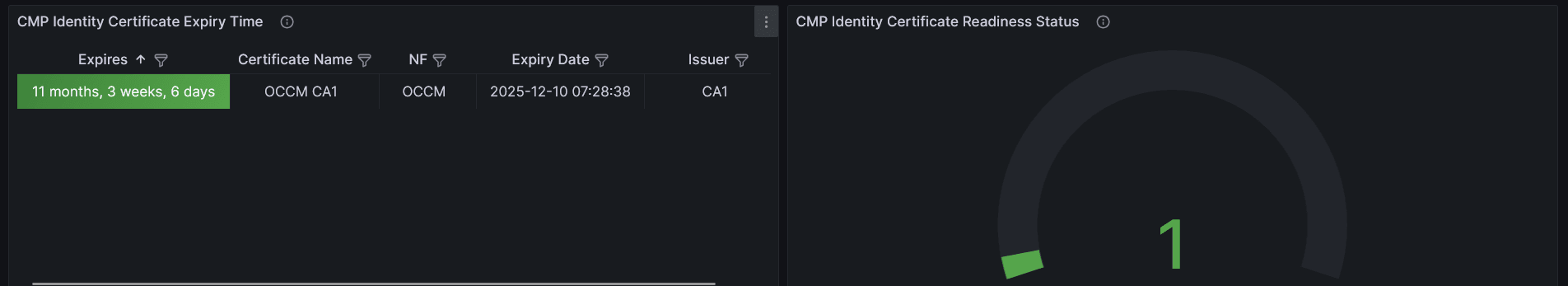

Figure -23 CMP Identity (OCCM) Sample Grafana Dasboard

The screenshot shows that NRF TLS Cert and CA1 certificates are created successfully. The left panel indicates their expiry time and the right panel shows that both are ready to be consumed.

Verify Kubernetes Secret

After the certificate request is submitted, verify whether the k8s secret specified under private key output and certificate output location is created or not.

Run the following command to get the content of the Kubernetes secret:

kubectl get secret <k8s-secret-name> -n <namespace> -o yaml

For example:

$ kubectl get secret nrf-tls-secret -n ns1 -o yaml
apiVersion: v1
data:
  nrfcert.pem: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCkXXXXXXXXXX
  nrfcertchain.pem: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tXXXXXXXXXXX
  nrfkey.pem: LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0tCk1XXXXXXXXXXX
kind: Secret
metadata:
  creationTimestamp: "2024-12-10T07:31:21Z"
  name: nrf-tls-secret
  namespace: ns1
  resourceVersion: "563348905"
  uid: f0eb452d-e977-4809-99b0-c541b154dabe
type: Opaque

Output of openssl x509 command for the certificate:

kubectl get secret <k8s-secret-name> -n <namespace> -o=go-template='{{index .data "<certificate-output-K8s-secret-key>"}}' | base64 -d | openssl x509 -text -noout

For example:

$ kubectl get secret nrf-tls-secret -n ns1 -o=go-template='{{index .data "nrfcert.pem"}}' | base64 -d | openssl x509 -text -noout

Certificate:
  Data:
    Version: 3 (0x2)
    Serial Number:
      XXXXXXXXX
    Signature Algorithm: sha256WithRSAEncryption
    Issuer: CN = x.company.com
    Validity
      Not Before: Dec 10 07:31:22 2024 GMT
      Not After : Dec 10 07:31:21 2025 GMT

    Subject: C = IN, ST = KA, L = BLR, O = Oracle, OU = CGBU, CN = a.company.com
    Subject Public Key Info:
      Public Key Algorithm: rsaEncryption
        Public-Key: (2048 bit)
        Modulus:
          00:c9:1b:35:bf:21:e6:1f:69:9e:78:25:07:4b:6e:
         XXXXXXXXX

        Exponent: 65537 (0x10001)
    X509v3 extensions:
      X509v3 Key Usage:
        Digital Signature
      X509v3 Extended Key Usage:
        TLS Web Client Authentication, TLS Web Server Authentication
      X509v3 Basic Constraints:
        CA:FALSE
      X509v3 Subject Alternative Name:
                IP Address:10.10.10.20, IP Address:10.10.10.21, DNS:y.commpany.com, DNS:z.commpany.com, URI:urn:uuid:f81d4fae-7dec-11d0-a765-00a0c91e6bf6
      X509v3 Subject Key Identifier:
        2B:0D:XXXXXXXXXXXX
      X509v3 Authority Key Identifier:
        20:03:XXXXXXXXXXX
  Signature Algorithm: sha256WithRSAEncryption
  Signature Value:
   XXXXXXXXXXXXXXXXXXXXXXX

Create NF Certificate (DER encoding):

The following screenshots provide a sample configuration for creating DER encoded NF Certificate using CNC Console GUI.

Certificate metadata

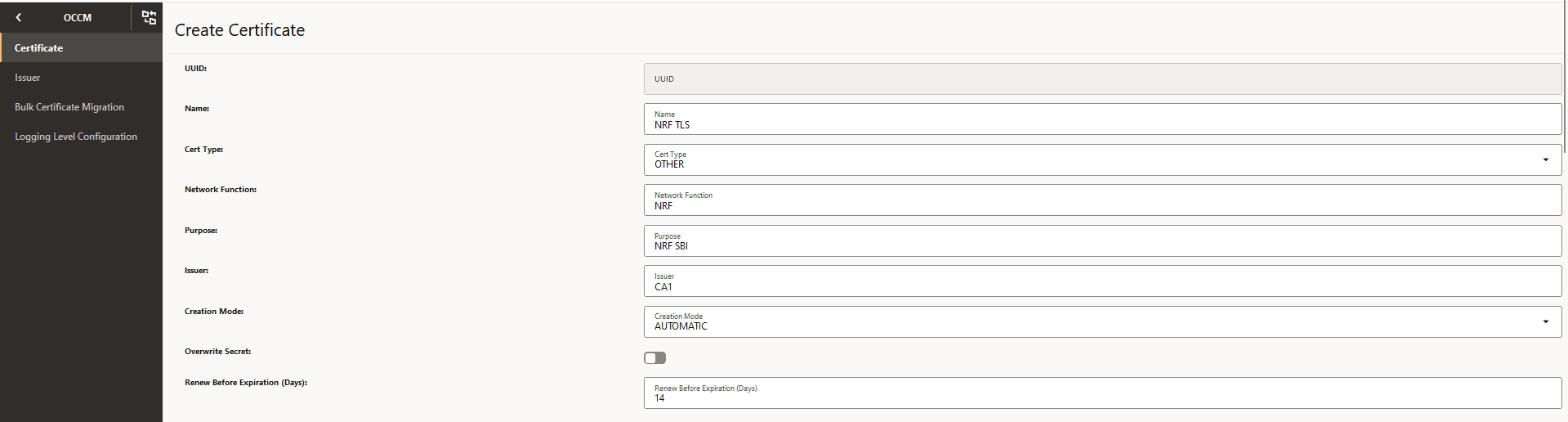

Figure -24 Certificate Metadata
Private Key Options

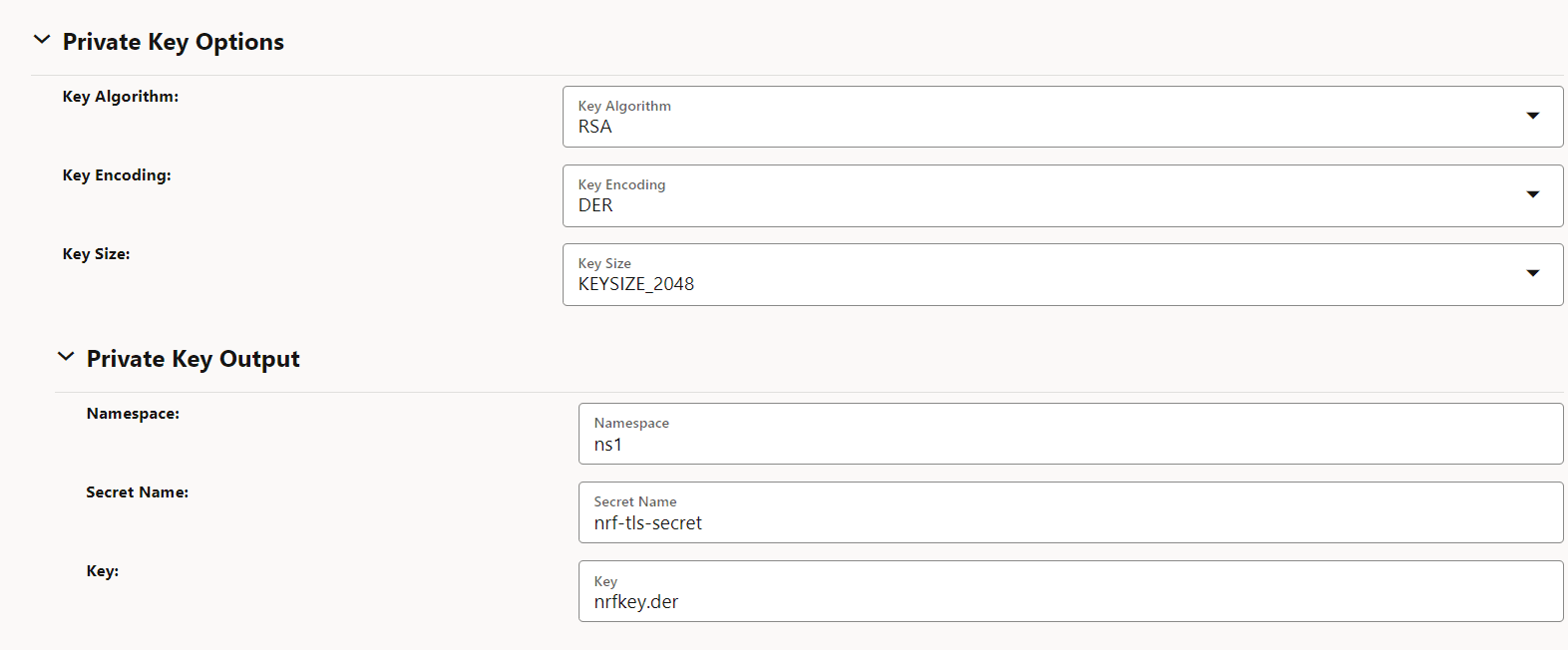

Figure -25 Private Key Options
Public Key Certificate Options

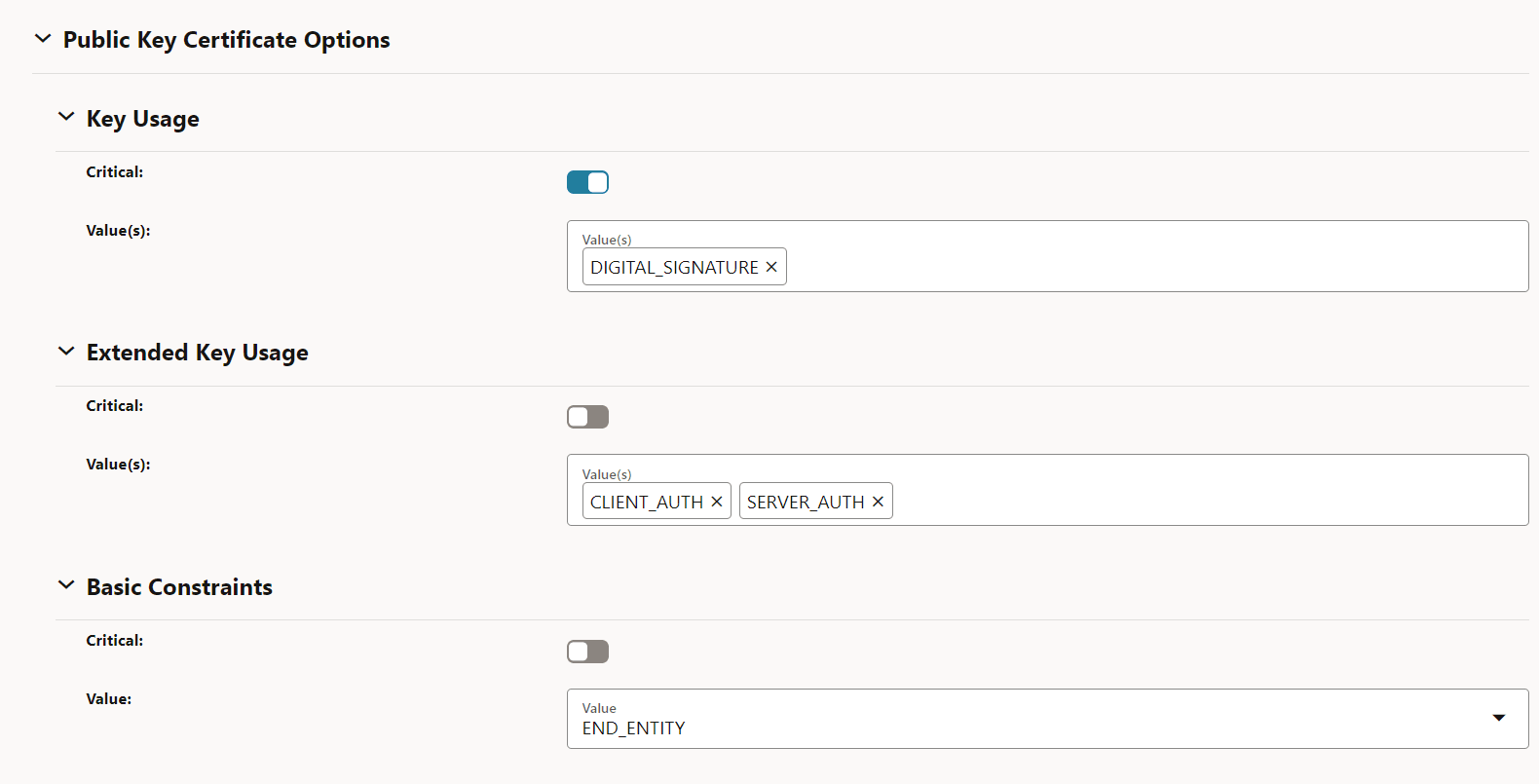

Figure -26 Public Key Certificate Options

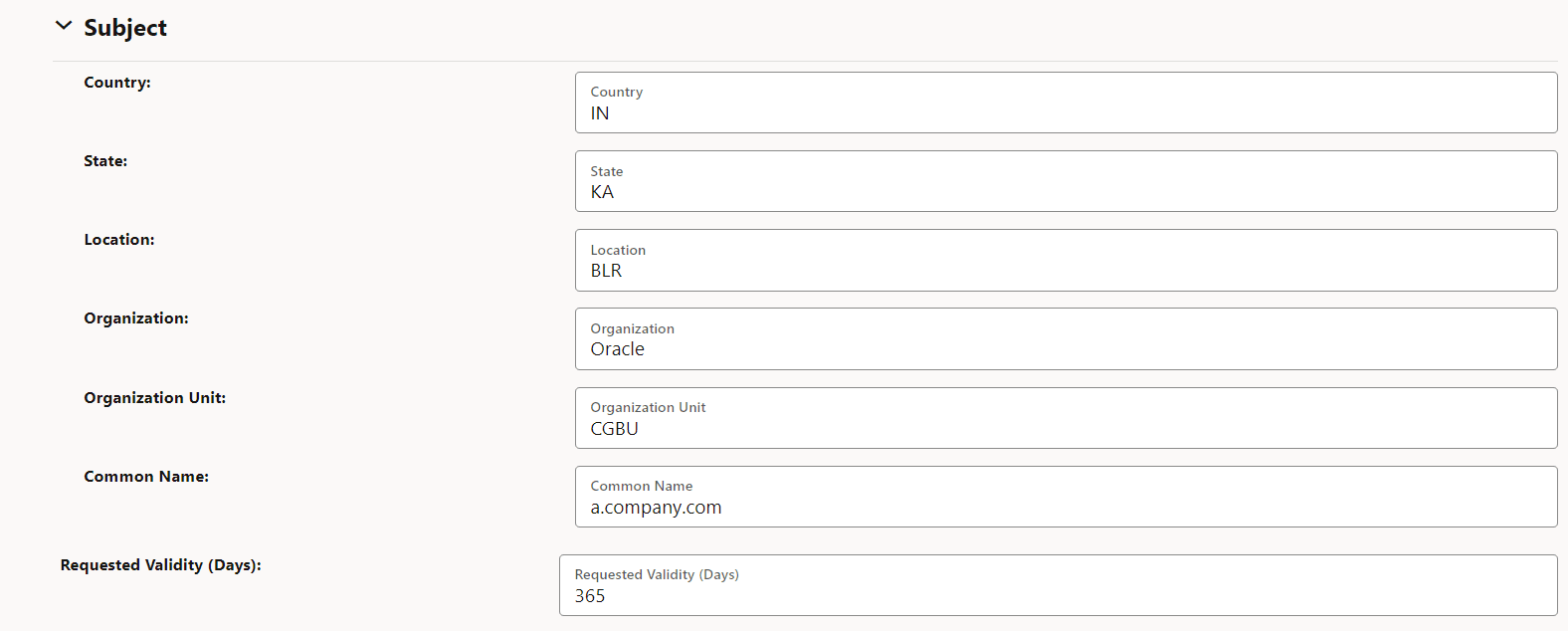

Subject

Figure -27 Subject
Subject Alternate names

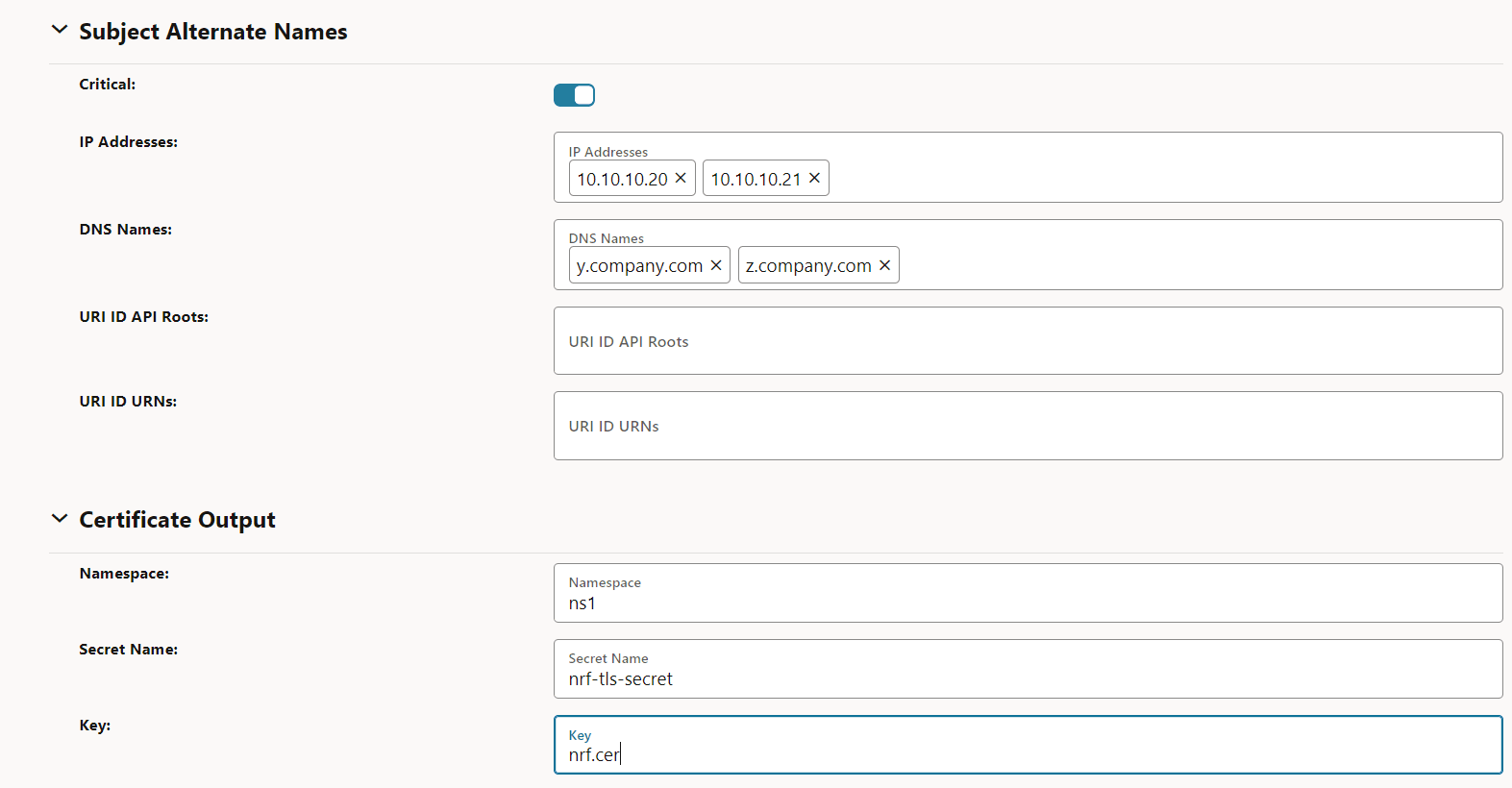

Figure -28 Subject Alternate names
Optional Certificate chain output and CA bundle input fields

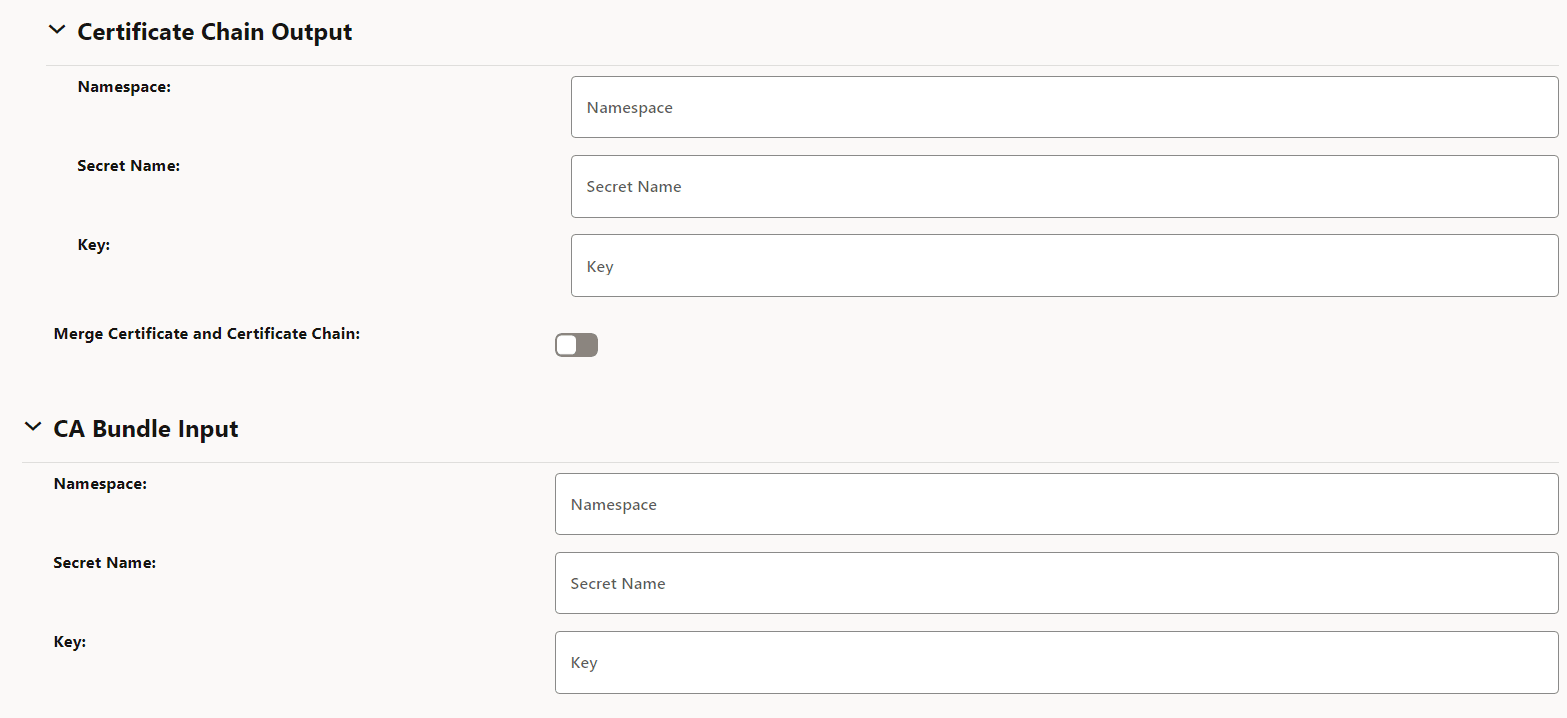

Figure -29 Optional Certificate chain output and CA bundle input fields

Check Grafana dashboard

Figure -30 End Entity (NF) Sample Grafana Dasboard

The screenshot shows that NRF-TLS Certificate is created successfully. The left panel indicates its expiry time and the right panel shows that it is ready to be consumed.

Verify Kubernetes secret

After the certificate request is submitted, verify whether the Kubernetes secret specified under private key output and certificate output location is created or not.

Run the following command to get the content of the Kubernetes secret:

kubectl get secret <k8s-secret-name> -n <namespace> -o yaml

For example:

$ kubectl get secret nrf-tls-secret -n ns1 -o yaml
 apiVersion: v1

data:

  nrf.cer: MIIDrTCCApWgAwIBXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

  nrfkey.der: MIIEogIBAAKXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
kind: Secret

metadata:

  creationTimestamp: "2024-12-10T07:31:21Z"

  name: nrf-tls-secret

  namespace: ns1

  resourceVersion: "346496359"

  uid: 2dbdb2d7-313d-45d9-a634-642d14f01fa5

type: Opaque

Output of openssl x509 command for the certificate:

kubectl get secret <k8s-secret-name> -n <namespace> -o=go-template='{{index .data "<certificate-output-K8s-secret-key>"}}' | base64 -d | openssl x509 -text -noout -inform DER

For example:

$ kubectl get secret nrf-tls-secret -n ns1 -o=go-template='{{index .data "nrf.cer"}}' | base64 -d | openssl x509 -text -noout -inform DER
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            3c:47:05:d7:ee:4c:ce:bb:8f:26:07:c2:a1:9b:92:2c:87:e1:7c:3f
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: CN = x.company.com
        Validity
      Not Before: Dec 10 07:31:22 2024 GMT
      Not After : Dec 10 07:31:21 2025 GMT
        Subject: C = IN, ST = KA, L = BLR, O = Oracle, OU = CGBU, CN = a.company.com
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                RSA Public-Key: (2048 bit)
                Modulus:
                    00:ba:95:23:61:2f:31:55:e3:06:7b:b6:b7:67:cd:
                    XXXXXXX
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Key Usage: critical
                Digital Signature
            X509v3 Extended Key Usage:
                TLS Web Client Authentication, TLS Web Server Authentication
            X509v3 Basic Constraints:
                CA:FALSE
            X509v3 Subject Alternative Name: critical
                IP Address:10.10.10.20, IP Address:10.10.10.21, DNS:y.company.com, DNS:z.company.com
            X509v3 Authority Key Identifier:
                keyid:FB:4A:01:07:D4:8D:BB:0B:E4:50:72:75:10:8E:81:57:33:66:0D:3E

            X509v3 Subject Key Identifier:
                A3:82:F6:67:94:35:37:A6:0B:4B:03:9C:0D:B9:A8:72:8D:59:73:85
    Signature Algorithm: sha256WithRSAEncryption
         0a:c2:81:ec:89:91:b4:aa:24:22:33:54:e1:92:db:07:cf:6f:
         XXXXXXXX

A.1.2 Recreating Certificates - Sample Configuration

This section describes the sequence of steps to be performed to recreate certificates when OCCM or NF certificate configuration has been accepted.

To recreate certificates:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Certificate.
Click Edit under Actions for the certificate you want to recreate.

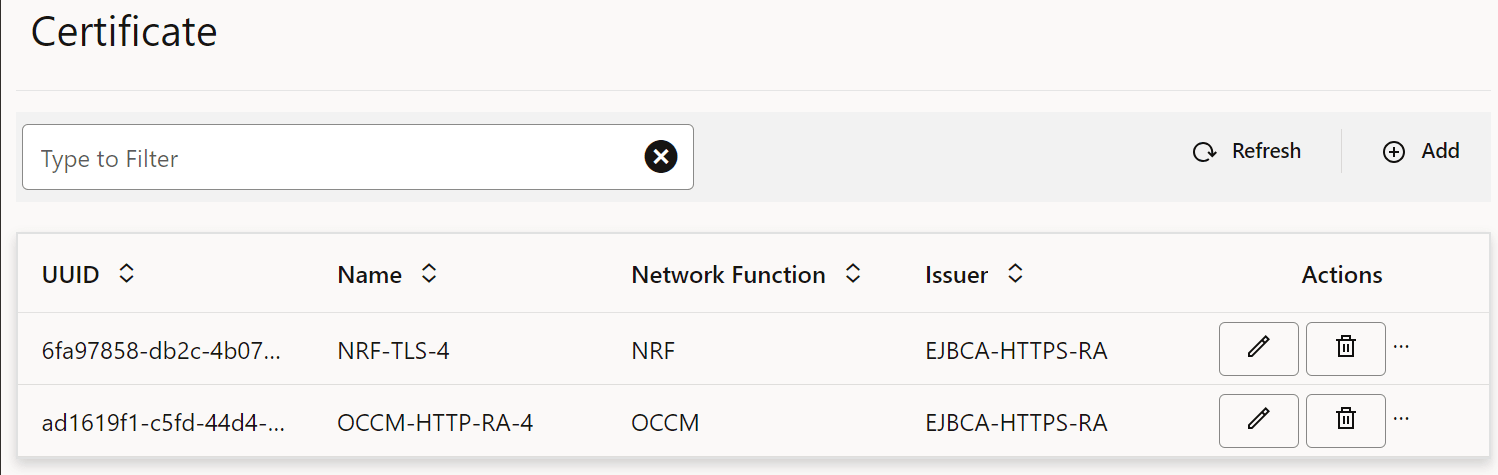

Figure -31 Certificate Page

The Recreate Certificate page appears. The configurations on this page are not editable.

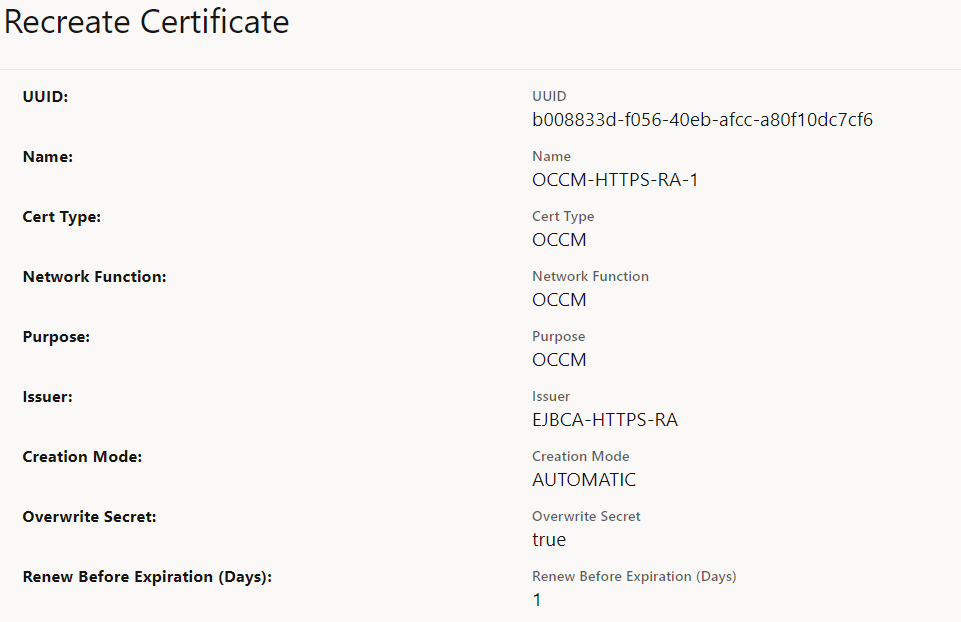

Figure -32 Recreate Certificate Page
On the Recreate Certificate page, click Save to trigger the recreate request.

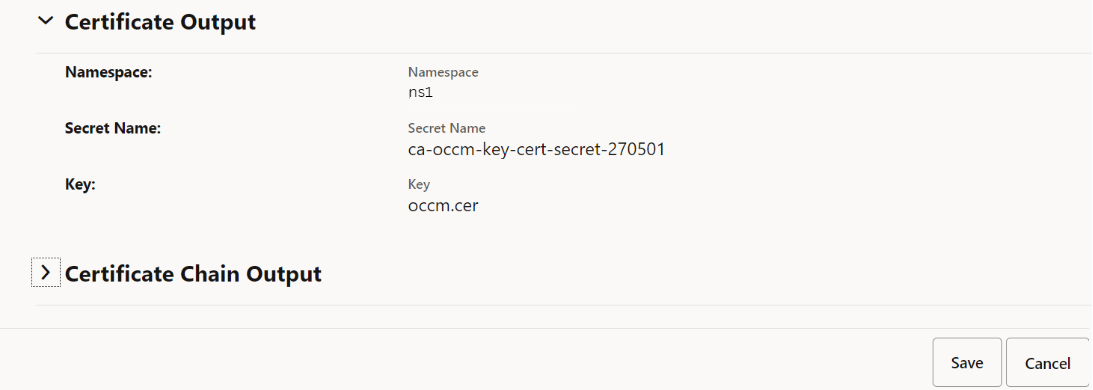

Figure -33 Click Save

When the recreate certificate request has been submitted, verify if the Kubernetes secret specified under private key output and certificate output has been recreated. Run the following command to verify the Kubernetes secret:

kubectl get secret <k8s-secret-name> -n <namespace> -o yaml

A sample response is as follows:

data:
  nrf.cer: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQ4ekNDQWx1Z0F3SUJBZ0lVSlgvNlBsVXFhaEJaYUVOcm.....
  nrfkey.pem: MHcCAQEEIHtK36V377+977+9akke77+9Xe+/ve+/vQMcHe+/vRXvv73vv70n77+9VO+/vVPvv73vv70RcE4577+9CgYIKu+/v.....
kind: Secret
metadata:
  creationTimestamp: "2024-05-03T11:05:08Z"
  name: nrf-tls-secret03052402
  namespace: ns1
  resourceVersion: "219805879"
  uid: 7e0d4bbf-291f-4fd2-a3d6-d42b8eff1994
type: Opaque

Check the Grafana dashboard to view the recreated certificate.
