3 UDR Benchmark Testing

This chapter describes UDR, SLF, and EIR test scenarios.

3.1 Test Scenario 1: SLF Call Deployment Model

This section provides information about SLF call deployment model test scenarios.

3.1.1 SLF Call Model: 34K TPS and 1.44K Provisioning TPS

This test scenario describes performance and capacity of SLF functionality offered by UDR and provides the benchmarking results for various deployment sizes.

The following features are enabled for this testcase:
  • Support for Default Group ID in SLF
  • Oauth2.0
  • Subscriber Activity Logging
  • Support for LCI and OCI Header
  • Overload Handling
  • Support for User-Agent Header
  • Alternate Route Service
You can perform benchmark tests on UDR/SLF for compute and storage resources by considering the following conditions:
  • Signaling (SLF Look Up): 34K TPS
  • Provisioning: 1.44K TPS
  • Total Subscribers: 50M
The following table describes the benchmarking parameters and their values:

Table 3-1 Traffic Model Details

Request Type Details TPS
Lookup 34K SLF Lookup GET Requests 34K
Provisioning (1.44k using Provisioning Gateway one site) CREATE 216
DELETE 216
UPDATE 504
GET 504
The following table describes the testcase parameters and their values:

Table 3-2 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 25.1.100
Target TPS 34K Lookup + 1.44K Provisioning
Traffic Profile SLF 34K Profile
UDR Response Timeout 2.7s
Client Timeout 10s
Signaling Requests Latency Recorded on Client 17ms
Provisioning Requests Latency Recorded on Client 45ms
The following table describes consolidated resource requirement and their utilization:

Table 3-3 Consolidated Resource Requirement

Resource CPU Memory Ephemeral Storage PVC
cnDBTier 134 495 GB 22 GB 640 GB
SLF 247 152 GB 38 GB NA
ProvGw 42 30 GB 10 GB NA
Buffer 50 50 GB 20 GB 200 GB
Total 473 739 GB 90 GB 840 GB

Note:

All values are inclusive of ASM sidecar.

The following table describes cnDBTier1 resources and their utilization:

Note:

  • The same resources and usage are applicable for cnDBTier2
  • For cnDBTier, you must use ocudr_slf_37msub_dbtier and ocudr_udr_10msub_dbtier custom value files for SLF and UDR respectively. For more information, see Oracle Communications Cloud Native Core, Unified Data Repository Installation, Upgrade, and Fault Recovery Guide.

Table 3-4 cnDBTier Resources and Usage

Microservice Name Container Name Number of Pods CPU Allocation Per Pod (cnDBTier1) Memory Allocation Per Pod (cnDBTier1) Ephemeral Storage Per Pod PVC Allocation Per Pod Total Resources (cnDBTier)
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB 1 GB 16 GB 6 CPUs

26 GB

Ephemeral Storage: 2 GB

PVC Allocation: 32 GB

istio-proxy 1 CPUs 4 GB
Data node (ndbmtd) mysqlndbcluster 6 4 CPUs 50 GB 1 GB 25 GB (Backup: 56 GB)

42 CPUs

336 GB

Ephemeral Storage: 6 GB

PVC Allocation: 486 GB

Data Memory: 25 GB

istio-proxy 2 CPUs 4 GB
db-backup-executor-svc 1 CPU 1 GB
APP SQL node (ndbappmysqld) mysqlndbcluster 9 4 CPUs 4 GB 1 GB 10 GB

63 CPUs

72 GB

Ephemeral Storage: 9 GB

PVC Allocation: 90 GB

istio-proxy 3 CPUs 4 GB
SQL node (Used for Replication) (ndbmysqld) mysqlndbcluster 2 4 CPUs 16 GB 1 GB 16 GB

13 CPUs

41 GB

Ephemeral Storage: 2 GB

PVC Allocation: 32 GB

istio-proxy 2 CPUs 4 GB
init-sidecar 100m CPU 256 MB
DB Monitor Service (db-monitor-svc) db-monitor-svc 1 4 CPUs 4 GB 1 GB NA

5 CPUs

5 GB

Ephemeral Storage: 1 GB

istio-proxy 1 CPUs 1 GB
DB Backup Manager Service (backup-manager-svc) backup-manager-svc 1 100m CPU 128 MB 1 GB NA

2 CPUs

2 GB

Ephemeral Storage: 1 GB

istio-proxy 1 CPU 1 GB
Replication Service (db-replication-svc) db-replication-svc 1 2 CPU 2 GB 1 GB 160 GB

3 CPUs

13 GB

Ephemeral Storage: 1 GB

istio-proxy 200m CPU 500MB
Additional cnDBTier configuration are as follows:
ndb:
  annotations:
    - sidecar.istio.io/inject: "true"
    - proxy.istio.io/config: "{concurrency: 8}"
    - sidecar.istio.io/proxyCPU: "2000m"
    - sidecar.istio.io/proxyCPULimit: "2000m"
    - sidecar.istio.io/proxyMemory: "4Gi"
    - sidecar.istio.io/proxyMemoryLimit: "4Gi"

mgm:
  annotations:
    - sidecar.istio.io/inject: "true"
    - proxy.istio.io/config: "{concurrency: 8}"
    - sidecar.istio.io/proxyCPU: "1000m"
    - sidecar.istio.io/proxyCPULimit: "1000m"
    - sidecar.istio.io/proxyMemory: "4Gi"
    - sidecar.istio.io/proxyMemoryLimit: "4Gi"

api:
  annotations:
    - sidecar.istio.io/inject: "true"
    - proxy.istio.io/config: "{concurrency: 8}"
    - sidecar.istio.io/proxyCPU: "2000m"
    - sidecar.istio.io/proxyCPULimit: "2000m"
    - sidecar.istio.io/proxyMemory: "4Gi"
    - sidecar.istio.io/proxyMemoryLimit: "4Gi"
  ndbapp:
    annotations:
      - sidecar.istio.io/inject: "true"
      - proxy.istio.io/config: "{concurrency: 8}"
      - sidecar.istio.io/proxyCPU: "3000m"
      - sidecar.istio.io/proxyCPULimit: "3000m"
      - sidecar.istio.io/proxyMemory: "4Gi"
      - sidecar.istio.io/proxyMemoryLimit: "4Gi"
The following table describes SLF resources and their utilization for Site1 (Lookup Latency: 10ms):

Table 3-5 SLF Resources and Usage

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources
Ingress-gateway-sig ingressgateway-sig 11 6 CPUs 4 GB

110 CPUs

55 GB Memory

Ephemeral Storage: 11 GB

istio-proxy 4 CPUs 1 GB
Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB

12 CPUs

10 GB

Ephemeral Storage: 2 GB

istio-proxy 2 CPUs 1 GB
Nudr-dr-service nudr-drservice 9 6 CPUs 4 GB

81 CPUs

45 GB

Ephemeral Storage: 9 GB

istio-proxy 3 CPUs 1 GB
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB

12 CPUs

10 GB

Ephemeral Storage: 2 GB

istio-proxy 2 CPUs 1 GB
Nudr-nrf-client-nfmanagement nrf-client-nfmanagement 2 1 CPU 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-egress-gateway egressgateway 2 1 CPUs 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-config nudr-config 2 2 CPUs 2 GB

6 CPUs

6 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-config-server nudr-config-server 2 2 CPUs 2 GB

6 CPUs

6 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
alternate-route alternate-route 2 1 CPUs 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
app-info app-info 2 1 CPUs 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
perf-info perf-info 2 1 CPUs 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB

Note:

The same resources and usage are used for Site2.

The following table describes provision gateway resources and their utilization (Provisioning Latency: 30ms):

Table 3-6 Provision Gateway Resources and Usage

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources
provgw-ingress-gateway ingressgateway 2 4 CPUs 4 GB

6 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-egress-gateway egressgateway 2 4 CPUs 4 GB

6 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-service provgw-service 2 4 CPUs 4 GB

8 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-config provgw-config 2 2 CPUs 2 GB

6 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-config-server provgw-config-server 2 2 CPUs 2 GB

6 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
The following table provides observation data for the performance test that can be used for the benchmark testing to scale up SLF performance:

Table 3-7 Result and Observation

Parameter Values
Test Duration 24hr
TPS Achieved 34K SLF Lookup + 1.44k Provisioning
Success Rate 100%
Average SLF processing time (Request and Response) 26ms

3.1.2 SLF Call Model: 50K lookup + 1.44K Provisioning TPS

This test scenario describes performance and capacity of SLF functionality offered by UDR and provides the benchmarking results for various deployment sizes.

The following features are enabled for SLF in this testcase:
  • OAuth2
  • Alternate Routing Service
  • Support for User-Agent Header
  • Overload Handling
  • Support for LCI and OCI Header
  • Auto Create
  • Network Function Scoring for a Site
  • Ingress Gateway Pod Protection
The following features are enabled for Provisioning Gateway in this testcase:
  • Auditor Service
  • Provgw global configuration
You can perform benchmark tests on SLF for compute and storage resources by considering the following conditions:
  • Signaling (SLF Look Up): 50K TPS
  • Provisioning: 144 TPS
  • Total Subscribers: 64M
  • Profile Size: 450 bytes
The following table describes the benchmarking parameters and their values:

Table 3-8 Traffic Model Details

Request Type Details TPS
Lookup 50k SLF Lookup GET Requests 50K
Provisioning (1.44K using Provgw) CREATE 216
DELETE 216
UPDATE 504
GET 504
The following table describes the testcase parameters and their values:

Table 3-9 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 25.1.100
Target TPS 50K Lookup + 1.44K Provisioning
Traffic Profile SLF 50K Profile
Notification Rate OFF
UDR Response Timeout 900ms
Client Timeout 30s
Signaling Requests Latency Recorded on Client 19ms
Provisioning Requests Latency Recorded on Client 42ms
The following table describes consolidated resource requirement and their utilization:

Table 3-10 Consolidated Resource Requirement

Resource CPU Memory Ephemeral Storage PVC
cnDBTier 134 453 GB 20 GB 1064 GB
SLF 384 225 GB 53 GB NA
ProvGw 45 45 GB 11 GB NA
Buffer 50 50 GB 50 GB 50 GB
Total 613 773 GB 134 GB 1114 GB

Note:

All values are inclusive of ASM sidecar.

Table 3-11 cnDBTier Resources and Usage

Microservice Name Container Name Number of Pods CPU Allocation Per Pod (cnDBtier1) Memory Allocation Per Pod (cnDBtier1) Ephemeral Storage Per Pod PVC Allocation Per Pod Total Resources (cnDBtier)
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 12 GB 1 GB 16 GB 6 CPUs

26 GB

Ephemeral Storage: 2 GB

PVC Allocation: 32 GB

istio-proxy 1 CPUs 1 GB
Data node (ndbmtd) mysqlndbcluster 6 4 CPUs 50 GB 1 GB 65 GB (Backup: 63 GB)

42 CPUs

324 GB

Ephemeral Storage: 6 GB

PVC Allocation: 768 GB

istio-proxy 2 CPUs 2 GB
db-backup-executor-svc 1 CPU 2 GB
APP SQL node (ndbappmysqld) mysqlndbcluster 7 6 CPUs 4 GB 1 GB 10 GB

63 CPUs

42 GB

Ephemeral Storage: 7 GB

PVC Allocation: 70 GB

istio-proxy 3 CPUs 2 GB
SQL node (Used for Replication) (ndbmysqld) mysqlndbcluster 2 4 CPUs 16 GB 1 GB 16 GB

13 CPUs

41 GB

Ephemeral Storage: 2 GB

PVC Allocation: 32 GB

istio-proxy 2 CPUs 4 GB
init-sidecar 100m CPU 256 MB
DB Monitor Service (db-monitor-svc) db-monitor-svc 1 4 CPUs 4 GB 1 GB NA

5 CPUs

5 GB

Ephemeral Storage: 1 GB

istio-proxy 1 CPUs 1 GB
DB Backup Manager Service (backup-manager-svc) backup-manager-svc 1 1 CPU 1 GB 1 GB NA

2 CPUs

2 GB

Ephemeral Storage: 1 GB

istio-proxy 1 CPUs 1 GB
Replication Service (db-replication-svc) db-replication-svc 1 2 CPU 12 GB 1 GB 160 GB

3 CPUs

13 GB

Ephemeral Storage: 1 GB

PVC Allocation: 160 GB

istio-proxy 200m CPU 500 MB
The following table describes SLF resources and their utilization for Site1 (Lookup Latency: 19ms):

Table 3-12 SLF Resources and Usage

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod Total Resources
Ingress-gateway-sig ingressgateway-sig 19 6 CPUs 4 GB 1 GB

190 CPUs

95 GB Memory

Ephemeral Storage: 19 GB

istio-proxy 4 CPUs 1 GB
Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB 1 GB

12 CPUs

10 GB

Ephemeral Storage: 2 GB

istio-proxy 2 CPUs 1 GB
Nudr-dr-service nudr-drservice 15 6 CPUs 4 GB 1 GB

135 CPUs

75 GB

Ephemeral Storage: 15 GB

istio-proxy 3 CPUs 1 GB
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB 1 GB

12 CPUs

10 GB

Ephemeral Storage: 2 GB

istio-proxy 2 CPUs 1 GB
Nudr-nrf-client-nfmanagement nrf-client-nfmanagement 2 1 CPU 1 GB 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-egress-gateway egressgateway 2 1 CPUs 1 GB 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-config nudr-config 2 2 CPUs 2 GB 1 GB

6 CPUs

6 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-config-server nudr-config-server 2 2 CPUs 2 GB 1 GB

6 CPUs

6 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
alternate-route alternate-route 2 1 CPUs 1 GB 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
app-info app-info 2 1 CPUs 1 GB 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
perf-info perf-info 2 1 CPUs 1 GB 1 GB

4 CPUs

4 GB

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
Nudr-dbcr-auditor nudr-dbcr-auditor-service 1 2 CPUs 2 GB 1 GB

3 CPUs

3 GB

Ephemeral Storage: 1 GB

istio-proxy 1 CPUs 1 GB

Note:

The same resources and usage are used for Site2.

Table 3-13 Provision Gateway Resources and their utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod Total Resources
provgw-ingress-gateway ingressgateway 2 4 CPUs 4 GB 1 GB

10 CPUs

10 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-egress-gateway egressgateway 2 4 CPUs 4 GB 1 GB

10 CPUs

10 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-service provgw-service 2 4 CPUs 4 GB 1 GB

10 CPUs

10 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-config provgw-config 2 2 CPUs 2 GB 1 GB

6 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-config-server provgw-config-server 2 2 CPUs 2 GB 1 GB

6 CPUs

6 GB Memory

Ephemeral Storage: 2 GB

istio-proxy 1 CPUs 1 GB
provgw-auditor-service auditor-service 1 2 CPUs 2 GB 1 GB

3 CPUs

3 GB Memory

Ephemeral Storage: 1 GB

istio-proxy 1 CPU 1 GB
The following table provides observation data for the performance test that can be used for the benchmark testing to scale up SLF performance:

Table 3-14 Result and Observation

Parameter Values
Test Duration 24hr
TPS Achieved 50K SLF Lookup + 1.44K Provisioning
Success Rate 100%
Average SLF processing time for signaling requests 19ms
Average SLF processing time for provisioning requests 42ms

3.2 Test Scenario 2: EIR 10k TPS and 10k Diameter S13 Interface TPS

This test scenario describes performance and capacity improvements of EIR functionality offered by UDR and provides the benchmarking results for various deployment sizes.

The following features are enabled for this testcase:
  • Overload Handling
  • Ingress Gateway Pod Protection
  • Network Policy
  • Diameter Gateway Pod Congestion Control

EIR is benchmarked for compute and storage resources under following conditions:

  • EIR Look Up: 20k
  • Total Subscribers: 1M
  • Profile Size: 130 bytes

The following table describes the benchmarking parameters and their values:

Table 3-15 Traffic Model Details

Request Type Details TPS
EIR GET N17 GET Request 10k
ECR message Diameter S13 Interface ECR 10k

The following table describes the testcase parameters and their values:

Table 3-16 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 24.3.0
Target TPS 20k Lookup
Traffic Profile 20k
EIR Response Timeout 2.7s
Client Timeout 10s
N17 Latency: 6.2 ms
S13 Latency 11 ms
The following table describes cnDBTier resources and their utilization:

Table 3-17 cnDBTier Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod (cnDBTier1) Total Resources (cnDBTier1)
Management node mysqlndbcluster 2 2 CPUs 11.25 GB

4 CPU

23 GB Memory

Ephemeral Storage: 2 GB

PVC Allocation: 32 GB

Data node mysqlndbcluster 4 4 CPUs 33 GB

16 CPU

132 GB Memory

Ephemeral Storage: 4 GB

PVC Allocation: 324 GB

APP SQL node mysqlndbcluster 5 4 CPUs 4 GB

20 CPU

20 GB Memory

Ephemeral Storage: 5 GB

PVC Allocation: 50 GB

SQL node (Used for Replication) mysqlndbcluster 2 4 CPUs 16 GB

8 CPU

32 GB Memory

Ephemeral Storage: 2 GB

PVC Allocation: 32 GB

DB Monitor Service (db-monitor-svc) db-monitor-svc 1 4 CPUs 4 GB

4 CPUs

4 GB Memory

Ephemeral Storage: 1 GB

DB Backup Manager Service (backup-manager-svc) backup-manager-svc 1 100m CPUs 128 MB

100m CPUs

128 MB Memory

Ephemeral Storage: 1 GB

Replication Service (db-replication-svc) db-replication-svc 1 2 CPU 2 GB

2 CPUs

2 MB Memory

Ephemeral Storage: 1 GB

The following table describes EIR resources and their utilization:

Table 3-18 EIR Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod Total Resources
Ingress-gateway-sig Ingress-gateway-sig 4 6 CPUs 4 GB 1 GB

24 CPUs

16 GB Memory

Ephemeral Storage: 4 GB

Ingress-gateway-prov Ingress-gateway-prov 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB Memory

Ephemeral Storage: 2 GB

Nudr-dr-service nudr-drservice 3 6 CPUs 4 GB 1 GB

18 CPUs

12 GB Memory

Ephemeral Storage: 3 GB

Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB Memory

Ephemeral Storage: 2 GB

Nudr-diam-gateway nudr-diam-gateway 2 6 CPUs 4 GB 1 GB

12 CPUs

8 GB Memory

Ephemeral Storage: 2 GB

Nudr-diameterproxy nudr-diameterproxy 8 6 CPUs 4 GB 1 GB

48 CPUs

32 GB Memory

Ephemeral Storage: 8 GB

Nudr-config nudr-config 2 1 CPUs 1 GB 1 GB

2 CPUs

2 GB Memory

Ephemeral Storage: 2 GB

Nudr-config-server nudr-config-server 2 1 CPUs 1 GB 1 GB

2 CPU

2 GB Memory

Ephemeral Storage: 2 GB

Alternate-route alternate-route 2 1 CPUs 1 GB 1 GB

2 CPU

2 GB Memory

Ephemeral Storage: 2 GB

Nudr-nrf-client-nfmanagement-service nrf-client-nfmanagement 2 1 CPUs 1 GB 1 GB

2 CPU

2 GB Memory

Ephemeral Storage: 2 GB

App-info app-info 2 1 CPUs 1 GB 1 GB

2 CPU

2 GB Memory

Ephemeral Storage: 2 GB

Perf-info perf-info 2 1 CPUs 1 GB 1 GB

2 CPU

2 GB Memory

Ephemeral Storage: 2 GB

Nudr-dbcr-auditor-service nudr-dbcr-auditor-service 1 1 CPUs 1 GB 1 GB

1 CPU

1 GB Memory

Ephemeral Storage: 1 GB

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up EIR performance:

Table 3-19 Result and Observation

Parameter Values
Test Duration 12hrs
TPS Achieved 20k
Success Rate 100%
Average EIR processing time (Request and Response) 9 ms

3.3 Test Scenario 3: SOAP and Diameter Deployment Model

2K SOAP provisioning TPS for ProvGw for Medium profile + Diameter 25K with Large profile

The following features are disabled for this testcase:
  • TLS
  • OAuth2.0
  • Header Validations like XFCC, server header, and user agent header

UDR is benchmarked for compute and storage resources under following conditions:

  • Signaling : 10K TPS
  • Provisioning: 2K TPS
  • Total Subscribers: 1M - 10M range used for Diameter Sh and 1M range used for SOAP/XML
  • Profile Size: 2.2KB
  • Average HTTP Provisioning Request Packet Size: NA
  • Average HTTP Provisioning Response Packet Size: NA

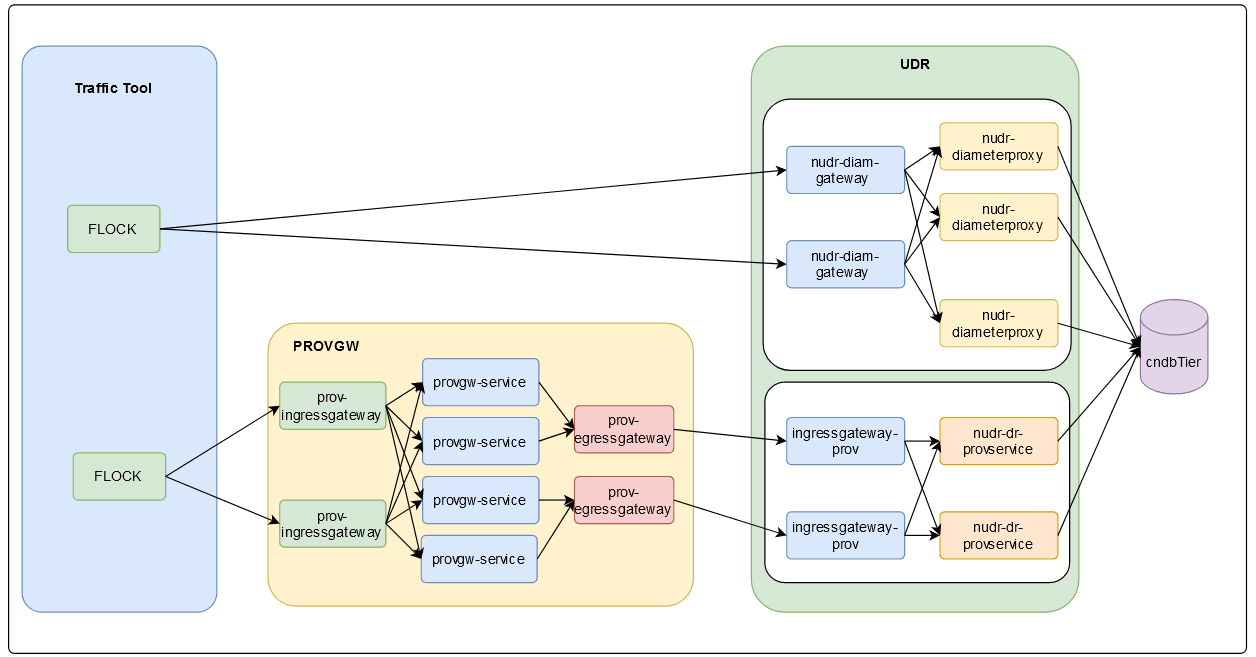

Figure 3-1 SOAP and Diameter Deployment Model


SOAP and Diameter Deployment Model

The following table describes the benchmarking parameters and their values:

Table 3-20 Traffic Model Details

Request Type Details TPS
Diameter SH Traffic SH Traffic 25K
Provisioning (2K using Provgw) SOAP Traffic 2K

Table 3-21 SOAP Traffic Model

Request Type SOAP Traffic %
GET 33%
DELETE 11%
POST 11%
PUT 45%

Table 3-22 Diameter Traffic Model

Request Type Diameter Traffic %
SNR 25%
PUR 50%
UDR 25%

The following table describes the benchmarking parameters and their values:

Table 3-23 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 22.2.0
Target TPS 25K + 2K
Traffic Profile 25K sh + 2K SOAP
Notification Rate OFF
UDR Response Timeout 5s
Client timeout 10s
Signaling Requests Latency Recorded on Client NA
Provisioning Requests Latency Recorded on Client NA

Note:

PNR scenarios are not tested because server stub is not used.
The following table describes cnDBTier resources and their utilization:

Table 3-24 cnDBTier Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
Management node mysqlndbcluster 3 4 CPUs 10 GB

12 CPUs

30 GB Memory

 0.2 CPU/pod .2 GB/pod
Data node mysqlndbcluster 4 15 CPUs 98 GB

64 CPU

408 GB Memory

 5.8 CPU/pod 92 GB/pod
db-backup-executor-svc 100m CPU 128 MB NA NA
APP SQL node mysqlndbcluster 4 16 CPUs 16 GB

64 CPUs

64 GB Memory

 9.5 CPU/pod 8.8 GB/pod
SQL node (Used for Replication) mysqlndbcluster 4 8 CPUs 16 GB

49 CPUs

81 GB Memory

 Utilization data is not available for this service because of resource constraints, pods are not used.
DB Monitor Service db-monitor-svc 1 200m CPUs 500 MB

3 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured
DB Backup Manager Service replication-svc 1 200m CPU 500 MB

3 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured

cnDBTier Usage

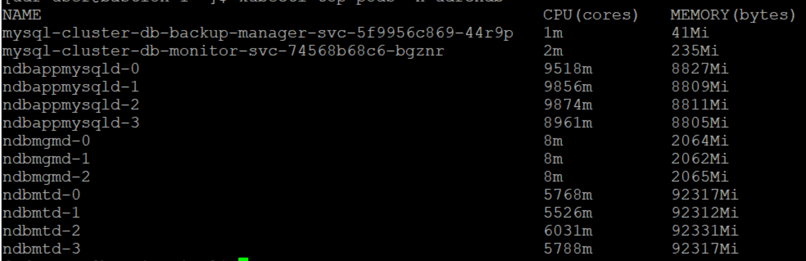

Results for Kubectl top pods on cndbtier is shown below:
Results for Kubectl top pods on cndbtier

Results for Kubectl get hpa on cndbtier is shown below:
Results for Kubectl get hpa on cndbtier

cnDBTier Metrics:
  • Data memory usage: 72GB (5.164GB used)
  • DB Reads per second: 52k
  • DB Writes per second: 24k
The following table describes UDR resources and their utilization:

Table 3-25 UDR Resources and their Utilization (Request Latency: 40ms)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
nudr-diameterproxy nudr-diameterproxy 19 2.5 CPUs 4 GB

47.5 CPUs

76 GB Memory

 1.75 CPU/pod 1 GB/pod
nudr-diam-gateway nudr-diam-gateway 3 6 CPUs 4 GB

18 CPUs

12 GB Memory

 .2.5 CPU/pod 2 GB/pod
Ingress-gateway-sig ingressgateway-sig 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 Minimal resources are used. Utilization is not captured
Ingress-gateway-prov ingressgateway-prov 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 1 CPU/pod 1 GB/pod
Nudr-dr-service nudr-drservice 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-dr-provservice nudr-dr-provservice 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 1.4 CPU/pod 1 GB/pod
Nudr-nrf-client-nfmanagement nrf-client-nfmanagement 2 1 CPUs 1 GB

2 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-egress-gateway egressgateway 2 2 CPUs 2 GB

4 CPU

4 GB Memory

 Minimal resources are used. Usage is not captured
Nudr-config nudr-config 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Utilization is not captured
Nudr-config-server nudr-config-server 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Utilization is not captured
alternate-route alternate-route 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Usage is not captured
app-info app-info 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Utilization is not captured
perf-info perf-info 2 1 CPUs 1 GB

2 CPU

2 GB Memory

 Minimal resources are used. Usage is not captured

Resource Utilization

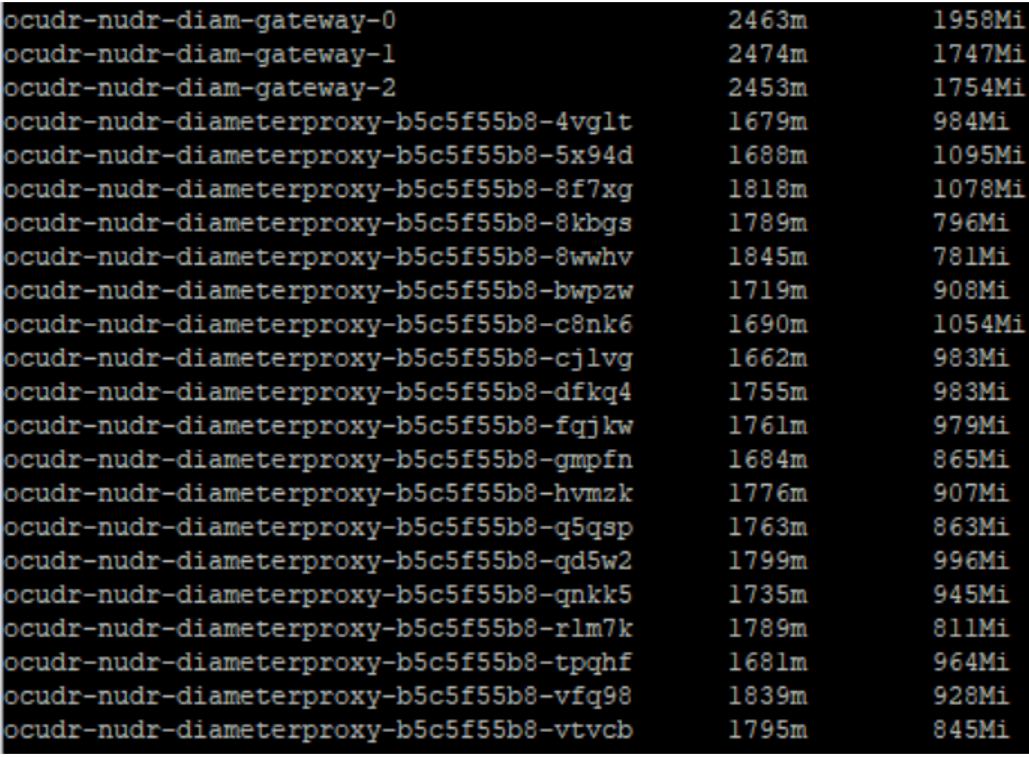

Diameter resource utilization is shown below:
Diameter Usage

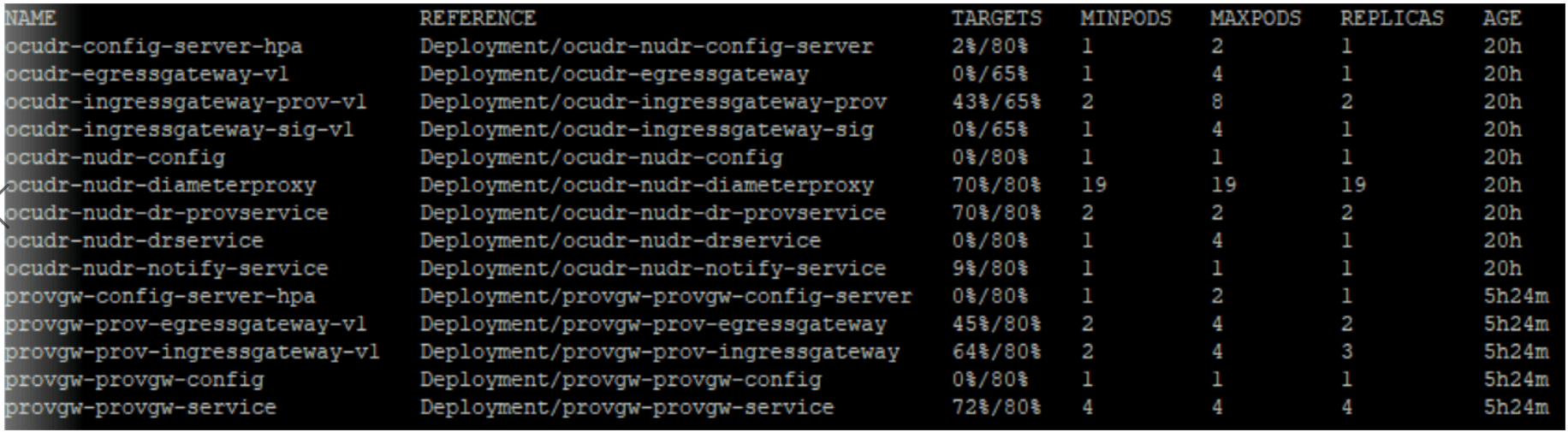

UDR HPA resource utilization is shown below:
UDR HPA

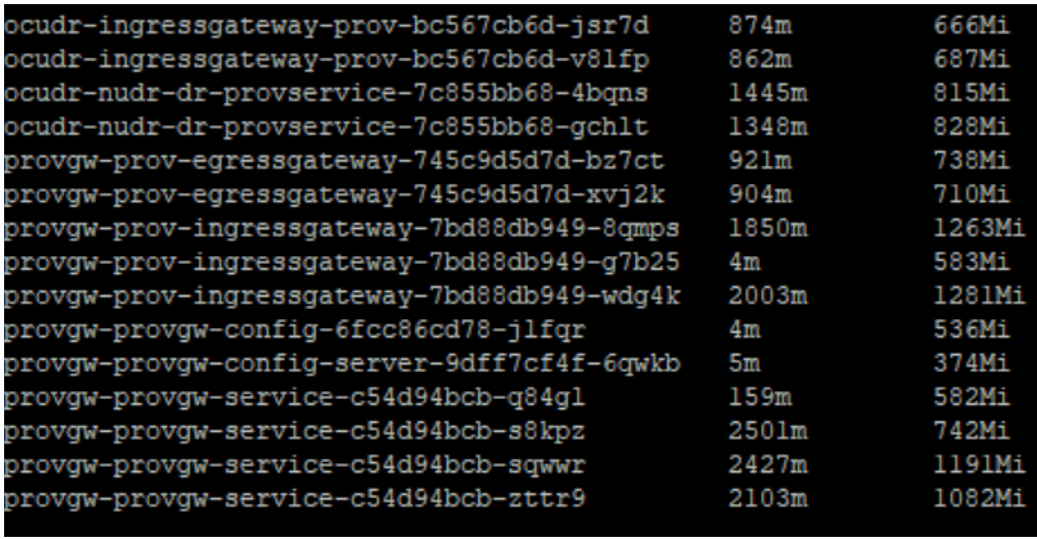

The following table describes provision gateway resources and their utilization:

Table 3-26 Provision Gateway Resources aand their Utilization (Provisioning Request Latency: 40ms)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage
provgw-ingress-gatewa ingressgateway 3 2 CPUs 2 GB

6 CPUs

6 GB Memory

 1.3 CPU/pod 1 GB/pod
provgw-egress-gateway egressgateway 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

 .0.9 CPU/pod 700 Mi/pod
provgw-service provgw-service 4 2.5 CPUs 3 GB

10 CPUs

12 GB Memory

 1.75 CPU/pod 1 GB/pod
provgw-config provgw-config 2 1 CPUs 1 GB

2 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured
provgw-config-server provgw-config-server 2 1 CPUs 1 GB

2 CPUs

2 GB Memory

 Minimal resources are used. Utilization is not captured

Provisioning Gateway resource utilization is shown below:
ProvGW Usage

Resources calculation for UDR, Provisioning Gateway, and cnDbTier are shown below:

Table 3-27 cnUDR and ProvGw Resources Calculation

Resources cnUDR ProvGw
  Core services used for traffic runs (Nudr-diamgw, Nudr-diamproxy, Nudr-ingressgateway-prov and Nudr-dr-prov) at 70% usage Other Microservices Total Core services used for traffic runs (ProvGw-ingressgateway, ProvGw-provgw service and ProvGw-egressgateway) at 70% usage Other Microservice Total
CPU 73.5 24 97.5 20 4 24
Memory in GB 96 24 120 22 4 26
Disk Volume (Ephemeral storage) in GB 26 16 42 9 4 13

Table 3-28 cnDbTier Resources Calculation

Resources cnDbTier
  SQL nodes (at actual usage) SQL Nodes (Overhead/ Buffer resources at 20%) Data nodes (at actual usage) Data nodes (Overhead/ Buffer resources at 10%) MGM nodes and other resources (Default resources) Total
CPU 76 16 23.2 5 18 138.5
Memory in GB 70.4 14 368 36 34 522
Disk Volume (Ephemeral storage) in GB 8 NA 960 (ndbdisksize= 240*4) NA 20 988

Table 3-29 Total Resources Calculation

Resources Total
CPU 260
Memory in GB 668 GB
Disk Volume (Ephemeral storage) in GB 104 GB

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-30 Result and Observation

Parameter Values
Test Duration 18hr
TPS Achieved 10K
Success Rate 100%
Average UDR processing time (Request and Response) 40ms

3.4 Test Scenario 4: Policy Data Traffic Deployment Model

This section provides information about policy data traffic deployment model test scenarios.

3.4.1 Policy Data: 17.2K N36, 300 TPS Notifications and 500 TPS Provisioning

You can perform benchmark tests on UDR for compute and storage resources by considering the following conditions:

  • Signaling : 17.2K
  • Provisioning: 500 TPS
  • Total Subscribers: 10M

The following table describes the benchmarking parameters and their values:

Table 3-31 Traffic Model Details

Request Type Details TPS
N36 traffic (100%) 17.2K TPS for sm-data and subs-to-notify POST/DELETE subs-to-notify POST 3K (17.45%)
sm-data GET 4.7K (27.3%)
subs-to-notify DELETE 3K (17.45%)
sm-data PATCH 6.5K (37.8%)
500 TPS PROVISIONING

Policy Data PUT Operation

 UPDATE 300 (60%)
GET 100 (40%)
CREATE 50 (10%)
DELETE 50 (10%)
NOTIFICATIONS (triggered from 300 PUT provisioning traffic) POST Operation (Egress) 300
The following table describes the test case parameters and their values:

Table 3-32 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 24.2.0
Target TPS 17.2K Signaling
Notification Rate 300
UDR Response Timeout 2700ms
Signaling Requests Latency Recorded on Client 19ms
Provisioning Requests Latency Recorded on Client 24ms

Table 3-33 Consolidated Resource Requirement

Resource CPU Memory Ephemeral Storage PVC
cnDBTier 92 CPUs 485 GB 21 GB 1404 GB
UDR 215 CPUs 156 GB 48 GB NA
Buffer 50 CPUs 50 GB 20 GB 200 GB
Total 357 CPUs 691 GB 89 GB 1604 GB
The following table describes cnDBTier resources and their utilization:

Table 3-34 cnDBTier Resources and their Utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod PVC Allocation Per Pod Total Resources PVC Usage
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB 1 GB 15 GB

4 CPUs

18 GB

Ephemeral Storage: 2 GB

PVC Allocation: 30 GB

70 MB/pod
Data node (ndbmtd) mysqlndbcluster 4 4 CPUs 93 GB 1 GB 132 GB

Backup: 164 GB

16 CPUs

372 GB

Ephemeral Storage: 4 GB

PVC Allocation: 1184 GB

33 GB/pod
APP SQL node (ndbappmysqld) mysqlndbcluster 10 6 CPUs 4 GB 1 GB 2 GB

60 CPUs

40 GB

Ephemeral Storage: 10 GB

PVC Allocation: 20 GB

200 MB/pod
SQL node (ndbmysqld,used for replication) mysqlndbcluster 2 4 CPUs 24 GB 1 GB 13 GB

8 CPUs

48 GB

Ephemeral Storage: 2 GB

PVC Allocation: 26 GB

2 GB/pod
DB Monitor Service db-monitor-svc 1 4 CPUs 4 GB 1 GB NA

4 CPU

4 MB

Ephemeral Storage: 1 GB

Minimal resources used
DB Backup Manager Service backup-manager-svc 1 100 millicores CPUs 128 MB 1 GB NA

1 CPU

128 MB

Ephemeral Storage: 1 GB

Minimal resources used
Replication service (Multi site cases) replication-svc 1 2 CPUs 2 GB 1 GB 143 GB

2 CPUs

2 GB

Ephemeral Storage: 1 GB

PVC Allocation: 143 GB

NA
The following table describes UDR resources and their utilization:

Table 3-35 UDR Resources and their Utilization (Average Latency: 19ms for N36 and 24ms for Provisioning)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod Total Resources
Ingress-gateway-sig ingressgateway-sig 9 6 CPUs 4 GB 1 GB

54 CPUs

36 GB

Ephemeral Storage: 9 GB

Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

Nudr-dr-service nudr-drservice 17 6 CPUs 4 GB 1 GB

102 CPUs

68 GB

Ephemeral Storage: 17 GB

Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

Nudr-notify-service nudr-notify-service 3 6 CPUs 5 GB 1 GB

18 CPUs

15 GB

Ephemeral Storage: 3 GB

Nudr-egress-gateway egressgateway 2 6 CPUs 4 GB 1 GB

12 CPUs

8 GB

Ephemeral Storage: 2 GB

Nudr-config nudr-config 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Nudr-config-server nudr-config-server 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Alternate-route alternate-route 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Nudr-nrf-client-nfmanagement-service nrf-client-nfmanagement 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

App-info app-info 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Perf-info perf-info 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Nudr-dbcr-auditor-service nudr-dbcr-auditor-service 1 1 CPU 1 GB 1 GB

1 CPU

1 GB

Ephemeral Storage: 1 GB

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-36 Result and Observation

Parameter Values
Test Duration 4h30m
TPS Achieved 17.2K Signaling
Success rate 100%

3.5 Test Scenario 5: 25K N36 and 1.3K Provisioning Profile (600 SOAP and 700 REST)

You can perform benchmark tests on UDR for compute and storage resources by considering the following conditions:

  • Signaling: 25K TPS
  • Provisioning: 1.3K
  • Total Subscribers: 35M
The following features are enabled for this testcase:
  • Auto Enrollment and Auto Create Features
  • Overload Handling
  • ETag (Entity Tag)
  • Ingress Gateway Pod Protection
  • Support for User-Agent Header
  • 3gpp-Sbi-Correlation-Info Header
  • Suppress Notification

The following table describes the benchmarking parameters and their values:

Table 3-37 Traffic Model Details

Request Type Details TPS
N36 traffic 25K TPS subs-to-notify POST 5K (20%)
sm-data GET 5K (20%)
subs-to-notify DELETE 5K (20%
sm-data PATCH 10K (40%)
SOAP PROVISIONING 600 TPS GET 100
UPDATE QUOTA 50
UPDATE DYNAMIC QUOTA 50
UPDATE STATE 100
UPDATE SUBSCRIBER 100
CREATE SUBSCRIBER 100
DELETE SUBSCRIBER 100
REST PROVISIONING 700 TPS DELETE (Cleaning the auto provisioned subscribers) 700
The following table describes the test case parameters and their values:

Table 3-38 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 25.1.100
Target TPS 25K TPS Signaling
Notification Rate 300
UDR Response Timeout 2.7s
Signaling Requests Latency Recorded on Client 25ms
Provisioning Requests Latency Recorded on Client 25ms

Table 3-39 Consolidated Resource Requirement

Resource CPU Memory Ephemeral Storage PVC
cnDBTier 143 CPUs 640 GB 29 GB 1875 GB
UDR 247 CPUs 184 GB 55 GB NA
Buffer 50 CPUs 50 GB 20 GB 200 GB
Total 440 CPUs 814 GB 104 GB 2075 GB
The following table describes cnDBTier resources and their utilization:

Table 3-40 cnDBTier Resources and their Utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod PVC Allocation Per Pod Total Resources CPU Usage Memory Usage PVC Usage
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB 1 GB 15 GB

4 CPUs

18 GB

Ephemeral Storage: 2 GB

PVC Allocation: 30 GB

Minimal resources are used. 0.032MB/pod
Data node (ndbmtd) mysqlndbcluster 4 4 CPUs 124 GB 1 GB 132 GB

Backup: 220 GB

16 CPUs

496 GB

Ephemeral Storage: 4 GB

PVC Allocation: 1408 GB

2.2 CPU/pod 113 GB/pod 5.97GB/pod
APP SQL node (ndbappmysqld) mysqlndbcluster 18 6 CPUs 4 GB 1 GB 4 GB

108 CPUs

72 GB

Ephemeral Storage: 18 GB

PVC Allocation: 72 GB

3.6 CPU/pod 0.8 GB/pod 221MB/pod
SQL node (ndbmysqld,used for replication) mysqlndbcluster 2 4 CPUs 24 GB 1 GB 110 GB

8 CPUs

48 GB

Ephemeral Storage: 2 GB

PVC Allocation: 220 GB

Minimal resources are used. Minimal resources are used.
DB Monitor Service (db-monitor-svc) db-monitor-svc 1 4 CPUs 4 GB 1 GB NA

4 CPU

4 MB

Ephemeral Storage: 1 GB

Minimal resources are used. Minimal resources used
DB Backup Manager Service (backup-manager-svc) backup-manager-svc 1 100 millicores CPUs 128 MB 1 GB NA

1 CPU

128 MB

Ephemeral Storage: 1 GB

Minimal resources are used. Minimal resources used
Replication service (Multi site cases) replication-svc 1 2 CPUs 2 GB 1 GB 143 GB

2 CPUs

2 GB

Ephemeral Storage: 1 GB

PVC Allocation: 143 GB

Minimal resources used NA

Note: Tested in single site deployment
The following table describes UDR resources and their utilization:

Table 3-41 UDR Resources and their Utilization (Average Latency: 41ms for N36 and Provisioning)

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod Total Resources CPU Usage Memory Usage CPU Utilization
Ingress-gateway-sig ingressgateway-sig 13 6 CPUs 4 GB 1 GB

78 CPUs

52 GB

Ephemeral Storage: 13 GB

2.4 CPU/pod 2.5 GB/pod 40%
Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

0.9 CPUs/pod 2.2 GB/pod 21%
Nudr-dr-service nudr-drservice 20 6 CPUs 4 GB 1 GB

120 CPUs

80 GB

Ephemeral Storage: 20 GB

3.3 CPUs/pod 1.9 GB/pod 55%
Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

2.4 CPUs/pod 1.8 GB/pod 40%
Nudr-notify-service nudr-notify-service 3 6 CPUs 5 GB 1 GB

18 CPUs

15 GB

Ephemeral Storage: 3 GB

Minimal resources are used.
Nudr-egress-gateway egressgateway 2 6 CPUs 4 GB 1 GB

12 CPUs

8 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
Nudr-config nudr-config 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
Nudr-config-server nudr-config-server 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
Alternate-route alternate-route 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
Nudr-nrf-client-nfmanagement-service nrf-client-nfmanagement 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
App-info app-info 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
Perf-info perf-info 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Minimal resources are used.
Nudr-dbcr-auditor-service nudr-dbcr-auditor-service 1 1 CPU 1 GB 1 GB

1 CPU

1 GB

Ephemeral Storage: 1 GB

Minimal resources are used.
The following table describes Provisioning Gateway resources and their utilization:

Table 3-42 Provisioning Gateway Resources and their Utilization

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Total Resources CPU Usage Memory Usage CPU Utilization
provgw-ingress-gateway ingressgateway 2 4 CPUs 4 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

430m CPU/pod 1.3 GB/pod 11%
provgw-egress-gateway egressgateway 2 4 CPUs 4 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

520m CPU/pod 1 GB/pod 13%
provgw-service provgw-service 4 2 CPUs 2 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

460m CPU/pod 1 GB/pod 22%
provgw-config provgw-config 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

Ephemeral Storage: 2 GB

Minimal resources are used. Utilization data is not captured.
provgw-config-server provgw-config-server 2 2 CPUs 2 GB

4 CPUs

4 GB Memory

Ephemeral Storage: 2 GB

Minimal resources are used. Utilization data is not captured.
The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-43 Result and Observation

Parameter Values
Test Duration 6h
TPS Achieved 25K Signaling
Success rate 100%

3.6 Test Scenario 6: 17.2K N36 + 10K SH and 1.2K Provisioning Profile (600 SOAP and 600 REST)

You can perform benchmark tests on UDR for compute and storage resources by considering the following conditions:

  • Signaling : 17.2K N36 + 10K SH
  • Provisioning: 1.2K
  • Total Subscribers: 35M
The following features are enabled for this testcase:
  • Auto Enrollment and Auto Create Features
  • Overload Handling
  • ETag (Entity Tag)
  • Ingress Gateway Pod Protection
  • Support for User-Agent Header
  • 3gpp-Sbi-Correlation-Info Header
  • Suppress Notification
  • Subscriber Activity Logging
  • Diameter Gateway Pod Congestion Control

The following table describes the benchmarking parameters and their values:

Table 3-44 Traffic Model Details

Request Type Details TPS
N36 17.2K TPS subs-to-notify POST 3.6K (20%)
sm-data GET 3.6K (20%)
subs-to-notify DELETE 3.6K (20%)
sm-data PATCH 6.4K (40%)
SH 10K TPS UDR 4K
PUR 1.2K
SNR 4.8K
SH PNR 700 TPS PNR 700
SOAP PROVISIONING 600 TPS GET 100
UPDATE QUOTA 50
UPDATE DYNAMIC QUOTA 50
UPDATE STATE 100
UPDATE SUBSCRIBER 100
CREATE SUBSCRIBER 100
DELETE SUBSCRIBER 100
REST PROVISIONING 600 TPS DELETE (Cleaning auto provisioned subscribers) 600
The following table describes the test case parameters and their values:

Table 3-45 Testcase Parameters

Input Parameter Details Configuration Values
UDR Version Tag 24.3.0
Target TPS 17.2K N36 + 10K SH
Notification Rate 700
UDR Response Timeout 2.7s
Signaling Requests Latency Recorded on Client 36ms
Provisioning Requests Latency Recorded on Client 36ms
Diameter (SH) Requests Latency Recorded on Client 40ms

Table 3-46 Consolidated Resource Requirement

Resource CPU Memory Ephemeral Storage PVC
cnDBTier 97 CPUs 609 GB 21 GB 1815 GB
UDR 215 CPUs 155 GB 48 GB NA
Buffer 50 CPUs 50 GB 20 GB 200 GB
Total 362 CPUs 814 GB 89 GB 2015 GB
The following table describes cnDBTier resources and their utilization:

Table 3-47 cnDBTier Resources and their Utilization

Microservice name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod PVC Allocation Per Pod Total Resources
Management node (ndbmgmd) mysqlndbcluster 2 2 CPUs 9 GB 1 GB 15 GB

4 CPUs

18 GB

Ephemeral Storage: 2 GB

PVC Allocation: 30 GB

Data node (ndbmtd) mysqlndbcluster 4 4 CPUs 124 GB 1 GB 132 GB

Backup: 220 GB

16 CPUs

496 GB

Ephemeral Storage: 4 GB

PVC Allocation: 1408 GB

APP SQL node (ndbappmysqld) mysqlndbcluster 14 6 CPUs 4 GB 1 GB 4 GB

84 CPUs

56 GB

Ephemeral Storage: 14 GB

PVC Allocation: 20 GB

SQL node (ndbmysqld,used for replication) mysqlndbcluster 2 4 CPUs 24 GB 1 GB 110 GB

8 CPUs

48 GB

Ephemeral Storage: 2 GB

PVC Allocation: 220 GB

DB Monitor Service db-monitor-svc 1 4 CPUs 4 GB 1 GB NA

4 CPU

4 MB

Ephemeral Storage: 1 GB

DB Backup Manager Service backup-manager-svc 1 100 millicores CPUs 128 MB 1 GB NA

1 CPU

128 MB

Ephemeral Storage: 1 GB

Replication service (Multi site cases) replication-svc 1 2 CPUs 2 GB 1 GB 143 GB

2 CPUs

2 GB

Ephemeral Storage: 1 GB

PVC Allocation: 143 GB

The following table describes UDR resources and their utilization:

Table 3-48 UDR Resources and their Utilization (Average Latency: 36ms for N36 and Provisioning. Diameter (SH) is 40ms.

Micro service name Container name Number of Pods CPU Allocation Per Pod Memory Allocation Per Pod Ephemeral Storage Per Pod Total Resources
Ingress-gateway-sig ingressgateway-sig 9 6 CPUs 4 GB 1 GB

54 CPUs

36 GB

Ephemeral Storage: 9 GB

Ingress-gateway-prov ingressgateway-prov 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

Nudr-dr-service nudr-drservice 17 6 CPUs 4 GB 1 GB

102 CPUs

68 GB

Ephemeral Storage: 17 GB

Nudr-dr-provservice nudr-dr-provservice 2 4 CPUs 4 GB 1 GB

8 CPUs

8 GB

Ephemeral Storage: 2 GB

Nudr-notify-service nudr-notify-service 3 6 CPUs 5 GB GB

18 CPUs

15 GB

Ephemeral Storage: 3 GB

Nudr-egress-gateway egressgateway 2 6 CPUs 4 GB 1 GB

12 CPUs

8 GB

Ephemeral Storage: 2 GB

Nudr-diam-gateway nudr-diam-gateway 2 6 CPUs 5 GB 1 GB

12 CPUs

10 GB

Ephemeral Storage: 2 GB

Nudr-diameterproxy nudr-diameterproxy 9 6 CPUs 4 GB 1 GB

54 CPUs

36 GB

Ephemeral Storage: 9 GB

Nudr-config nudr-config 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Nudr-config-server nudr-config-server 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Alternate-route alternate-route 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Nudr-nrf-client-nfmanagement-service nrf-client-nfmanagement 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

App-info app-info 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Perf-info perf-info 2 1 CPU 1 GB 1 GB

2 CPUs

2 GB

Ephemeral Storage: 2 GB

Nudr-dbcr-auditor-service nudr-dbcr-auditor-service 1 1 CPU 1 GB 1 GB

1 CPU

1 GB

Ephemeral Storage: 1 GB

The following table provides observation data for the performance test that can be used for the benchmark testing to scale up UDR performance:

Table 3-49 Result and Observation

Parameter Values
Test Duration 72h
TPS Achieved 17.2K N36 + 10K SH
Success rate 100%
