2 Deployment Environment
This section provides information about the cloud native infrastructure used for SEPP benchmarking.

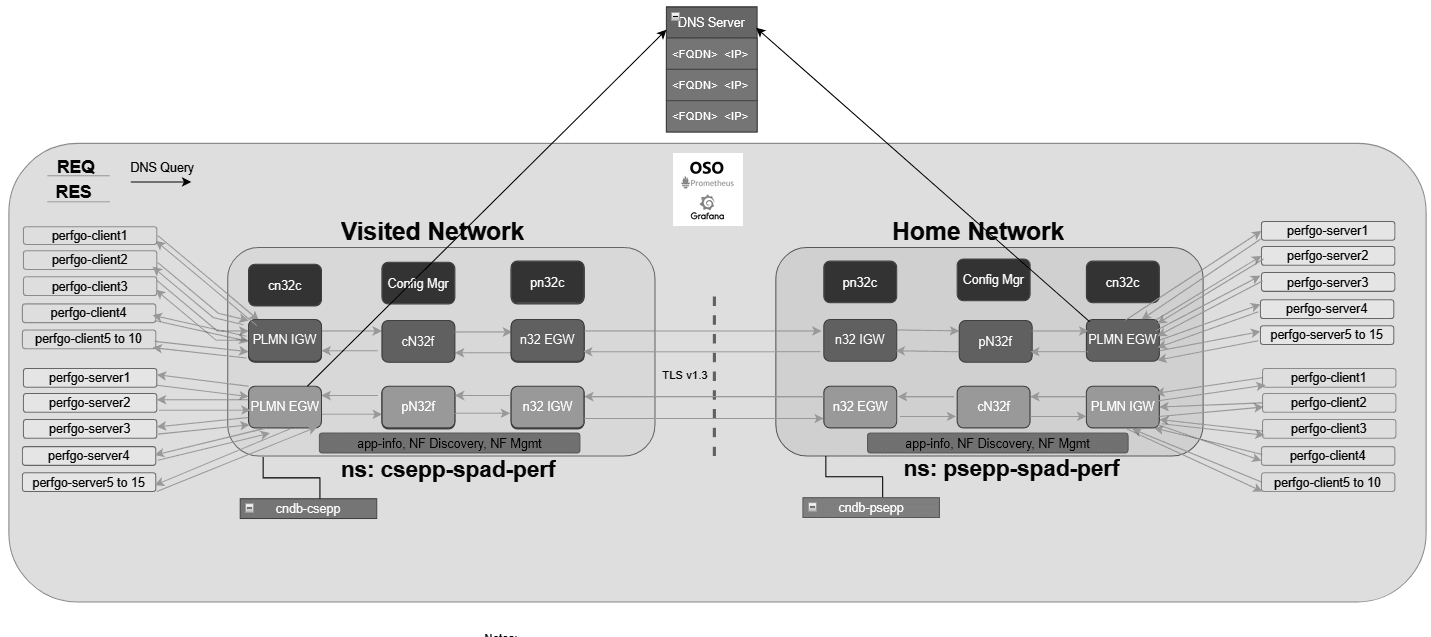

The following diagram represents the deployment configurations of SEPP:
Figure 2-1 Deployment Diagram
The details about the deployment configurations are as follows:
- cnDBTier, cSEPP, pSEPP, perfgo-client, and perfgo-server are deployed in same cluster
- DNS server is running on a standalone VM in a different cluster
- cSEPP to pSEPP n32 TLS 1.3 connection is on External IP (metalLB)
- perfgo-client is sending traffic on SEPP external IP
- SEPP to perfgo-server connection is using External IP (metalLB)
- Both SEPP have 30 local PLMNs
- Network delay of 50 ms on server side
2.1 Overall Summary of Benchmarking Configurations
The following table lists the overall summary of benchmarking configurations.
Overall Summary
Table 2-1 Overall Summary
| S. No. | Execution Time | SEPP Release | CNCC Release | cnDBTier Release | ASM Enabled/Disabled | OSO(Yes/No) | HA Proxy Installed | Cluster | Site-1 MPS | Site-2 MPS | Overall MPS | Network Delayon server side | Features Enabled |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Run1 | 36 Hr | 25.1.200 | 25.1.200 | 25.1.200 | Enabled | Yes | NA | Hardhead1 | 20K | 20K | 40K | 50ms | Topology Hiding, SCM (Cat-0, Cat-1,Cat-2, and Cat3), Overload,Mediation, SOR,and Rate Limiting (Only Global PLMN Ingress Rate Limiting) and DNS SRV |
| Run2 | 24 Hr | 25.1.200 | 25.1.200 | 25.1.200 | Enabled | Yes | NA | Hardhead1 | 20K | 20K | 40K | 50ms | Vanilla Run |
