A.1.12 Client Update

M-CNCC IAM UI - Cncc Realm - Updating Authentication flow to Direct Access Grant for cncc-api-access client

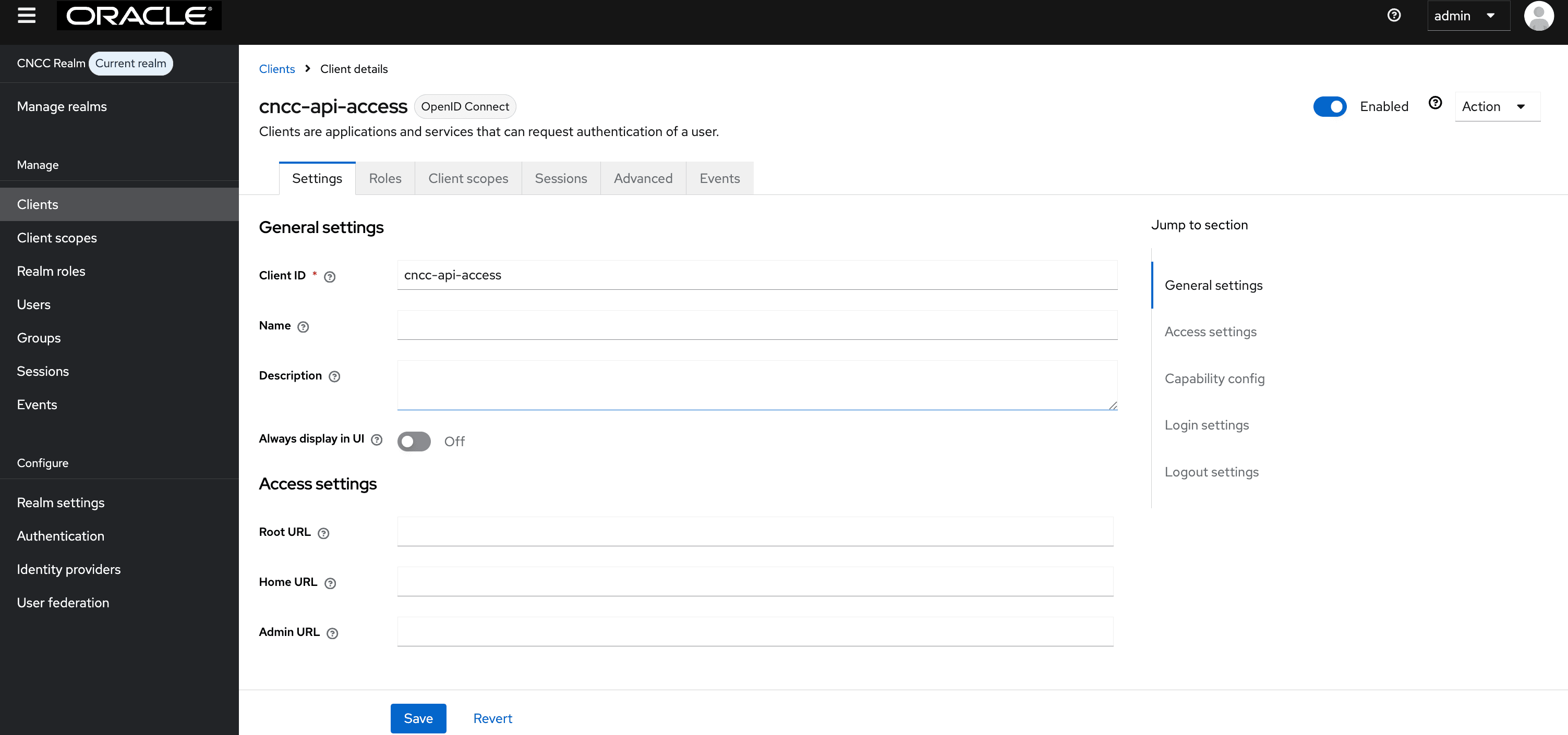

Figure -17 cncc-api-access

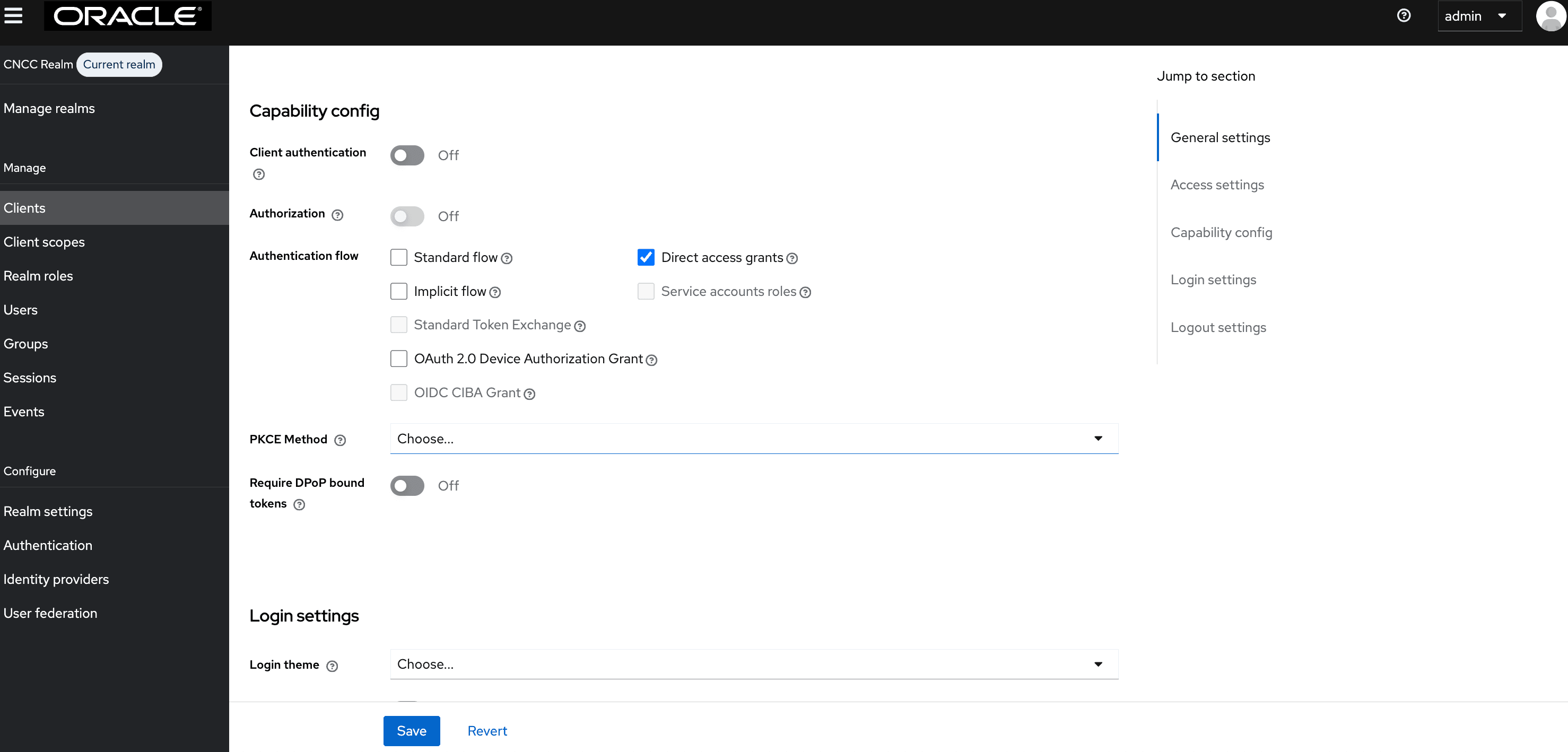

Figure -18 Capability config

M-CNCC IAM Kc Logs:

{"timestamp":"2025-11-27T16:12:30.027887228Z","sequence":2648,"loggerClassName":"org.jboss.logging.Logger","loggerName":"org.keycloak.events","level":"DEBUG","message":"operationType=\"UPDATE\", realmId=\"master\", realmName=\"master\", clientId=\"6d475927-19a8-4082-a9f4-8d6b68afbb1a\", userId=\"acc21615-964a-4055-8c20-fb2705bd641b\", ipAddress=\"10.75.213.184\", resourceType=\"CLIENT\", resourcePath=\"clients/f07c1ee9-d40d-4814-89de-77c09cda068d\"","threadName":"executor-thread-109","threadId":207,"mdc":{},"ndc":"","hostName":"cncc-iam","processName":"/opt/java/jre/bin/java","processId":571}

M-CNCC IAM Ingress Gateway logs

SECURITY- Request log:

{
  "instant": {
    "epochSecond": 1764259949,
    "nanoOfSecond": 942497792
  },
  "thread": "igw-app-thread12",
  "level": "INFO",
  "loggerName": "ocpm.cne.gateway.cncc.filters.CnccLoggingFilter",
  "message": {
    "logType": "SECURITY",
    "type": "REQUEST",
    "operationType": "PUT",
    "userId": "acc21615-964a-4055-8c20-fb2705bd641b",
    "username": "admin",
    "remoteAddress": "xx.xx.xx.xx:31778",
    "localAddress": "xx.xx.xx.xx:8081",
    "resourcePath": "/cncc/auth/admin/realms/cncc/clients/f07c1ee9-d40d-4814-89de-77c09cda068d",
    "scheme": "http",
    "queryParams": {},
    "headers": {
      "Origin": "http://xx.xx.xx.xx:30085",
      "Cookie": "{masked}",
      "Connection": "keep-alive",
      "User-Agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/142.0.0.0 Safari/537.36",
      "uuidToken": "25880323-4c4d-4e39-aefe-c7d8ca70a06e",
      "Host": "xx.xx.xx.xx:30085",
      "Accept-Encoding": "gzip, deflate",
      "svcName": "cncc-iam-kc-http.cncc.svc.cluster.local",
      "ocLogId": "1764259949940_92_cncc-iam-ingress-gateway-85d6d57584-wt9zk",
      "accept": "application/json, text/plain, */*",
      "sbi-timer-publish-headers": "false",
      "authorization": "{masked}",
      "content-type": "application/json",
      "Accept-Language": "en-US,en;q=0.9",
      "Content-Length": "1995",
      "sbi-timer-feature": "false"
    },
    "payload": {
      "id": "f07c1ee9-d40d-4814-89de-77c09cda068d",
      "clientId": "cncc-api-access",
      "surrogateAuthRequired": false,
      "enabled": true,
      "alwaysDisplayInConsole": false,
      "clientAuthenticatorType": "client-secret",
      "redirectUris": [],
      "webOrigins": [],
      "notBefore": 0,
      "bearerOnly": false,
      "consentRequired": false,
      "standardFlowEnabled": false,
      "implicitFlowEnabled": false,
      "directAccessGrantsEnabled": true,
      "serviceAccountsEnabled": false,
      "publicClient": true,
      "frontchannelLogout": false,
      "protocol": "openid-connect",
      "attributes": {
        "id.token.as.detached.signature": "false",
        "saml.assertion.signature": "false",
        "saml.force.post.binding": "false",
        "saml.multivalued.roles": "false",
        "saml.encrypt": "false",
        "oauth2.device.authorization.grant.enabled": "false",
        "backchannel.logout.revoke.offline.tokens": "false",
        "saml.server.signature": "false",
        "saml.server.signature.keyinfo.ext": "false",
        "use.refresh.tokens": "true",
        "exclude.session.state.from.auth.response": "false",
        "realm_client": "false",
        "oidc.ciba.grant.enabled": "false",
        "saml.artifact.binding": "false",
        "backchannel.logout.session.required": "false",
        "client_credentials.use_refresh_token": "false",
        "saml_force_name_id_format": "false",
        "require.pushed.authorization.requests": "false",
        "saml.client.signature": "false",
        "tls.client.certificate.bound.access.tokens": "false",
        "saml.authnstatement": "false",
        "authorization.signed.response.alg": "RS256",
        "display.on.consent.screen": "false",
        "saml.onetimeuse.condition": "false",
        "standard.token.exchange.enabled": false,
        "pkce.code.challenge.method": "-",
        "dpop.bound.access.tokens": "false",
        "login_theme": "-",
        "consent.screen.text": "-",
        "backchannel.logout.url": "-"
      },
      "authenticationFlowBindingOverrides": {},
      "fullScopeAllowed": true,
      "nodeReRegistrationTimeout": -1,
      "defaultClientScopes": ["web-origins","roles","profile","basic","email"],
      "optionalClientScopes": ["address","phone","offline_access","microprofile-jwt"],
      "access": {"view": true, "configure": true, "manage": true},
      "name": "-",
      "description": "-",
      "rootUrl": "-",
      "baseUrl": "-",
      "adminUrl": "-",
      "authorizationServicesEnabled": false
    },
    "authenticationType": "UNKNOWN"
  },
  "endOfBatch": false,
  "loggerFqcn": "org.apache.logging.log4j.internal.DefaultLogBuilder",
  "threadId": 128,
  "threadPriority": 5,
  "messageTimestamp": "2025-11-27T16:12:29.942+0000",
  "processId": "1",
  "ingressTxId": "ingress-tx-1873501864",
  "pod": "cncc-iam-ingress-gateway-85d6d57584-wt9zk",
  "ocLogId": "1764259949940_92_cncc-iam-ingress-gateway-85d6d57584-wt9zk",
  "instanceType": "prod",
  "xRequestId": "-"
}

SECURITY- Response log:

{
  "instant": {
    "epochSecond": 1764259950,
    "nanoOfSecond": 33824423
  },
  "thread": "igw-app-thread11",
  "level": "INFO",
  "loggerName": "ocpm.cne.gateway.cncc.filters.CnccLoggingFilter",
  "message": {
    "logType": "SECURITY",
    "type": "RESPONSE",
    "operationType": "PUT",
    "userId": "acc21615-964a-4055-8c20-fb2705bd641b",
    "username": "admin",
    "resourcePath": "/cncc/auth/admin/realms/cncc/clients/f07c1ee9-d40d-4814-89de-77c09cda068d",
    "scheme": "http",
    "headers": {
      "Referrer-Policy": "no-referrer",
      "X-Frame-Options": "SAMEORIGIN",
      "Access-Control-Expose-Headers": "Location",
      "Strict-Transport-Security": "max-age=31536000; includeSubDomains",
      "transfer-encoding": "chunked",
      "Access-Control-Allow-Origin": "http://xx.xx.xx.xx:30085",
      "Access-Control-Allow-Credentials": "true",
      "X-Content-Type-Options": "nosniff",
      "RequestMethod": "PUT",
      "NettyLatency": "1764259949940"
    },
    "payload": {},
    "authenticationType": "UNKNOWN",
    "status": "204 NO_CONTENT"
  },
  "endOfBatch": false,
  "loggerFqcn": "org.apache.logging.log4j.internal.DefaultLogBuilder",
  "threadId": 127,
  "threadPriority": 5,
  "messageTimestamp": "2025-11-27T16:12:30.033+0000",
  "processId": "1",
  "ingressTxId": "ingress-tx-1437990706",
  "pod": "cncc-iam-ingress-gateway-85d6d57584-wt9zk",
  "ocLogId": "-",
  "instanceType": "prod",
  "xRequestId": "-"
}

Note:

Similar logs will also be observed for the default realm.
