A.1.15 SAML_IDENTITY_PROVIDER_MAPPER_CREATE

M-CNCC IAM UI- cncc Realm- SAML_IDENTITY_PROVIDER_MAPPER_CREATE Event

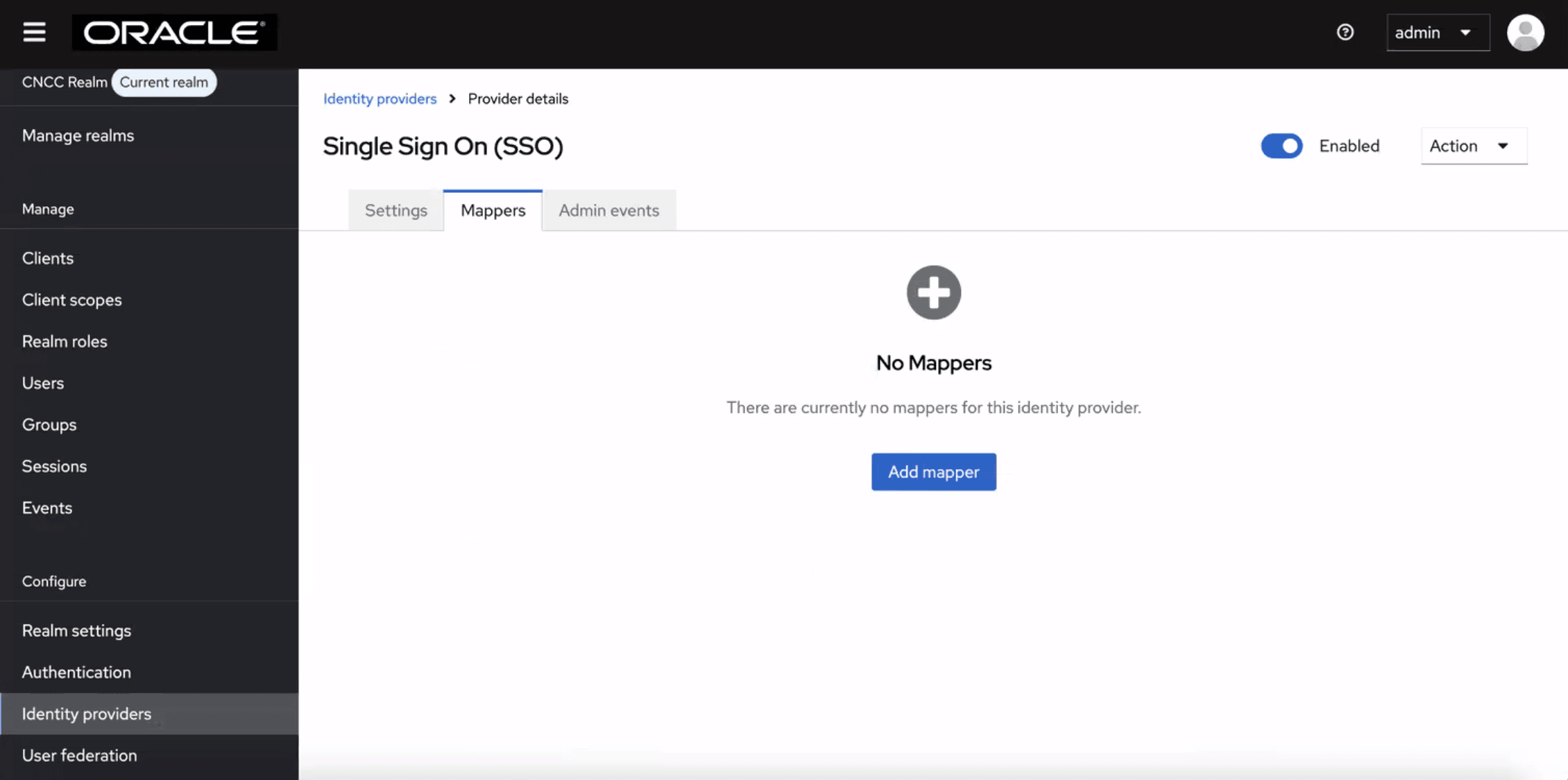

Figure -21 Single Sign On (SSO)

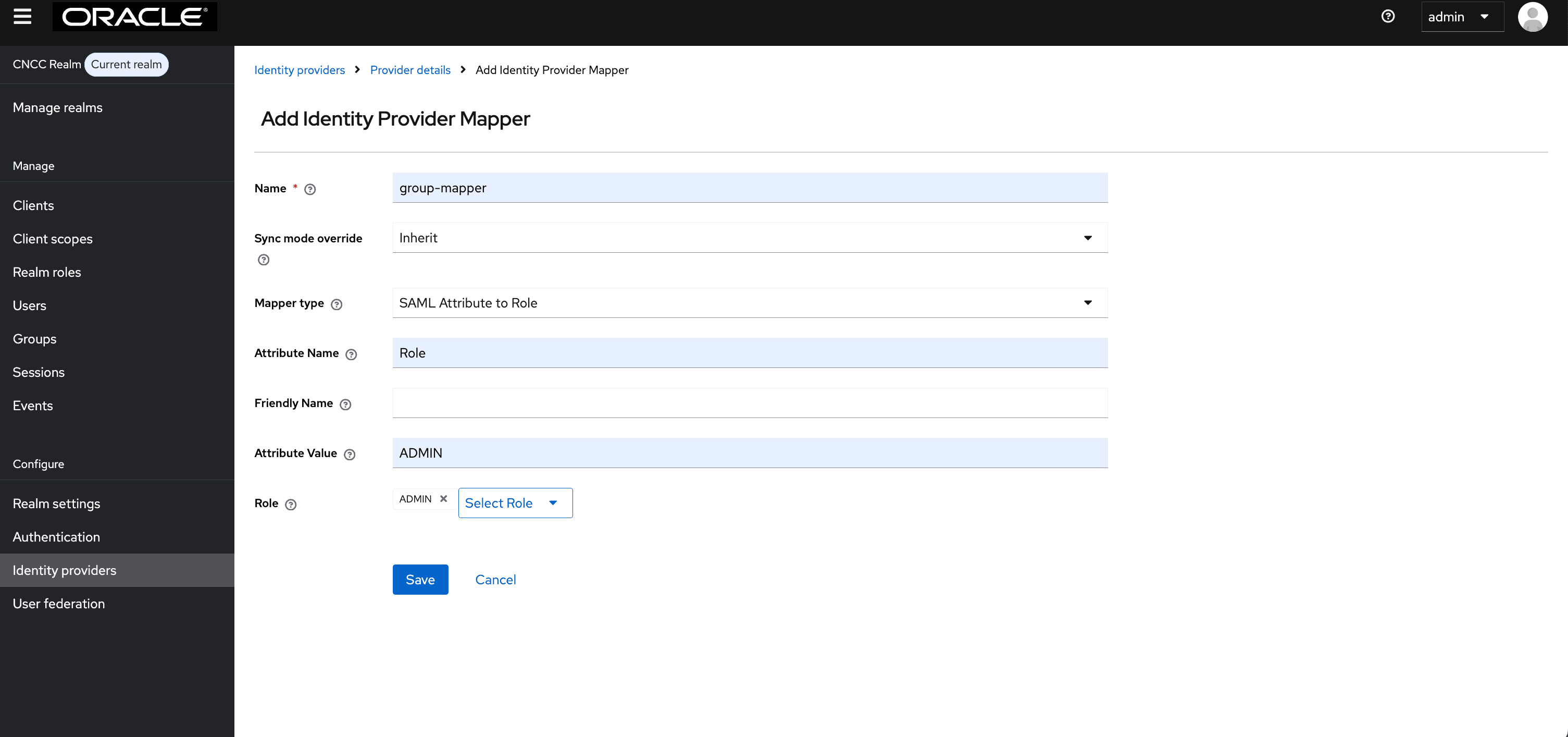

Figure -22 Add Identity Provider Mapper

M-CNCC IAM Kc Logs:

{"timestamp":"2025-11-27T16:16:57.671689167Z","sequence":2660,"loggerClassName":"org.jboss.logging.Logger","loggerName":"org.keycloak.events","level":"DEBUG","message":"operationType=\"CREATE\", realmId=\"master\", realmName=\"master\", clientId=\"6d475927-19a8-4082-a9f4-8d6b68afbb1a\", userId=\"acc21615-964a-4055-8c20-fb2705bd641b\", ipAddress=\"10.75.213.184\", resourceType=\"IDENTITY_PROVIDER_MAPPER\", resourcePath=\"identity-provider/instances/saml/mappers/554a1663-ee0c-4a16-ac41-28543f8e56a9\"","threadName":"executor-thread-114","threadId":217,"mdc":{},"ndc":"","hostName":"cncc-iam","processName":"/opt/java/jre/bin/java","processId":571}

M-CNCC IAM Ingress Gateway logs

SECURITY- Request log:

{
  "instant": {
    "epochSecond": 1764260217,
    "nanoOfSecond": 641572610
  },
  "thread": "igw-app-thread3",
  "level": "INFO",
  "loggerName": "ocpm.cne.gateway.cncc.filters.CnccLoggingFilter",
  "message": {
    "logType": "SECURITY",
    "type": "REQUEST",
    "operationType": "POST",
    "userId": "acc21615-964a-4055-8c20-fb2705bd641b",
    "username": "admin",
    "remoteAddress": "xx.xx.xx.xx:56644",
    "localAddress": "xx.xx.xx.xx:8081",
    "resourcePath": "/cncc/auth/admin/realms/cncc/identity-provider/instances/saml/mappers",
    "scheme": "http",
    "queryParams": {},
    "headers": {
      "Origin": "http://xx.xx.xx.xx:30085",
      "Cookie": "{masked}",
      "Connection": "keep-alive",
      "User-Agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/142.0.0.0 Safari/537.36",
      "uuidToken": "fc1f9d72-62c4-4d61-98b5-1695c09a7d08",
      "Host": "xx.xx.xx.xx:30085",
      "Accept-Encoding": "gzip, deflate",
      "svcName": "cncc-iam-kc-http.cncc.svc.cluster.local",
      "ocLogId": "1764260217640_96_cncc-iam-ingress-gateway-85d6d57584-wt9zk",
      "accept": "application/json, text/plain, */*",
      "sbi-timer-publish-headers": "false",
      "authorization": "{masked}",
      "content-type": "application/json",
      "Accept-Language": "en-US,en;q=0.9",
      "Content-Length": "228",
      "sbi-timer-feature": "false"
    },
    "payload": {
      "name": "group-mapper",
      "config": {
        "syncMode": "INHERIT",
        "attribute.name": "Role",
        "attribute.friendly.name": "",
        "attribute.value": "ADMIN",
        "role": "ADMIN"
      },
      "identityProviderMapper": "saml-role-idp-mapper",
      "identityProviderAlias": "saml"
    },
    "authenticationType": "UNKNOWN"
  },
  "endOfBatch": false,
  "loggerFqcn": "org.apache.logging.log4j.internal.DefaultLogBuilder",
  "threadId": 100,
  "threadPriority": 5,
  "messageTimestamp": "2025-11-27T16:16:57.641+0000",
  "processId": "1",
  "ingressTxId": "ingress-tx-1299632173",
  "pod": "cncc-iam-ingress-gateway-85d6d57584-wt9zk",
  "ocLogId": "1764260217640_96_cncc-iam-ingress-gateway-85d6d57584-wt9zk",
  "instanceType": "prod",
  "xRequestId": "-"
}

SECURITY- Response log:

{
  "instant": {
    "epochSecond": 1764260217,
    "nanoOfSecond": 677340674
  },
  "thread": "igw-app-thread19",
  "level": "INFO",
  "loggerName": "ocpm.cne.gateway.cncc.filters.CnccLoggingFilter",
  "message": {
    "logType": "SECURITY",
    "type": "RESPONSE",
    "operationType": "POST",
    "userId": "acc21615-964a-4055-8c20-fb2705bd641b",
    "username": "admin",
    "resourcePath": "/cncc/auth/admin/realms/cncc/identity-provider/instances/saml/mappers",
    "scheme": "http",
    "headers": {
      "content-length": "0",
      "transfer-encoding": "chunked",
      "Access-Control-Allow-Origin": "http://xx.xx.xx.xx:30085",
      "X-Content-Type-Options": "nosniff",
      "RequestMethod": "POST",
      "Referrer-Policy": "no-referrer",
      "X-Frame-Options": "SAMEORIGIN",
      "Access-Control-Expose-Headers": "Location",
      "Strict-Transport-Security": "max-age=31536000; includeSubDomains",
      "Access-Control-Allow-Credentials": "true",
      "NettyLatency": "1764260217640",
      "Location": "http://xx.xx.xx.xx:30085/cncc/auth/admin/realms/cncc/identity-provider/instances/saml/mappers/554a1663-ee0c-4a16-ac41-28543f8e56a9"
    },
    "payload": {},
    "authenticationType": "UNKNOWN",
    "status": "201 CREATED"
  },
  "endOfBatch": false,
  "loggerFqcn": "org.apache.logging.log4j.internal.DefaultLogBuilder",
  "threadId": 135,
  "threadPriority": 5,
  "messageTimestamp": "2025-11-27T16:16:57.677+0000",
  "processId": "1",
  "ingressTxId": "ingress-tx-1628348099",
  "pod": "cncc-iam-ingress-gateway-85d6d57584-wt9zk",
  "ocLogId": "-",
  "instanceType": "prod",
  "xRequestId": "-"
}

Note:

Similar logs will also be observed for the default realm.
