2 Deployment Environment

This section provides information about the cloud native infrastructure used for SEPP benchmarking.

The following diagram represents the deployment configurations of SEPP:

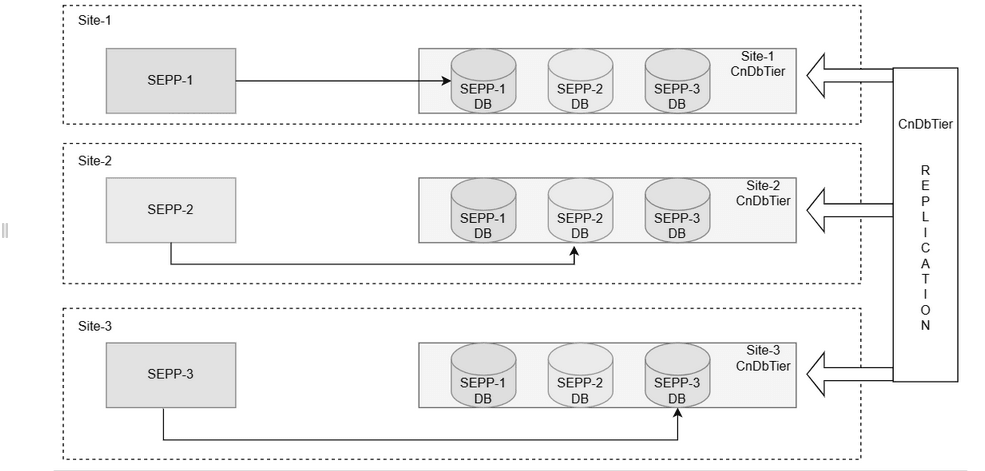

Figure 2-1 Deployment Diagram

Deployment Diagram

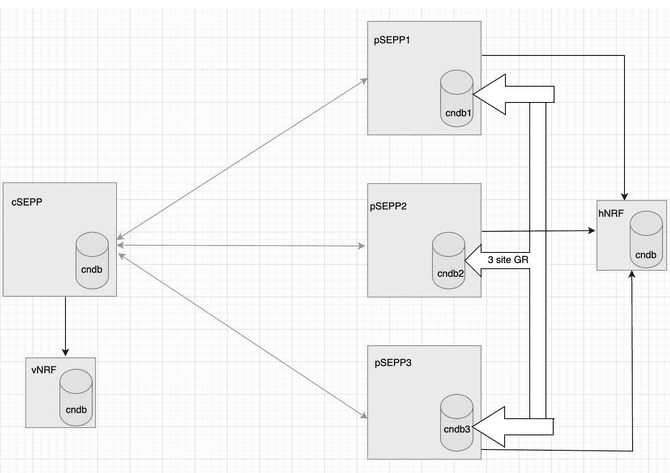

Figure 2-2 Deployment Diagram

Deployment Diagram

The details about the deployment configurations are as follows:

3-Site GR Setup Traffic Distribution Overview

The 3-Site GR (Geo-Replication) setup includes one CSEPP and three PSEPPs:

  • CSEPP and PSEPP1 are fully deployed and operational.
  • PSEPP2 and PSEPP3 are partially deployed, each with 3 pods running the following components:
    • cn32f
    • pn32f
    • plmn-ingress-gateway (PLMN Ingress Gateway)
    • plmn-egress-gateway (PLMN Egress Gateway)
    • n32-ingress-gateway (N32 Ingress Gateway)
    • n32-egress-gateway (N32 Egress Gateway)
Traffic Distribution

The total traffic handled by this setup is 40K MPS (Messages Per Second). Currently, the traffic distribution between the CSEPP and PSEPPs is uneven. Below are the details of how the traffic is routed and distributed:

Outbound Traffic (CSEPP → PSEPPs)
  • CSEPP → PSEPP1: 80% of the traffic is routed to PSEPP1.
  • CSEPP → PSEPP2: 10% of the traffic is routed to PSEPP2.
  • CSEPP → PSEPP3: 10% of the traffic is routed to PSEPP3.
Inbound Traffic (PSEPPs → CSEPP)
  • PSEPP1 → CSEPP: 75% of the inbound traffic is sent from PSEPP1 to CSEPP.
  • PSEPP2 → CSEPP: 12.5% of the inbound traffic is sent from PSEPP2 to CSEPP.
  • PSEPP3 → CSEPP: 12.5% of the inbound traffic is sent from PSEPP3 to CSEPP.

2.1 Overall Summary of Benchmarking Configurations

The following table lists the overall summary of benchmarking configurations.

Overall Summary

Table 2-1 Overall Summary

S. No. Execution Time SEPP Release CNC Console Release cnDBTier Release ASM Enabled/Disabled OSO(Yes/No) HA Proxy Installed Cluster Site-1 csepp MPS Site-2 (psepp1+psepp2+psepp3) MPS Overall MPS Network Delayon server side Features Enabled
Run1 72 Hr 25.2.200 25.2.200 25.2.200 Disabled Yes NA Hardhead1 20K 20K 40K 50ms
  • Topology Hiding
  • Security Counter Measure features:
    • Cat-0 SBI Message Schema Validation Feature
    • Cat-1 NRF Service API Query Parameters Validation
    • Cat-1 Service API Validation Feature
    • Cat -2 Network ID Validation Feature
    • Cat-3 Previous Location Check Feature
    • Cat-3 Time Check for Roaming Subscribers
  • Overload Control
  • 5G SBI Message Mediation Support
  • Steering of Roaming (SOR) Feature
  • Global Rate Limiting on Ingress Gateway of SEPP
  • Alternate Routing and Load Sharing based on the DNS SRV Record for Home Network Functions.
  • LCI and OCI Header feature
  • NRF Auto route feature
