14 Configuring SOAP Services

RESTServer sends SOAP request to OSD client present in the SLC machine.

Operations and Operation Sets used by RESTServer is OSDLocation. The following are the mandatory configurations that should be present in the Open Services Development (OSD) screen:
  1. Configure OSDLocation in Operations and Operation Sets tab in the Open Services Development screen.

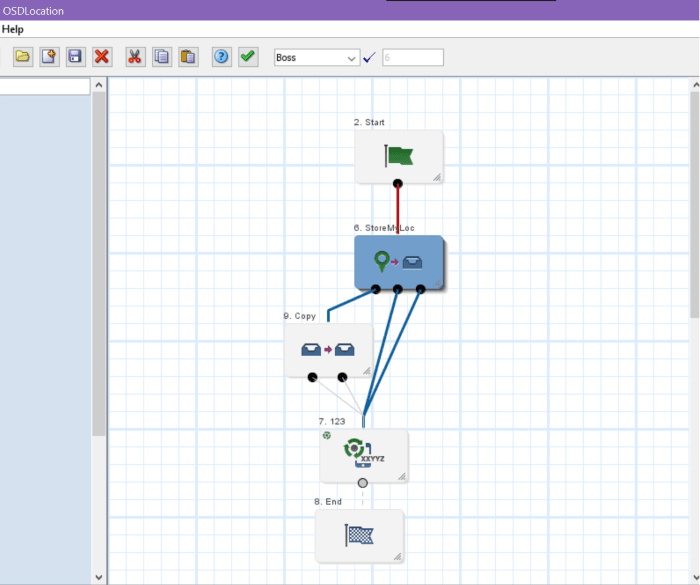

  2. Create Control plan with StoreMyLocation and Copy node and link it to the OSDLocation operation.Description of controlplan.png follows
    Description of the illustration controlplan.png

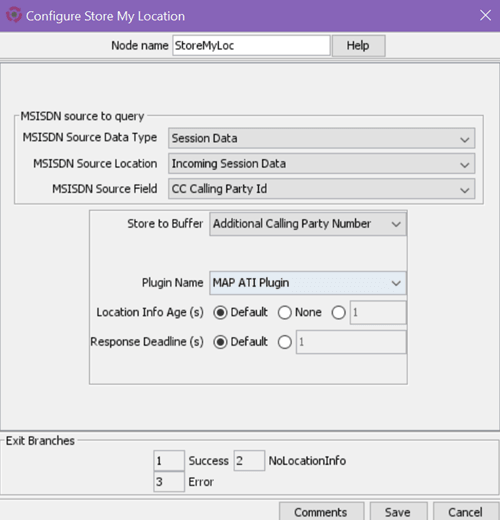

    1. In StoreMyLocation node, set CC Calling Party id (Incoming Session Data) in MSISDN Source Field. Location is copied to the profile tag set in Store to Buffer field. For example, Additional Calling Party Number.
      Description of storemylocation-node-configuration.png follows
      Description of the illustration storemylocation-node-configuration.png

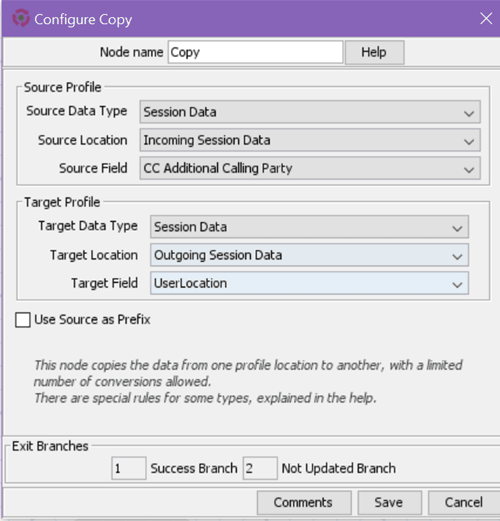

    2. In Copy node, set UseLocation (Outgoing Session Data) in Target Field. Copy node copies Location from buffer to profile tag UserLocation . If UserLocation profile tag is not present, then UserLocation profile tag needs to be created and mapped to the Outgoing Session Data.
      Description of copy-node-configuration.png follows
      Description of the illustration copy-node-configuration.png

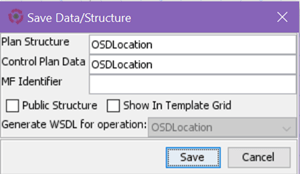

    3. Save the control plan to link it with OSDLocation operation.
      Description of save-controlplan.png follows
      Description of the illustration save-controlplan.png

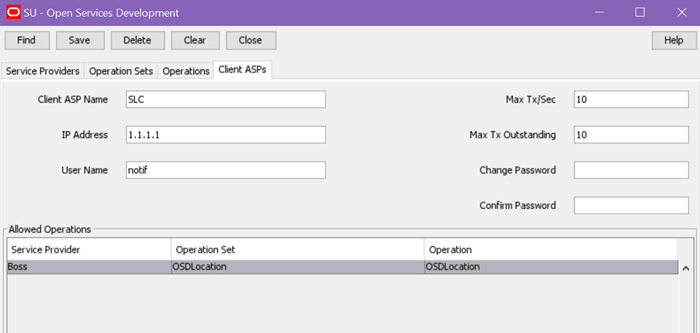

  3. Configure the RESTServer hostname with username and password in Client ASPs tab in the Open Services Development screen. OSDLocation operation should be added to this client ASP.
    Description of client-asps-config.png follows
    Description of the illustration client-asps-config.png
