Troubleshooting OCNADD

2 Troubleshooting OCNADD

This chapter provides information to troubleshoot the common errors, which can be encountered during the preinstallation, installation, and upgrade procedures of OCNADD.

Note:

kubectl commands might vary based on the platform deployment. Replace kubectl with Kubernetes environment-specific command line tool to configure Kubernetes resources through kube-api server. The instructions provided in this document are as per the Oracle Communications Cloud Native Environment (OCCNE) version of kube-api server.

2.1 Generic Checklist

The following sections provide a generic checklist for troubleshooting OCNADD.

Deployment Checklist

Perform the following pre-deployment checks:

Failure in Certificate or Secret generation.
There may be a possibility of an error in certificate generation when the Country, State, or Organization name is different in CA and service certificates.
```
Error Code/Error Message:

  The countryName field is different between
  CA certificate (US) and the request (IN)

  (similar error message will be reported forState or Org name)
```
To resolve this error:
1. Navigate to "ssl_certs/default_values/" and edit the "values" file.
2. Change the following values under "[global]" section:
  - countryName
  - stateOrProvinceName
  - organizationName
3. Ensure the values match the CA configurations, for example:
  If the CA has country name as "US", state as "NY", and Org name as "ORACLE" then, set the values under [global] parameter as follows:
```
[global]
countryName=US
stateOrProvinceName=NY
localityName=BLR
organizationName=ORACLE
organizationalUnitName=CGBU
defaultDays=365
```
4. Rerun the script and verify the certificate and secret generation.
Run the following command to verify if OCNADD deployment, pods, and services created are running and available:
```
# kubectl -n <namespace> get deployments,pods,svc
```
Verify the output, and check the following columns:
- READY, STATUS, and RESTARTS
- PORT(S) of service
Note:
It is normal to observe the Kafka broker restart during deployment.
Verify if the correct image is used and correct environment variables are set in the deployment.
To check, run the following command:
```
# kubectl -n <namespace> get deployment <deployment-name> -o yaml
```
Check if the microservices can access each other through a REST interface.
To check, run the following command:
```
# kubectl -n <namespace> exec <pod name> -- curl <uri>
```
Example:
```
kubectl exec -it pod/ocnaddconfiguration-6ffc75f956-wnvzx -n ocnadd-system  -- curl 'http://ocnaddadminservice:9181/ocnadd-admin-svc/v1/topic'
```
Note:
These commands are in their simple format and display the logs only if ocnaddconfiguration and ocnadd-admin-svc pods are deployed.

The list of URIs for all the microservices:

http://ocnaddconfiguration:<port>/ocnadd-configuration/v1/subscription
http://ocnaddalarm:<port>/ocnadd-alarm/v1/alarm?&startTime=<start-time>&endTime=<end-time>
Use off-set date time format, for example, 2022-07-12T05:37:26.954477600Z
<ip>:<port>/ocnadd-admin-svc/v1/topic/
<ip>:<port>/ocnadd-admin-svc/v1/describe/topic/<topicName>
<ip>:<port>/ocnadd-admin-svc/v1/alter
<ip>:<port>/ocnadd-admin-svc/v1/broker/expand/entry
<ip>:<port>/ocnadd-admin-svc/v1/broker/health

Application Checklist

Logs Verification

Run the following command to check the application logs and look for exceptions:

# kubectl -n <namespace> logs -f <pod name>

Use the option -f to follow the logs or grep option to obtain a specific pattern in the log output.

Example:

# kubectl -n ocnadd-system  logs -f $(kubectl -n ocnadd-system get pods -o name |cut -d'/' -f 2|grep nrfaggregation)

Above command displays the logs of the ocnaddnrfaggregation service.

Run the following command to search for a specific pattern in the log output:

# kubectl logs -n ocnadd-system <pod name> | grep <pattern>

Note:

These commands are in their simple format and display the logs only if there is atleast one nrfaggregation pod deployed.

Kafka Consumer Rebalancing

The Kafka consumers can rebalance in the following scenarios:

The number of partitions changes for any of the subscribed topics.
A subscribed topic is created or deleted.
An existing member of the consumer group is shutdown or fails.
In the Kafka consumer application,
1. Stream threads inside the consumer app skipped sending heartbeat to Kafka.
2. The batch of messages took longer time to process and causes the time between the two polls to take longer.
3. Any stream thread in any of the consumer application pods dies because of some error and it is replaced with a new Kafka Stream thread.
4. Any stream thread is stuck and not processing any message.
A new member is added to the consumer group (for example, new consumer pod spins up).

When the rebalancing is triggered, there is a possibility that offsets are not committed by the consumer threads as offsets are committed periodically. This can result in messages corresponding to non-committed offsets being sent again or duplicated when the rebalancing is completed and consumers started consuming again from the partitions. This is a normal behavior in the Kafka consumer application. However, because of frequent rebalancing in the Kafka consumer applications, the counts of messages in the Kafka consumer application and 3rd party application can mismatch.

Data Feed not accepting updated endpoint

Problem

If a Data feed is created for synthetic packets with an incorrect endpoint, updating the endpoint afterward has no effect.

Solution

Delete and recreate the data feed for synthetic packets with the correct endpoint.

Kafka Performance Impact (due to disk limitation)

Problem

When source topics (SCP, NRF, and SEPP) and MAIN topic are created with Replication Factor = 1

For a low performance disk, the Egress MPS rate drops/fluctuates with the following traces in the Kafka broker logs:


Shrinking ISR from 1001,1003,1002 to 1001. Leader: (highWatermark: 1326, endOffset: 1327). Out of sync replicas: (brokerId: 1003, endOffset: 1326) (brokerId: 1002, endOffset: 1326). (kafka.cluster.Partition)
ISR updated to 1001,1003 and version updated to 28(kafka.cluster.Partition)

Solution

The following steps can be performed (or verified) to optimize the Egress MPS rate:

Try to increase the disk performance in the cluster where OCNADD is deployed.
If the disk performance cannot be increased, then perform the following steps for OCNADD:
1. Navigate to the Kafka helm charts values file (<helm-chart-path>/ocnadd/charts/ocnaddkafka/values.yaml)
2. Change the below parameter in the values.yaml:
  1. offsetsTopicReplicationFactor: 1
  2. transactionStateLogReplicationFactor: 1
3. Scale down the Kafka and zookeeper deployment by modifying the following lines in the helm chart:
```
ocnaddkafka:
enabled:false
```
4. Perform helm upgrade for OCNADD:
  helm upgrade <release name> <chart path> -n <namespace>
5. Delete PVC for Kafka and Zookeeper using the following commands:
  1. kubectl delete pvc -n <namespace> kafka-volume-kafka-broker-0
  2. kubectl delete pvc -n <namespace> kafka-volume-kafka-broker-1
  3. kubectl delete pvc -n <namespace> kafka-volume-kafka-broker-2
  4. kubectl delete pvc -n <namespace> kafka-broker-security-zookeeper-0
  5. kubectl delete pvc -n <namespace> kafka-broker-security-zookeeper-1
  6. kubectl delete pvc -n <namespace> kafka-broker-security-zookeeper-2
6. Modify the value of the following parameter to true:
```
ocnaddkafka:
enabled:true
```
7. Perform helm upgrade for OCNADD:
  helm upgrade <release name> <chart path> -n <namespace>

Note:

The following points are to be considered while applying the above procedure:

In case a Kafka broker becomes unavailable, then you may experience an impact on the traffic on the Ingress side.
Verify the Kafka broker logs or describe the Kafka/zookeeper pod which is unavailable and take the necessary action based on the error reported.

500 Server Error on GUI while creating/deleting the Data Feed

Problem

Occasionally, due to network issues, the user may observe a "500 Server Error" while creating/deleting the Data Feed.

Solution

The following actions generally resolve the issue:

Delete and recreate the feed if it is not created properly.
Retry the action after logging out from the GUI and login back again.
Retry creating/deleting the feed after some time.

Kafka resources reaching more than 90% utilization

Problem

Kafka resources(CPU, Memory) reached more than 90% utilization due to a higher MPS rate or slow disk I/O rate

Solution

Add additional resources to the following parameters that are reaching high utilization.

File name: ocnadd-custom-values.yaml

Parameter name: ocnaddkafka.ocnadd.kafkaBroker.resource


kafkaBroker:
     name:kafka-broker
     resource:
        limit:
           cpu:5    ===> change it to require number of CPUs
           memory:24Gi   ===> change it to require number of memory size

2.2 Helm Install and Upgrade Failure

This section describes the various helm installation or upgrade failure scenarios and the respective troubleshooting procedures:

2.2.1 Incorrect Image Name in ocnadd-custom-values.yaml File

Problem

helm install fails if an incorrect image name is provided in the ocnadd-custom-values.yaml file or if the image is missing in the image repository.

Error Code or Error Message

When you run kubectl get pods -n <ocnadd_namespace>, the status of the pods might be ImagePullBackOff or ErrImagePull.

Solution

Perform the following steps to verify and correct the image name:

Edit the ocnadd-custom-values.yaml file and provide the release specific image names and tags.
Run the helm install command.
Run the kubectl get pods -n <ocnadd_namespace> command to verify if all the pods are in Running state.

2.2.2 Docker Registry is Configured Incorrectly

Problem

helm install might fail if the Docker Registry is not configured in all primary and secondary nodes.

Error Code or Error Message

When you run kubectl get pods -n <ocnadd_namespace>, the status of the pods might be ImagePullBackOff or ErrImagePull.

Solution

Configure the Docker Registry on all primary and secondary nodes. For information about Docker Registry configuration, see Oracle Communications Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

2.2.3 Continuous Restart of Pods

Problem

helm install might fail if MySQL primary or secondary hosts are not configured properly in ocnadd-custom-values.yaml.

Error Code or Error Message

When you run kubectl get pods -n <ocnadd_namespace>, the pods shows restart count increases continuously, or there is a Prometheus alert for continuous pod restart.

Solution

Verify MySQL connectivity.

MySQL servers may not be configured properly. For more information about the MySQL configuration, see Oracle Communications Network Analytics Data Director Installation, Upgrade, and Fault Recovery Guide.
Describe the POD to check more details on the error, troubleshoot further based on the reported error.
Check the POD log for any error, troubleshoot further based on the reported error.

2.2.4 Adapter Pods Does Not Receive Update Notification

Problem

Update notification from Configuration Service or GUI is not reaching Adapter pods.

Error Code or Error Message

On triggering update notification from GUI or Configuration Service, the configuration changes on Adapter does not take place.

Solution

This can be fixed by running the following command:

Check the Adapter pod logs with:
```
"kubectl logs <adapter app name> -n <namespace>
```
If the update notification logs are not present in the Adapter logs run the below command to reread the configurations with the following command:
```
kubectl rollout restart deploy <adapter app name> -n <namespace>
```

2.2.5 Adapter Deployment Removed during Upgrade or Rollback

Problem

Adapter(data feed) is deleted during upgrade or rollback.

Error Code or Error Message

Sample error message displayed:

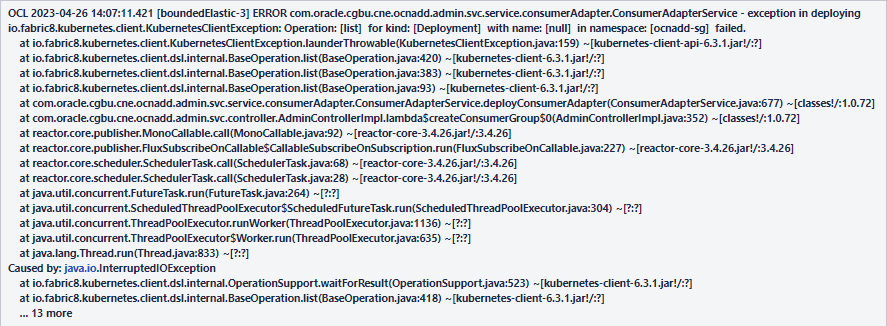

Figure 2-1 Error Message

Solution

This can be fixed by running the following commands:

Run the following command to verify the data feeds:
```
kubectl get po -n <namespace>
```
If data feeds are missing, verify the above mentioned error message in the admin service log, by running the following command:
```
kubectl logs <admin svc pod name> -n <namespace>
```

If the error message is present, run the following command:

kubectl rollout restart deploy <configuration app name> -n <namespace>

2.2.6 ocnadd-custom-values.yaml File Parse Failure

This section explains the troubleshooting procedure in case of failure while parsing the ocnadd-custom-values.yaml file.

Problem

Unable to parse the ocnadd-custom-values.yaml file or any other values.yaml while running Helm install.

Error Code or Error Message

Error: failed to parse ocnadd-custom-values.yaml: error converting YAML to JSON: yaml

Symptom

When parsing the ocnadd-custom-values.yaml file, if the above mentioned error is received, it indicates that the file is not parsed because of the following reasons:

The tree structure may not have been followed.
There may be a tab space in the file.

Solution

Download the latest OCNADD custom templates zip file from MoS. For more information, see Oracle Communications Network Analytics Data Director Installation, Upgrade, and Fault Recovery Guide.

2.2.7 Kafka Brokers Continuously Restart after Reinstallation

Problem

When re-installing OCNADD in the same namespace without deleting the PVC that was used for the first installation, Kafka brokers will go into crashloopbackoff status and keep restarting.

Error Code or Error Message

When you run, kubectl get pods -n <ocnadd_namespace> the broker pod's status might be Error/crashloopbackoff and it might keep restarting continuously, with "no disk space left on the device" errors in the pod logs.

Solution

Delete the Stateful set (STS) deployments of the brokers. Run kubectl get sts -n <ocnadd_namespace> to obtain the Stateful sets in the namespace.
Delete the STS deployments of the services with disk full issue. For example run the command kubectl delete sts -n <ocnadd_namespace> kafka-broker1 kafka-broker2.
Delete the PVCs in the namespace, which is used by kafka-brokers. Run kubectl get pvc -n <ocnadd_namespace> to get the PVCs in that namespace.
The number of PVCs used is based on the number of brokers deployed. Therefore, select the PVCs that have the name kafka-broker or zookeeper, and delete them. To delete the PVCs, run kubectl delete pvc -n <ocnadd_namespace> <pvcname1> <pvcname2>.

For example:

For a three broker setup in the namespace ocnadd-deploy, delete the following PVCs:

kubectl delete pvc -n ocnadd-deploy broker1-pvc-kafka-broker1-0, broker2-pvc-kafka-broker2-0, broker3-pvc-kafka-broker3-0, kafka-broker-security-zookeeper-0, kafka-broker-security-zookeeper-1 kafka-broker-security-zookeeper-2

2.2.8 Kafka Brokers Continuously Restart After the Disk is Full

Problem

This issue occurs when the disk space is full on the broker or zookeeper.

Error Code or Error Message

When you run kubectl get pods -n <ocnadd_namespace>, the broker pod's status might be error, or crashloopbackoff and it might keep restarting continuously.

Solution

Delete the STS(stateful set) deployments of the brokers:
1. Get the STS in the namespace with the following command:
```
kubectl get sts -n <ocnadd_namespace>
```
2. Delete the STS deployments of the services with disk full issue:
```
kubectl delete sts -n <ocnadd_namespace> <sts1> <sts2>
```
  For example, for three broker setup:
```
kubectl delete sts -n ocnadd-deploy kafka-broker1 kafka-broker2 kafka-broker3 zookeeper
```
Delete the PVCs in that namespace that is used by the removed kafka-brokers. To get the PVCs in that namespace:
```
kubectl get pvc -n <ocnadd_namespace>
```
The number of PVCs used will be based on the number of brokers you deploy. Select the PVCs that have the name kafka-broker or zookeeper and delete them.
1. To delete PVCs, run:
```
kubectl delete pvc -n <ocnadd_namespace> <pvcname1> <pvcname2>
```
  For example, for a three broker setup in namespace ocnadd-deploy, you must delete these PVCs;

  kubectl delete pvc -n ocnadd-deploy broker1-pvc-kafka-broker1-0 broker2-pvc-kafka-broker2-0 broker3-pvc-kafka-broker3-0 kafka-broker-security-zookeeper-0 kafka-broker-security-zookeeper-1 kafka-broker-security-zookeeper-2
Once the STS and PVC's are deleted for the services, edit the respective broker's values.yaml to increase the PV size of the brokers at the location: <chartpath>/charts/ocnaddkafka/values.yaml.
If any formatting or indentation issues occur while editing, refer to the files in
```
 <chartpath>/charts/ocnaddkafka/default
```
To increase the storage, edit the fields pvcClaimSize for each broker. For recommendation of PVC storage, see Oracle Communications Network Analytics Data Director Benchmarking Guide.

Upgrade the Helm chart after increasing the PV size

helm upgrade <release-name> <chartpath> -n <namespace>

Create the required topics.

2.2.9 Kafka Brokers Restart on Installation

Problem

Kafka brokers re-start during OCNADD installation.

Error Code or Error Message

The output of the command kubectl get pods -n <ocnadd_namespace> displays the broker pod's status as restarted.

Solution

The Kafka Brokers wait for a maximum of 3 minutes for the Zookeepers to come online before they are started. If the Zookeeper cluster does not come online within the given interval, the broker will start before the Zookeeper and will error out as it does not have access to the Zookeeper.This may Zookeeper may start after the 3 interval as the node may take more time to pull the images due to network issues.Therefore, when the zookeeper does not come online within the given time this issue may be observed.

2.2.10 Database Goes into the Deadlock State

Problem

MySQL locks get struck.

Error Code or Error Message

ERROR 1213 (40001): Deadlock found when trying to get lock; try restarting the transaction.

Symptom

Unable to access MySQL.

Solution

Perform the following steps to remove the deadlock:

Run the following command on each SQL node:

SELECT
CONCAT('KILL ', id, ';')
FROM INFORMATION_SCHEMA.PROCESSLIST
WHERE `User` = <DbUsername>
AND `db` = <DbName>;

This command retrieves the list of commands to kill each connection.

Example:

select
 CONCAT('KILL ', id, ';')
 FROM INFORMATION_SCHEMA.PROCESSLIST
 where `User` = 'ocnadduser'
      AND `db` = 'ocnadddb';
+--------------------------+
| CONCAT('KILL ', id, ';') |
+--------------------------+
| KILL 204491;             |
| KILL 200332;             |
| KILL 202845;             |
+--------------------------+
3 rows in set (0.00 sec)

Run the kill command on each SQL node.

2.2.11 Readiness Probe Failure

The helm install might fail due to the readiness probe URL failure.

If this error appears, check for the readiness probe URL correctness in the particular microservice Helm charts under the charts folder.

Low Resources

Helm install might fail due to low resources in the cluster.

In this case, check the CPU and memory availability in the Kubernetes cluster.

2.2.12 Synthetic Feed Unable to Forward Packets After Rollback to 23.1.0

Scenario

Synthetic data feeds are created in release 23.1.0 and verified with end-to-end traffic flow.
User performs an upgrade to release 23.2.0. Synthetic data feeds created in release 23.1.0 are working as expected.
User has to perform a rollback to release 23.1.0 due to some unrecoverable error.
The thread configuration of the TCP synthetic data feed is modified resulting in traffic failure to the third party consumers.

Error Code or Error Message

The following error message is observed in the synthetic adapter logs:

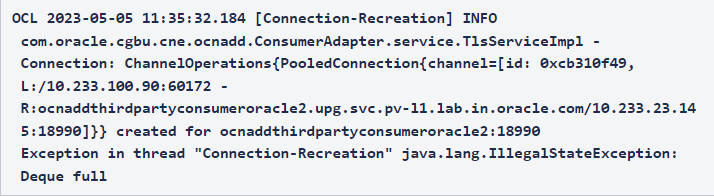

Figure 2-2 Error Message

Solution

Delete the existing synthetic data feed.
Create new synthetic feed with the same name and attributes, "Connection Failure setting" set to "Resume from point of failure".
Verify the end-to-end traffic flow between OCNADD and the corresponding third party application.

2.2.13 Rollback in Pending State due to Database Job Failure

Problem

After two successful upgrades (23.1.0 to 23.2.0 and 23.2.0 to 23.2.0) and one successful rollback (23.2.0 to 23.2.0), the second rollback is failing due to DB job failure. The rollback enters a pending rollback state.

Error Code or Error Message

The following error message is displayed:

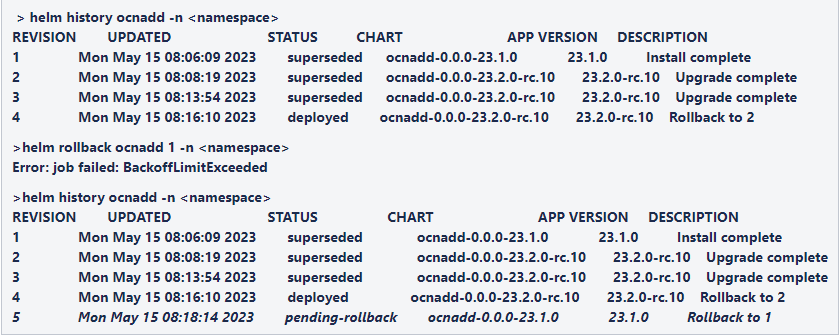

Figure 2-3 Error Message

Note:

It is observed that a rollback from revision 5 to revision 1 is successful, but the Zookeeper and Kafka enter CrashLoopBackOff state.

Solution

Do not perform further rollbacks if any rollback procedure is in "pending-rollback" state.
Run the following command to list the secrets and find the pending rollback secret:
```
> kubectl get secrets -n  <namespace>
```
Sample output:
sh.helm.release.v1.ocnadd.v1 helm.sh/release.v1 1 13m sh.helm.release.v1.ocnadd.v2 helm.sh/release.v1 1 11m sh.helm.release.v1.ocnadd.v3 helm.sh/release.v1 1 5m33s sh.helm.release.v1.ocnadd.v4 helm.sh/release.v1 1 3m18s sh.helm.release.v1.ocnadd.v5 helm.sh/release.v1 1 74s

Delete the pending-rollback secret, run the following command:

>  kubectl delete <release revision secrets> -n <namespace>

Example:

kubectl delete secrets sh.helm.release.v1.ocnadd.v5 -n dd-vin

Restore the database backup taken prior to upgrade. For more information, see the procedure to "Create OCNADD Restore Job" in the Oracle Communications Network Analytics Data Director Installation, Upgrade,and Fault Recovery Guide.
Perform a rollback to 23.1.0 by running the following command:
```
> helm rollback <release name> <revision number> -n <namespace> --no-hooks
```
Example:
helm rollback ocnadd 1 -n dd-vin --no-hooks
Verify if the end-to-end traffic is running between the OCNADD and the corresponding third party application.

2.2.14 Upgrade to 23.2.0 Fails due to Unsupported Changes

Problem

Upgrade from 23.1.0 to 23.2.0 fails due to unsupported changes in 23.2.0 (for example, when upgrade database job is successful, but upgrade fails due to an error).

Note:

This issue is not common. Occasionally, customers are unable to sync up target charts. In such cases, adopt the following procedure as a workaround.

Error Message

If there is a PVC size mismatch between 23.1.0 and 23.2.0, the following error message is displayed:

Figure 2-4 Error Message

Run the following command:

-> helm history <release-name> -n <namespace>

Sample output:

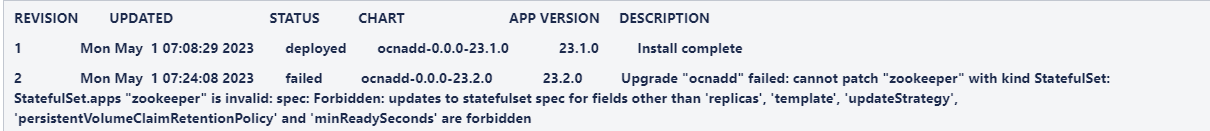

Figure 2-5 Sample Output

Solution

Perform the following steps:

Correct the Helm charts, synchronize the 23.2.0 Helm charts with the 23.1.0 Helm charts.
Perform an upgrade. For more information about the upgrade procedure, see "Upgrading OCNADD" in the Oracle Communications Network Analytics Data Director Installation, Upgrade, and Fault Recovery Guide.

2.2.15 Upgrade Fails Due to Helm Hook Upgrade Database Job

Problem

Upgrade from 23.1.0 to 23.2.0 fails due to Helm hook upgrade database job in 23.2.0 (upgrade job fails).

Error Code or Error Message

Figure 2-6 Error Message

Run the following command:

-> helm history <release-name> -n <namespace>

Sample Output:

REVISION UPDATED STATUS CHART APP VERSION DESCRIPTION 1 Mon May 1 07:08:29 2023 deployed ocnadd-0.0.0-23.1.0 23.1.0 Install complete 2 Mon May 1 07:24:08 2023 failed ocnadd-0.0.0-23.2.0 23.2.0 Upgrade "ocnadd" failed: pre-upgrade hooks failed: job failed: BackoffLimitExceeded

Solution

Rollback to 23.1.0, correct the error and run upgrade again.

Run the Helm rollback command:

helm rollback <helm release name> <revision number> -n <namespace> --no-hooks

Restore the Database backup taken before upgrade. For more information see, the procedure "Create OCNADD Restore Job" in the "Fault Recovery" section in the Oracle Communications Network Analytics Data Director Installation, Upgrade, and Fault Recovery Guide.
Correct the upgrade issue and run a fresh upgrade. For more information, see "Upgrading OCNADD" in the Oracle Communications Network Analytics Data Director Installation, Upgrade, and Fault Recovery Guide.

2.2.16 Configuration Service Displays Error Logs

Problem

On restarting ocnaddconfiguration and adapter or aggregation pods, notifications are reaching the adapter or aggregation pods, but error logs present in Configuration Service. This is observed if the old pods IP entry is not deleted from the database.

Note:

Ensure that configuration and aggregation or adapter pods are not deleted simultaneously.

Error Code or Error Message

Configuration Service Error Log

Error has been observed at the following site(s): *__checkpoint ? Request to POST http://10.233.122.199:9182/ocnadd-consumeradapter/v2/notifications [DefaultWebClient] Original Stack Trace: at org.springframework.web.reactive.function.client.ExchangeFunctions$DefaultExchangeFunction.lambda$wrapException$9(ExchangeFunctions.java:136) ~[spring-webflux-6.0.7.jar!/:6.0.7] at reactor.core.publisher.MonoErrorSupplied.subscribe(MonoErrorSupplied.java:55) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.Mono.subscribe(Mono.java:4485) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onError(FluxOnErrorResume.java:103) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxPeek$PeekSubscriber.onError(FluxPeek.java:222) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxPeek$PeekSubscriber.onError(FluxPeek.java:222) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxPeek$PeekSubscriber.onError(FluxPeek.java:222) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoNext$NextSubscriber.onError(MonoNext.java:93) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoFlatMapMany$FlatMapManyMain.onError(MonoFlatMapMany.java:204) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.SerializedSubscriber.onError(SerializedSubscriber.java:124) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxRetryWhen$RetryWhenMainSubscriber.whenError(FluxRetryWhen.java:225) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxRetryWhen$RetryWhenOtherSubscriber.onError(FluxRetryWhen.java:274) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxContextWrite$ContextWriteSubscriber.onError(FluxContextWrite.java:121) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxConcatMapNoPrefetch$FluxConcatMapNoPrefetchSubscriber.maybeOnError(FluxConcatMapNoPrefetch.java:326) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxConcatMapNoPrefetch$FluxConcatMapNoPrefetchSubscriber.onNext(FluxConcatMapNoPrefetch.java:211) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxContextWrite$ContextWriteSubscriber.onNext(FluxContextWrite.java:107) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.SinkManyEmitterProcessor.drain(SinkManyEmitterProcessor.java:471) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.SinkManyEmitterProcessor$EmitterInner.drainParent(SinkManyEmitterProcessor.java:615) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxPublish$PubSubInner.request(FluxPublish.java:602) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxContextWrite$ContextWriteSubscriber.request(FluxContextWrite.java:136) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxConcatMapNoPrefetch$FluxConcatMapNoPrefetchSubscriber.request(FluxConcatMapNoPrefetch.java:336) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxContextWrite$ContextWriteSubscriber.request(FluxContextWrite.java:136) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.Operators$DeferredSubscription.request(Operators.java:1717) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxRetryWhen$RetryWhenMainSubscriber.onError(FluxRetryWhen.java:192) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoCreate$DefaultMonoSink.error(MonoCreate.java:201) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.netty.http.client.HttpClientConnect$MonoHttpConnect$ClientTransportSubscriber.onError(HttpClientConnect.java:311) ~[reactor-netty-http-1.1.5.jar!/:1.1.5] at reactor.core.publisher.MonoCreate$DefaultMonoSink.error(MonoCreate.java:201) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.netty.http.client.Http2ConnectionProvider$DisposableAcquire.onError(Http2ConnectionProvider.java:281) ~[reactor-netty-http-1.1.5.jar!/:1.1.5] at reactor.netty.http.client.Http2Pool$Borrower.fail(Http2Pool.java:813) ~[reactor-netty-http-1.1.5.jar!/:1.1.5] at reactor.netty.http.client.Http2Pool.lambda$drainLoop$2(Http2Pool.java:443) ~[reactor-netty-http-1.1.5.jar!/:1.1.5] at reactor.core.publisher.FluxDoOnEach$DoOnEachSubscriber.onError(FluxDoOnEach.java:186) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxMap$MapConditionalSubscriber.onError(FluxMap.java:265) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoCreate$DefaultMonoSink.error(MonoCreate.java:201) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.netty.resources.DefaultPooledConnectionProvider$DisposableAcquire.onError(DefaultPooledConnectionProvider.java:162) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at reactor.netty.internal.shaded.reactor.pool.AbstractPool$Borrower.fail(AbstractPool.java:475) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at reactor.netty.internal.shaded.reactor.pool.SimpleDequePool.lambda$drainLoop$9(SimpleDequePool.java:429) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at reactor.core.publisher.FluxDoOnEach$DoOnEachSubscriber.onError(FluxDoOnEach.java:186) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoCreate$DefaultMonoSink.error(MonoCreate.java:201) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.netty.resources.DefaultPooledConnectionProvider$PooledConnectionAllocator$PooledConnectionInitializer.onError(DefaultPooledConnectionProvider.java:560) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at reactor.core.publisher.MonoFlatMap$FlatMapMain.secondError(MonoFlatMap.java:241) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoFlatMap$FlatMapInner.onError(MonoFlatMap.java:315) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onError(FluxOnErrorResume.java:106) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.Operators.error(Operators.java:198) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.MonoError.subscribe(MonoError.java:53) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.Mono.subscribe(Mono.java:4485) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.core.publisher.FluxOnErrorResume$ResumeSubscriber.onError(FluxOnErrorResume.java:103) ~[reactor-core-3.5.4.jar!/:3.5.4] at reactor.netty.transport.TransportConnector$MonoChannelPromise.tryFailure(TransportConnector.java:587) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at reactor.netty.transport.TransportConnector$MonoChannelPromise.setFailure(TransportConnector.java:541) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at reactor.netty.transport.TransportConnector.lambda$doConnect$7(TransportConnector.java:265) ~[reactor-netty-core-1.1.5.jar!/:1.1.5] at io.netty.util.concurrent.DefaultPromise.notifyListener0(DefaultPromise.java:590) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.DefaultPromise.notifyListeners0(DefaultPromise.java:583) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.DefaultPromise.notifyListenersNow(DefaultPromise.java:559) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.DefaultPromise.notifyListeners(DefaultPromise.java:492) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.DefaultPromise.setValue0(DefaultPromise.java:636) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.DefaultPromise.setFailure0(DefaultPromise.java:629) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.DefaultPromise.tryFailure(DefaultPromise.java:118) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe$1.run(AbstractNioChannel.java:262) ~[netty-transport-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.PromiseTask.runTask(PromiseTask.java:98) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.ScheduledFutureTask.run(ScheduledFutureTask.java:153) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.AbstractEventExecutor.runTask(AbstractEventExecutor.java:174) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.AbstractEventExecutor.safeExecute(AbstractEventExecutor.java:167) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.SingleThreadEventExecutor.runAllTasks(SingleThreadEventExecutor.java:470) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:569) ~[netty-transport-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:997) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at java.lang.Thread.run(Thread.java:833) ~[?:?] Caused by: io.netty.channel.ConnectTimeoutException: connection timed out: /10.233.122.199:9182 at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe$1.run(AbstractNioChannel.java:261) ~[netty-transport-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.PromiseTask.runTask(PromiseTask.java:98) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.ScheduledFutureTask.run(ScheduledFutureTask.java:153) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.AbstractEventExecutor.runTask(AbstractEventExecutor.java:174) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.AbstractEventExecutor.safeExecute(AbstractEventExecutor.java:167) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.SingleThreadEventExecutor.runAllTasks(SingleThreadEventExecutor.java:470) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:569) ~[netty-transport-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:997) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30) ~[netty-common-4.1.90.Final.jar!/:4.1.90.Final] at java.lang.Thread.run(Thread.java:833) ~[?:?]

Solution

Ensure the restart sequence is maintained:

Restart the adapter pods once they are running, then restart configuration pod.
If the previous step is unsuccessful, restart the configuration service again.
If issue persists, then it is a known issue and can be ignored as the error logs are not impacting the call flow.

2.2.17 Webhook Failure During Installation or Upgrade

Problem

Installation or upgrade unsuccessful due to webhook failure.

Error Code or Error Message

Sample error log:

Error: INSTALLATION FAILED: Internal error occurred: failed calling webhook "prometheusrulemutate.monitoring.coreos.com": failed to call webhook: Post "https://occne-kube-prom-stack-kube-operator.occne-infra.svc:443/admission-prometheusrules/mutate?timeout=10s": context deadline exceeded

Solution

Retry installation or upgrade using Helm.
