A Mounting Diagram

Use the dimensions in the following diagram to help you permanently mounting your Cloud Connector to a surface.

When mounting your Cloud Connector:
  • Leave adequate room around the front panel for access to the SIMs, viewing the LEDs, and routing Ethernet cables to the chassis.
  • Leave adequate room on the rear panel for the antennas to remain extended.

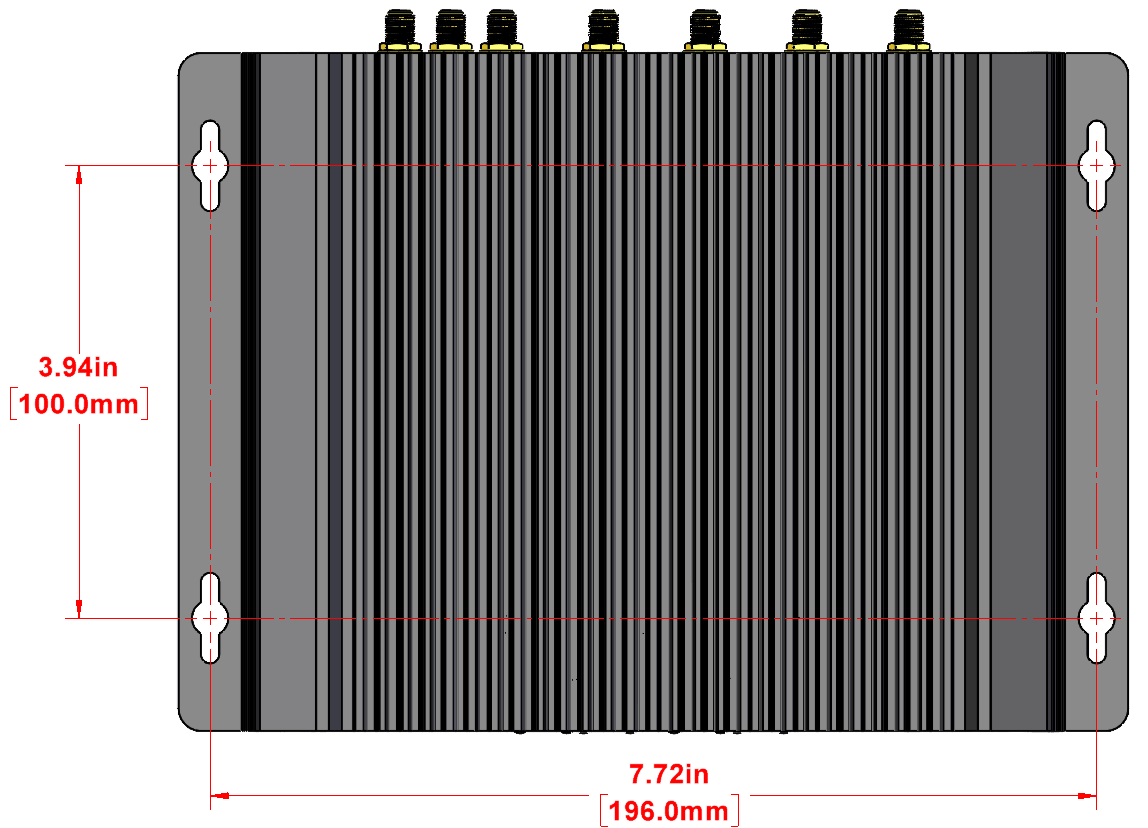

Figure A-1 Overhead Cloud Connector Mounting Dimensions


This image describes dimensions and mounting points for the cloud connector when affixed to a permanent surface.
