Media Spirals

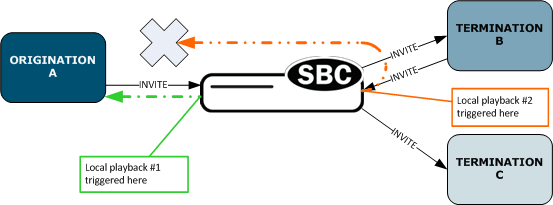

Certain call flows cause media to traverse the Enterprise SBC multiple times, resulting in media spirals. For local playback, this means that multiple playback files can be triggered to play. In situations like this, the Enterprise SBC uses the playback closest to the endpoint receiving the media playback. Origination A in the diagram below is played Local playback #1, even though the scenario also triggers Local playback #2.
