3 Secure Development Practices

Given below are the practices followed for a secure development environment:

3.1 Vulnerability Handling

For details about the vulnerability handling, refer Oracle Critical Patch Update Program. The primary mechanism to backport fixes for security vulnerabilities in Oracle products is quarterly Critical Patch Update (CPU) program.

In general, OCNADD Software is on a quarterly release cycle, with each release providing feature updates and fixes and updates to relevant third party software. These quarterly releases provide cumulative patch updates.

3.2 Trust Model for OCNADD

The following Trust Model depicts the reference trust model (regardless of the target environment). The model describes the critical access points and controls site deployment.

3.2.1 Context Diagram

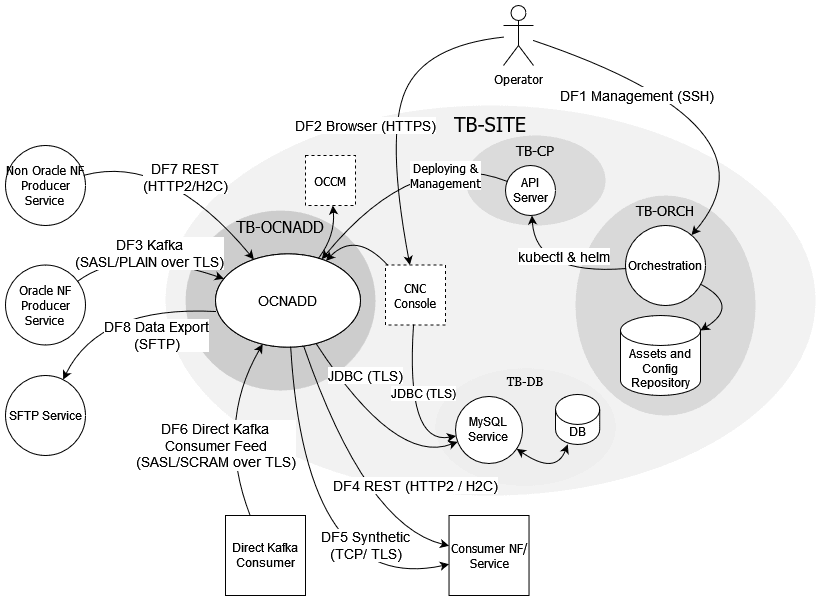

Non-Centralized Deployment


Non-Centralized Deployment

Centralized Deployment


Centralized Deployment

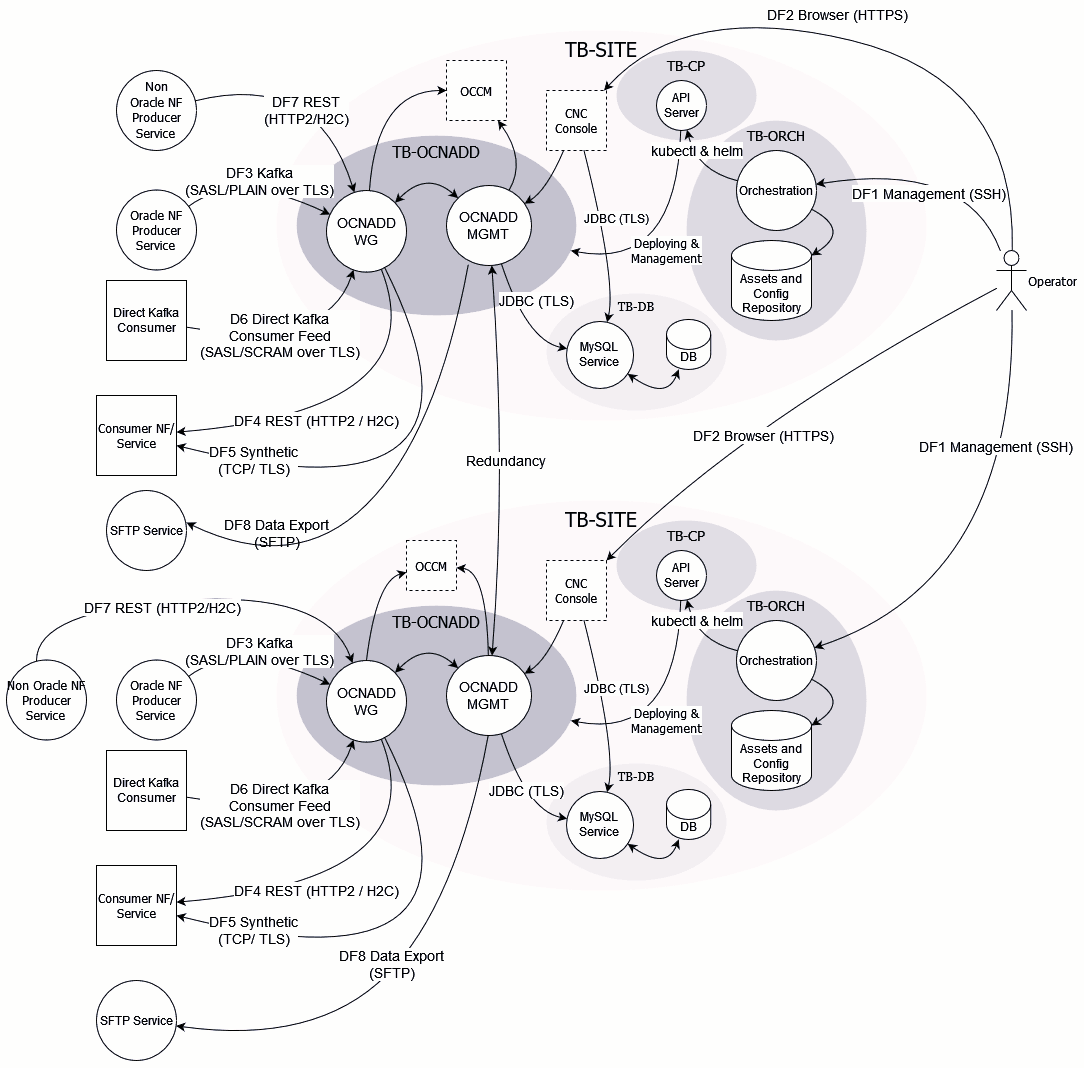

Two-Site Redundancy


Two Site Redundancy

3.2.2 Key Trust Boundaries

Following are the key trust boundaries:

Table 3-1 Key Trust Boundaries

Trust Boundary Access Control
OCNADD Kubernetes Namespace for OCNADD where its internal micro-services are deployed.
Site Where the Kubernetes cluster is deployed.
Control Plane

This trust boundary delineates the control plane elements of the clusters, that is, API Server, kubelet, containerd and etcd.

The configuration database (ETCD service) is isolated so that only control plane services can access it.

Database MySQL service deployed in a separate Kubernetes namespace.
CNE Infra Namespace containing all the infrastructure related services (like Prometheus). Provided by CNE.
Orchestration Includes the orchestration server and the Code and Image Repository.

3.2.3 External Data Flows

The following table describes external data flows of OCNADD:

Table 3-2 External Data Flows

Data Flow Protocol Description
DF1: Management SSH Operator will login to the orchestration server through SSH for deploying OCNADD and/or managing the OCNADD Kubernetes deployment using helm.
DF2: Browser HTTPS

Operator uses CNC Console to create, manage feed configuration and monitor OCNADD.

CNC Console is accessed through the browser and the Operator is authenticated with username and password before access is granted.

DF3: Kafka SASL_SSL

Oracle NFs write the 5G SBI data or messages into the Kafka exposed by OCNADD in the respective topics. OCNADD will then process according to the feed configurations.

The communications are encrypted using TLS and Oracle NF will authenticate themselves to Kafka through SASL/PLAIN (username and password).

DF4: Consumer NF HTTP2(w/TLS) OCNADD forwards the message feed to respective consumer NF/s as HTTP2 (over TLS) or H2C (HTTP2 clear text) messages according to the feed configurations.

The traffic segregation is provided using CNLB egress NAD support. The CNLB support has to be enabled in the helm charts for the egress traffic separation in the consumer adapter and corresponding feed configuration should be done. The CNLB route the packets using the layer3/layer4 information from the defined network attachment definition(NAD).

DF5: Consumer NF (Synthetic Packet) TCP OCNADD forwards the Synthetic Packet to respective consumer NF/s as TCP or TCP_SECURED messages based on the feed configuration.
DF6: Direct Kafka Consumer Feed Kafka (SASL/SCRAM over TLS) External Kafka consumer can read data directly from authorized Kafka topic. Consumers are authenticated using SASL/SCRAM (SCRAM-256 and/or SCRAM-512). All communications will be encrypted with TLS.
DF7: REST HTTP2 Non Oracle NF forwards the messages to OCNAD ingress adapter service using HTTP2 (over TLS) or H2C (HTTP2 clear text) according to the ingress feed configuration.

The traffic segregation is provided using CNLB ingress NAD support. The CNLB support has to be enabled in the helm charts for the ingress traffic separation in the ingress adapter and corresponding feed configuration should be done. The CNLB route the packets using the layer3/layer4 information from the defined network attachment definition (NAD).

DF8: Data Export SFTP OCNADD send the exported records to the external third party server using secure file transport service based on the data export configuration.
