Event ACRs Generated for Receipt of SIP Messages
An Event ACR is issued when the following SIP messages are received:
- 200 OK message for a SIP Register from the IMS core.
- SIP Final/Redirection Response 3xx
- SIP Final Response (4xx, 5xx or 6xx) — this indicates an unsuccessful session-unrelated procedure.
- SIP Final Response (4xx, 5xx or 6xx) — this indicates an unsuccessful SIP session set-up.

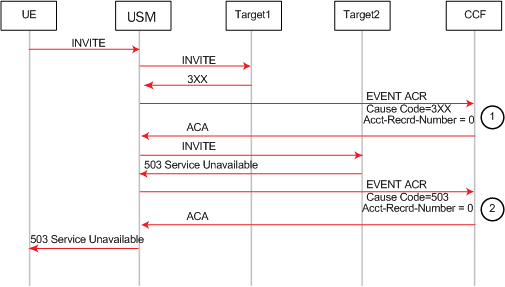

This example call flow shows an Event ACR that is created due to the reception of a 3xx SIP message. In this example the call fails after being redirected.
![The 3xx SIP message receipt Event ACR is described above. The 3xx SIP message receipt Event ACR is described above.](img/account-config-generate-startok-call-flow-example-1-call-failure-redirect.png)
Event ACR Created Upon Reception of a 3xx Message Followed by Call Failure After Redirect

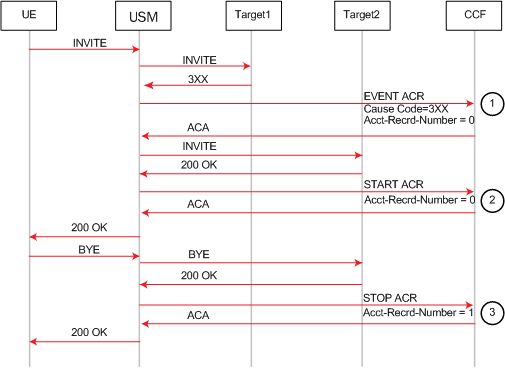

This example call flow shows an Event ACR that is created due to the reception of a 3xx SIP message. Then it shows a Start ACR upon reception of a 200OK. In this example the call succeeds after being redirected. The generate-start is OK.
![The 3XX SIP receipt Start ACR event ACR is described above. The 3XX SIP receipt Start ACR event ACR is described above.](img/account-config-generate-startok-call-flow-example-2-success-redirect.png)
Event ACR Created Upon Reception of a 3xx Message Followed by Call Success After Redirect

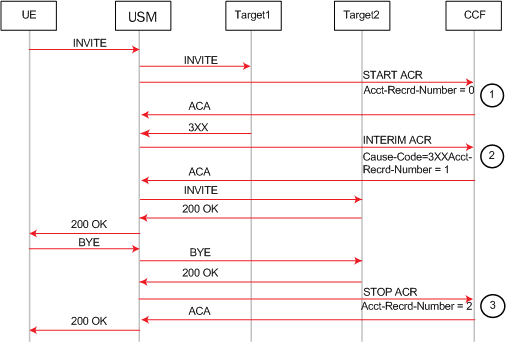

This example call flow shows a Start ACR being sent when an Invite is received and an Interim ACR that is created due to the reception of a 3xx SIP message. In this example the call succeeds after being redirected. The generate-start is Invite.
![The Start ACR Interim ACR call flow is described above. The Start ACR Interim ACR call flow is described above.](img/account-config-generate-startinvite-example-1-success-redirect.png)
