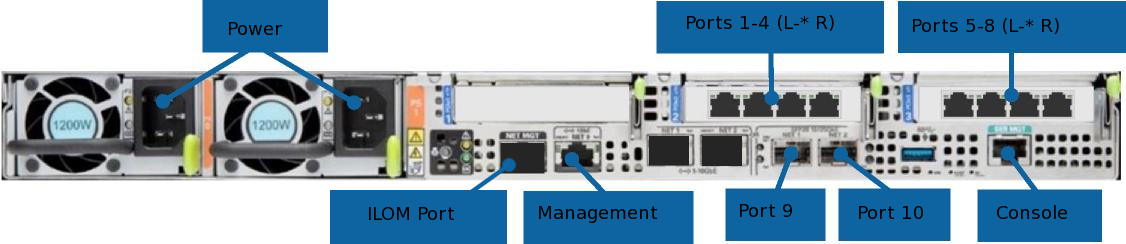

Rear Panel Configuration

Table 1-1 Ports

1	Gigabit Ethernet (Bypass pair with Port 2)
2	Gigabit Ethernet (Bypass pair with Port 1)
3	Gigabit Ethernet (Bypass pair with Port 4)
4	Gigabit Ethernet (Bypass pair with Port 3)
5	Gigabit Ethernet (Bypass pair with Port 6)
6	Gigabit Ethernet (Bypass pair with Port 5)
7	Gigabit Ethernet (Bypass pair with Port 8)
8	Gigabit Ethernet (Bypass pair with Port 7)
MGT	Dedicated network management port
9	1/10 Gigabit SFP+ (non-bypass)
10	1/10 Gigabit SFP+ (non-bypass)
Console	RJ45 console port (9600/8-N-1). Used for service and maintenance.
