CPI, SPI, and Labor Units Dashboard

Description: .

Number of Canvases: 1

Default Canvas: Canvas 1

Canvas/Dashboard Name: CPI, SPI, and Labor Units

Data Source(s): P6 - EPPM

Subject Area: P6 – Activity

Datasets: Not applicable

Dashboard

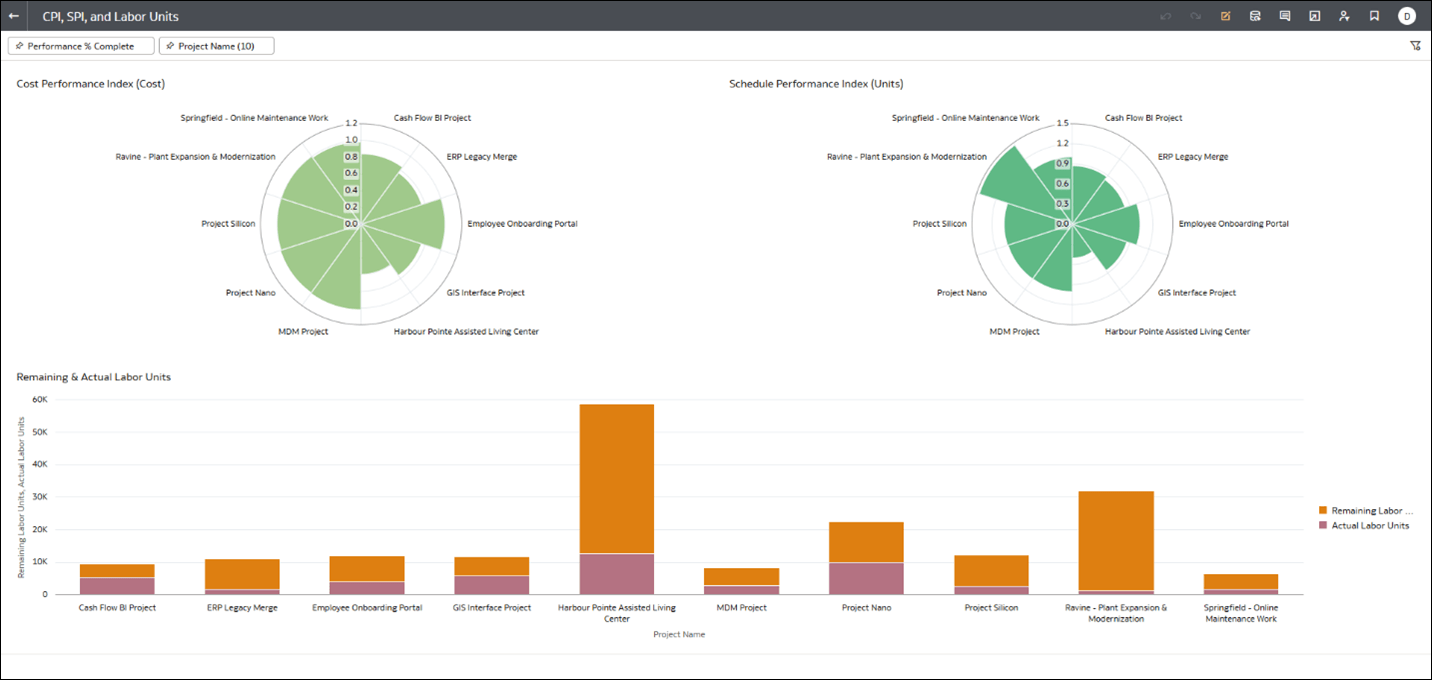

Figure 4-11 CPI, SPI, and Labor Units

Table 34: Shutdown / Turnaround / Outage - Dimensions

Canvas	Dimension / Attribute	Subject Area / Dataset
All Canvas	Project Name	P6 – Activity

Table 35: Shutdown / Turnaround / Outage – Measures

Canvas	Fact / Measure	Measure Type	Subject Area / Dataset
All Canvas	Cost Performance Index (Cost)	Fact	P6 – Activity
	Schedule Performance Index (Units)	Fact	P6 – Activity
	Actual Labor Units	Fact	P6 – Activity
	Remaining Labor Units	Fact	P6 – Activity

Table 36: Shutdown / Turnaround / Outage – Filters

Canvas	Filter Type	Is Expression Filter	Dimension / Attribute / Measure	Subject Area / Dataset
All Canvas	Dashboard	No	Performance % Complete	P6 – Activity
All Canvas	Dashboard	No	Project Name	P6 – Activity
