ActivityAssets Table

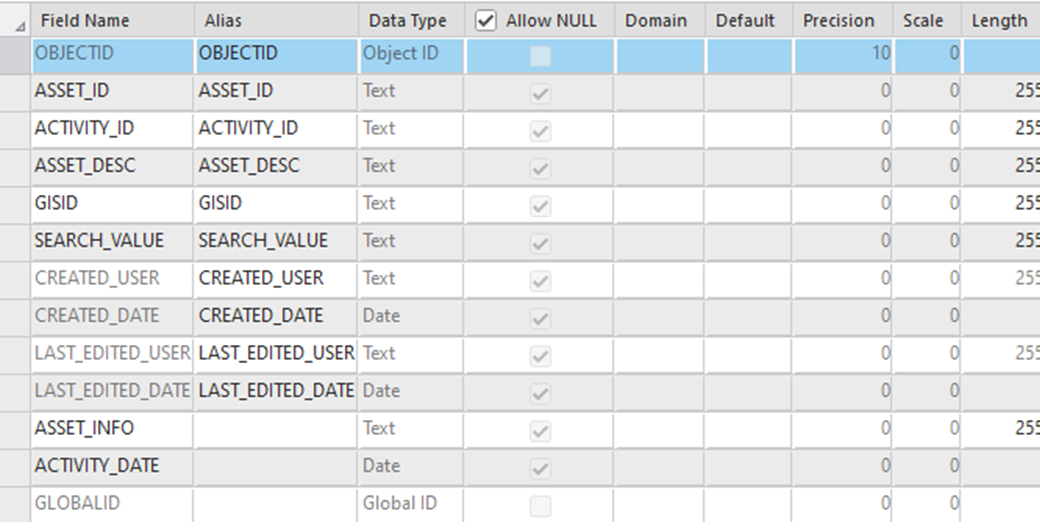

The schema of the ActivityAssets table is as follows:
The following table represents the ActivityAssets details:
Field Name
Description
Data Type
OBJECTID
Object Id
Object ID
GLOBALID
Global Id
Global Id
ASSET_ID
When integrated with WACS as part of WACS-OFS integration, this field represents the WACS asset ID.
Text
ACTIVITY_ID
OFS Activity ID
Text
ASSET_DESC
When integrated with WACS as part of WACS-OFS integration, this field represents the WACS asset description.
Text
GISID
When integrated with WACS as part of WACS-OFS integration, this field represents GISID of the asset which is ArcGIS Global ID of the Asset.
Text
SEARCH_VALUE
Obtained value of the attribute configured on layer level search.
Text
ASSET_INFO
When integrated with WACS as part of WACS-OFS integration, this field represents the asset information of the asset.
Text
ACTIVITY_DATE
Date the OFS activity was assigned.
Text
CREATED_USER
ArcGIS editor field. It represents the ArcGIS user that created this feature record. It will be empty when created through OIC flow.
Text
CREATED_DATE
ArcGIS editor field. It represents the date when the feature record was created in feature class.
Date
LAST_EDITED_USER
ArcGIS editor field. It represents the ArcGIS user that updates the feature record. It will be empty when updated through OIC flow.
Text
LAST_EDITED_DATE
ArcGIS editor field. It represents the date when the feature record was updated in feature class.
Date
