Configuring Pop-up on Activity Feature Layers

Pop-ups in the Activities feature layer can be configured to show activities and related asset information. The related assets can be linked with a Field Maps link. This link can be configured to pass the search value to pull up a particular asset.

You can configure pop-ups in a webmap in any of the following ways:

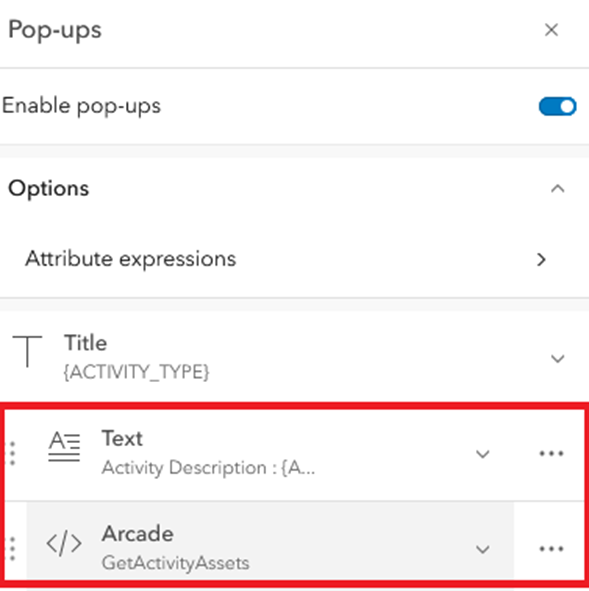

• On MapViewer for ArcGIS Online

For more information, refer to: https://doc.arcgis.com/en/arcgis-online/create-maps/configure-pop-ups-mv.htm

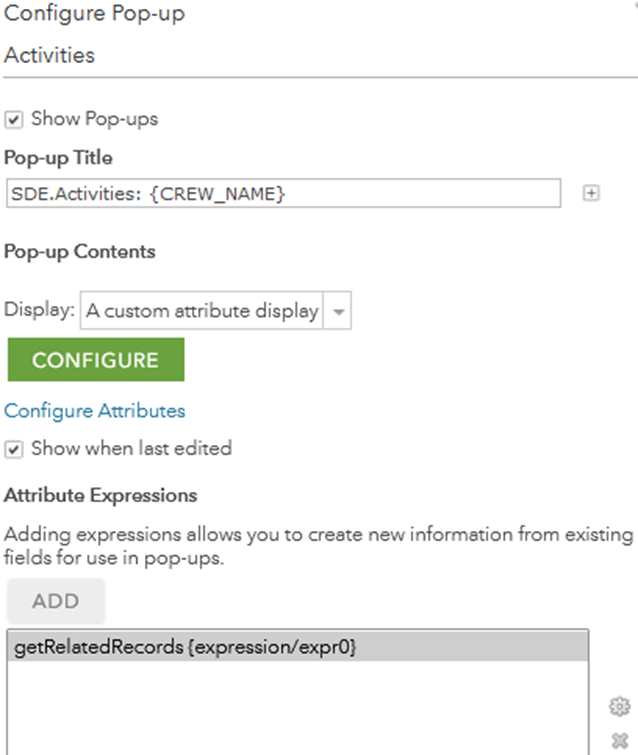

• On MapViewer Classic for Portal for ArcGIS

For more information, refer to: https://enterprise.arcgis.com/en/portal/10.9.1/use/configure-pop-ups.htm

Note: The portal for ArcGIS Enterprise 10.9.1 MapViewer does not support many of the Arcade expressions options. It is recommended to configure pop-ups using MapViewer Classic in such scenarios. Pop-up Contents can be set as “A custom attribute display”. Arcade expressions can be defined as Attribute expressions.

You can configure pop-up to show any field information.

Activity Description : {ACTIVITY_ID} , {ACTIVITY_DESC} , {REQUIRED_BY_DATE}

Asset Description :{LOCATION_INFO}

Assigned Crew Name: {CREW_NAME}

Related Assets : {expression/expr0}//This corresponds to the Arcade expression

Adding Field Information

If necessary, the field information can be displayed on the pop-up as well.

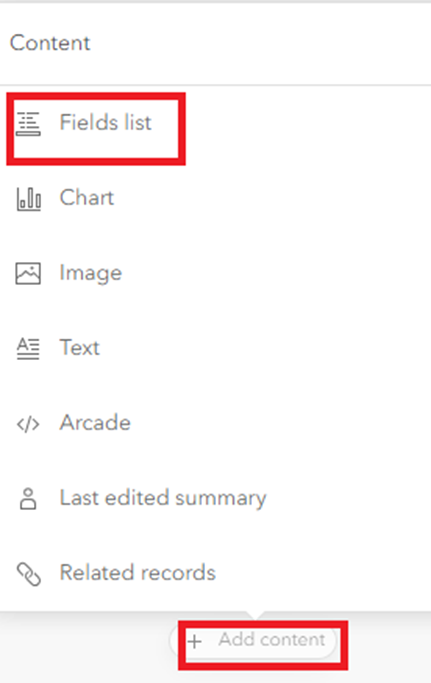

In MapViewer, to view the list of fields, add the Fields list as another content in the pop-up.

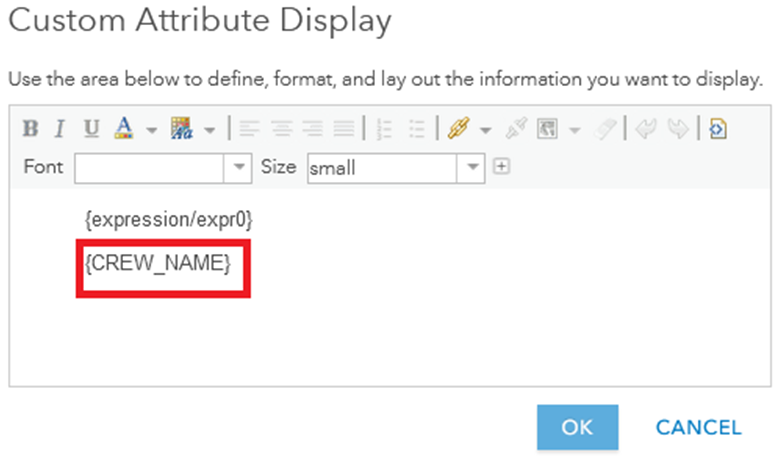

In MapViewer classic, when Popup contents is set to Custom Attributes Display, fields can be added as expression in the pop-up editor.

Arcade Expressions

Activities pop-up can be configured with Arcade expression to display and link the related Activity Assets with a Field Map search link providing the search value from the ActivityAssets related table. If a search value is not found, the asset description will not be linked.

A sample arcade expression to achieve this is shown below.

var relatedRecords = FeatureSetByRelationshipName($feature, "SDE.ActivityAssets")

var relatedInfo ="";

var infoString = "";

var recInfoString=""

var searchVal="";

var featureURL= "https://fieldmaps.arcgis.app?referenceContext=search&itemID=<enter webmap Id>&search="

for(var rec in relatedRecords)

{

relatedInfo = rec.ASSET_DESC;

searchVal = rec.SEARCH_VALUE;

recInfoString ="";

if(searchVal != null)

{

recInfoString = "<li><a href='"+featureURL+searchVal+"'>"+relatedInfo+"</a></li>";

}

else {

recInfoString = "<li>"+relatedInfo+"</li>";

}

infoString = infoString+recInfoString;

}

return {

type : 'text',

text : `<ul>${infoString}</ul>` //this property supports html tags

}

Note: MapViewer Classic in Enterprise version 10.9.1 does not support the return of dictionary object. So, infoString variable should be returned as a String. Example: return infoString;
