Focus on Viewer Selection
If you select an object in a geographic view in the Viewer and click the Focus button, the Viewer will center the object and zoom in/out as necessary. If the object is part of a substation or internal diagram view, the first Focus action will display the object in the substation or internal diagram view. Each successive click will cycle the Viewer through alternate views, if available, until it cycles back to the geographic view.
If one line feeder schematics or normal schematics are configured, the Viewer Focus button () will not include these in the set of maps it focuses on, you will need to click the Feeder One Line button () or Schematic Diagram button () to navigate to that view.
Note: Viewing schematics may not reflect the current (real-time) state of the network since the schematic views are generated by the model build process.

Example: Substation Breaker Focus
1. A substation breaker is selected.

2. Click the Focus button (); the substation internal view appears.

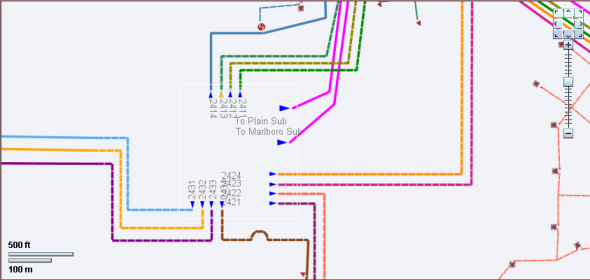

3. Click the Focus button () to return to the original network view.

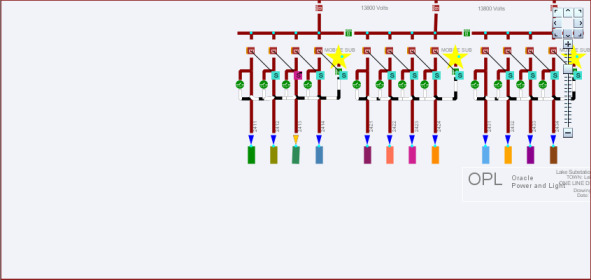

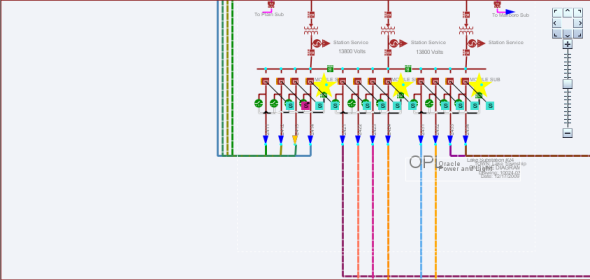

4. Click the Schematic focus button () and the station schematic view will appear, if one exists, with the device centered in the schematic view.

To return to the geographic view, click the Focus button ().
