Hardware / Software Requirements
This section provides the basic overview of the Network Management System architecture as well as the supported platforms.

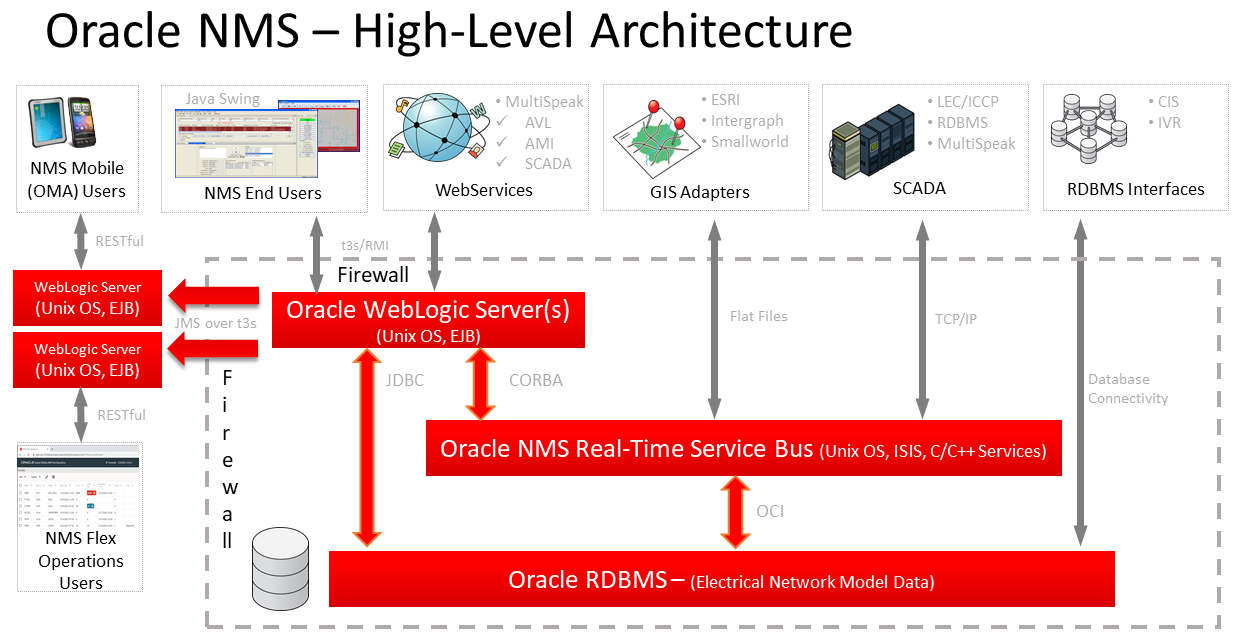

Network Management System Architecture Overview
Tier 1: Rich Java Client / Flex Operations Client
Oracle Utilities Network Management System supports the following client operating systems:
• Windows 10 (64-bit)
• Oracle Linux 8.x
• Windows Server 2019+ via Remote Desktop Services
Notes:
• Clients should have a monitor with a resolution of 1980x1080 or higher.
• Flex Operations is not supported on tablets or smartphones.
Tier 2: Java Application / Unix Services Server
Oracle Utilities Network Management System supports the following Enterprise Java Beans application server:
• Oracle WebLogic Application Server
Oracle Utilities Network Management System supports the following Unix and Linux servers:
• Oracle Solaris - current implementations only, no new implementations
• Oracle Linux (Unbreakable Enterprise kernel or Red Hat Compatible kernel)
• Red Hat Enterprise Linux
Oracle Utilities Network Management System supports the following Virtual servers:
• Oracle VM Server Virtualization and Management running the Oracle Linux operating system
Note on Oracle Support Policy on VMWare: Refer to My Oracle Support knowledge base article 249212.1 for Oracle’s support policy on VMWare.
Tier 3: Database Server
Oracle Utilities Network Management System supports the Oracle RDBMS Enterprise Edition Server.
Note: Oracle Locator, a standard component of all Oracle Database editions, is a required component of the database installation. See the Oracle Utilities Network Management System Installation Guide for details on ensuring that Oracle Locator has not been removed from your installation.
Operations Mobile Application Client Device Support
The following operating systems are supported by the Operations Mobile Application client:
• Android 10.x, 11.x
• iOS 15.x
• Windows 10 (Build 21H1)
Note: This release has been tested with the following:
• Samsung Galaxy Tab S5e SM-T720: Android 11.0
• Samsung Galaxy S10+ - SM-G975U1: Android 11.0
• iPad Pro 12.9 4th Generation MXFX2LL/A: iOS 15.2.1
• iPhone 7 MN9H2LL/A: iOS 15.3
• Lenovo ThinkPad P1 48GB GB i7: Windows 10, Version 21H1
Supported Platforms Summary
Operating System, Database, and Java Application Server Support
Oracle Utilities Network Management System supports the following platforms.
Operating Systems | Compiler Version | OS Server Architecture | Application Server | Database |
|---|---|---|---|---|
Oracle Solaris 11.4 | Oracle Developer Studio 12.6 (gcc 11.2) | SPARC 64-bit | WebLogic 12.2.1.4+ (SP4+) | Oracle 19.14+ |
Oracle Linux/ Red Hat Enterprise Linux Version 8.5+ | gcc 8.5.0 20210514 | x86 64-bit | WebLogic 12.2.1.4+ (SP4+) | Oracle 19.14+ |
Notes:
• Oracle Solaris is supported for current implementations only, no new implementations.
• Version Numbers
• Version numbers marked with a “+” are the minimum version supported. That version and all future 4th digit (2nd digit for releases beyond 12.x) updates will be supported.
Example: Oracle WebLogic 12.2.1.4+ means that 12.2.1.4 and any higher 12.2.1.x versions (for example, 12.2.1.4, 12.2.1.5, and so on) of Oracle WebLogic are supported.
• To use Oracle Utilities Network Management System with Oracle Utilities Analytics, both must be on the same version of the Oracle RDBMS.
• The Oracle WebLogic Server used by Oracle Utilities Network Management System does not need to be co-located with the Unix services and can run on any of the platforms that are supported by Oracle for that WebLogic Server version.
• The Oracle RDBMS used by Oracle Utilities Network Management System does not need to be co-located with the Unix Services and can run on any of the platforms supported by Oracle for that RDBMS version.
• Oracle Utilities Network Management System is tested and supported on the versions of Oracle Linux specified. Because Oracle Linux is 100% userspace-compatible with Red Hat Enterprise Linux, Network Management System is also supported on Red Hat Enterprise Linux for this release.
Inter-Product Compatibility to Other Oracle Utilities Product Versions
Oracle Utilities Product | Version(s) Supported |
|---|---|
Oracle Utilities Analytics | 2.8.0.0.1+ |
Oracle Utilities Customer Care and Billing | 2.8.0.0+, 2.9.0.0+ |
Oracle Utilities Customer Cloud Service | 21C, 22A |
Oracle Utilities Customer to Meter (C2M) | 2.9.0.0+ |
Oracle Field Service (OFS) | 21C, 22A |
Oracle Utilities Smart Grid Gateway | 2.4.0+, 2.5.0+ |
+ Must be at least the version listed (or later).
Third Party Products
The Bundled Third Party Products and the Required Unbundled Oracle and Third Party Products tables, which were previously included in this guide, can now be found in the Oracle Utilities Network Management System Licensing Information User Manual.
